COMPACT DESIGN. MEGA PERFORMANCE.
The compact-LED driving light space has been fearfully neglected, with offerings looking as underwhelming as their inability to sustain a compact performance. Enter the all-new STEDI QUAD Pro.
A LEGENDARY BLOODLINE.
The QUAD Pro is the continuation of the high-calibre class of the PRO bloodline. Sharing the legendary performance of the Type-X Pro and ST3303 Pro, the QUAD Pro utilises the same reflector and LED technology, to deliver an explosive performance.
CUSTOMISABLE LIKE NO OTHER
Included in the kit is a pair of STEDI blackout cover, in addition to the orange and grey colour customisation caps. The iconic STEDI Smiley covers are available to purchase separately, as are optional blue, green, red, and yellow colour caps.

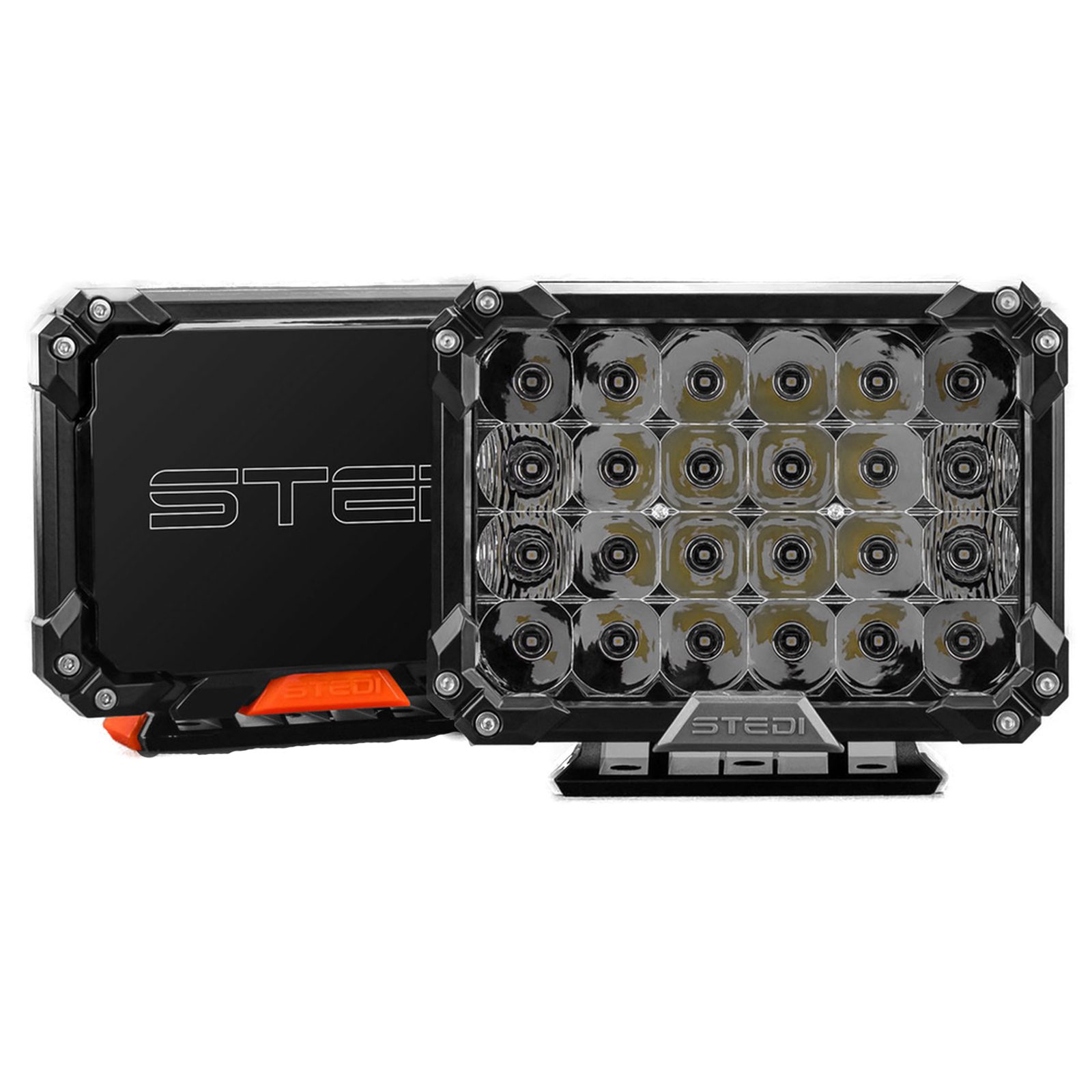

QUAD Pro LED Driving Lights
The compact housing design offers endless possibilities in terms of mounting locations. We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.
- Includes our legendary Easy-Fit plug and play high beam wiring harness
- IP68 Ingress protection means our QUADS are 100% immersible in water and dust-tight.
- 5700K Colour temperature provides just the right amount of warmth to cut-through air-born particles.

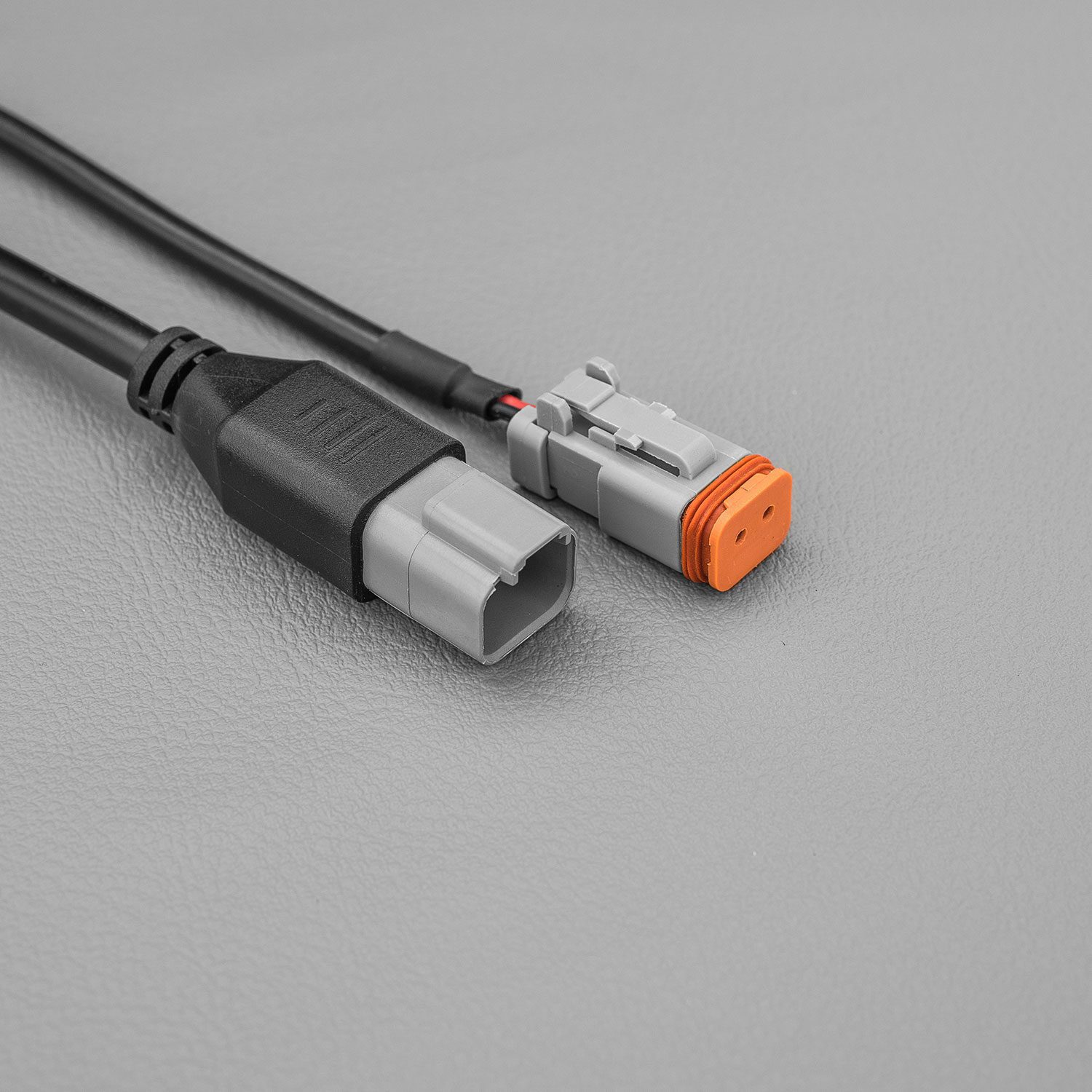

- Environmentally sealed Deutsch DT-2 connectors
- RFI and EMI suppressed circuit design, means no interference with radio or communications equipment.

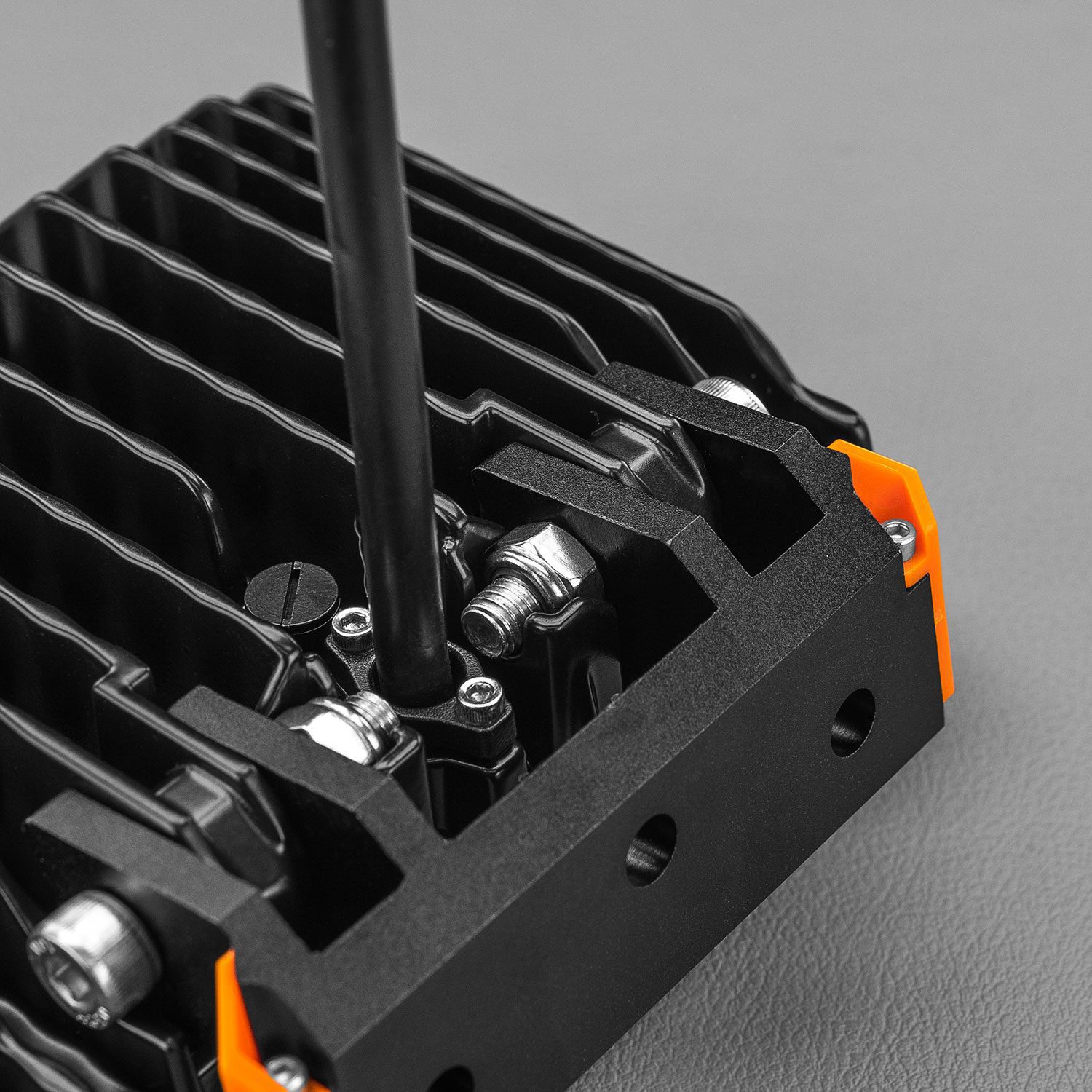

- High-Pressure Die-Cast Bracket

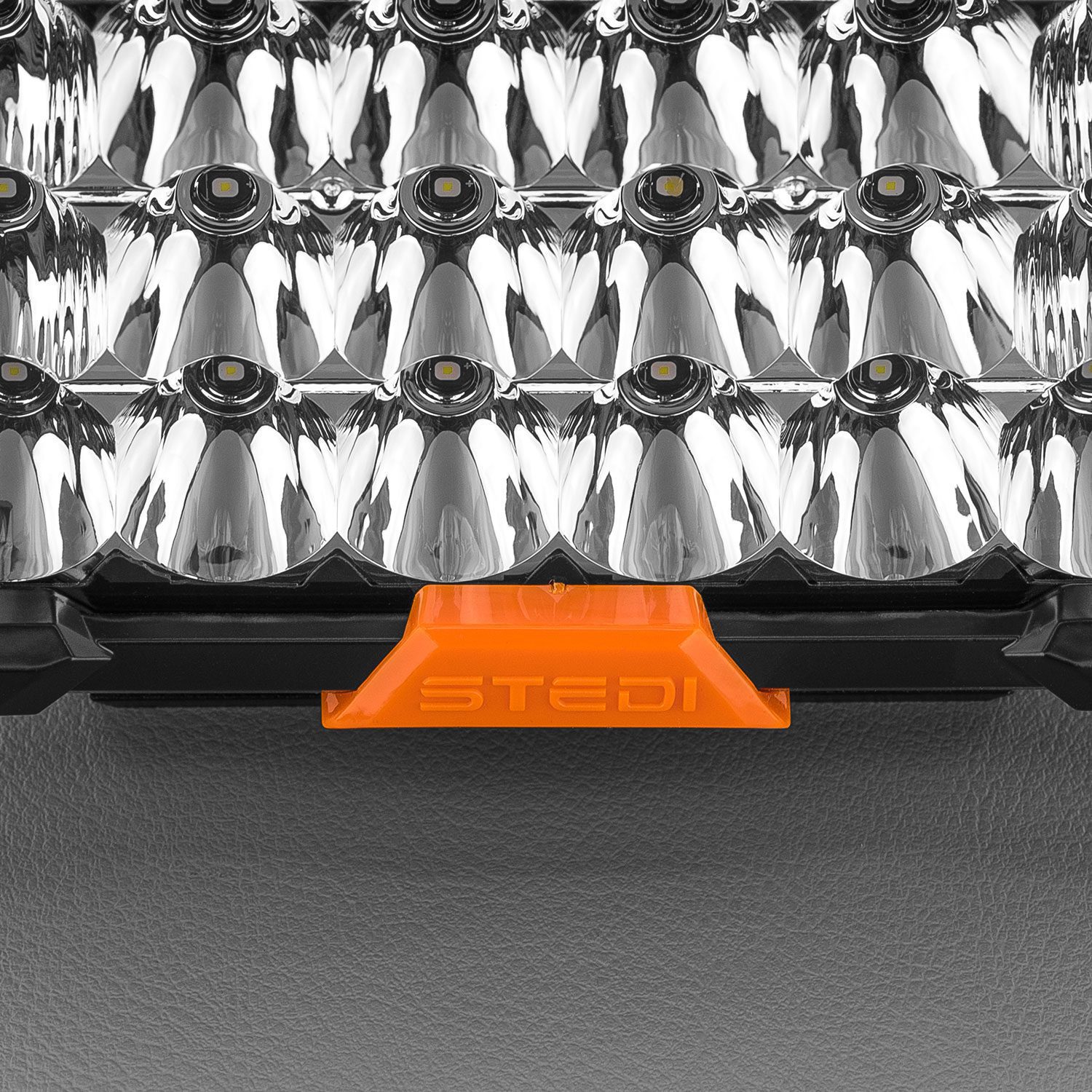

- Spread and Spot beam reflectors built-in.
The price quoted is for a pair includes our legendary Plug & Play Smart Wiring harnes
Registered Design 202013629
|LED||24 x Oslon High-Flux LED|
|RAW LUMENS||17,040 (Pair)|
|TESTED LUMENS||11,360 (Pair)|
|AMP DRAW||7.4A @ 13.2v (each)|
|POWER DRAW||97W (each)|
|BEAM PATTERN||4 x Spread 20 x Pencil Beam|
|INGRESS PROTECTION||IP68 | Submersible up to 3m|
|COLOUR TEMP (CCT)||5700K|
|VOLTAGE COMPATIBILITY||12v & 24v|
|LUMEN MAINTENANCE||50,000 LM-80|
|WEIGHT||1.4Kg (Including cover) (each)|
|10 m||6,938 Lx|
|50 m||277 Lx|
|200 m||17 Lx|
|300 m||7.7 Lx|
|400 m||4 Lx|
|500 m||2.7 Lx|
|833 m||1 Lx|
- 2 x QUAD Pro LED Spot Lights
- 2 x STENCIL Black Out Covers
- 1 x Set Orange Colour Caps (fitted)
- 1 x Set Grey Colour Caps
- Easy Fit High Beam Wiring Harness
- H4 & HB3 adapters to High Beam
- Installation Manual
- Stainless fitting hardware
|Dimensions||57 × 28 × 13.5 cm|
