7″ TYPE-X™ SPORT(Pair)

KWD 139.000

  • Distance: 895m
  • Raw lumens: 16,640 (Pair)
  • Brackets included
  • 1 x Easy Fit High Beam Wiring with DT-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
  • 5 years warranty protection

In stock

SKU: LEDTYPE-X-SRT-7INCH Categories: ,

Description

HIGH PERFORMANCE – ACCESSIBLE PRICE
Say hello to the all-new 7″ Type-X Sport; our most affordable driving light yet, with the inherently STEDI ability to deliver a high-performance and high-quality driving illuminance. Simply look at the build quality and performance from other offerings on the market and you will be convinced that the 7″ Type-X Sport remains untouched.

LEGENDARY TYPE-X DNA
It’s been three years since the inception of original Type-X. We’ve taken an already proven platform and completely redesigned it from the ground up. The 7″ Type-X Sport features an increased optics depth of 35%, allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw and will send light right out to 895m. Four dedicated built-in wide-beam optics disperse light in the nearfield, and transition beautifully with the spot beam.

STEDI DESIGN LANGUAGE

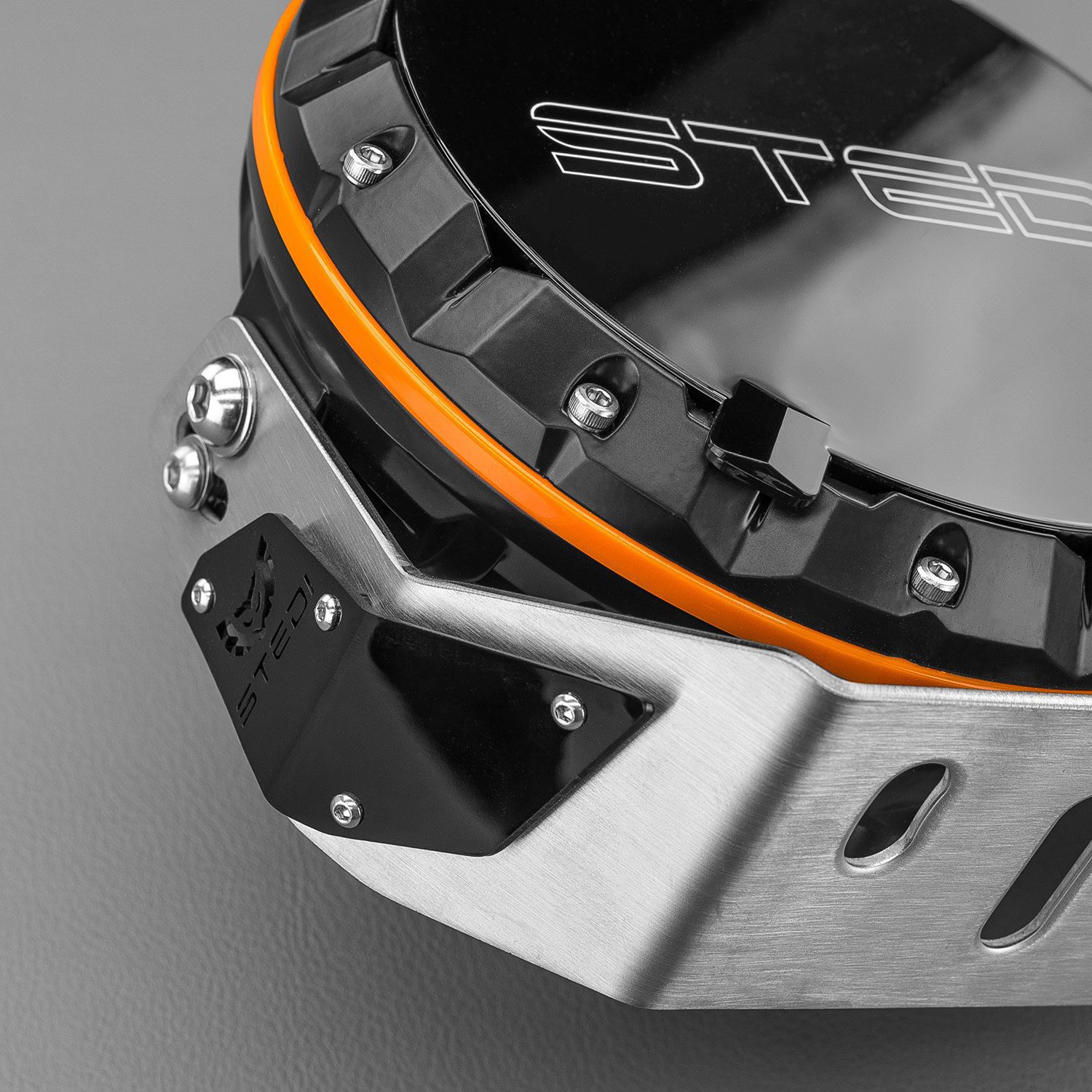

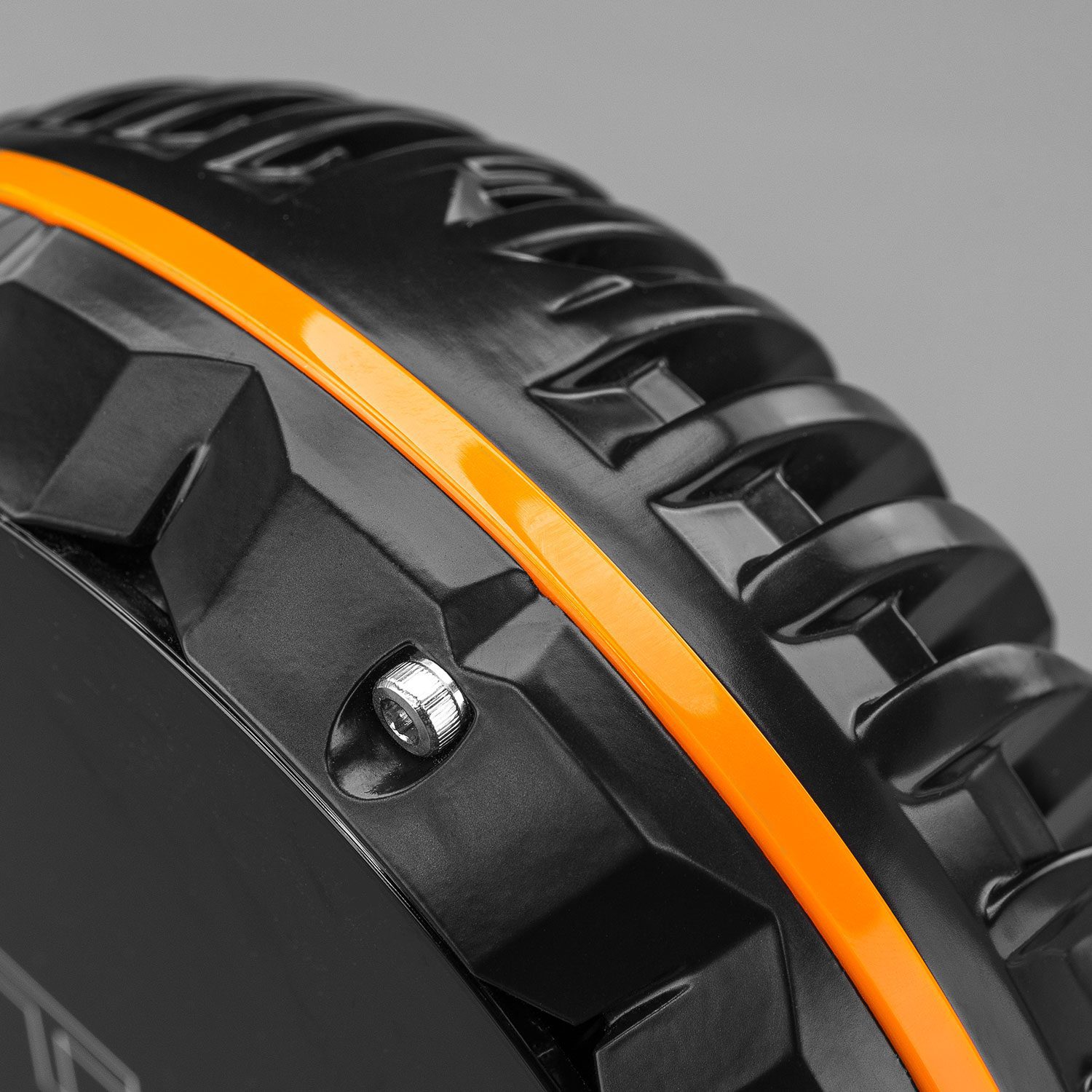

Some people call it the little things. For us, it is literally everything. We obsessed over even the most trivial geometries and design elements to achieve a visually stunning luminaire. The 4mm 304 Stainless steel bracket features our signature shoulder armor with laser-cut STEDI branding. A carefully considered orange rim surrounding the housing offers just the right amount of visual impact while ensuring that the overall look and feel plays nice equally on a Sandy Taupe Landcruiser as it will on Magnetic Grey Ranger.

LUX GRAPH
7 type

DIMENSIONS
type x sport 01

THE NERDY DETAILS

  • 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.

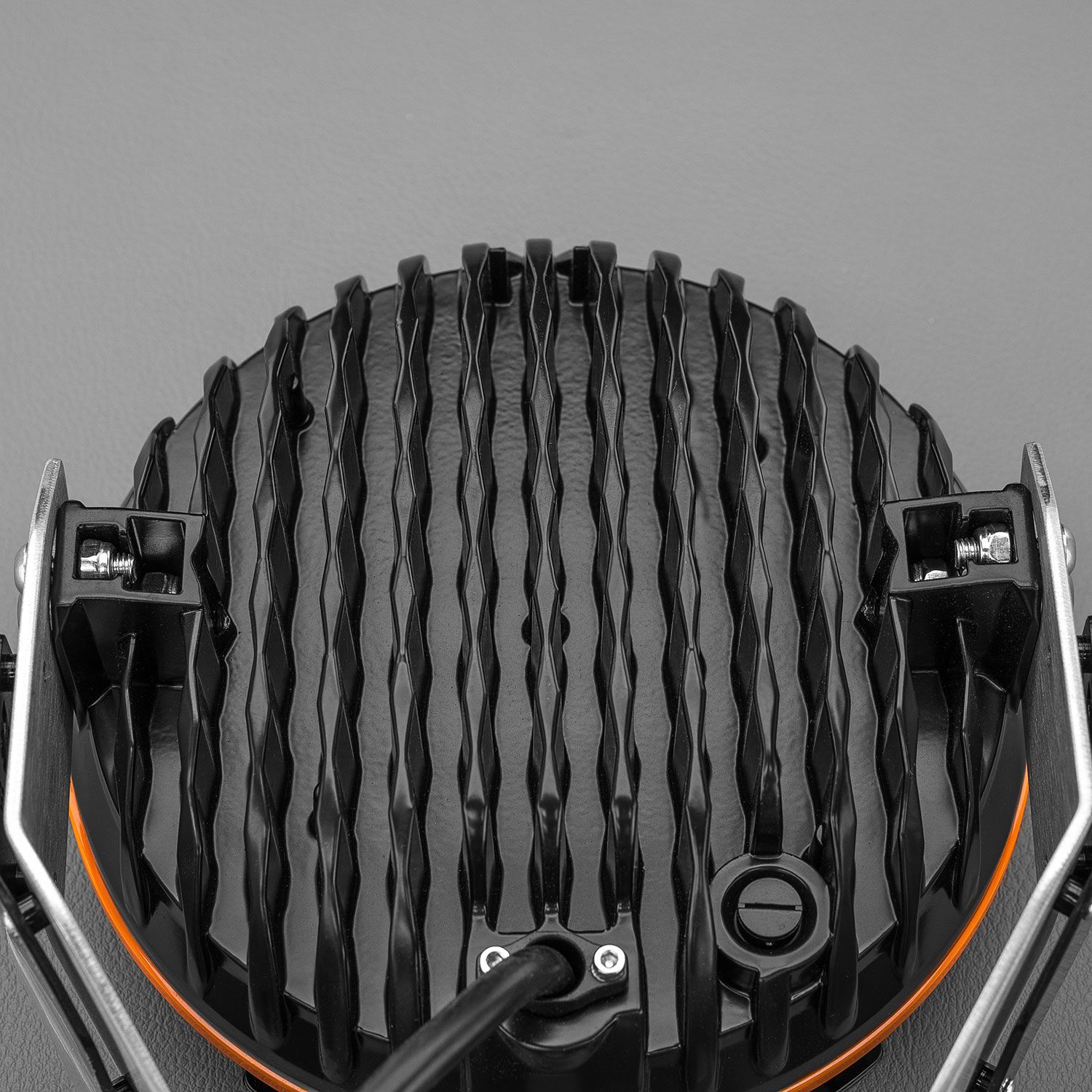

  • A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
  • 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
  • 100% Polyester UV and abrasion resistant powder coat
  • IP68 | Dust & Particle tight + Water-proof up to 3 meters
  • Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust and contaminants.

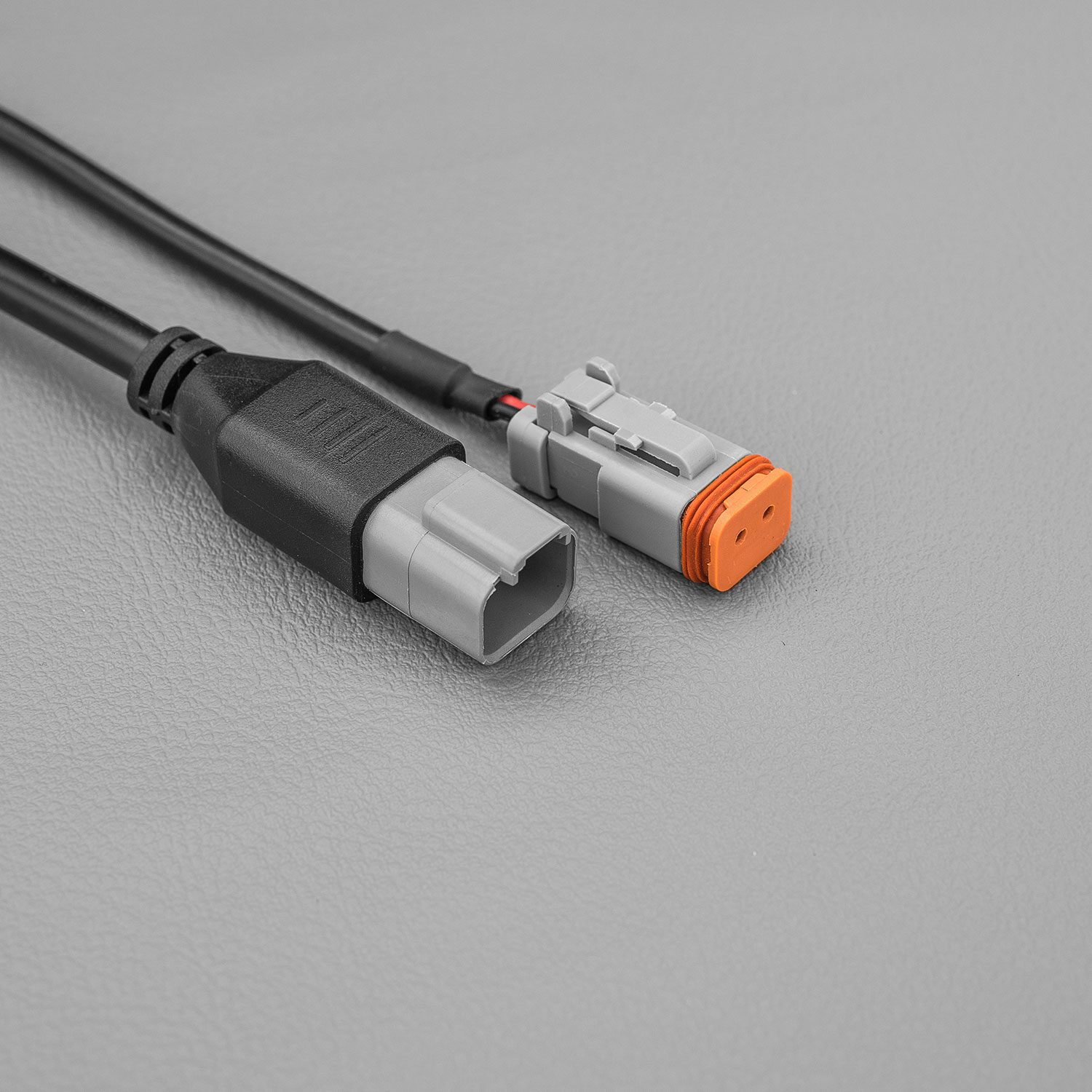

  • Environmentally Sealed Deutsch DT-2 connector
  • EMI RFI Suppression circuitry – We guarantee it.
  • Each 7″ TYPE-X Sport comprises 32 of OSRAM’s OSLON LEDs, selected for its high luminous flux and perfectly matches optical properties.

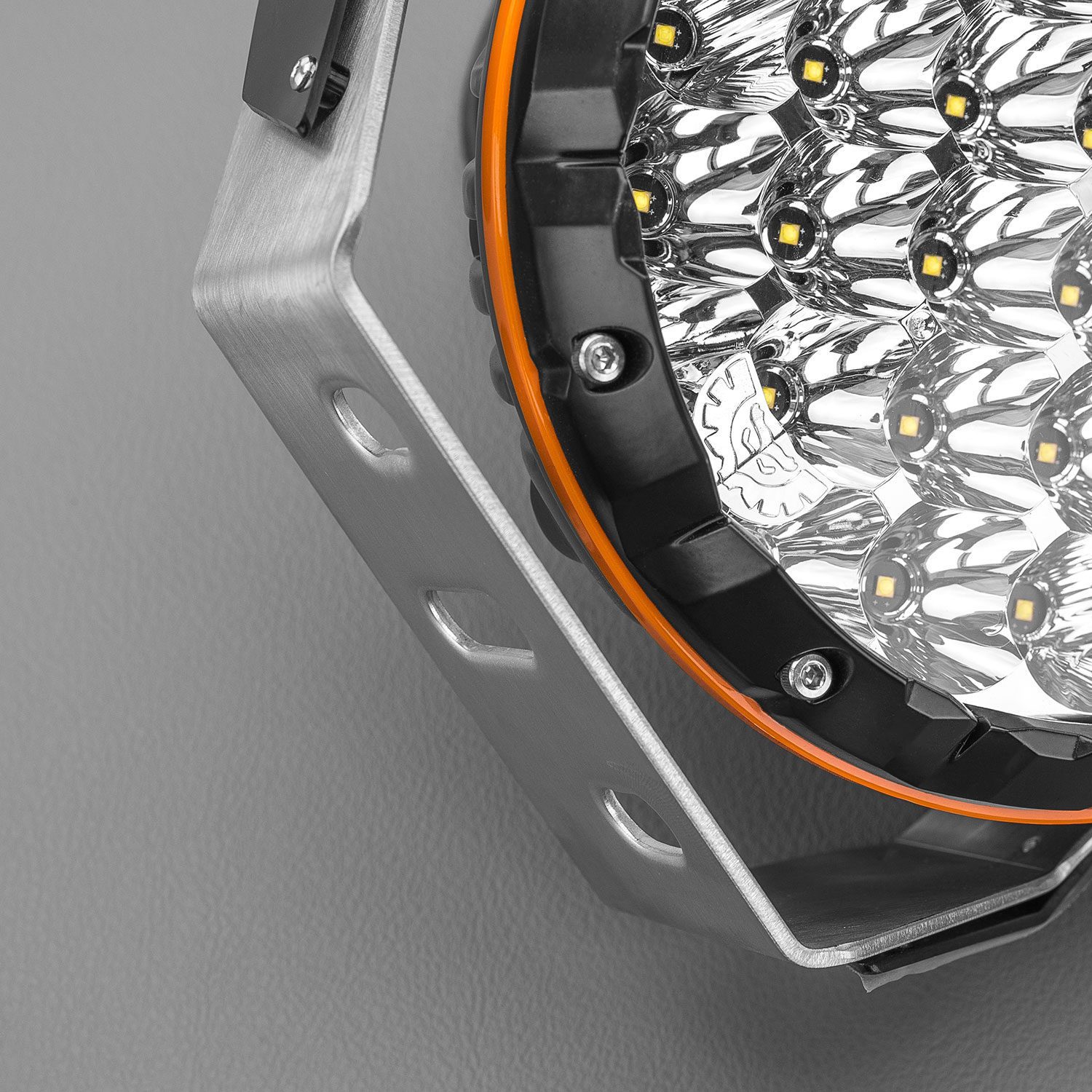

  • 4 wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky.
  • 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)

(Registered Design Number 201914860 & Registered Trademark).

TECH SPECS

LED 32 x Osram Oslon SSL
RAW LUMENS 16,640 (Pair)
TESTED LUMENS 12,820 (Pair)
AMP DRAW  6.4A @ 13.2v (each)
POWER DRAW 85W (each)
CANDELA 819,200cd
BEAM PATTERN 4 x Spread 28 x Spot Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT)  5700K
VOLTAGE COMPATIBILITY  12v & 24v
LUMEN MAINTENANCE  50,000 LM-80
WEIGHT 2.250kg (each)
PHOTOMETRIC DATA
10 m 8,129 Lx
50 m  327 Lx
200 m 20 Lx
300 m 9 Lx
400 m 5 Lx
895 m 1Lx

WHAT’S INCLUDED

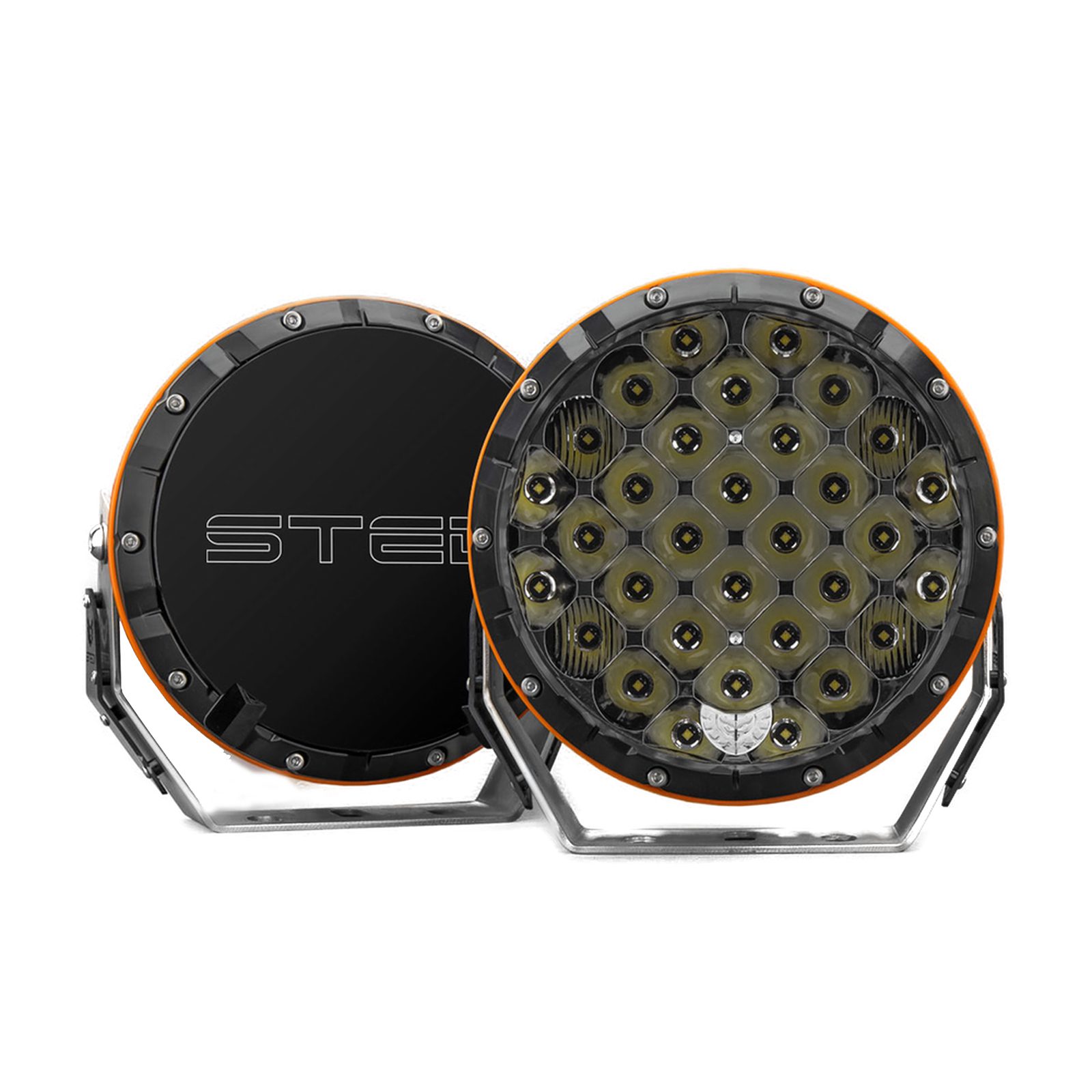

  • 2 x STEDI 7″ TYPE-X Sport
  • 2 x STEDI Black Out Covers
  • 1 x Easy Fit High Beam Wiring with DT-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
  • 3 Series Stainless Steel Nuts and Bolts
  • Rubber Shock Dampener
  • Wiring Instructions

Additional information

Weight 6.3 kg
Dimensions 54 × 34 × 11 cm
