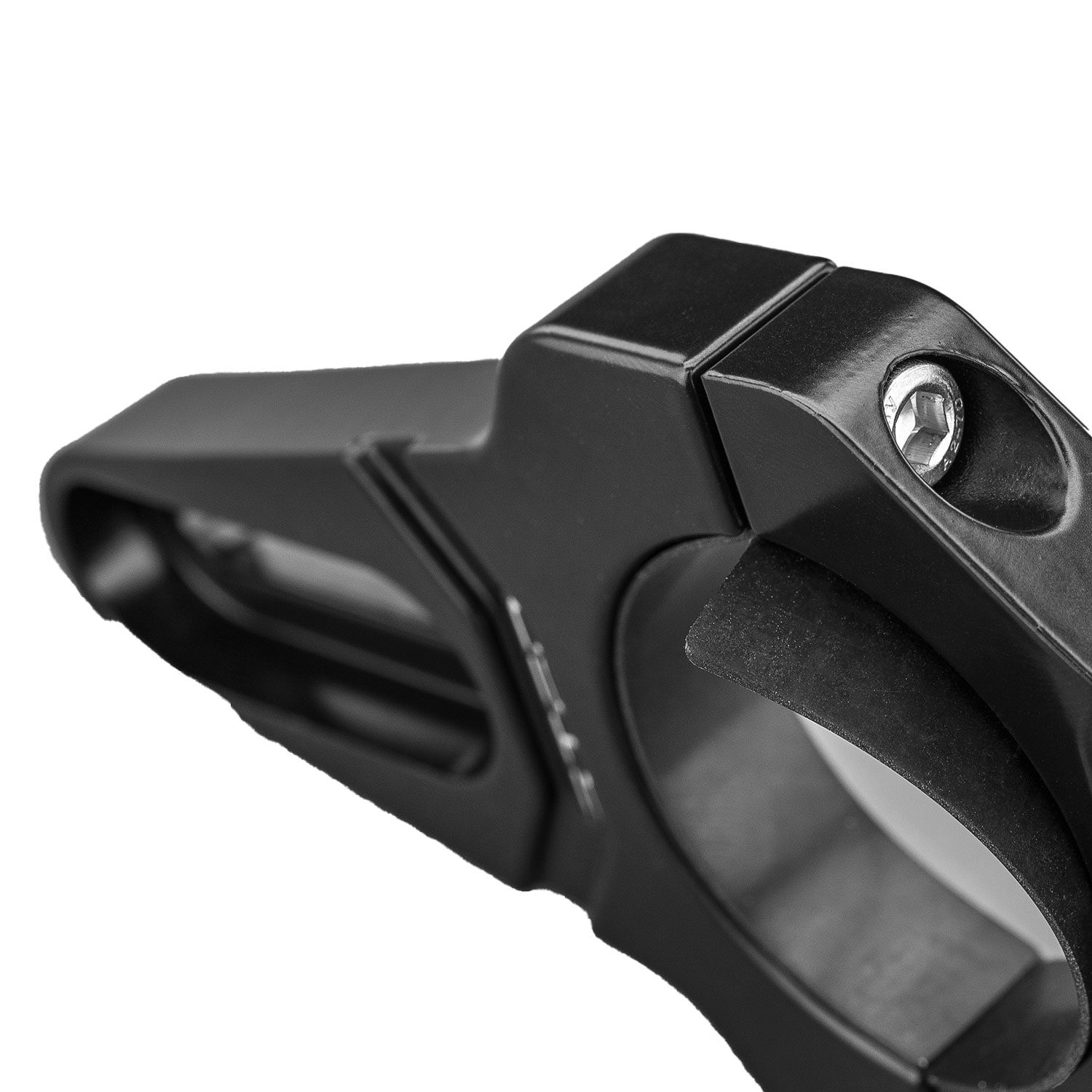

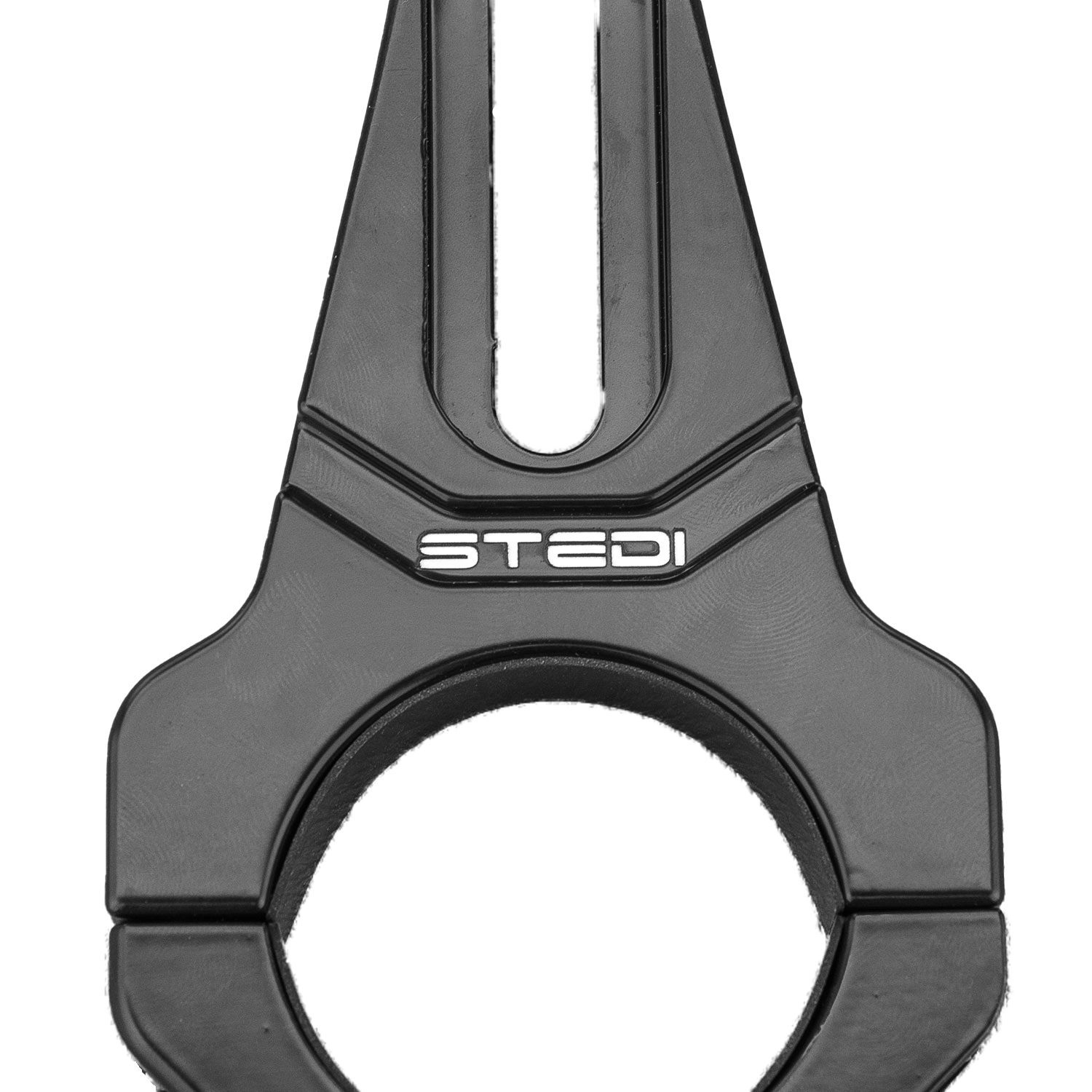

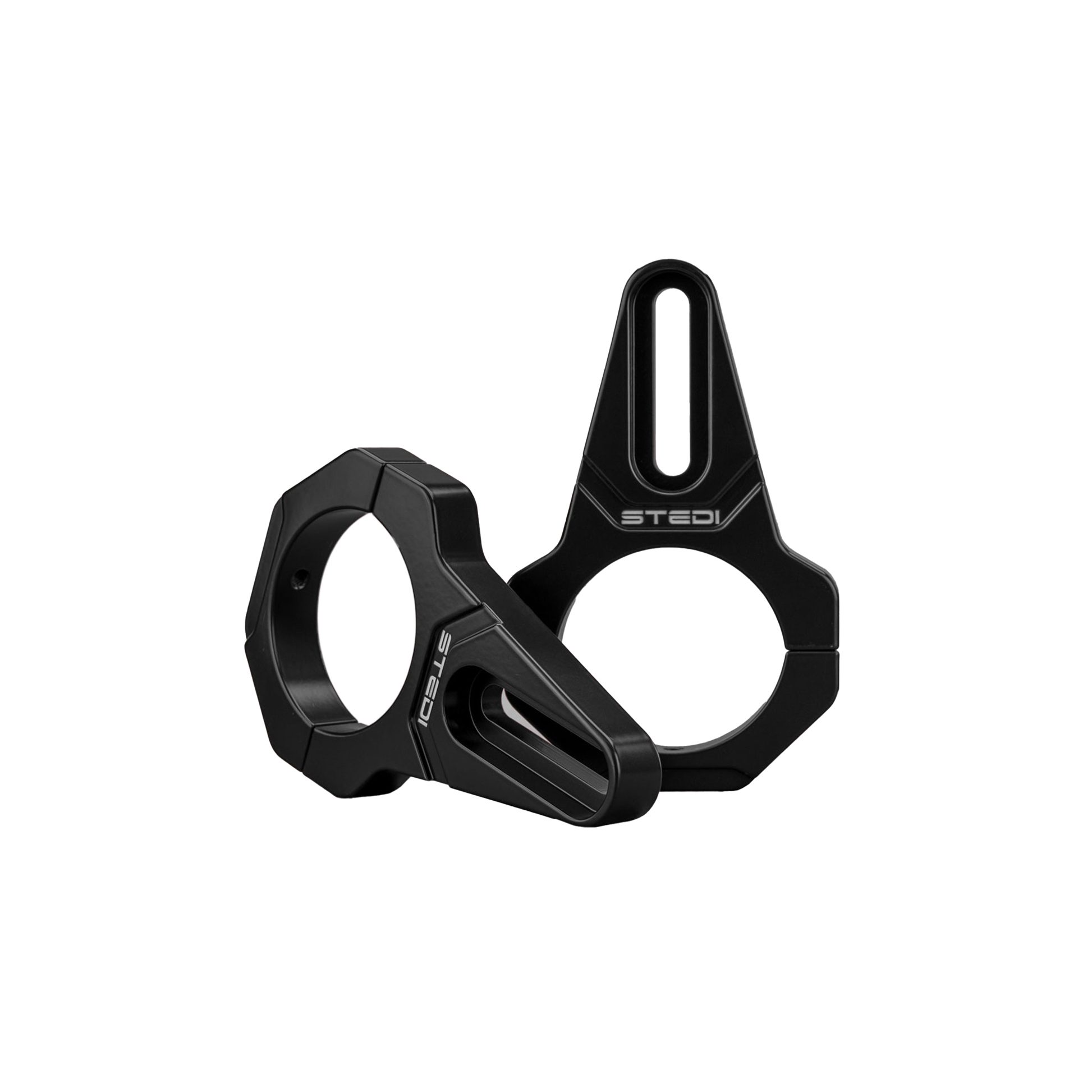

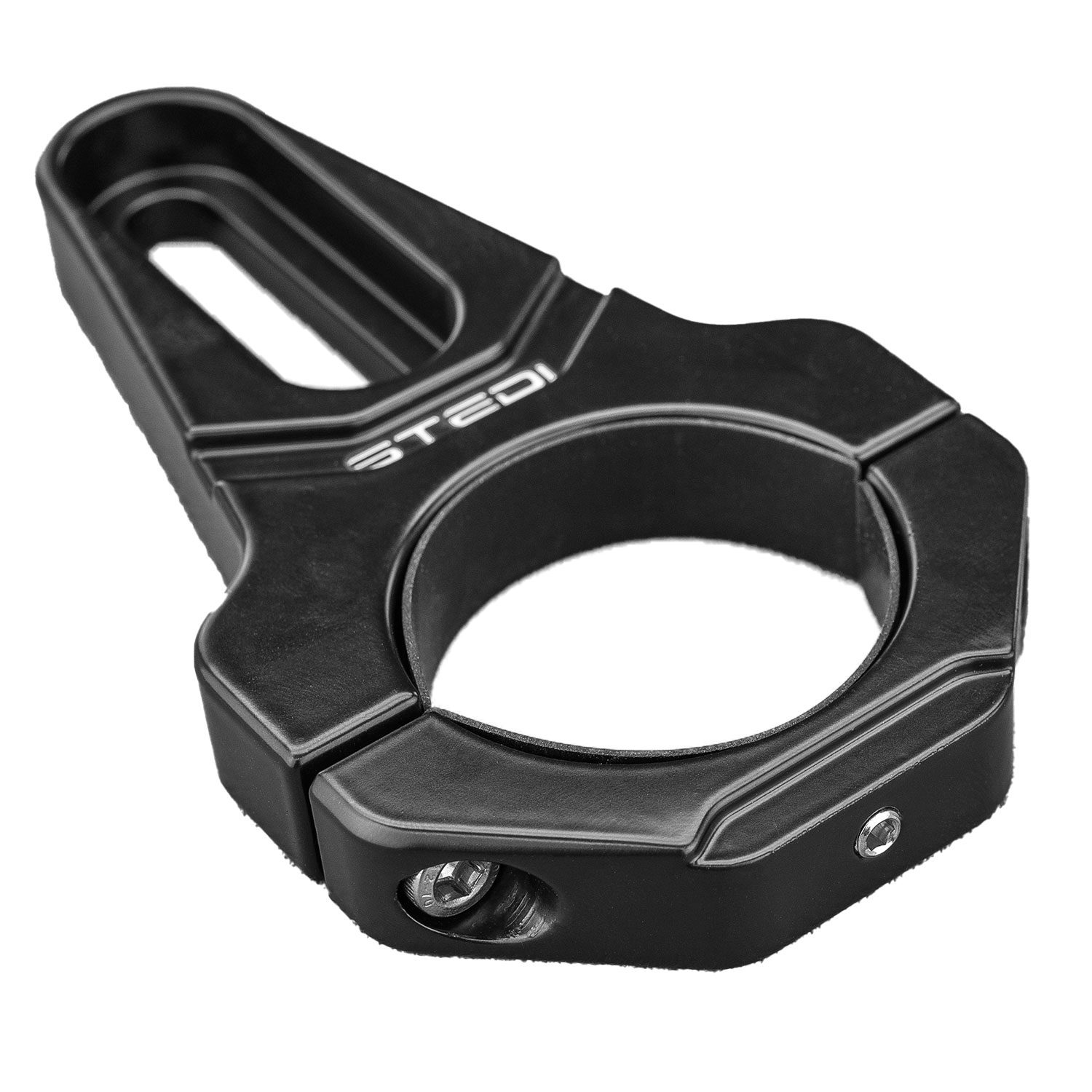

The STEDI Vice Clamp Bull Bar Brackets will meet the versatile application when it comes to side-mounted & certain lower mounted LED light Bars. Made from cast aluminum with stainless steel fasteners keeping it strong yet lightweight as well as a polyester UV stable powder coat to reduce fade.

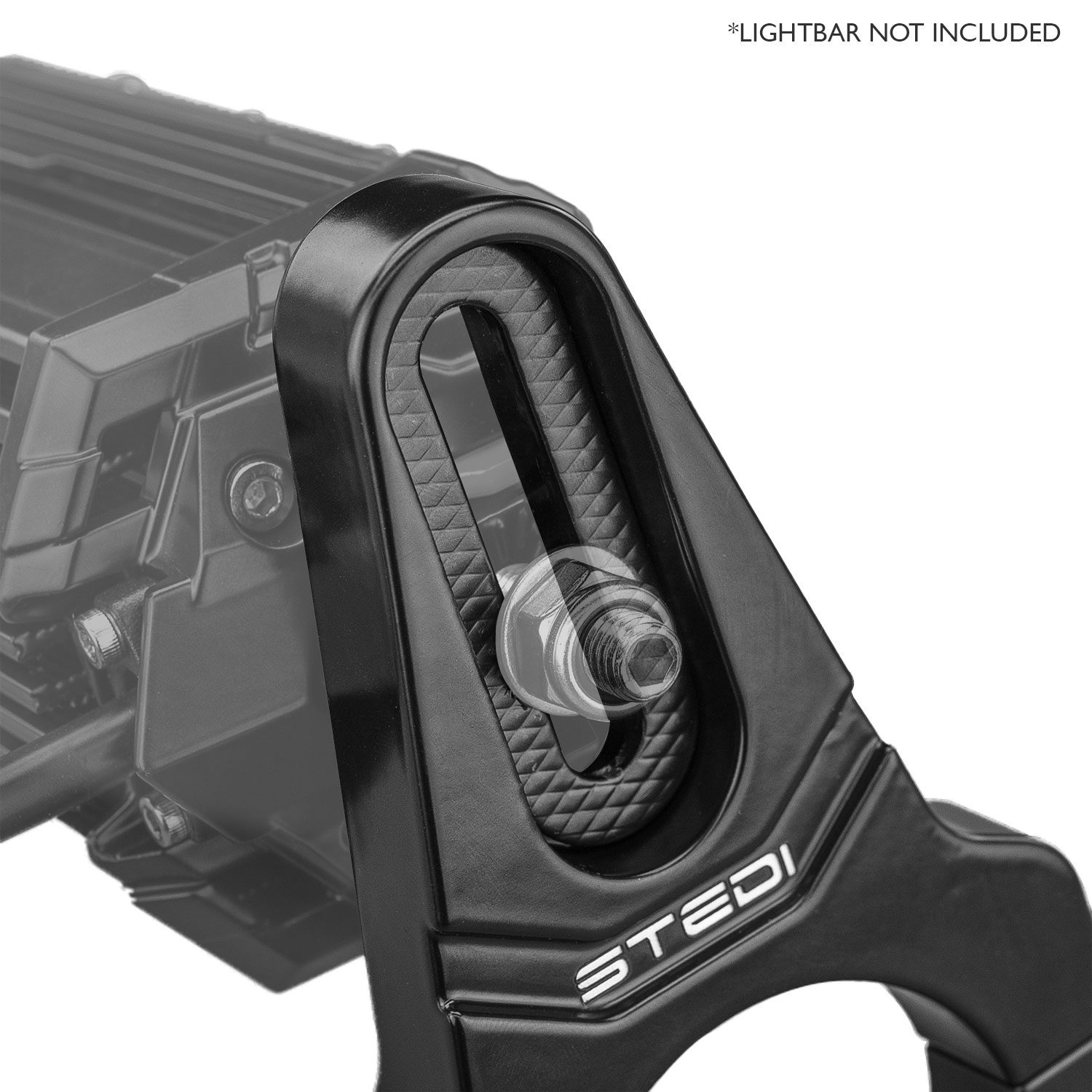

Its ability to rotate on the bar and 360° rotation of your LED Lightbar will open up your method of mounting. Visually described in our product video you are able to face the clamps at any angle whilst still keeping the light facing forward.
When mounted on a vertical bar you will find the majority of our LED Work lights will also mount straight into the Vice Clamp as well. Compatible with LED Work Lights from as small as the 10w Mini up to as large as 60w Mining Spec.
The STEDI Universal Light Bar Mounting Bracket provides a robust and aesthetic means of securing your light bar or work light to your vehicle. Our brackets is guaranteed not to slip or fatigue no matter the environment. Unlike other generic clamps on the market, the aesthetical design of our light bar brackets facilitates a clean, integrated installation of your light bar and work lights.
KEY TECHNICAL DETAILS
- Molded from Cast Aluminium
- Stainless Steel Fasteners included
- Compatible with most side-mounted LED Light Bars
- Polyester UV Stable Powder Coated
- 4mm set screw eliminates the possibility of slip.

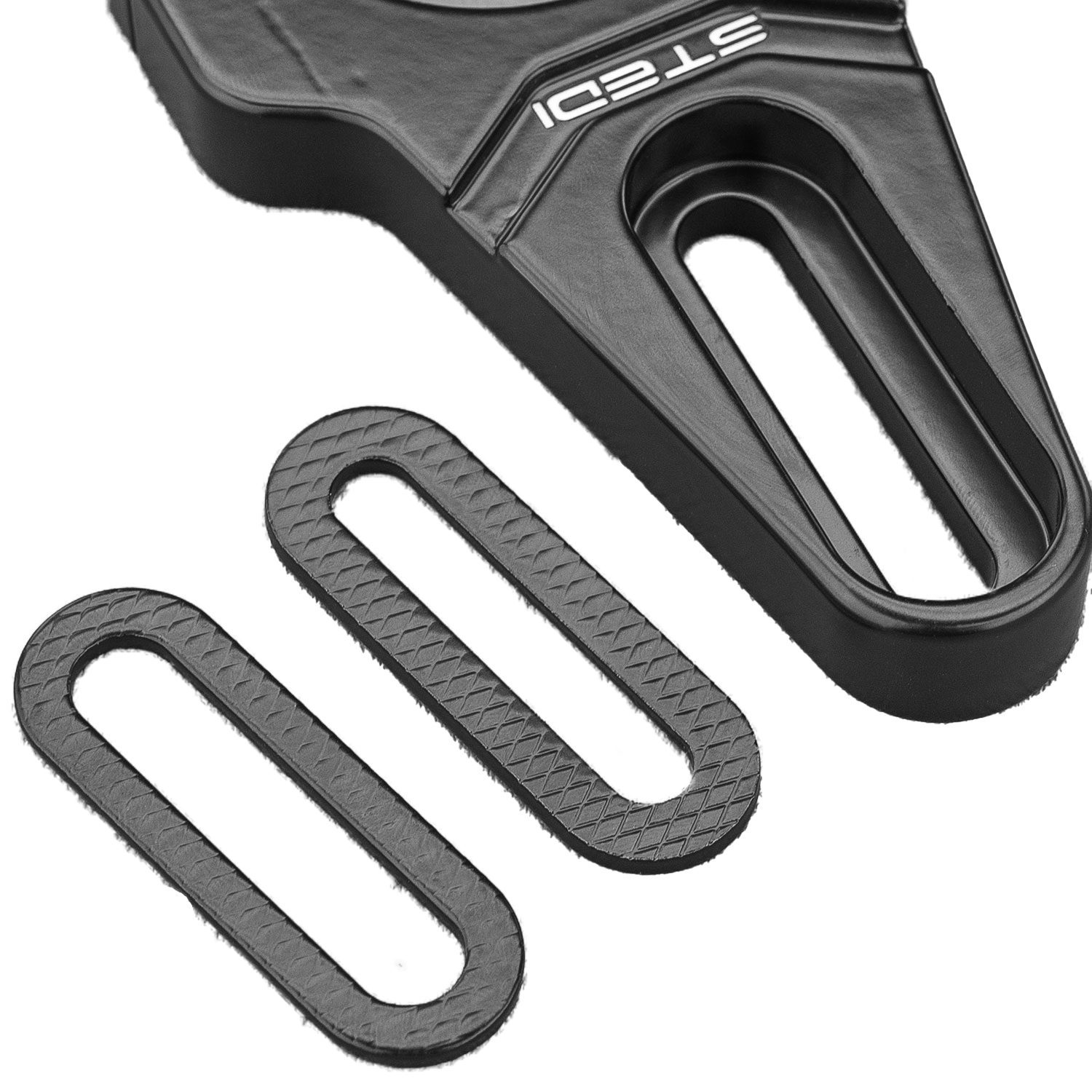

- Rubber inserts also included
Available in the following sizes
35 – 40mm | 44.5 – 48mm | 49 – 51mm | 60 – 63.6mm | 75 – 77mm
In the event you do not have any vernier calipers, please measure the circumference (in mm) of your round bar and apply below formula; diameter (mm) = circumference (mm) divided by / 3.14 = (Tube Diameter)
The price is for two brackets.
Registered Design number: 201811269
- 2 x Vice Bull Bar Aluminium Universal Light Mount Brackets
- 4 x Rubber Inserts
- 2 x M8 Set Screws
- 2 x M6 Set Screws
- 2 x Grub Screws
- 4 x Stainless 6mm Bolts
- 2 x Allen Wrenches
