Description

OVERVIEW

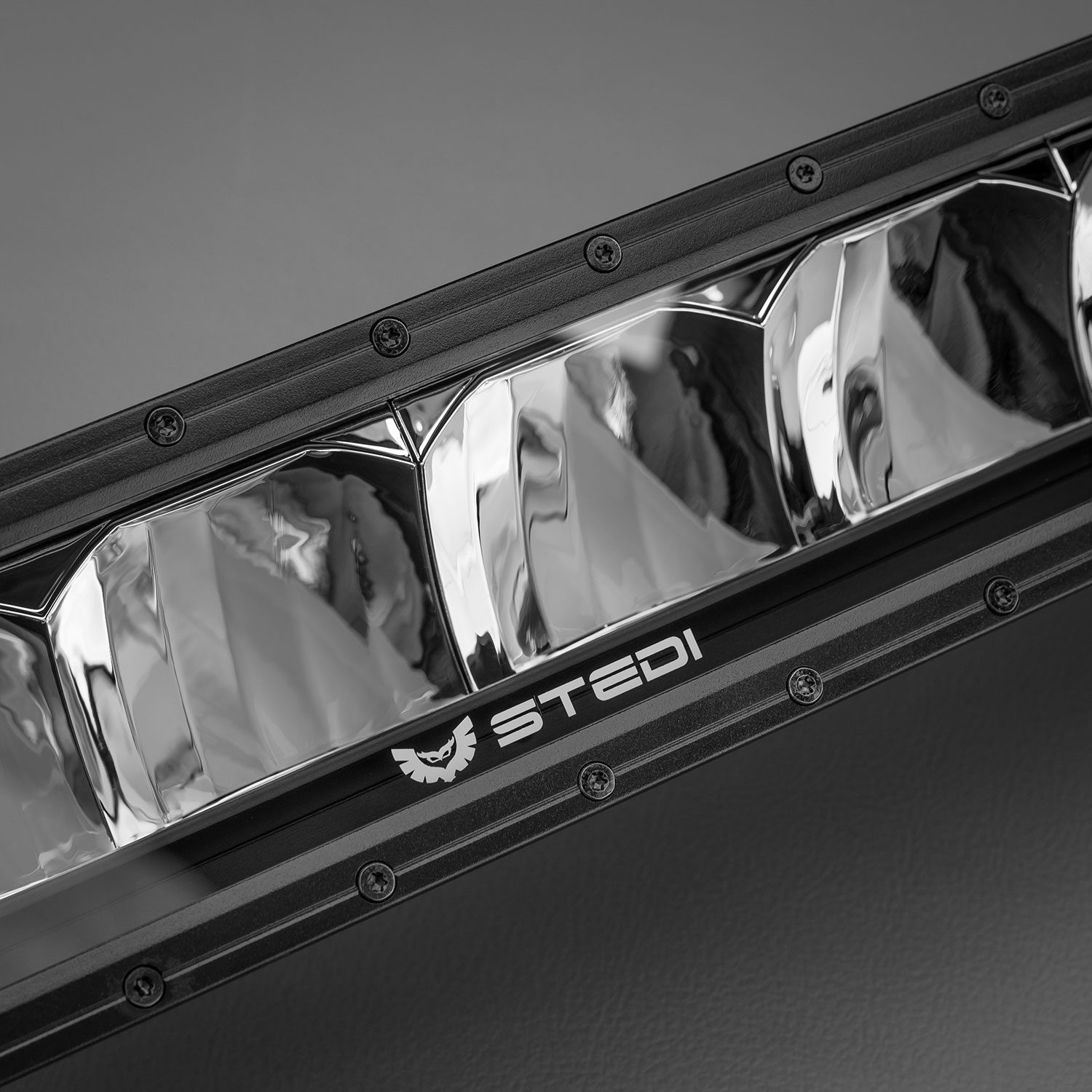

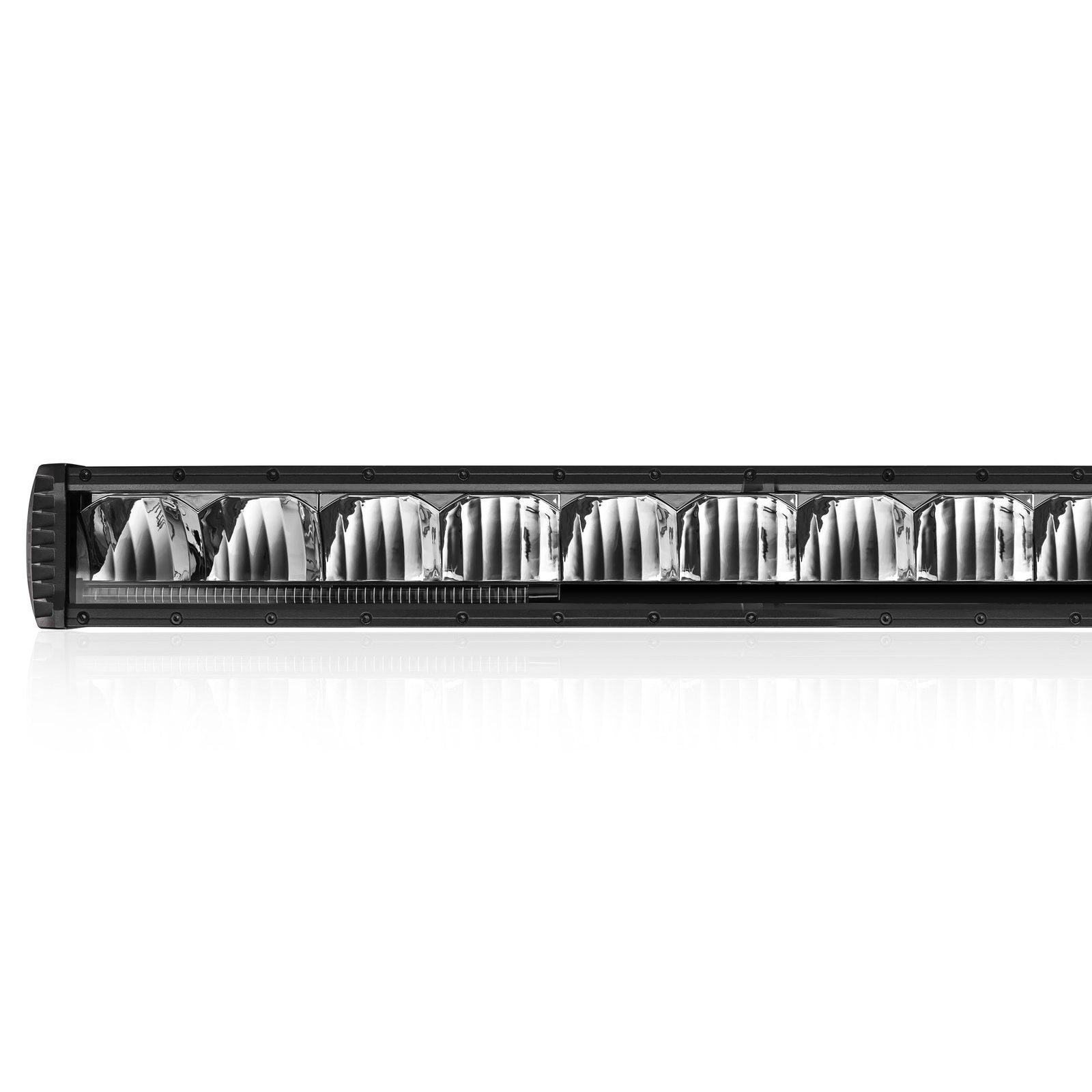

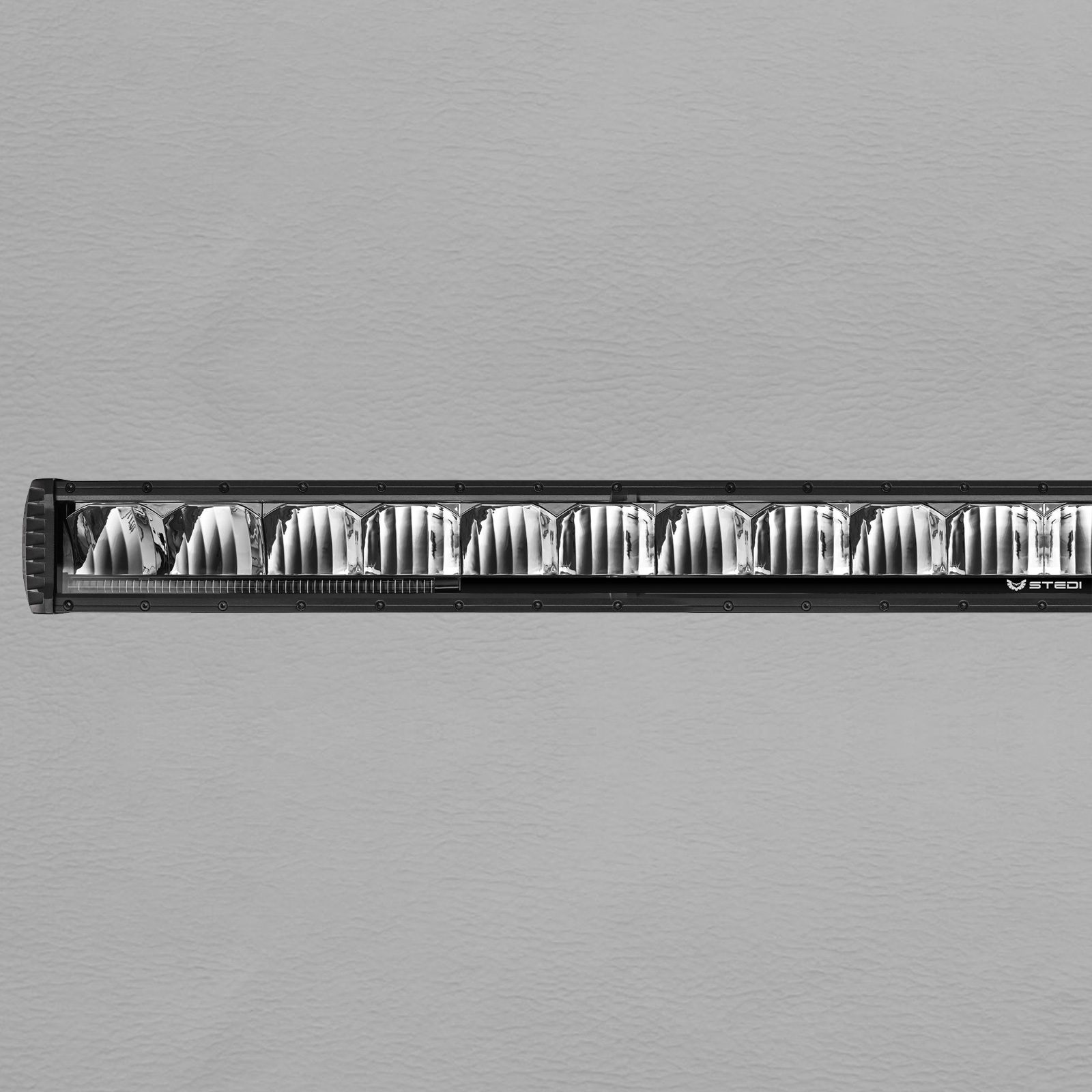

Hit the ‘on’ button and our ST2K-20L 51” Super- Drive LED light bar’s motor-sports pedigree instantly becomes evident. Compared to traditional optical systems, our innovative Super-Drive reflectors system delivers unmatched light intensity at the mid to long-range.

PERFORMANCE
The ST2K has been designed around the intention to provide a powerful flood beam with a sufficient spot. The purpose of this style of beam is to pair up with a combo or spot beam and where the flood beam of the others tends to narrow off, the ST2K picks up and takes it out even further lighting up the shoulders of the road.

BEAM CHARACTERISTICS
The unconventional use of 20 x 15W rearward-facing high powered LEDs allows us to achieves new levels of beam intensity & control that simply isn’t possible with traditional reflector designs. The beam characteristics are designed to start working past the point where your high beam ends. The mid to long-range end of the beam opens to provide very effective spread illumination.

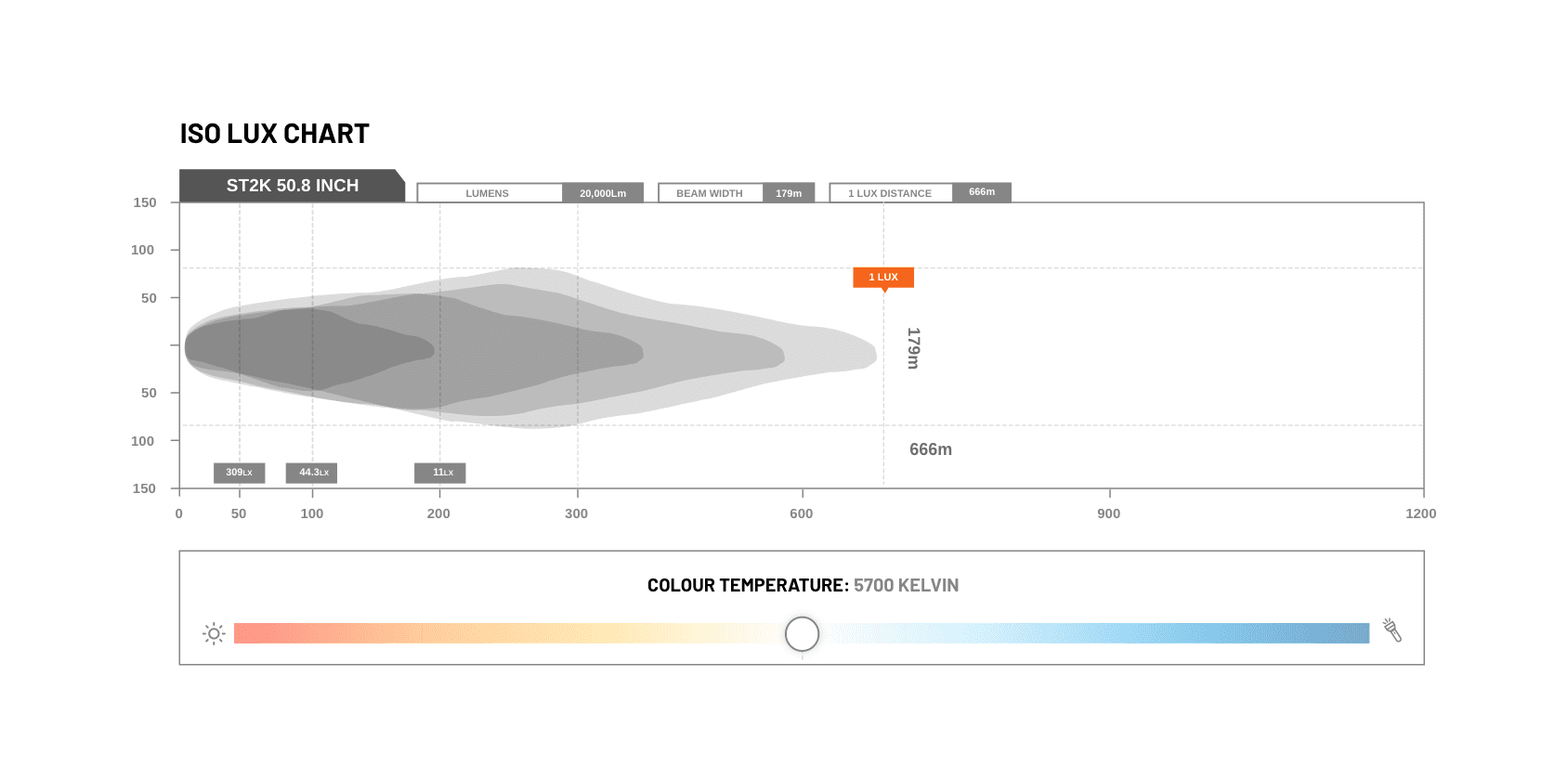

LUX GRAPH

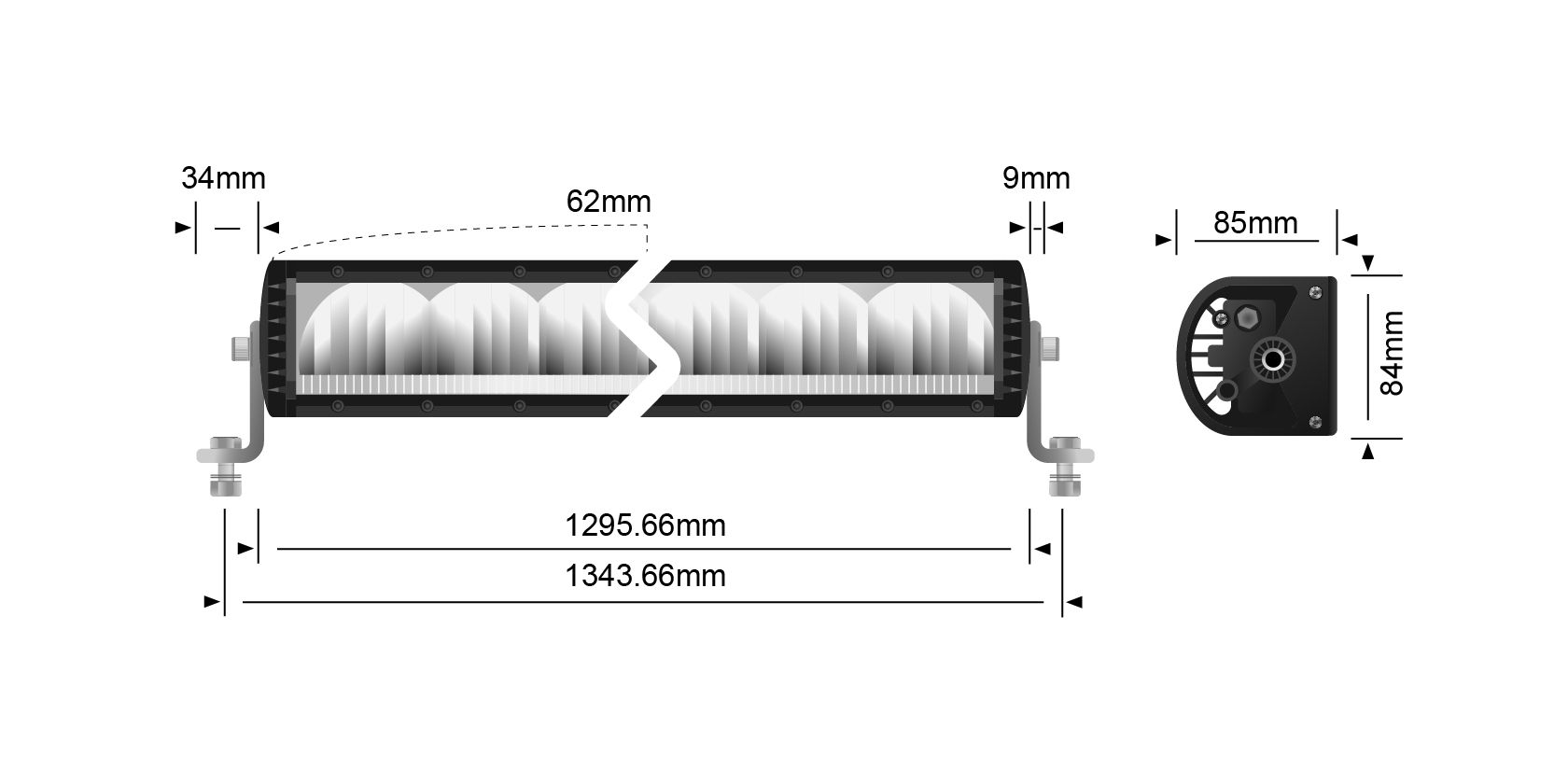

DIMENSIONS

ADVANTAGES OF A LATERAL SPOT BEAM

Excellent well rounded mid to long-range illumination
Significantly minimizes adverse reflection from road signs
Eliminates light wasted on illuminating tree tops (won’t disturb sleeping koalas)
An excellent alternative to HID, without the associated downsides
The beam is 90m wide at approx 250m

KEY FEATURES

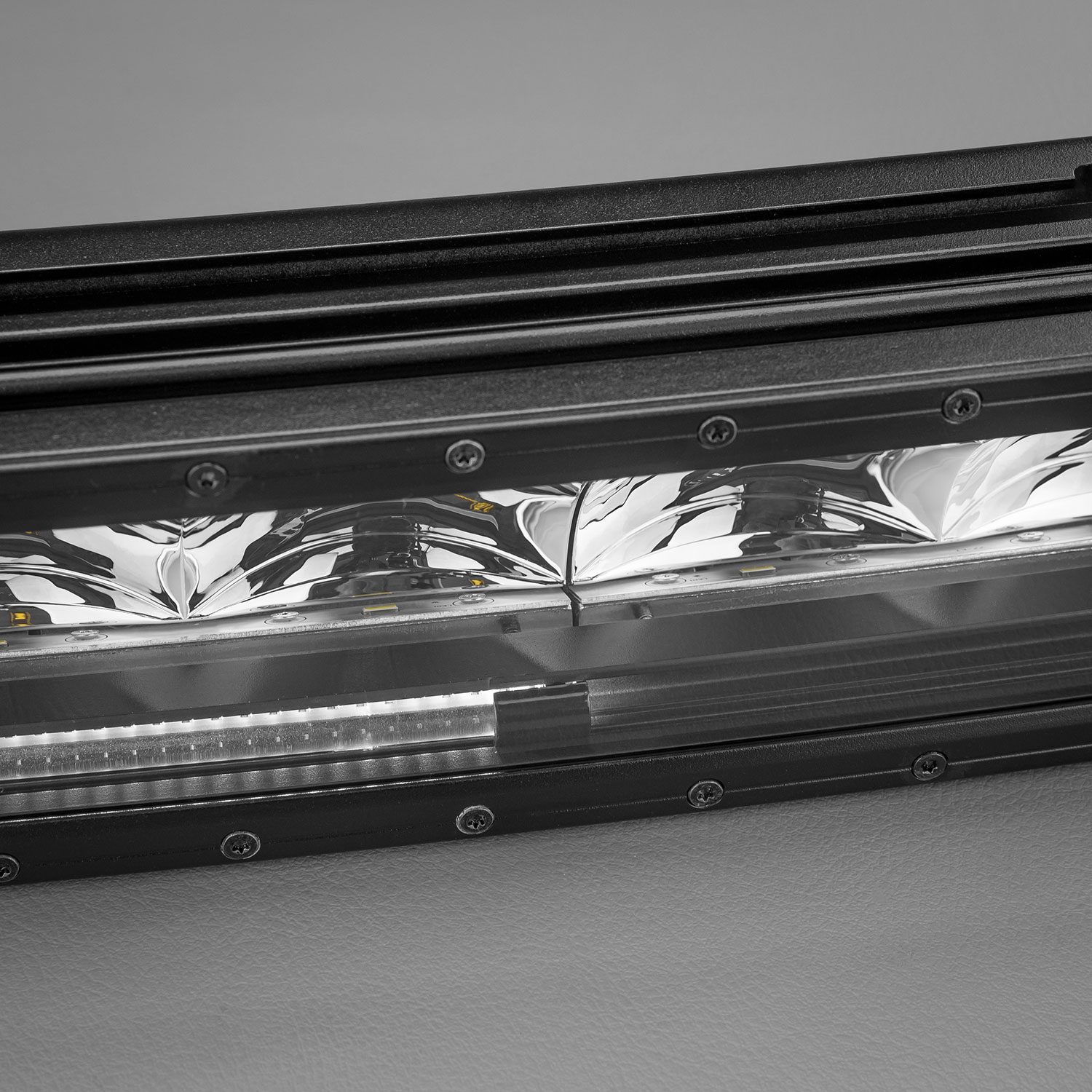

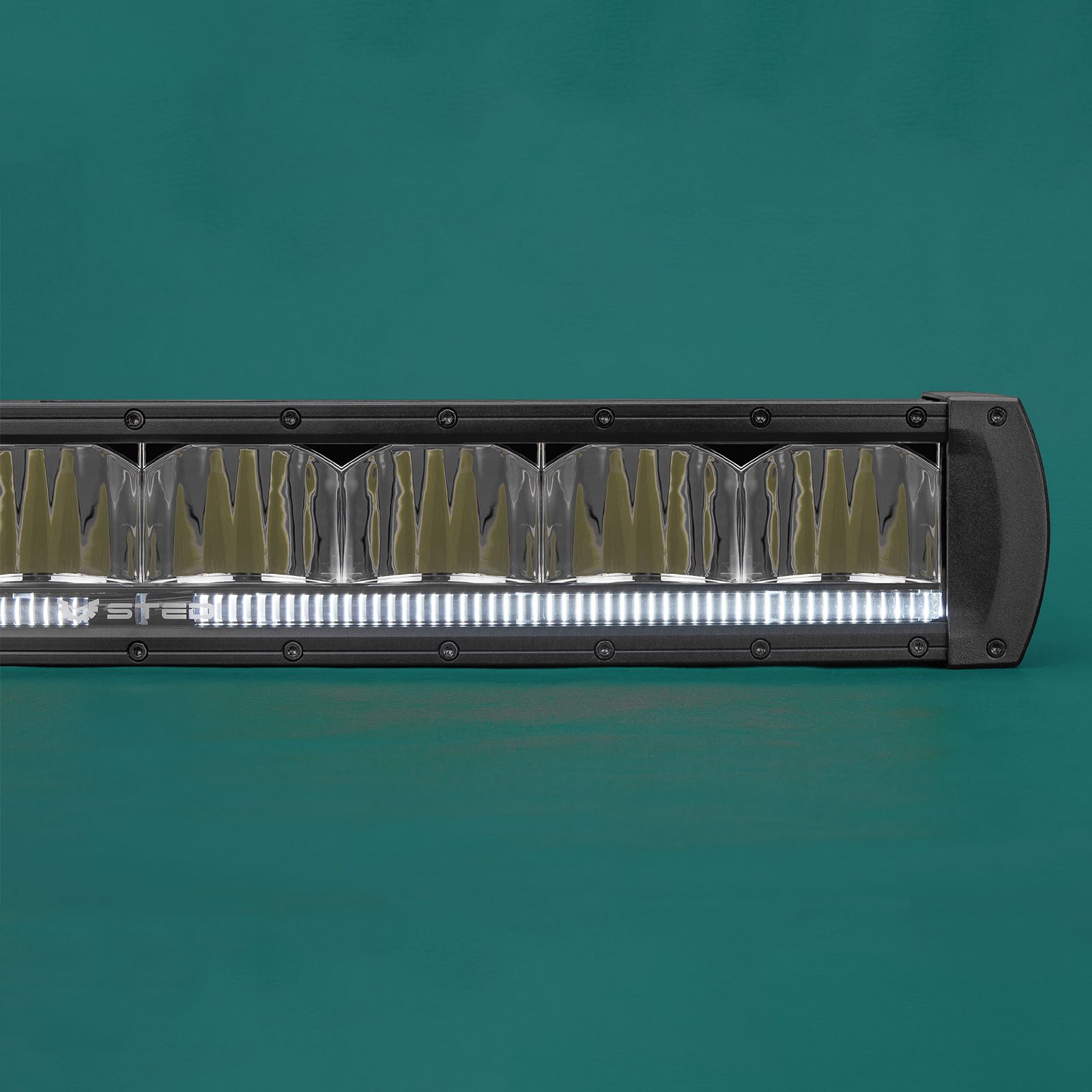

LED Parking / Position Light Function
Breather allows pressure equalization when rapid heat up and cool down cycles occur.
Anodized Polyester Powder Coat

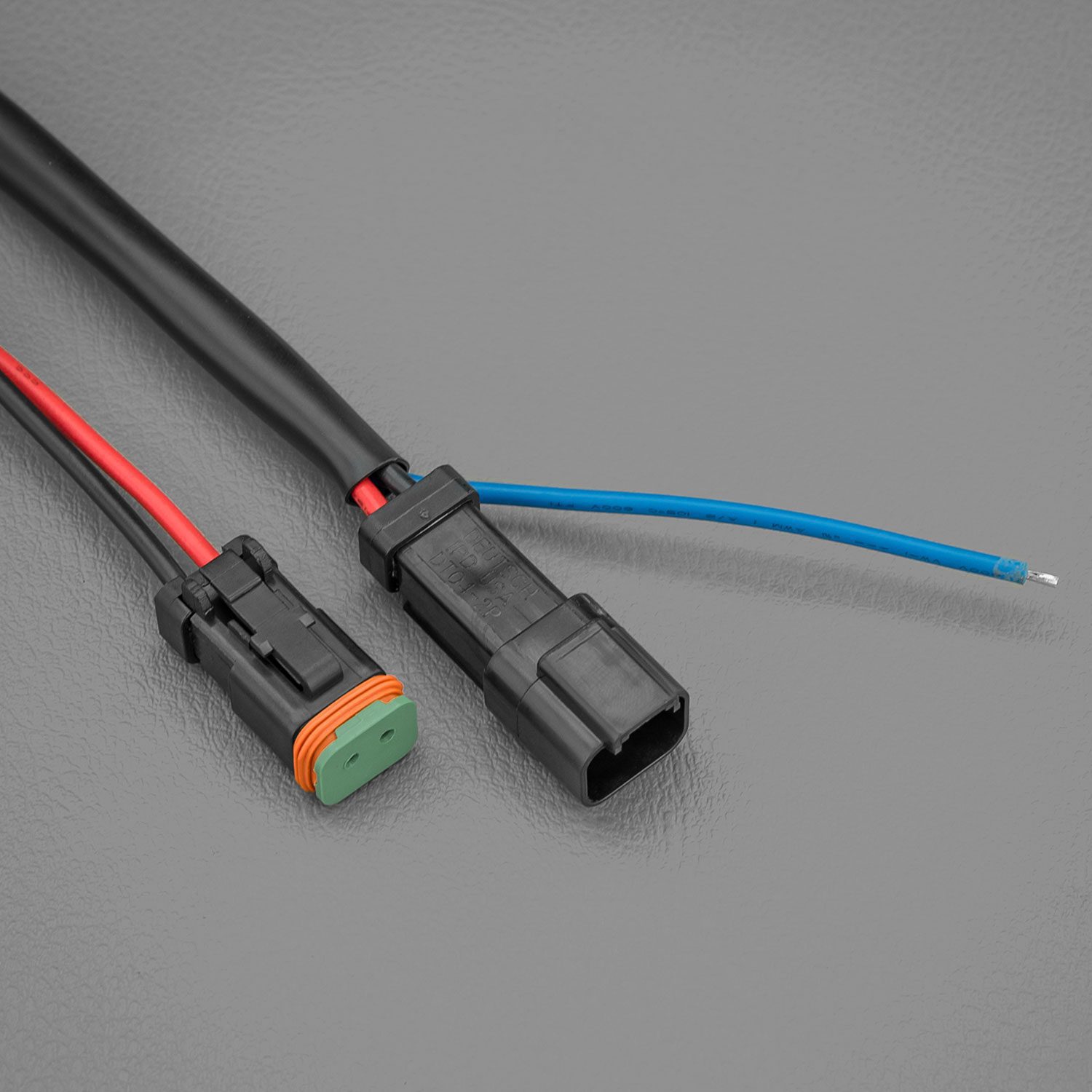

Weatherproof Deutsch® DT2 Connector.

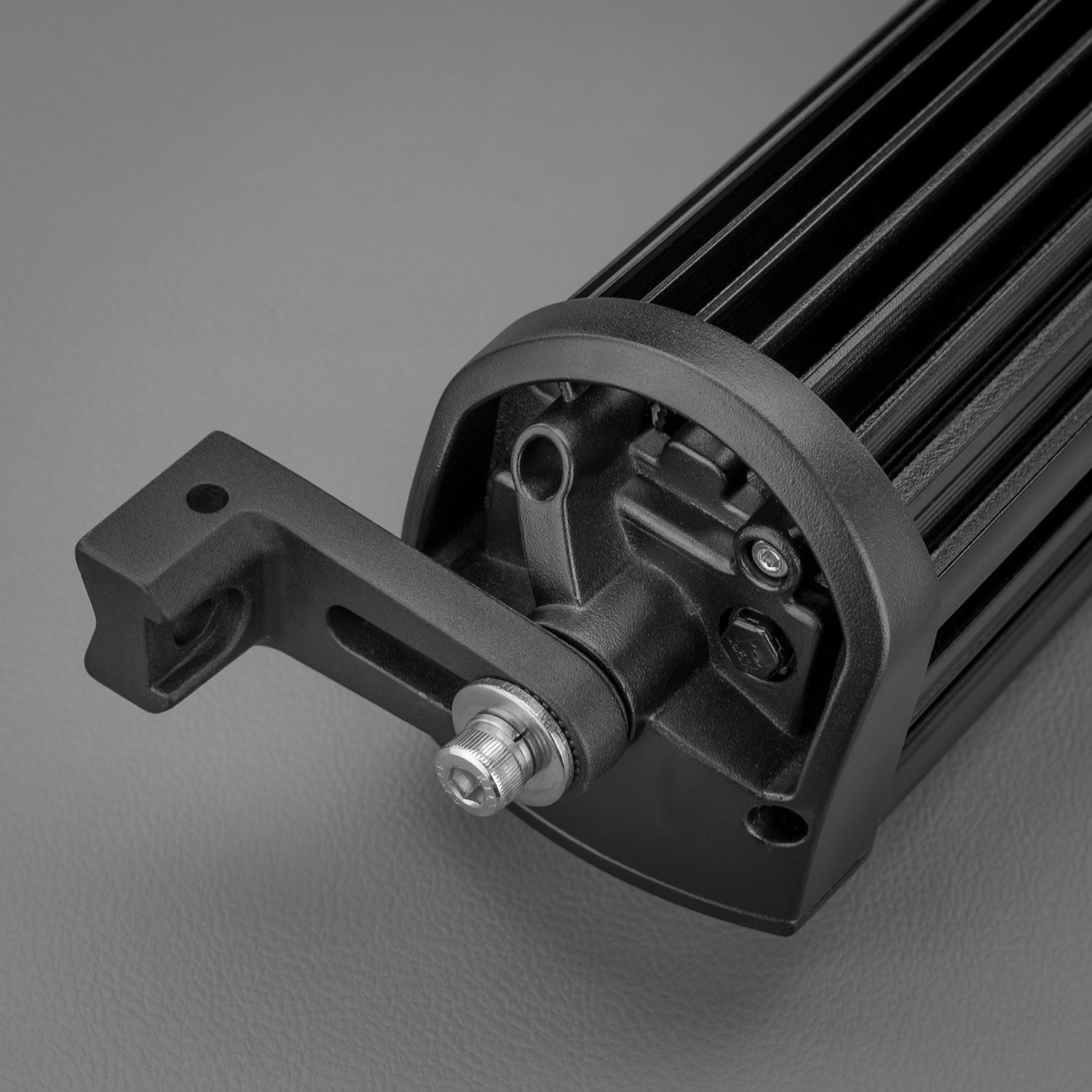

Includes adjustable side brackets
Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles.
Protected against reverse polarity
Shockproof, IP68 waterproof, UV Shielded
Protected against RFI / EMC Interference
Voltage & current surge protection
Pulse Width Modulation Thermal Management

TECH SPECS

MAIN BEAM LED COUNT	20 x 15W
VOLTAGE	12V & 24V
LENS MATERIAL	OPTICAL GRADE, HARD COATED LEXAN
LUMENS	20,000
HOUSING MATERIAL	6063 EXTRUSION
AMPERES	20.7A @ 13.2v
LIFESPAN	50,000
SPOT BEAM	DRIVING BEAM
INGRESS PROTECTION	IP68
OPERATING TEMP	-40ËšC ~ +150ËšC
WEIGHT	5.790kg
CERTIFICATES	E-Mark R10 \| CE √
