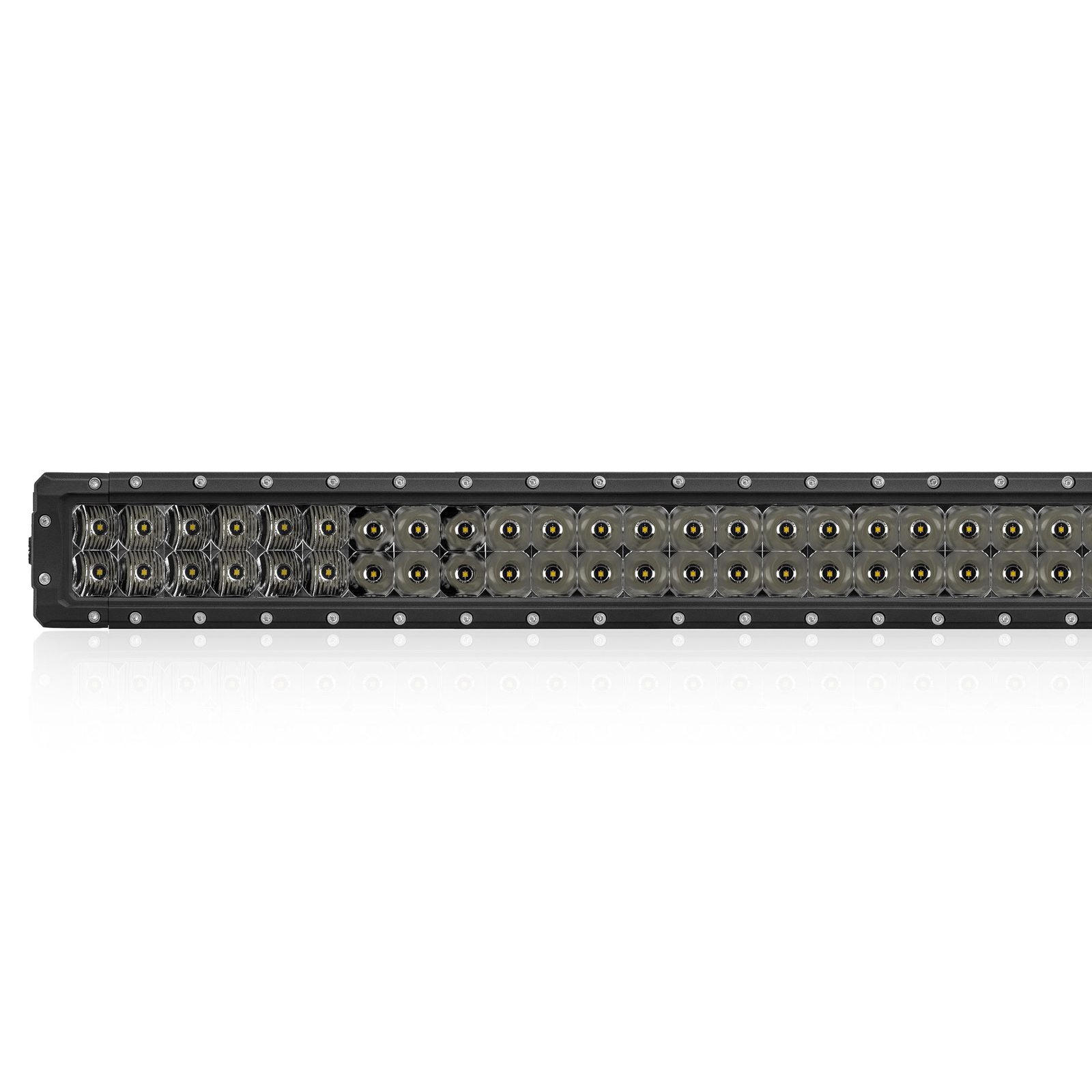

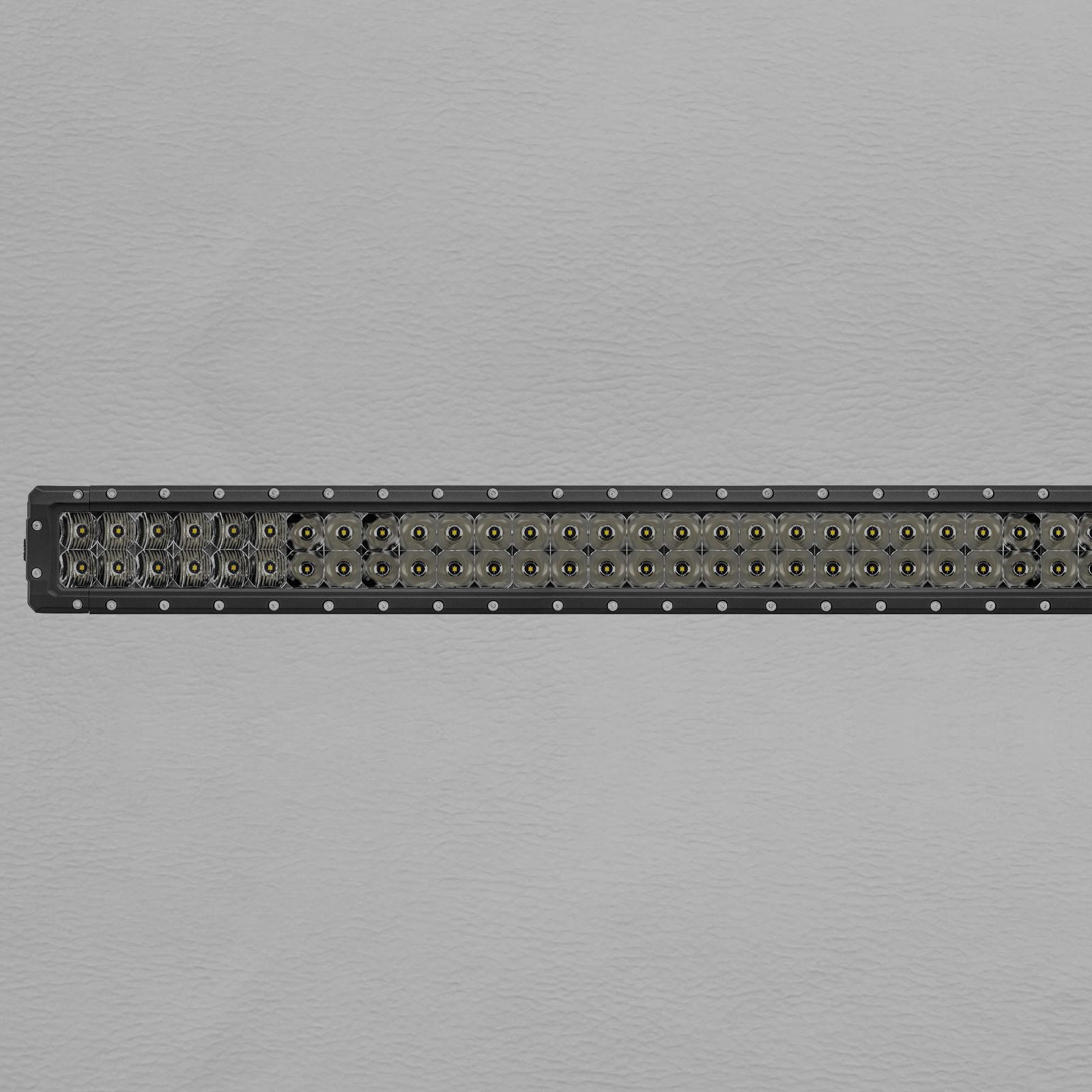

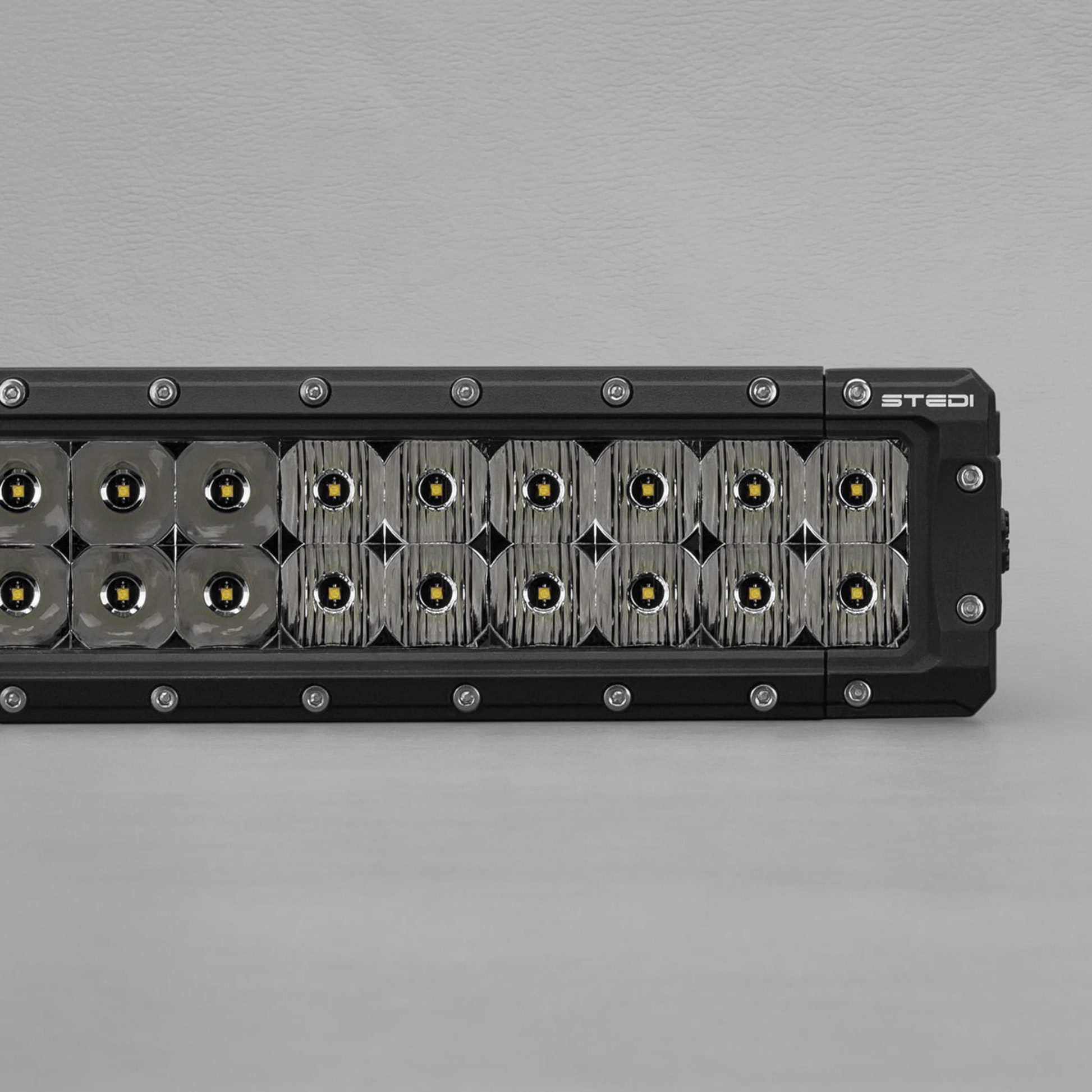

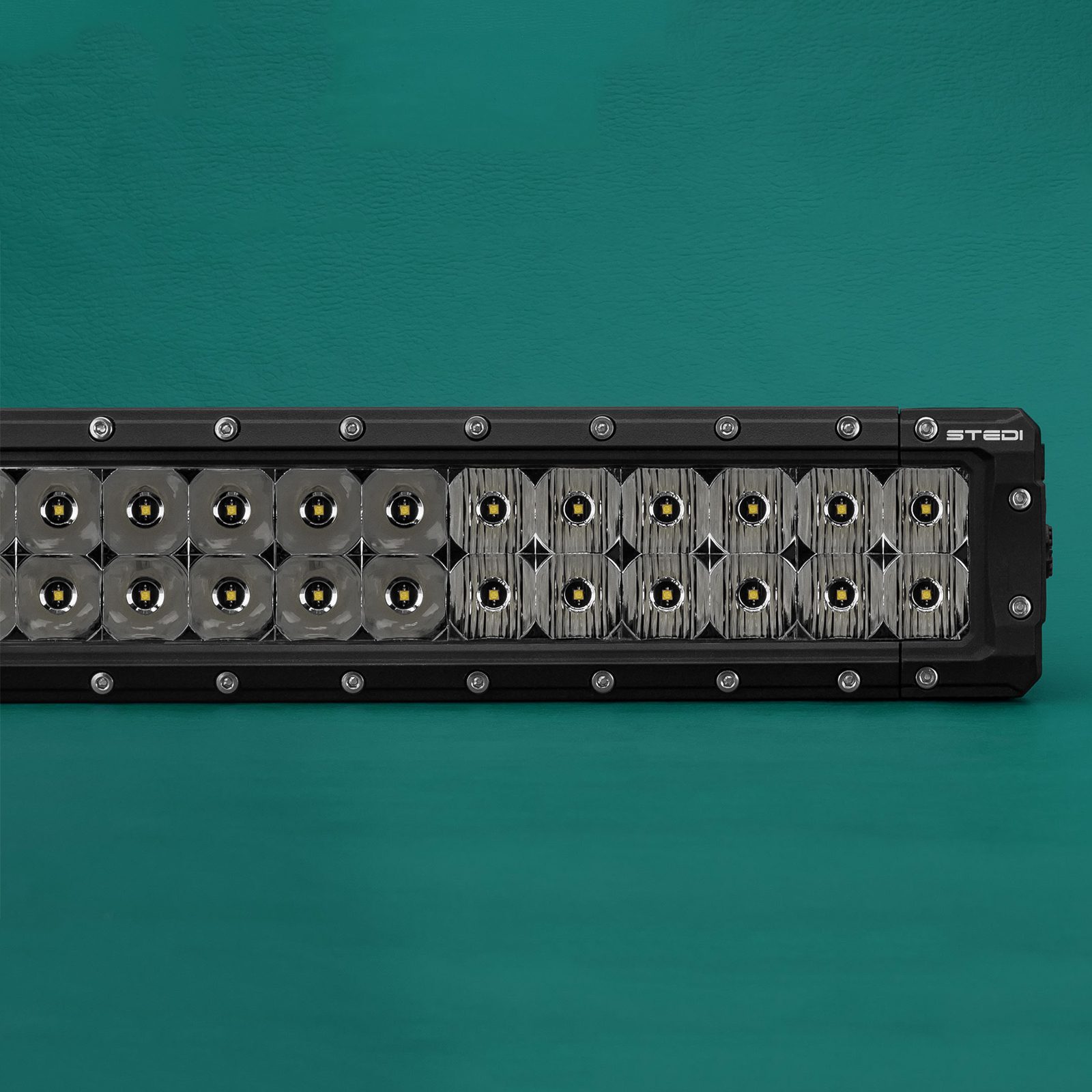

42 INCH ST4K 80 LED DOUBLE ROW LIGHT BAR
KWD 129.000
- Distance: 936m
- Lumens: 19,200Lm
- Brackets included
- Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
- 5 years warranty protection
In stock
Description
PINNACLE OF PERFORMANCE
By harnessing the power of PURE Drive™ technology, our range of STEDI ST4Ks are made to take full advantage of the input power, with 97% going straight to the LEDs.
JACK OF ALL TRADES
The ST4K 42 Inch LED Light Bar brings together the strengths of both spot and flood reflector distributions, to provide an amazing 936m delivery, with 55m on each side of the vehicle with the flood beam.
AN ENVIABLE PEDIGREE
The STEDI ST4K has been founded on the STEDI TYPE X pedigree; the exemplar of high-performing Driving Lights. With the might of 80 x OSRAM’s® OSLON® LEDs, the ST4K 42 Inch LED Light Bar will not shy away from the ability to be the perfect all-rounder for any situation.

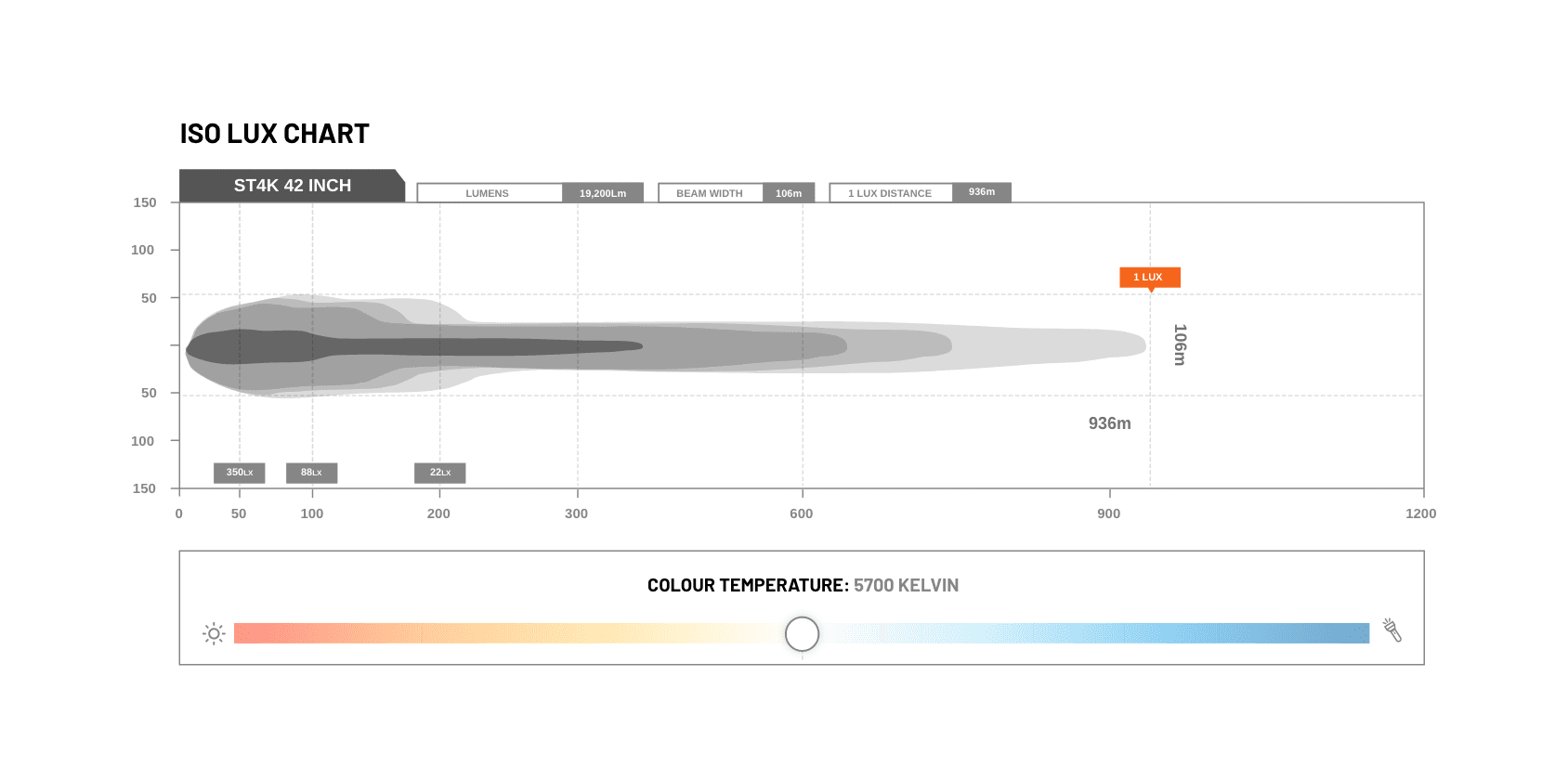

LUX GRAPH

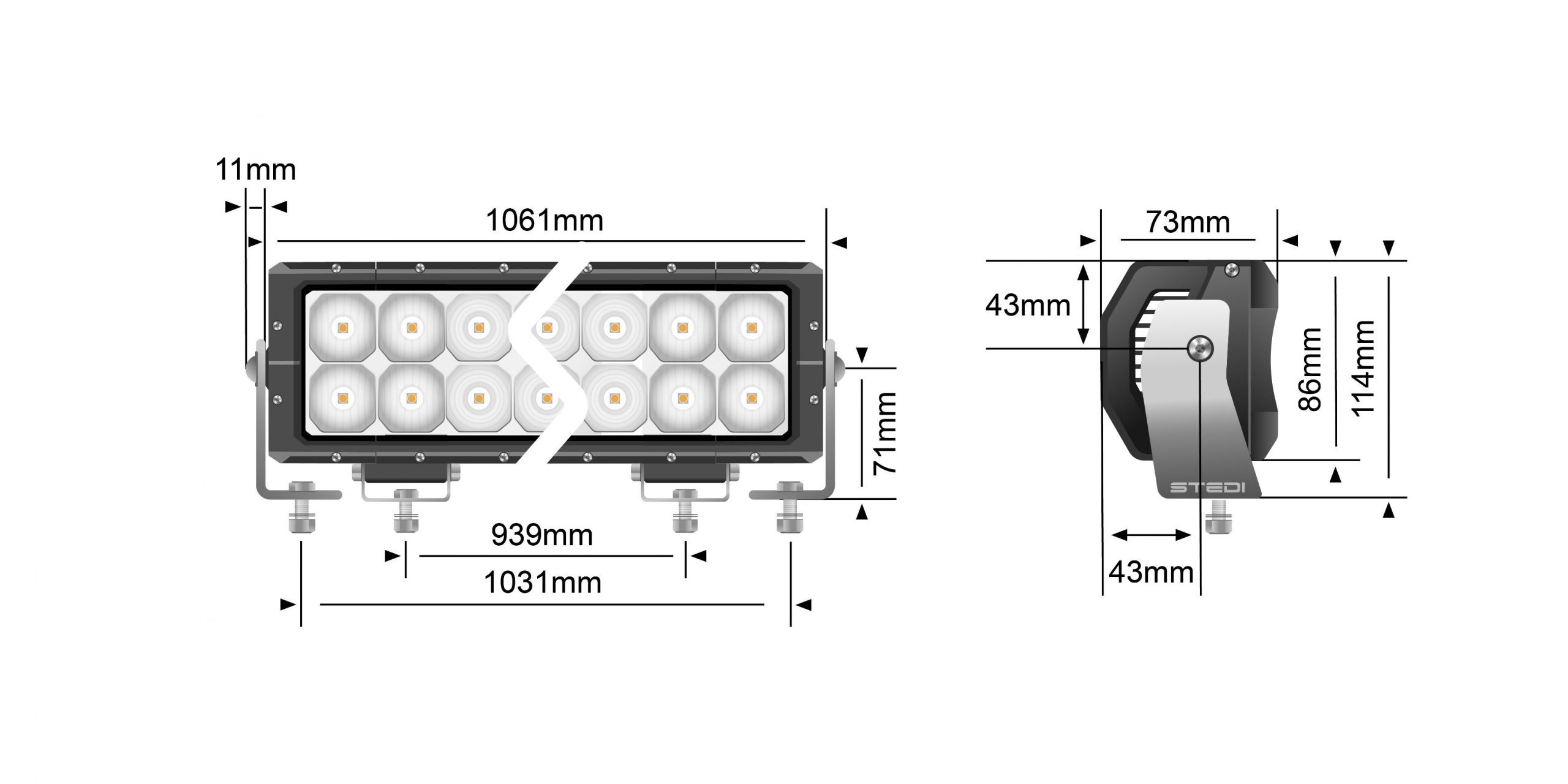

DIMENSIONS
PERFORMANCE THAT LETS YOU TURN THE SUN BACK ON
- STEDI ST4K-80 features 80 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly match optical properties.

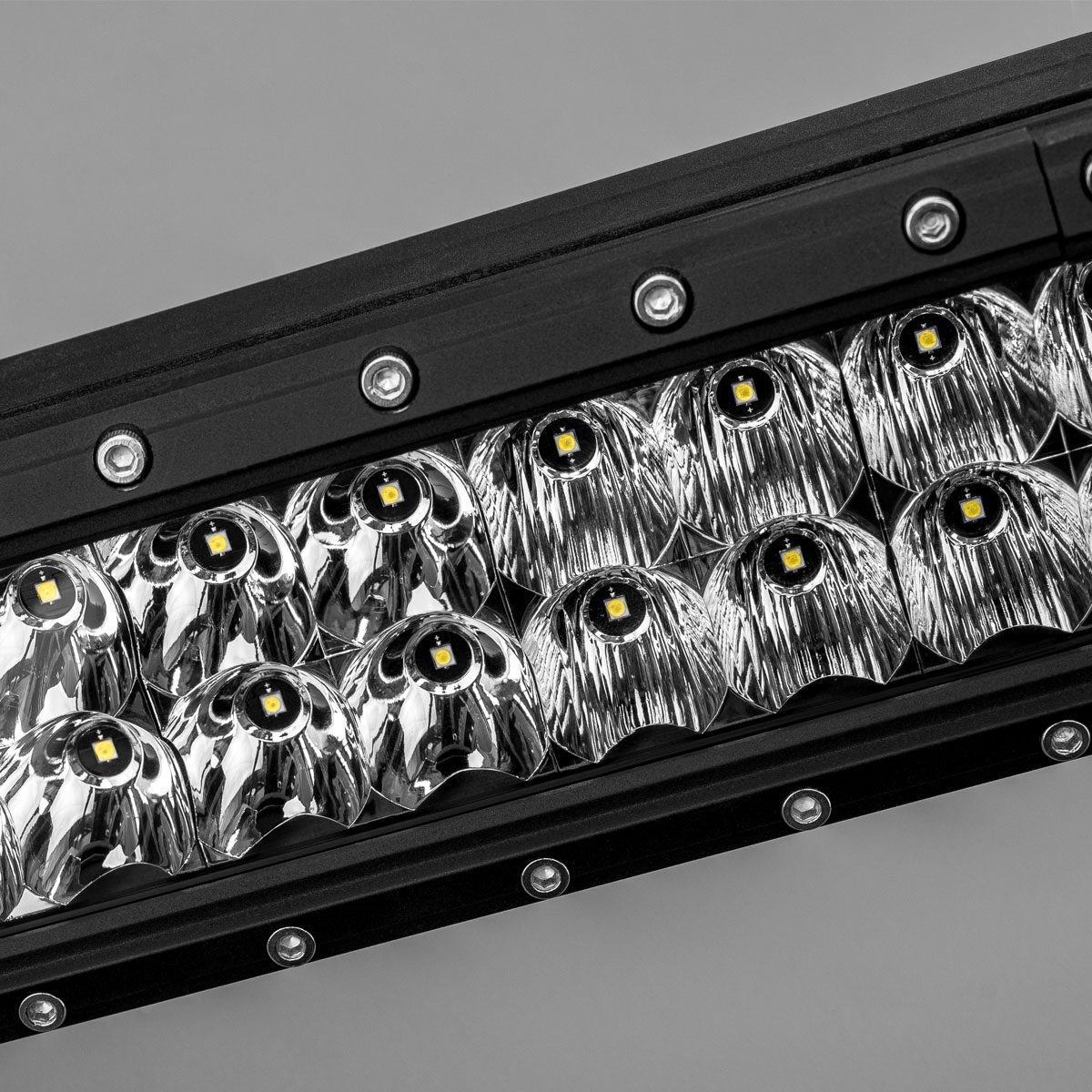

- 12 Flood + 56 Spot + 12 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 936m
- Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).
- Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.
BUILT TO GO ALL NIGHT

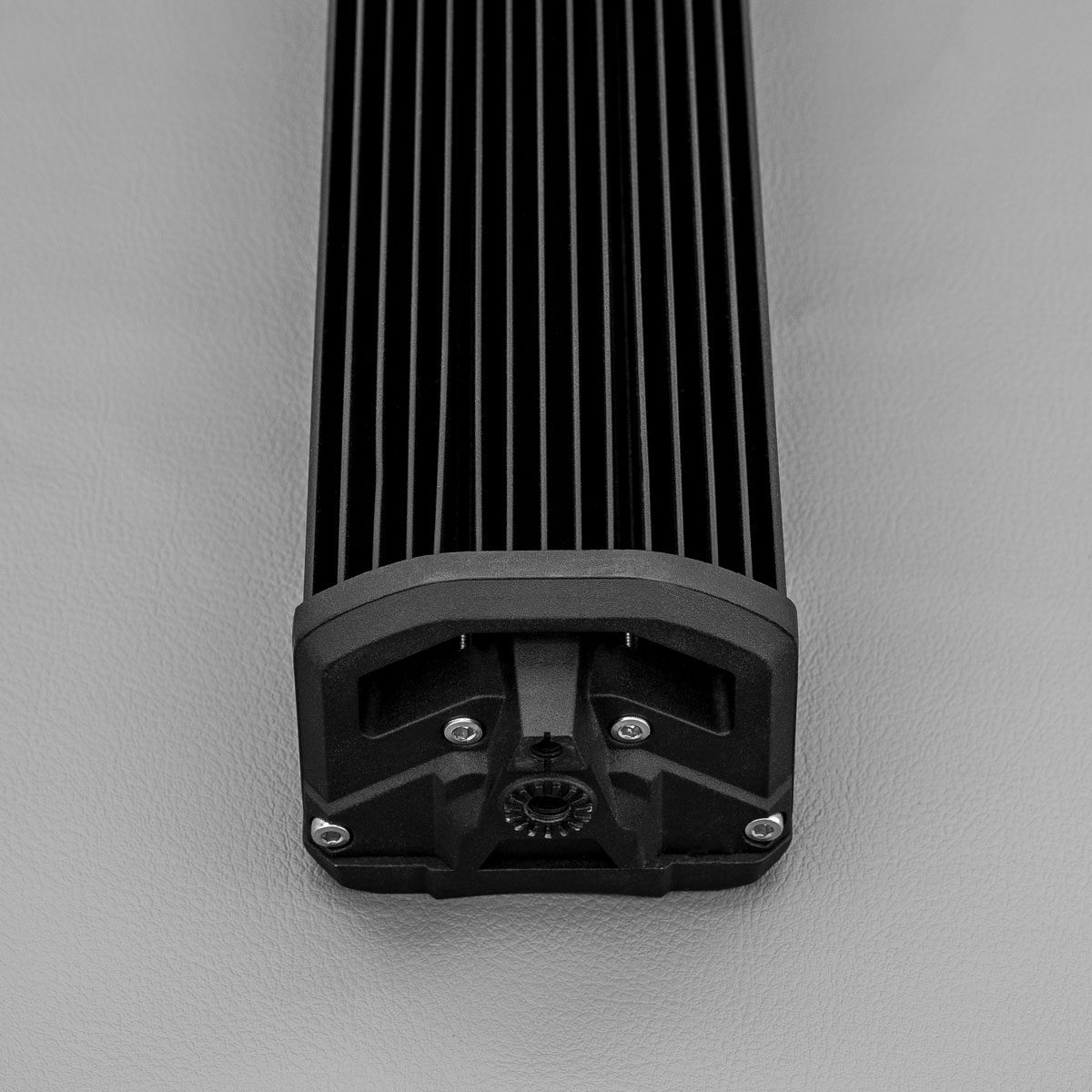

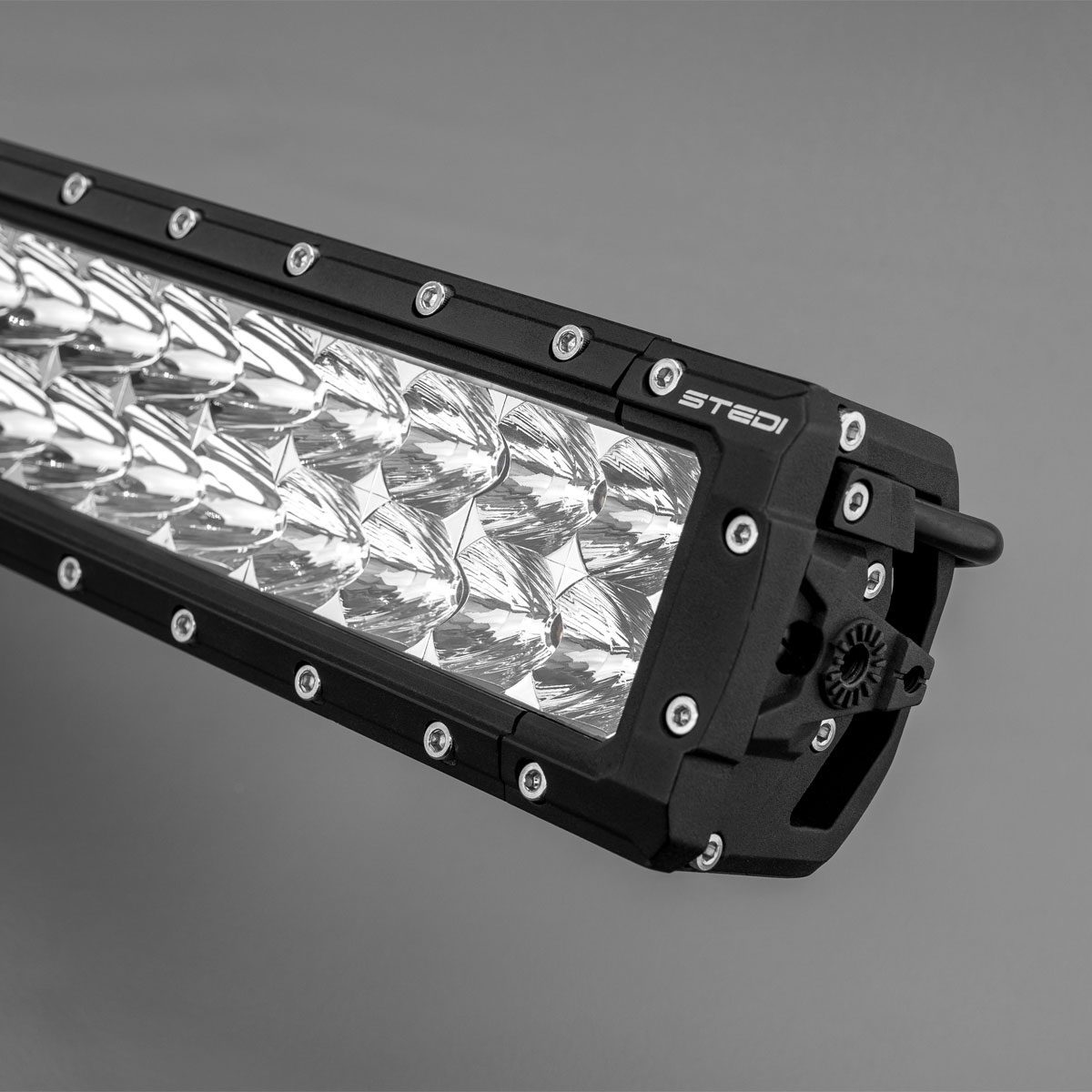

- A360.0 Cast face plate, extruded Aluminum heat sink | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
- Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.
- IP68 | Dust & Particle tight + Water-proof up to 3 meters – Drown it, we insist!
- Environmentally sealed Deutsch ® DTP connector.
Backed by our no
nonsense 5-year replacement warranty.

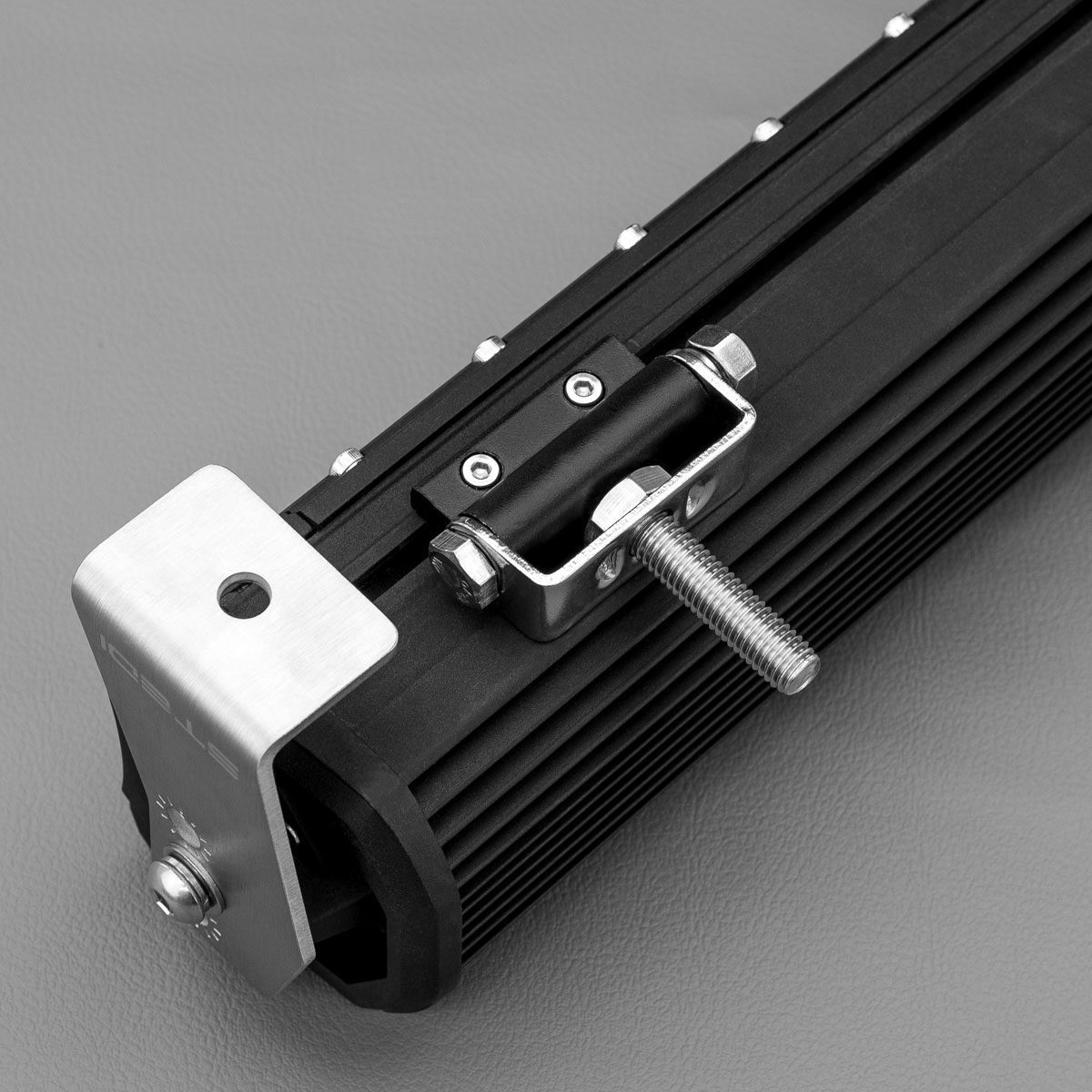

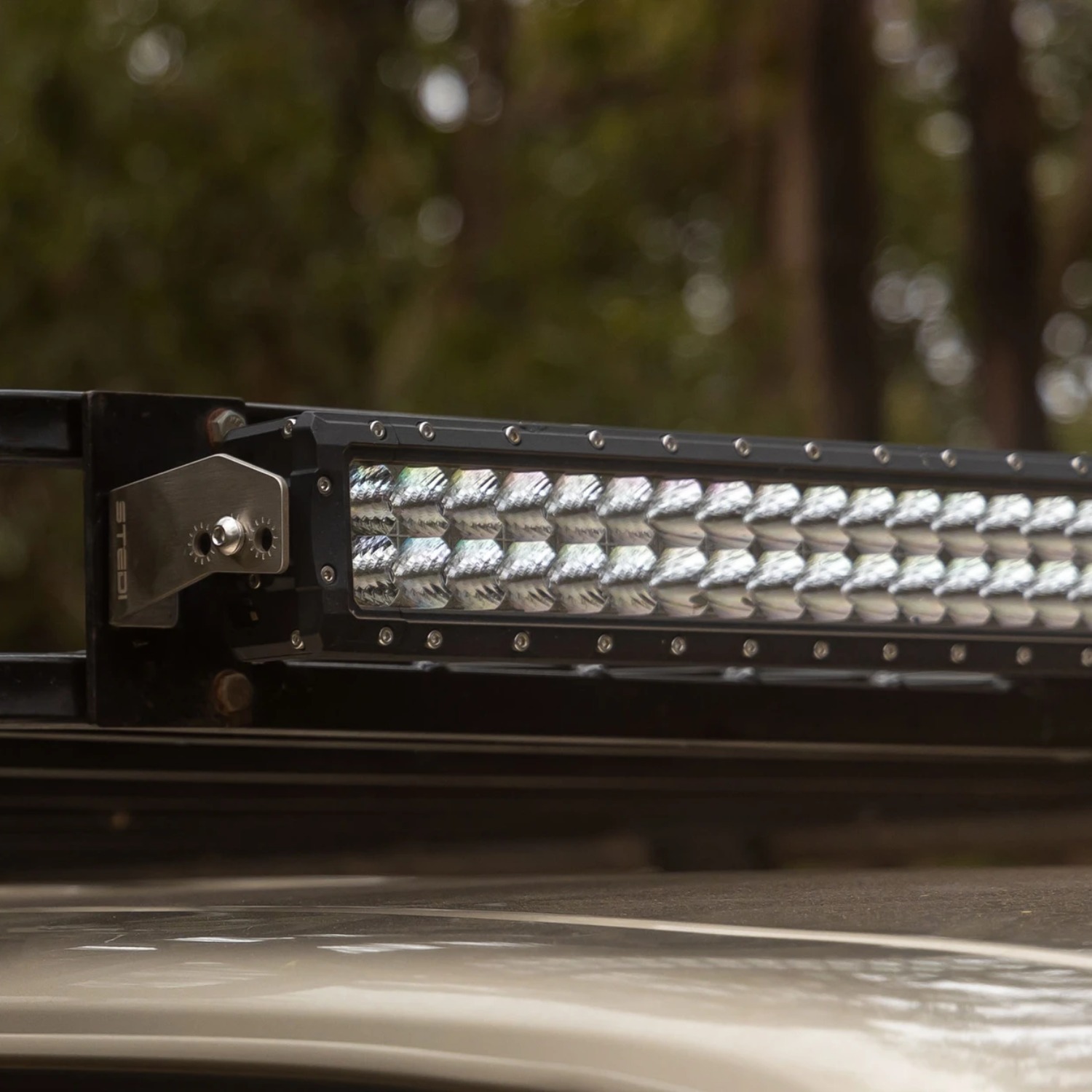

MOUNT IT YOUR WAY
We know you want flexible mounting options, which is why we’ve included two seperate mounting options.
- The included adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. Make mounting to UHF tabs or Bull bar dech very straight forward.
- Or use our 3mm thick 304 Stainless steel side brackets, which feature + or – 15mm height adjustment.

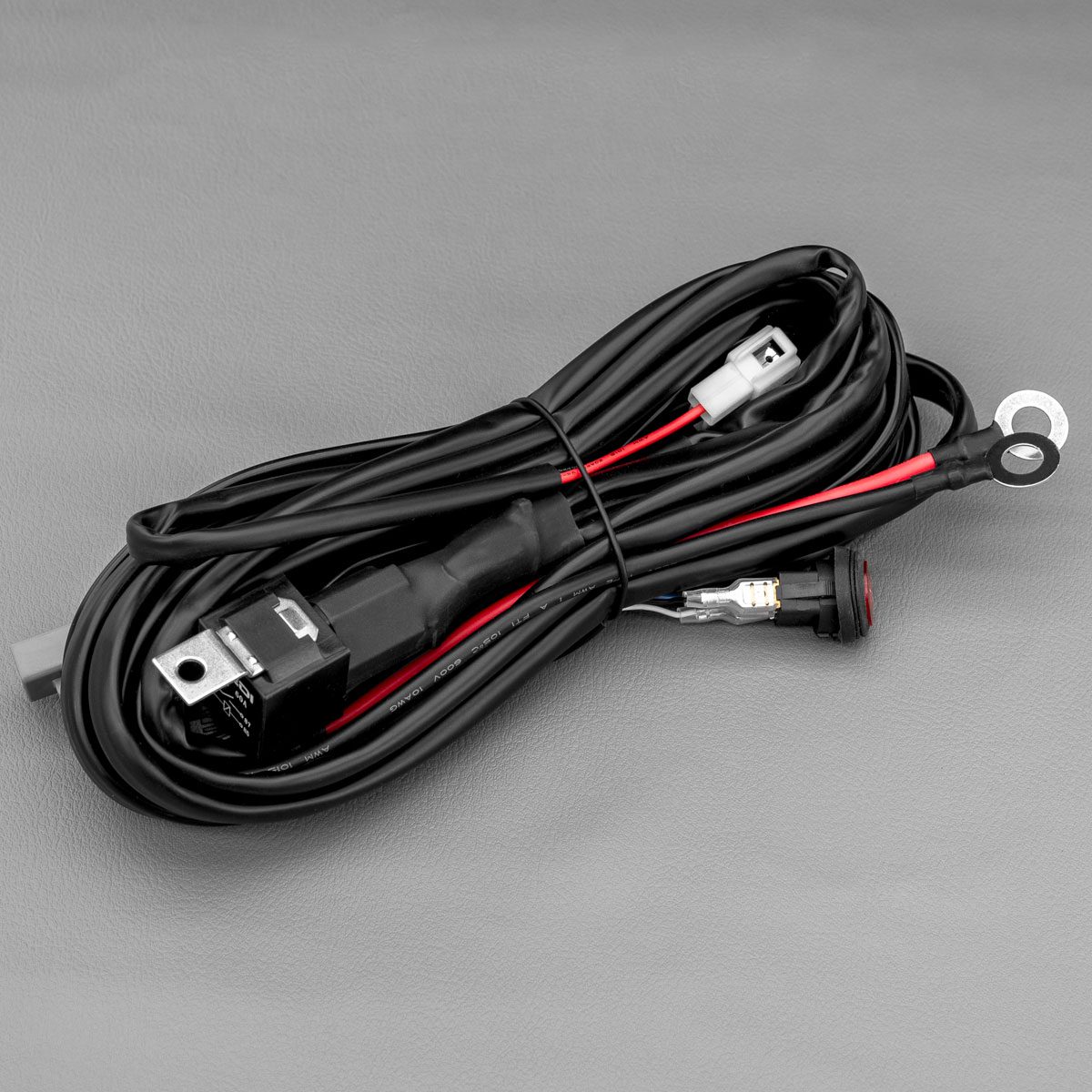

EASY-FIT Plug & Play High Beam Wiring Harness included.
Included is our acclaimed Easy-Fit Plug and Play Wiring Harness with supplied H4 and HB3 Adapters, making for an easy connection to high beam. Further unlike other brands our kit has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems. Whether your vehicle is positive or negatively switched our harness will work right out of the box without any modification whatsover.
TECH SPECS
LED MANUFACTURER | OSRAM (Oslon) ® |
LED COUNT | 80 |
VOLTAGE | 12V & 24V |
LENS MATERIAL | OPTICAL GRADE, HARD COATED LEXAN |
LUMENS | 19,200 LUMENS |
PEAK INTENSITY (CANDELA) | 883,200cd |
HOUSING MATERIAL | A360.0 Cast face plate, extruded Aluminum heat sink |
AMPERES | 18.2A @ 13.6v |
LIFESPAN | 50,000 |
FLOOD BEAM | 50° |
SPOT BEAM | 5.8° |
INGRESS PROTECTION | IP68 |
OPERATING TEMP | -40°C to 60°C |
WEIGHT | 5.430kg |
WHAT’S INCLUDED
- 1 x ST4K-80 STEDI Oslon LED Light Bar
- 2 x Brushed Stainless Steel Side Brackets
- 3 x Adjustable Sliding Brackets
- Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
- Cable Ties
- Wiring Instructions
Additional information
Weight | 7.7 kg |
---|---|
Dimensions | 127 × 14 × 12.5 cm |
Brand |
Related Products

GREEN – RING FOR Type-X Pro STEDI

60-63.5MM VICE BULL BAR TUBE CLAMPS

ST3303 PRO 28.2 INCH 40 LED LIGHT BAR

Type-X Pro LED driving lights (PAIR)

SMILEY | 8.5″ Spare Cover STEDI

YELLOW | 8.5″ Spare Cover STEDI

Stedi Quad Pro Clear Cover

ST3K 51.5 INCH 50 LED SLIM LED LIGHT BAR

HB4 (9006) LED FOG LIGHT BULBS (PAIR)

49-51MM VICE BULL BAR TUBE CLAMPS

ST3K 41.5 inch blackout cover STEDI

MICRO ST3520 13.4″ 36W WORK LIGHT

MINI LED LANTERN

28″ ST4K Black out cover

T5 2721 WEDGE LED BULBS (4 PACK)

22mm – 30mm Vice Bull Bar Tube Clamps

GREEN | 8.5″ Spare Cover STEDI

50″ ST4k Black out cover

MARINE WHITE 25W SLIM LED FLOOD LIGHT

FESTOON 42MM LED BULBS (PAIR)

RED | STEDI ST3303 ™ PRO Caps

GREEN | STEDI ST3303 ™ PRO Caps

LED STRIP LIGHT

10W MINI LED FLUSH MOUNT OSRAM

LED LANTERN

QUAD PRO LED DRIVING LIGHTS(Pair)

MICRO ST3520 26″ 72W LED WORK LIGHT

32″ ST4k Black out cover

BAY15D (1157) LED BULBS (PAIR)

ST3303 PRO 11 INCH 12 LED LIGHT BAR

FLOOD -10W MINI LED LIGHT OSRAM

BLUE – RING FOR Type-X Pro STEDI

42″ ST4K Black out cover

CLEAR | 8.5″ Spare Cover STEDI

SNOW | 8.5″ Spare Cover STEDI

SMILEY | 7″ Spare Cover STEDI

ST3301 PRO 27.5 INCH 18 LED LIGHT BAR

50 INCH ST4K 96 LED DOUBLE ROW LIGHT BAR

44.5-48MM VICE BULL BAR TUBE CLAMPS

BA15S (1156) LED BULBS (PAIR)

ST3303 PRO 23.3 INCH 32 LED LIGHT BAR

8.5″ TYPE-X™ SPORT(Pair)

BA9S LED Bulb T4w H6w H21w

T10 W5W WEDGE LED BULBS (PAIR)

ST3301 PRO 4.6″ 2 LED LIGHT BAR

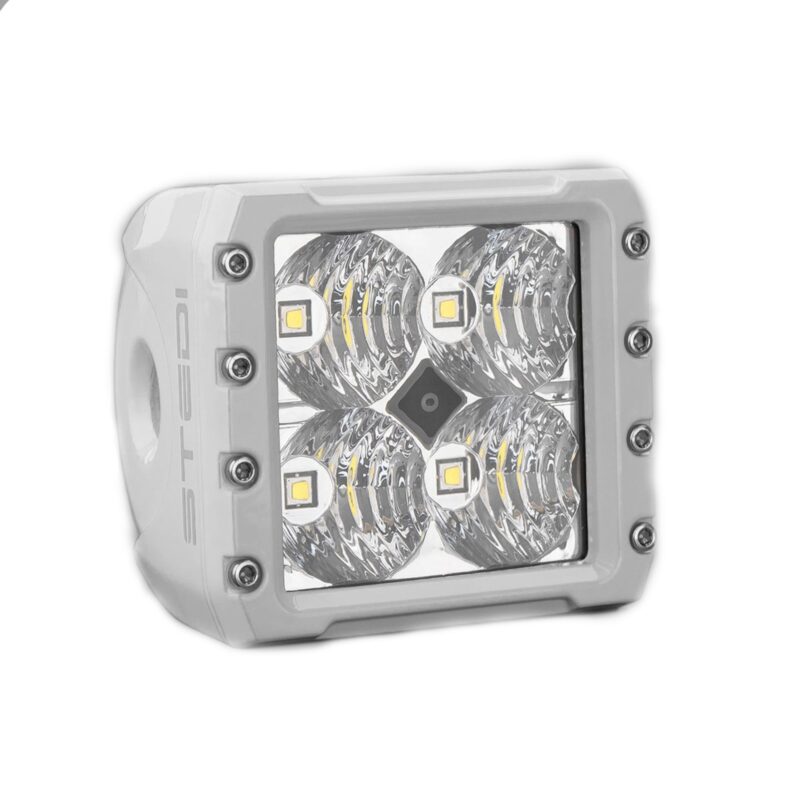

FLOOD – MARINE WHITE C-4 LED LIGHT
