ST3301 PRO 27.5 INCH 18 LED LIGHT BAR

KWD 105.000

  • Distance: 687.9mm
  • Raw lumens: 15,300
  • Brackets included
  • Quick Fit High Beam Wiring Harness 12v Relay, Wiring Kit and On/Off Switch
  • 5 years warranty protection

In stock

SKU: LED3301-PRO-18L Categories: ,

Description

OVERVIEW.
Advancing from our popular ST3301 comes the new STEDI ST3301 Pro. With a new look and improved lighting technology, in addition to our revised reflectors, the ST3301 Pro will increase your lighting performance dramatically.

BEAM CHARACTERISTICS.
Our ST3301 Pro builds from the character of the ST3K and ST4K, by offering a higher Lumen output with an excellent mid-range volume. The ST3301 packs a greater punch than its predecessor when it comes to light penetration, offering a light reach of up to 600m at the 1 Lux mark. With this increase of light, we also managed to maintain a streamlined design, keeping the weight of the 27.5″ Bar at 2.80kg.

COLOURS OF EXPRESSION.

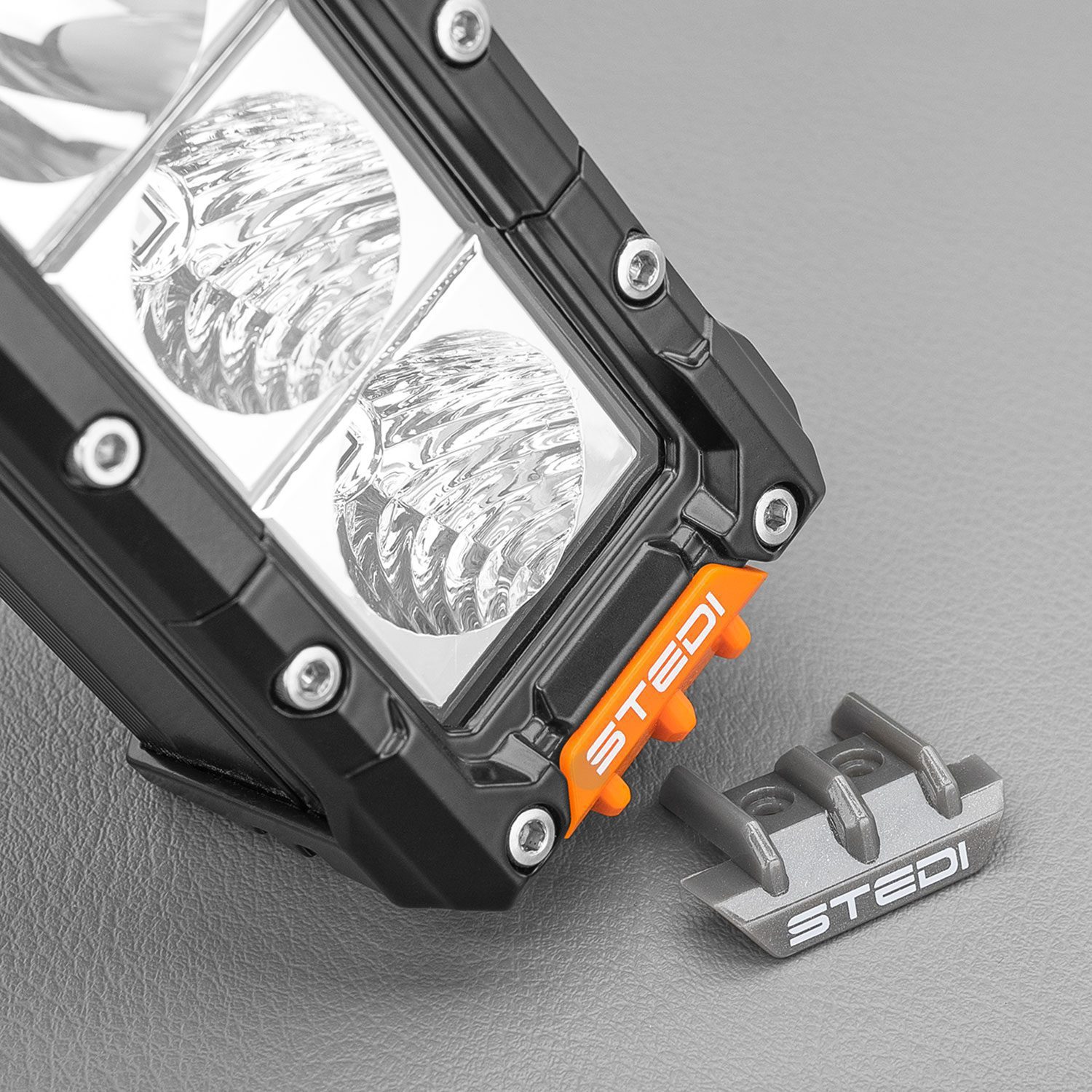

Add your own personal colour combination with our customisable side caps. Grey and STEDI orange caps are included, and when you get sick of those, indulge yourselves with the green, blue, and red caps which are available to purchase separately.

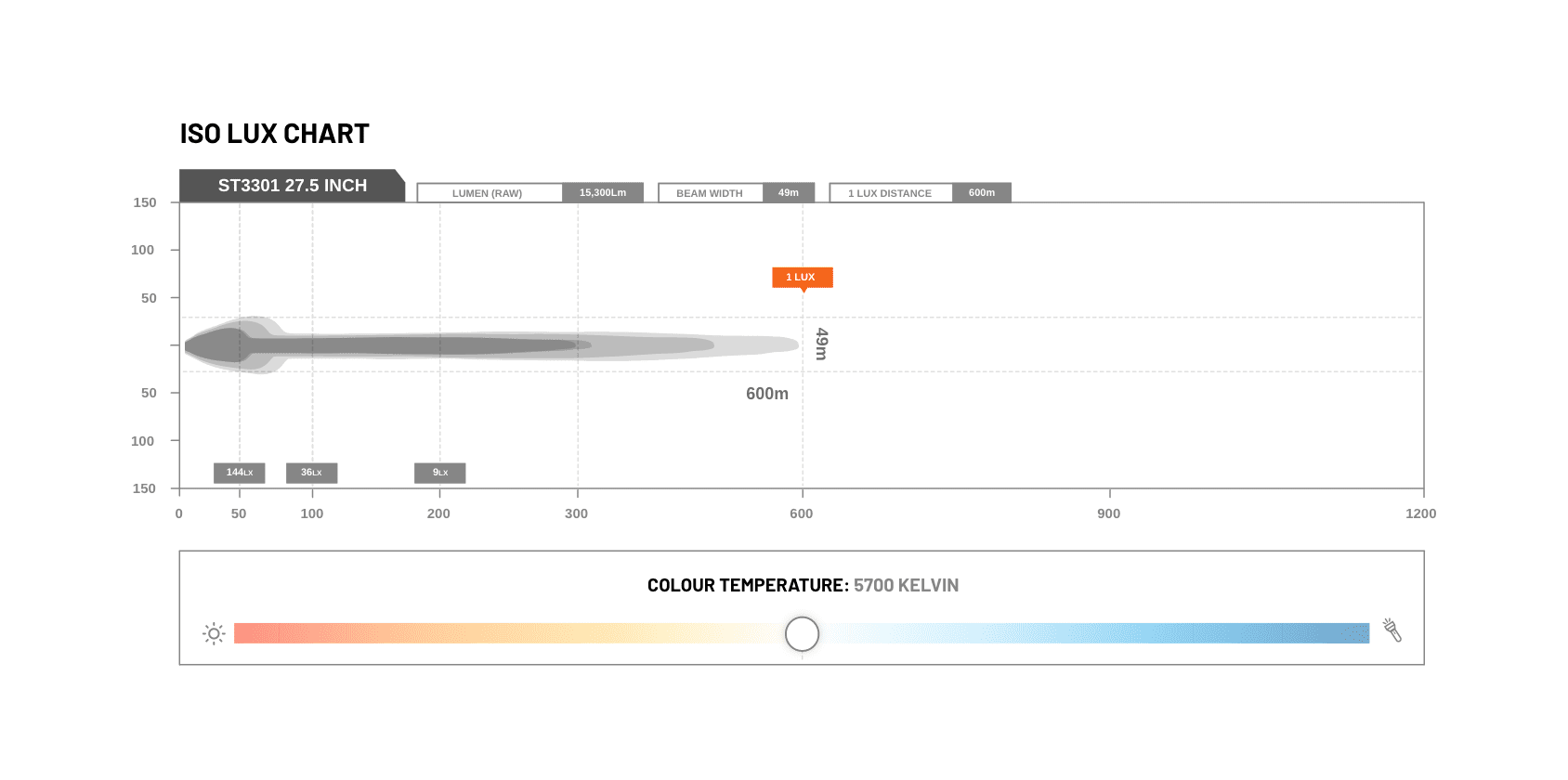

LUX GRAPH
st3301 pro 27.5 1

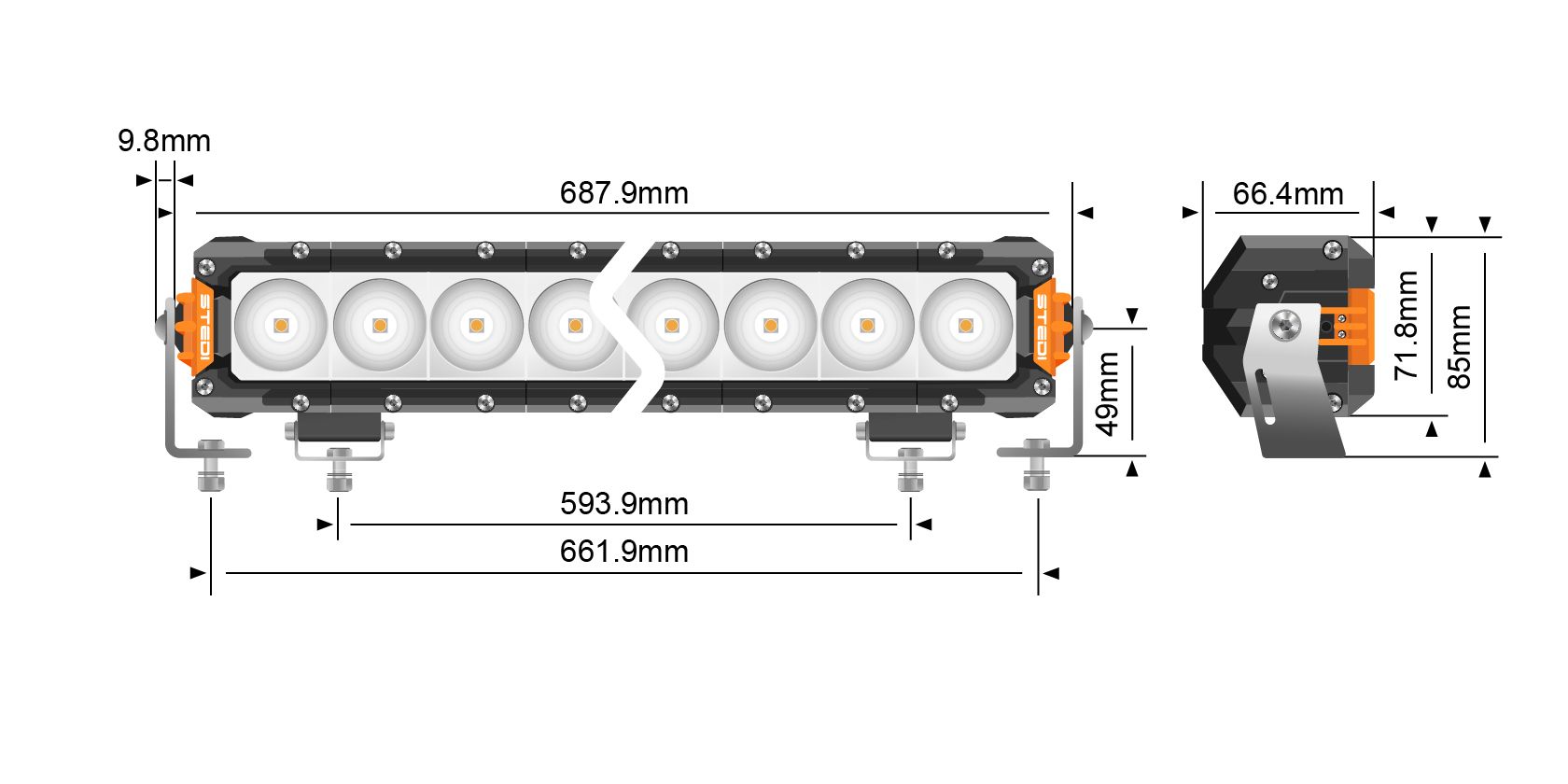

DIMENSIONS
st3301 pro 18.6 22 01 3

Unmistakable performance. Unmistakably STEDI.
For almost a decade, the name STEDI has stood for cutting-edge design and market-leading performance. STEDI has continued to keep at the forefront of LED lighting, making STEDI the leading brand born right here in Australia. Unquestionably, ST3301 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3301 PRO a quintessential component for any LED aficionado.

KEY TECHNICAL BREAKDOWN

  • Ingress Protection IP68 (Backed by a certificate of conformity),
  • Coordinated Colour Temperature 5600K – Excellent colour contrast.

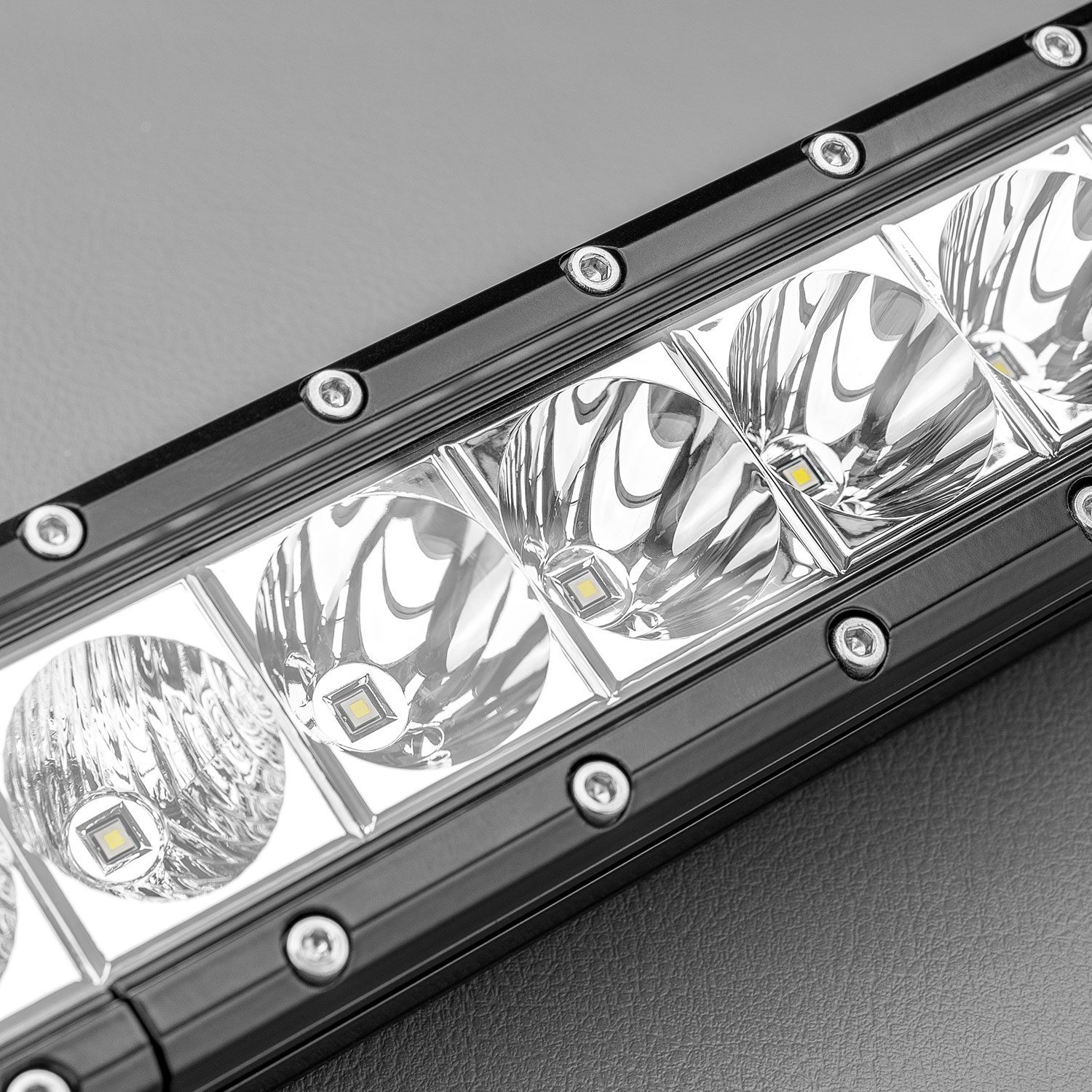

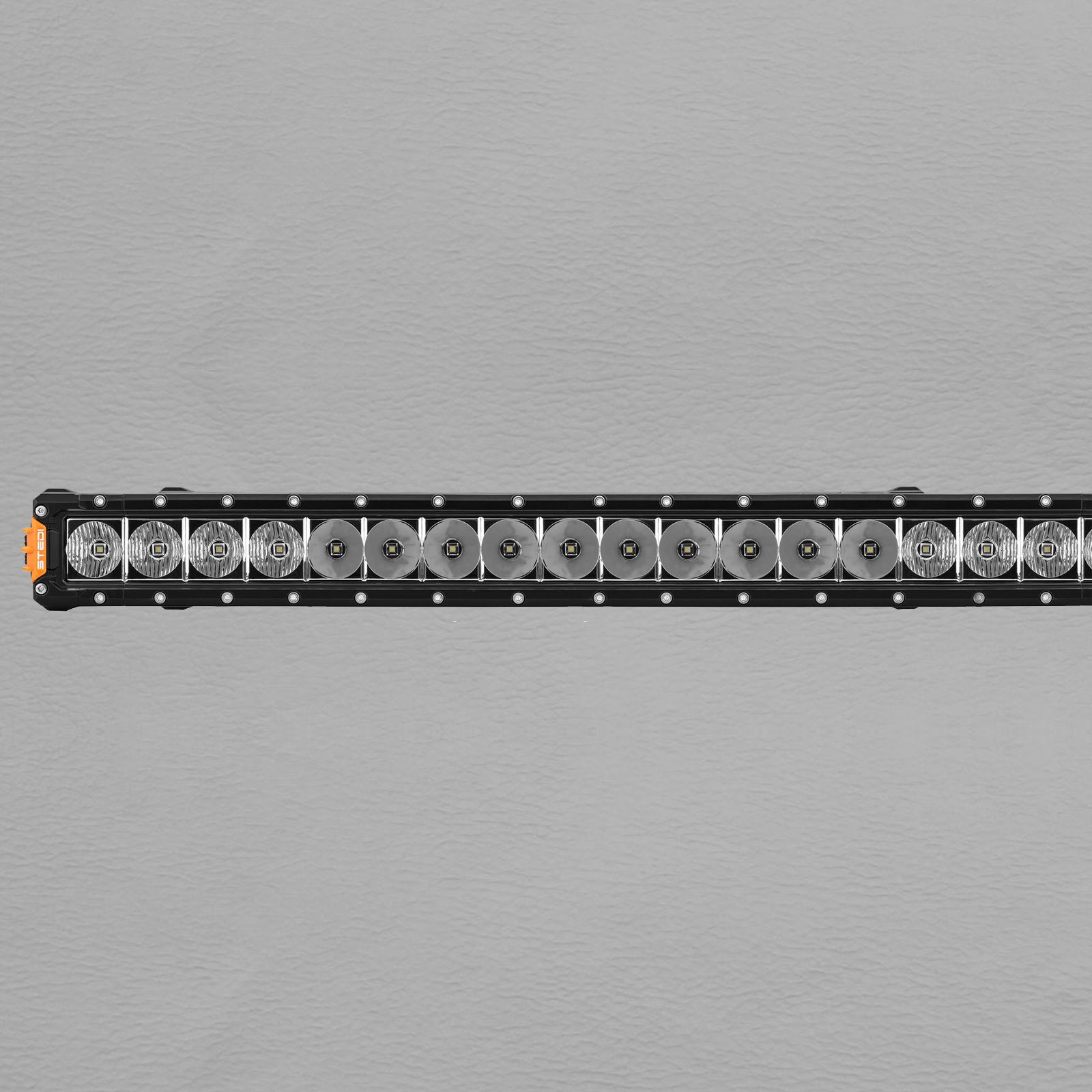

  • Flood/spot/flood combination with 18 x LEDs

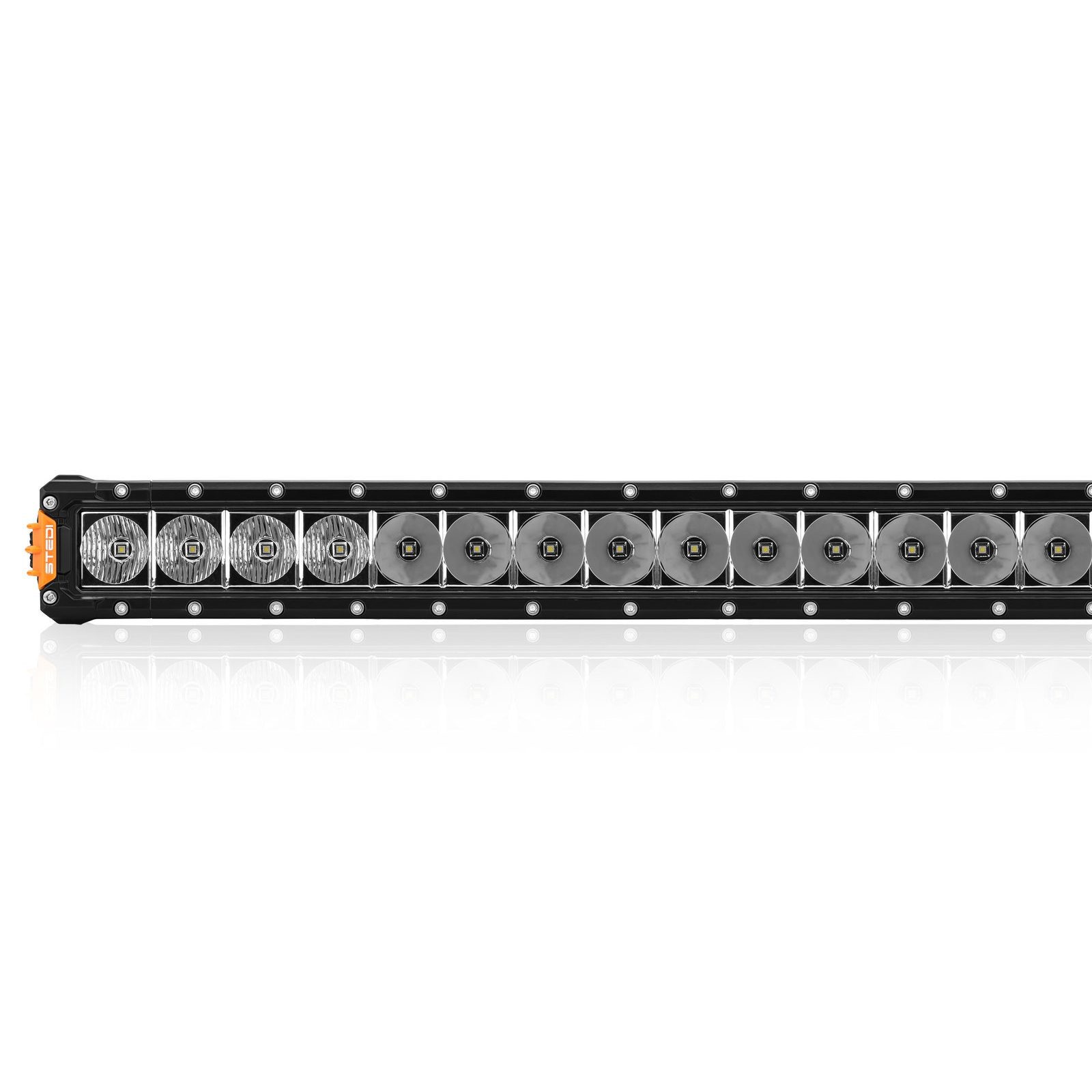

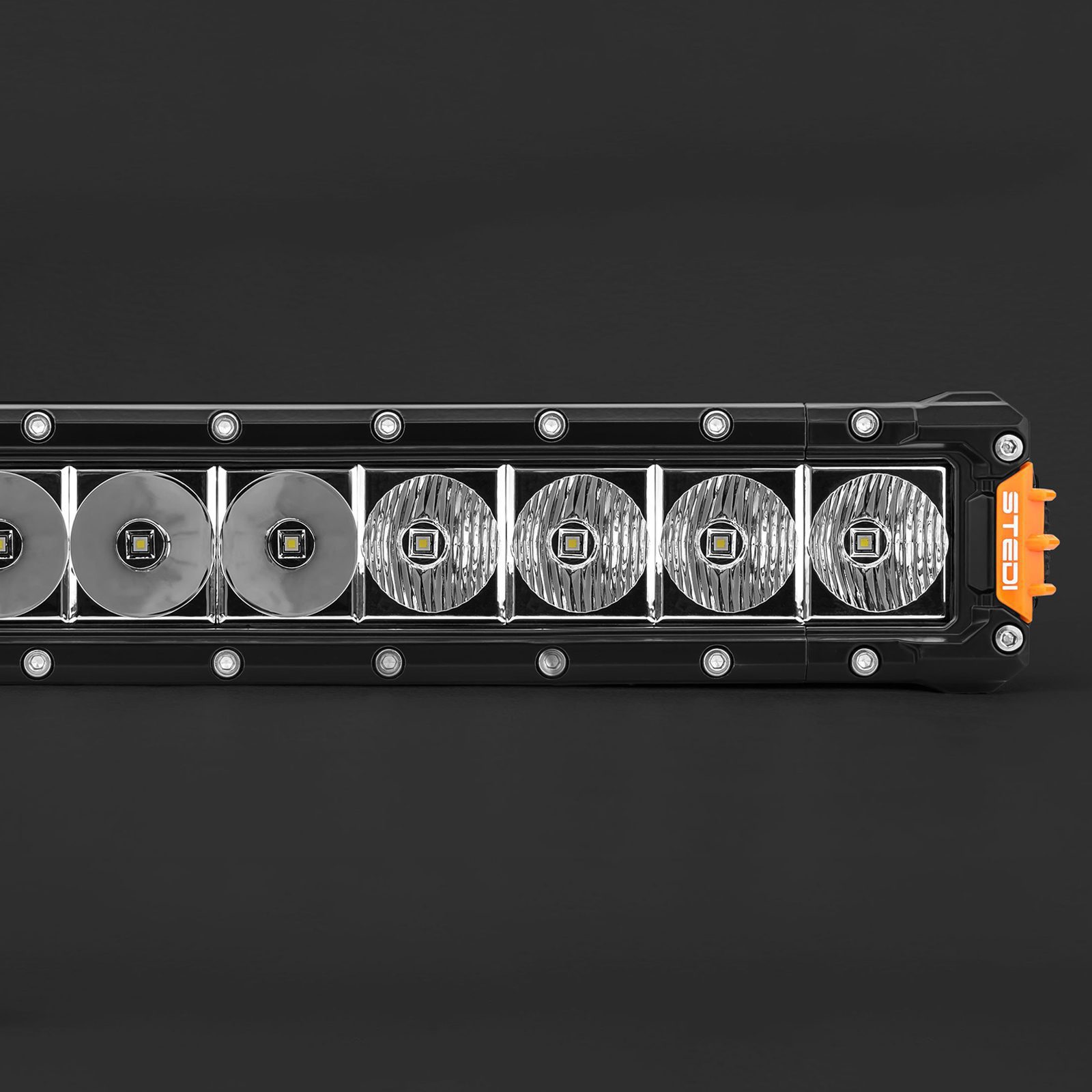

  • 4 Flood + 10 Spot + 4 Flood Reflector Distribution
  • Tough GE Lexan primary lens which 250 times the impact-resistant strength of glass and 30 times stronger than acrylic Poly-carbonate.
  • Waterproof Deutsch DT Connector

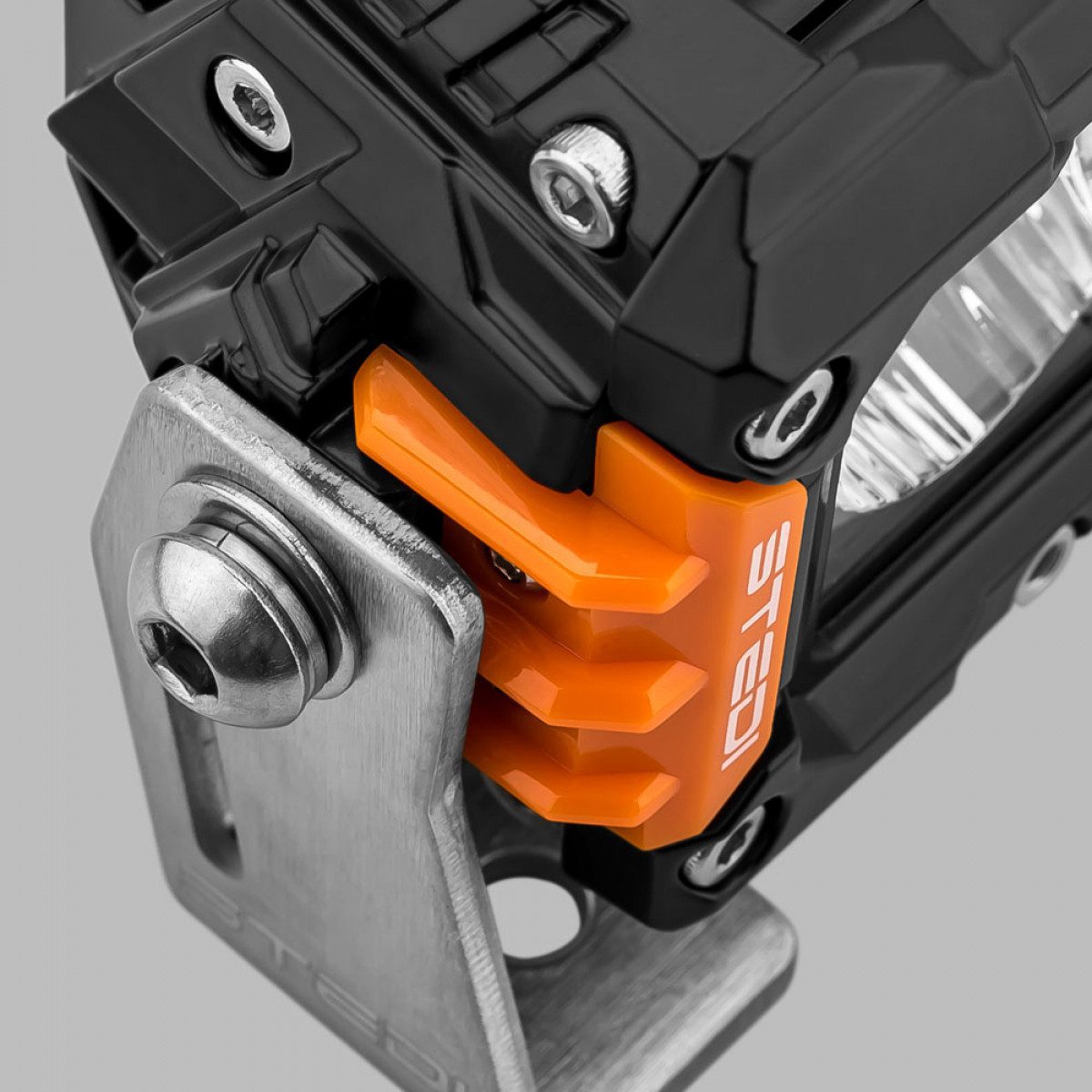

  • Adjustable Slide mounts and stainless steel side brackets included.
  • Guaranteed against electromagnetic (EMC) and radio frequency (RFI) interference

TECH SPECS

Lumen 15,300Lm (RAW) 8,250Lm (Effective)
Peak Intensity (Candela) 360,000cd
Operating Voltage 10-45V DC
Waterproof Rate IP 68
LED 18 x OSRAM™
Colour Temperature 5700K
Material Die-Cast Aluminium
Lens GE Lexan
Mounting Bracket Aluminium
Bolts and FIttings 3 Series Stainless Steel
Flood Beam Angle 45° Degrees
Spot Beam Angle 11° Degrees
Lumen Maintenance 50,000 LM-80
Weight 2.800kg
Current Draw 11.8A @ 13.6v

WHAT’S INCLUDED

  • ST3301 Pro 27.5 INCH 18 LED LIGHT BAR
  • Stainless Bolt and Nut Set
  • Sliding Lower Mounting Brackets + Side Brackets
  • Quick Fit High Beam Wiring Harness 12v Relay, Wiring Kit and On/Off Switch
  • 2 x Orange Side Caps
  • 2 x Grey Side Caps
  • HB3 and H4 Piggy Back Adaptors

Additional information

Weight 4.5 kg
Dimensions 90.5 × 13 × 14 cm
