Description
OVERVIEW.

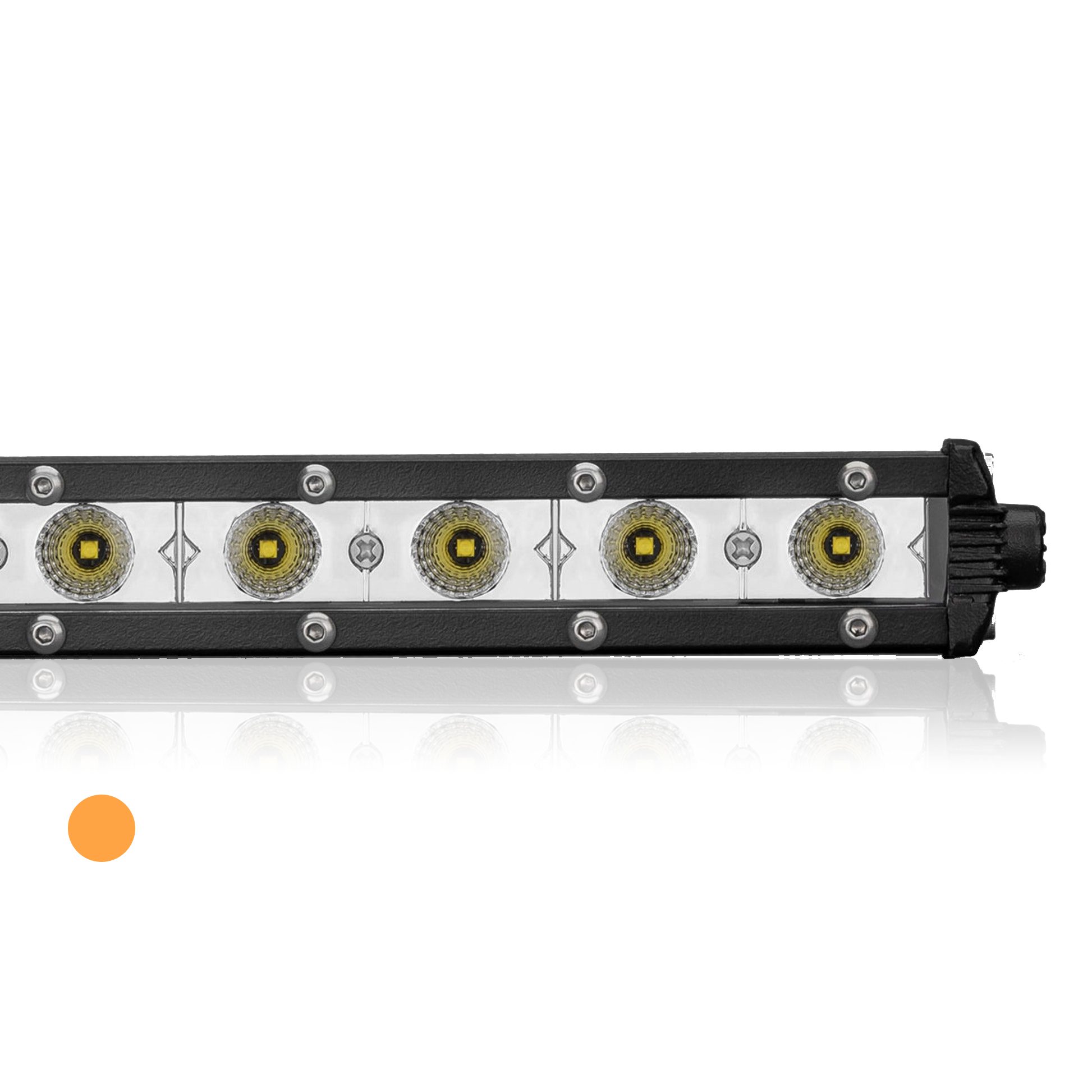

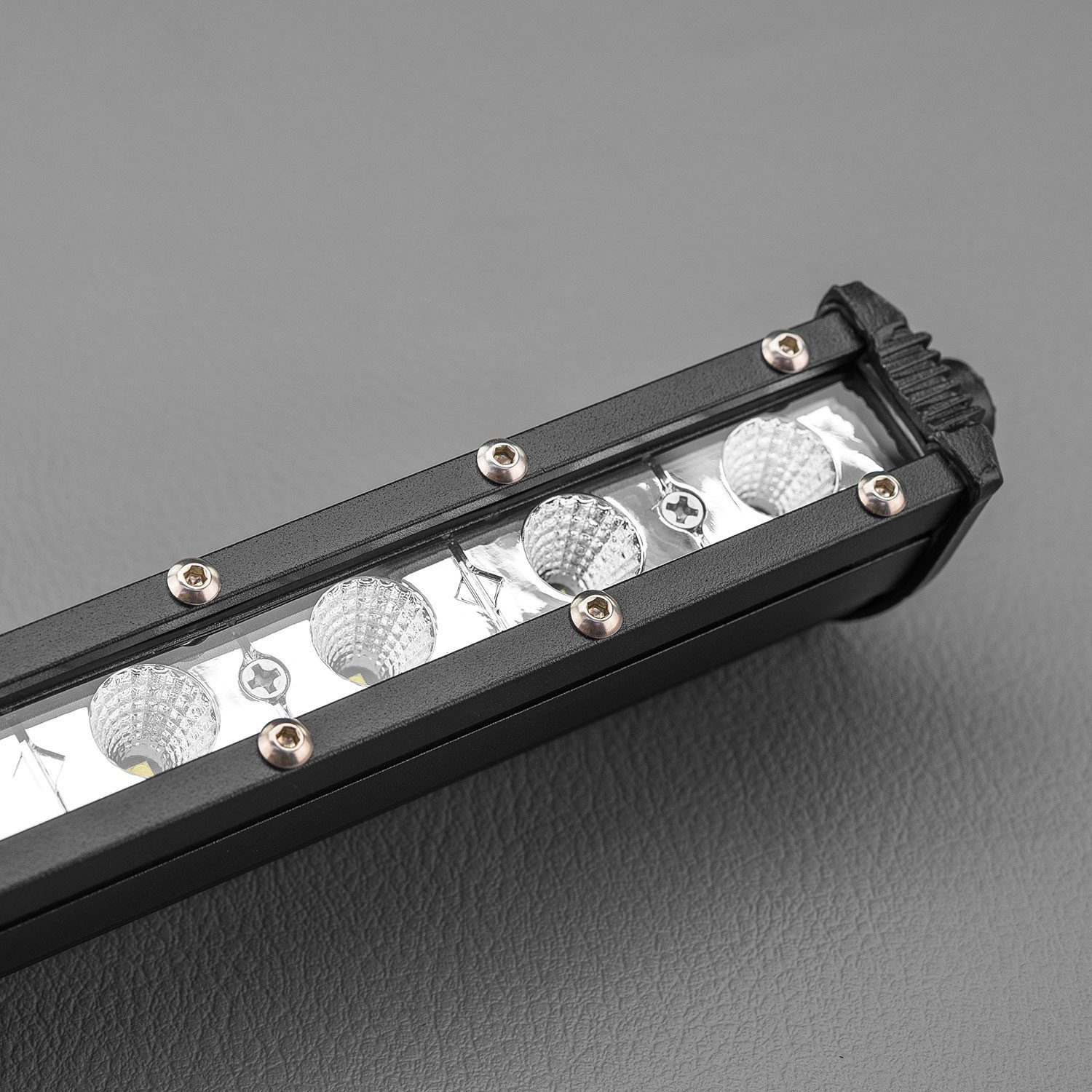

Our lowest profile LED Light bar with a total height of only 26mm is perfect for those looking for a combo beam but running tight on space or looking to keep the factory look to their vehicle. Available in 3 different sizes to fit any application, our ST3520 Micro is the easy choice when looking for that bit of extra light.
PERFORMANCE.
The ST3520 is the perfect addition to an already powerful lighting setup or just looking for something to bring some light over your standard headlights. Running a combo beam so even if it’s the only bar you run on your vehicle you’re provided with good spot and flood beam.
APPLICATION.
These little puppies have one of the widest fields of usable application as they are quite nimble and light weight meaning they can pretty much be mounted anywhere you need without needing to be heavily supported by the structure of the car weighing in at only 0.700kgs for the 13.4 inch bar.
DIMENSIONS
KEY FEATURES AT A GLANCE
- IP67 Ingress Protection
- 12 x 3 Watt CREE LED
- Micro Profile at only 26mm
- Flood Beam – Perfect Rear Light, Awning Light or bumper or bull bar voids.

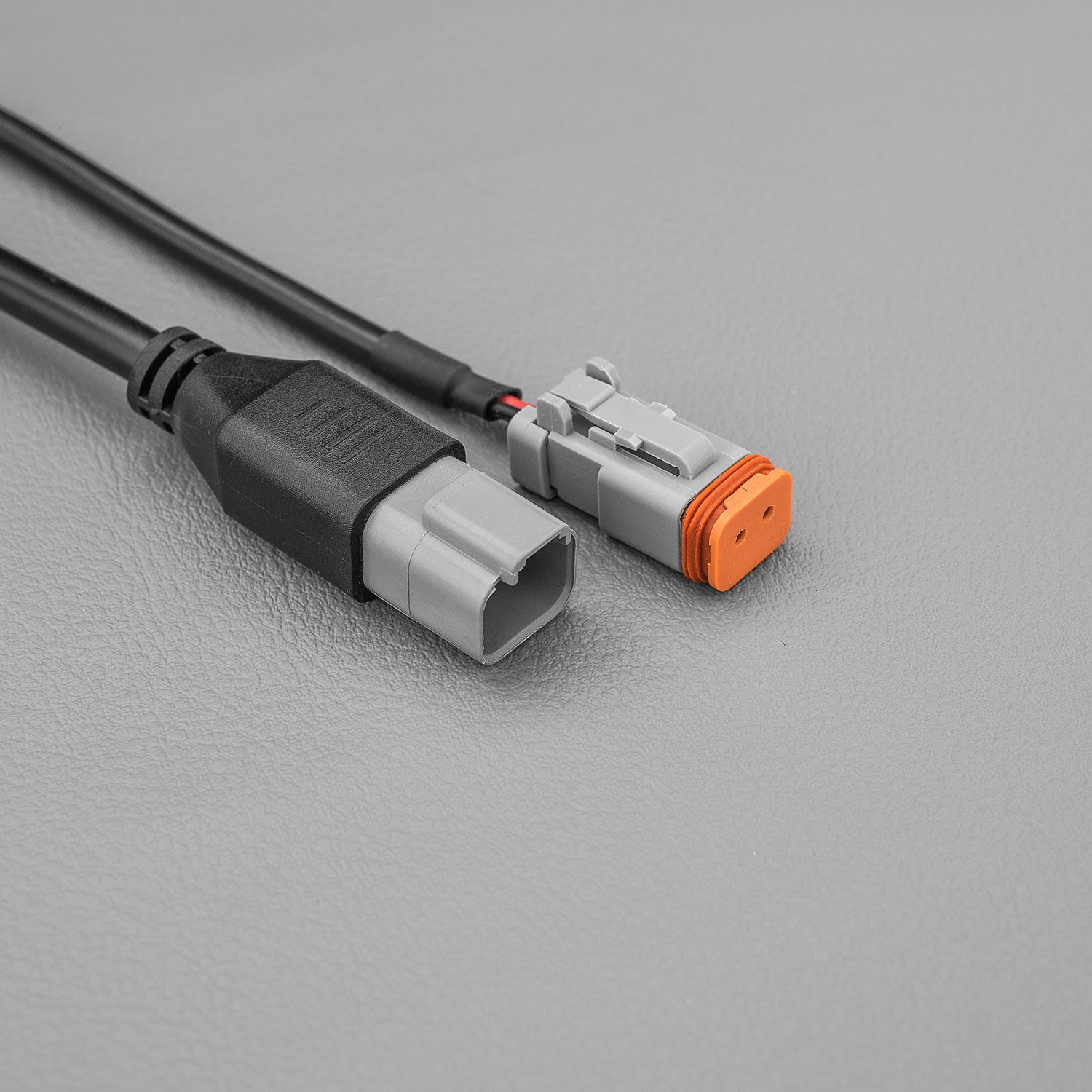

- Waterproof Deutsch Connectors Male and Female with wire tails

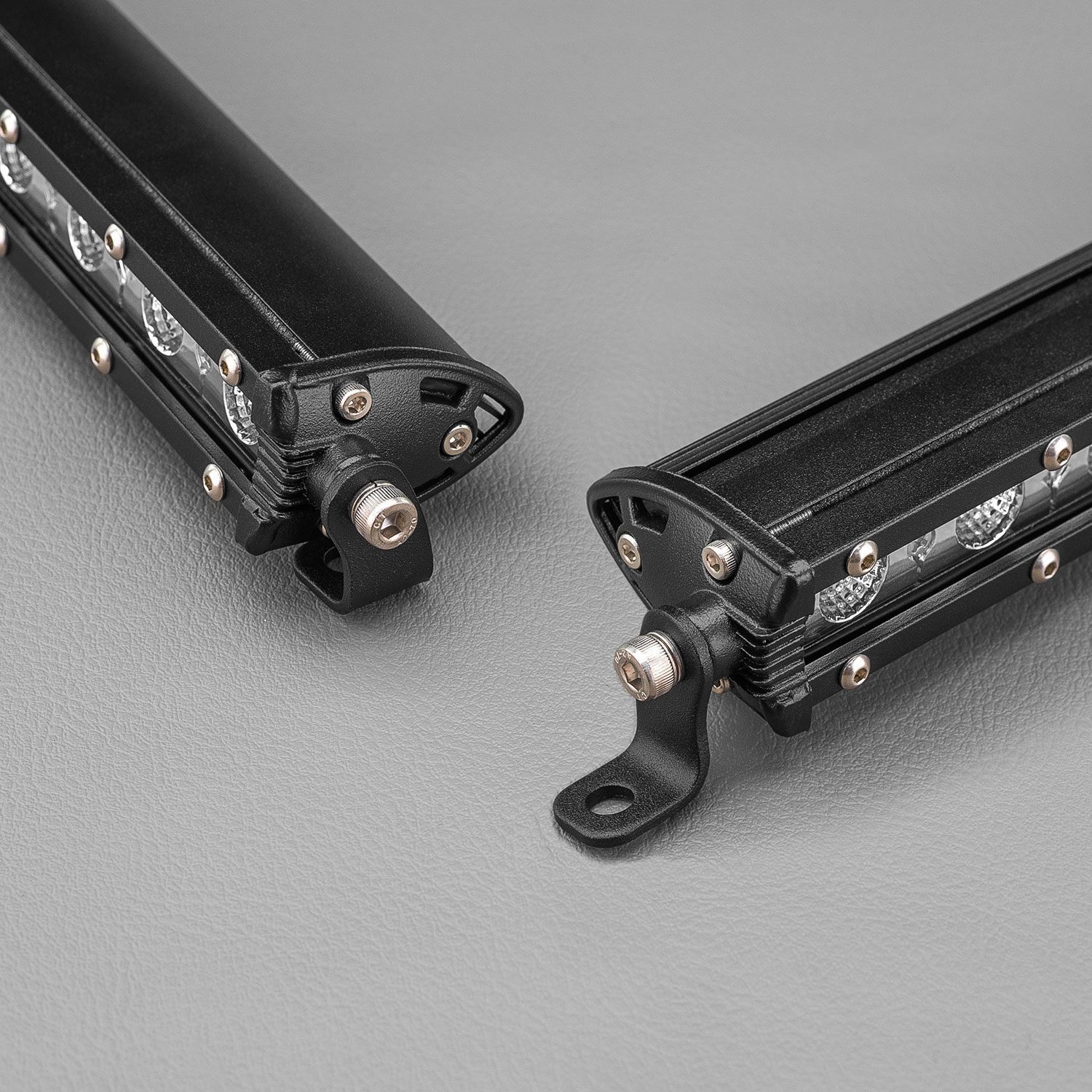

If mounting to a vertical surface, the included mounts may not provide adequate rotation to angle the light down – Our optional ST3K side bracket (SKU:BRKST3K-SDE) work magnificently.
TECH SPECS
LED Power Output | 36 WATT |
Raw Lumens | 3708Lm |
Operating Voltage | 10-30V DC |
Current draw | 1.7a @ 13.6v |
:LED CHIP | 12 x 3w CREE XBD LED |
Colour Temperature | 2700k |
Material | Die Cast Aluminium Housing |
Lens | PC Lens |
Mounting Bracket | Aluminium |
Fasteners | Stainless Steel |
Beam Type | Flood |
Life Span | 50000 Hours |
Weight | .7kg |
Waterproof Rate | IP67 |
WHAT’S INCLUDED
- 1 x 36W 13.4inch  Micro Bar
- Stainless Steel Fasteners
- Mounting Brackets
Additional information
Weight | 0.6 kg |
---|---|
Dimensions | 38 × 9 × 6 cm |
