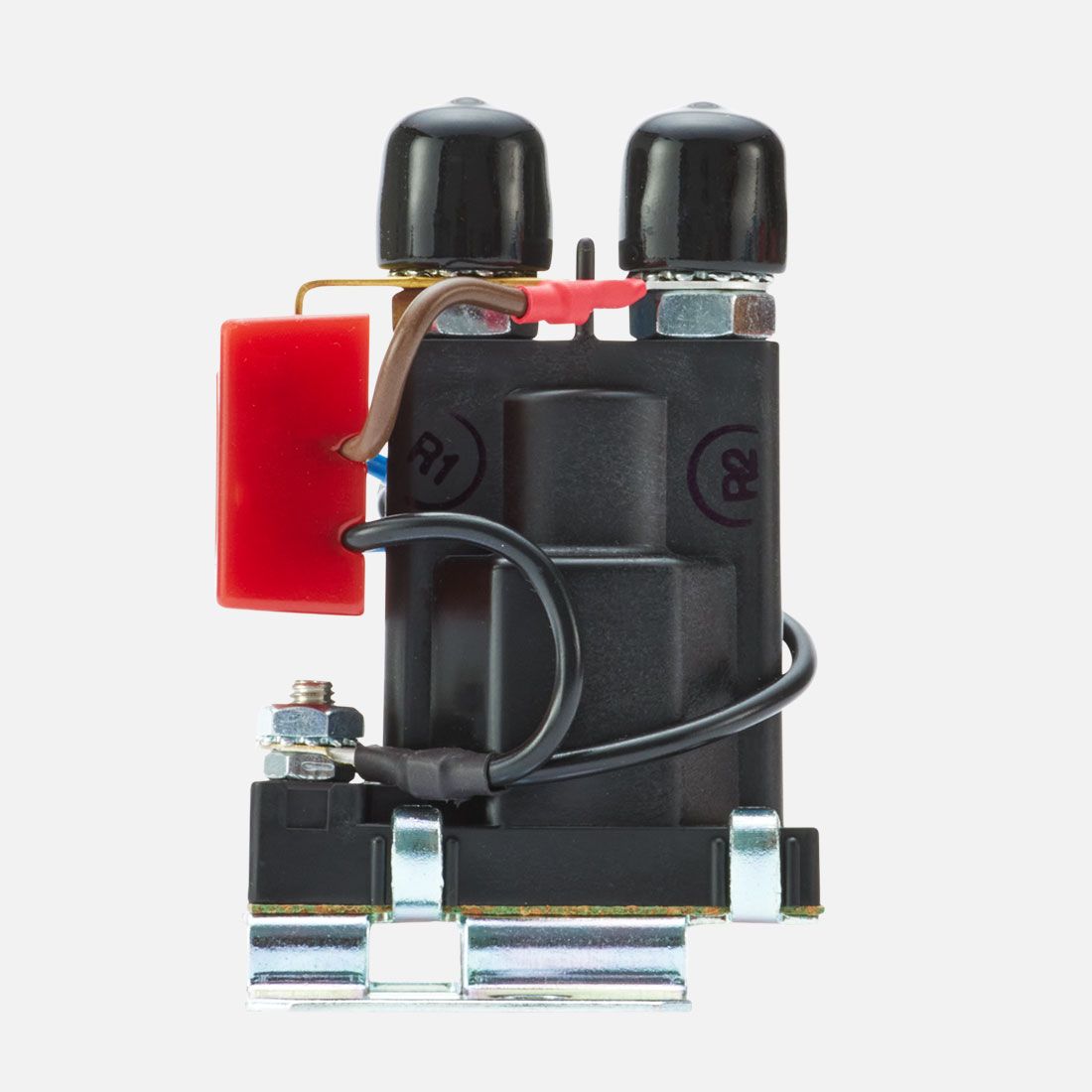

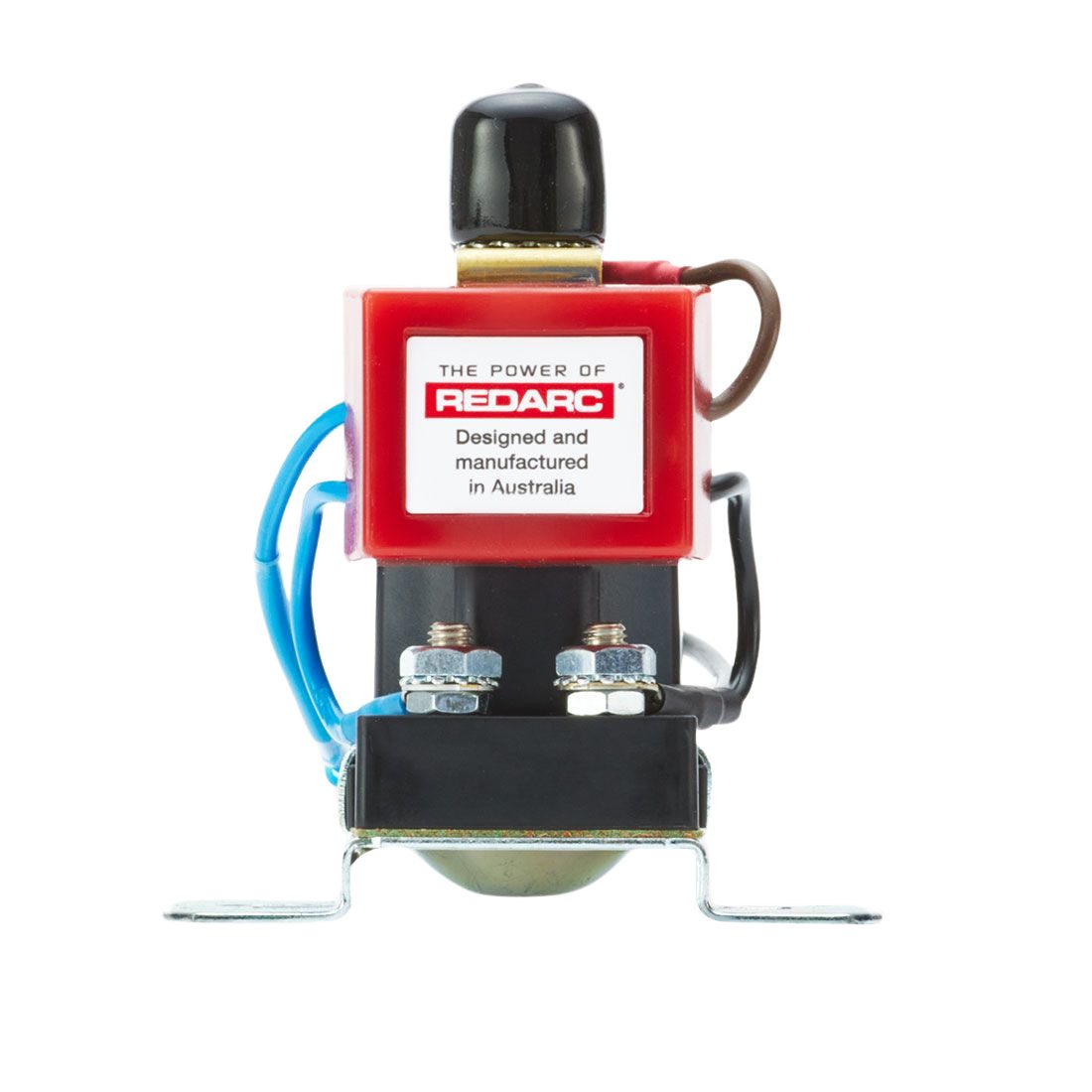

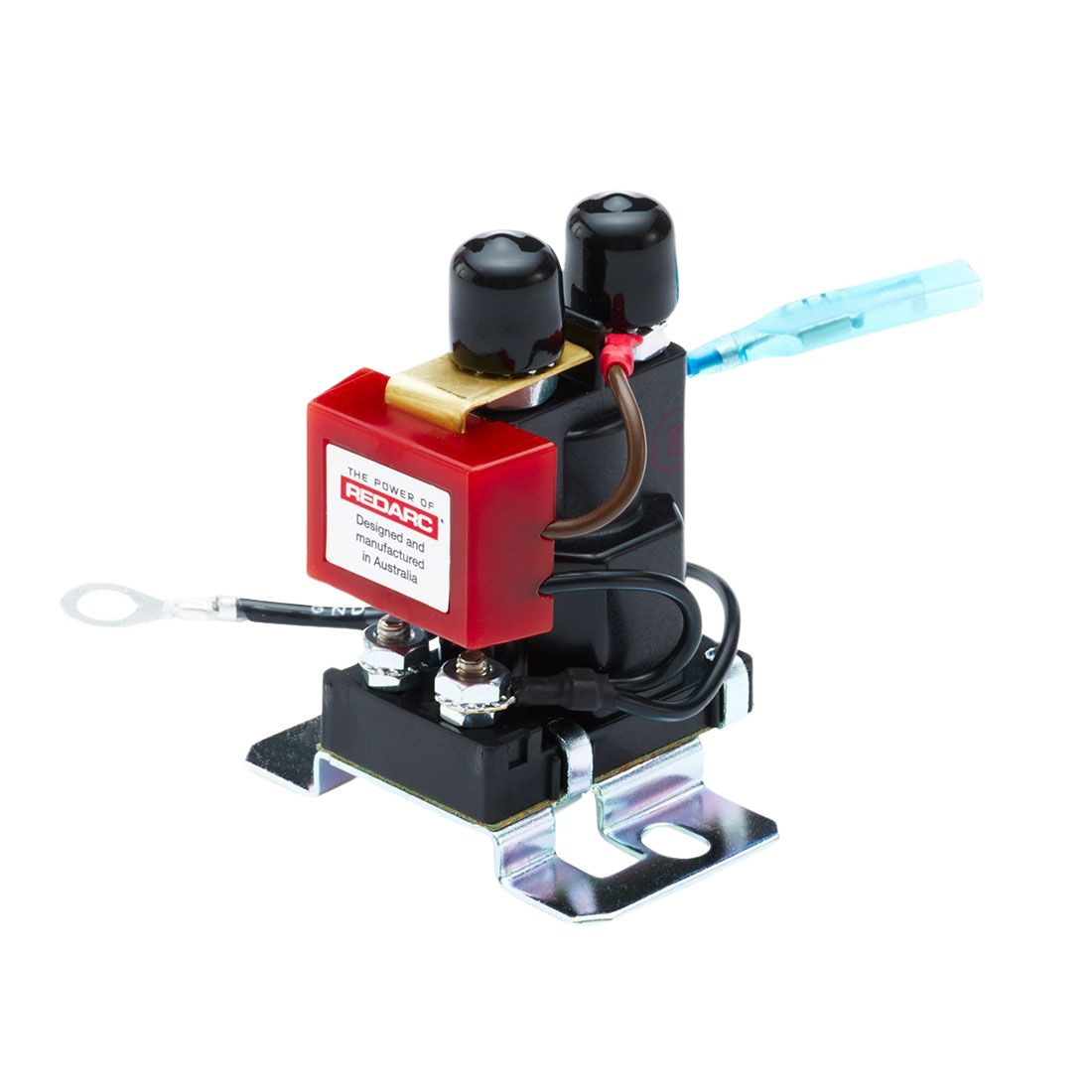

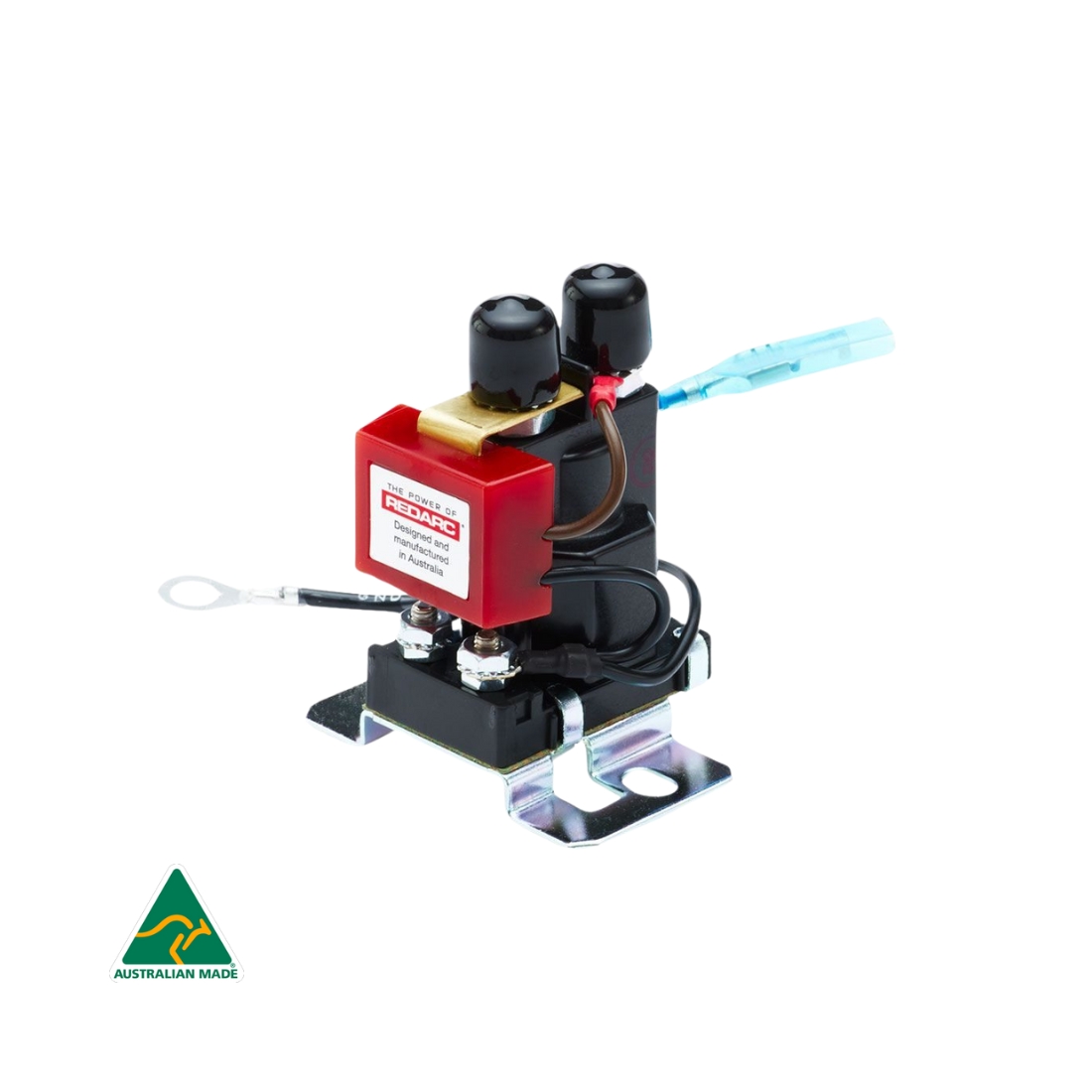

DUAL SENSING SMART START BATTERY ISOLATOR 12V 100A
KWD 59.000
The REDARC Smart Start SBI12D 100A dual battery isolator enables the user to charge a 12 volt start battery from a solar panel or battery charger on the auxiliary battery.
In stock
Description
The REDARC Smart Start® SBI12D is a microprocessor controlled battery isolator used in a dual battery system. It is designed to be used in dual battery systems as a solenoid priority system to protect the start battery from excessive discharge. The SBI12D provides 12 volt DC incorporating 100A of continuous ratings.
DUAL SENSING
The dual sensing model is used to isolate the start and auxiliary batteries in a system where the auxiliary battery may also be charged by an external source such as Solar panels or an external AC battery charger. The SBI12D also allows the start battery to be charged by the external source once the auxiliary battery reaches 13.2 volts. This is useful to top up the start battery.
POWER SAVING TECHNOLOGY
The Smart Start SBI12D incorporates electronic components that will prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. It features sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.
Used primarily in 4WD and commercial vehicles, the Smart Start SBI is a safe way to charge an auxiliary battery and should often be installed with a high quality fuse kit.
FEATURES
- Overmould design
- Compact in size and easy to install
- Silver contacts for longer life and suitable for marine applications
- Power saving technology
- Fault indication
- Fully surge protected
| gtin_barcode | 9338628001330 |
|---|---|
| brand | REDARC |
| Max. Inrush Current | 400A |
| Max. Continous Current | 100A |
| Turn On Voltage | 13.2V |
| Turn Off Voltage | 12.7V |
| Turn On Delay | 5 seconds |
| Turn Off Delay | 10 seconds |
| Standby Current | <5mA |
| Weight | 200 g |
| height | 70 mm |
| width | 75 mm |
| depth | length | 80 mm |
| Warranty | 2 Years |
| System Voltage | 12V |
| Output Voltage | 12V DC |
| Input Fuse Rating | 100A |
| Output Fuse Rating | 100A |
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 8 × 8 × 9 cm |
| Brand |
Only logged in customers who have purchased this product may leave a review.
Related Products
120W MONOCRYSTALLINE SOLAR PANEL
200W MONOCRYSTALLINE SOLAR PANEL
BCDC CORE IN-CABIN 40A DC BATTERY CHARGER
DUAL BATTERY MONITOR
BCDC UNIVERSAL MOUNTING BRACKET
Dometic PerfectCharge MCP 1207
Dometic PerfectBattery BR 12
140 AMP DUAL BATTERY MANAGER
WATER TANK SENSOR KIT
BCDC Alpha50 12V 50A DC Battery Charger
Dometic DC Hardwiring Kit
Universal 105A Battery Bracket
PRADO 150 / GX460 BCDC MOUNTING BRACKET
lc71 / lc76 / lc78 / lc79 cruise control
600W DOMETIC SINE WAVE INVERTER
ALPHA150 BATTERY TRAY

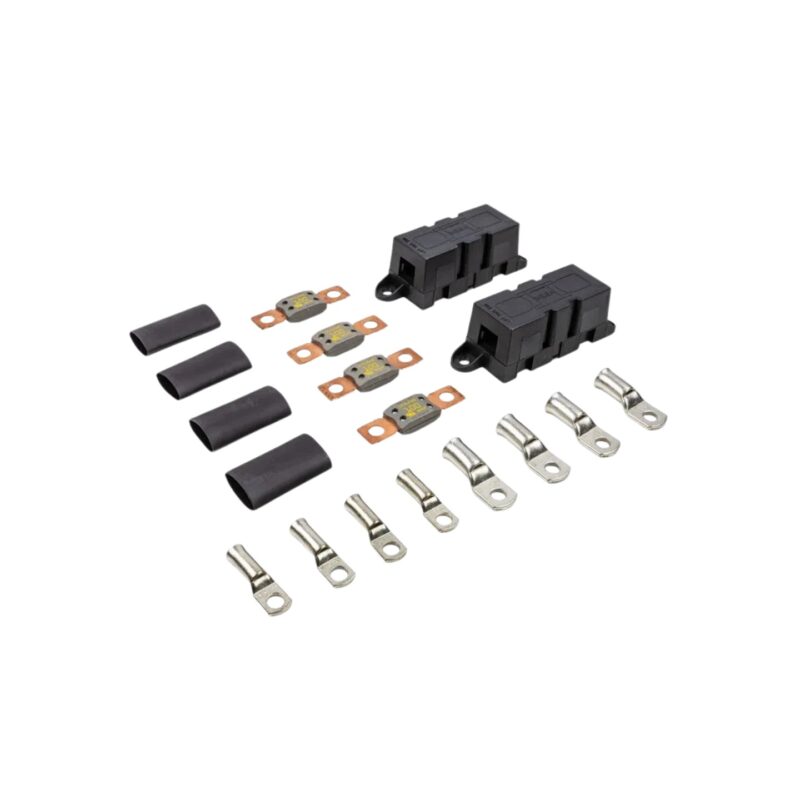

60A FUSE KIT
