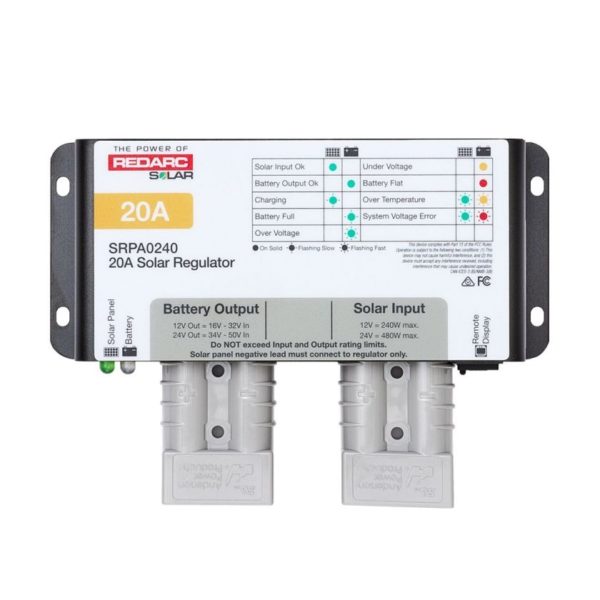

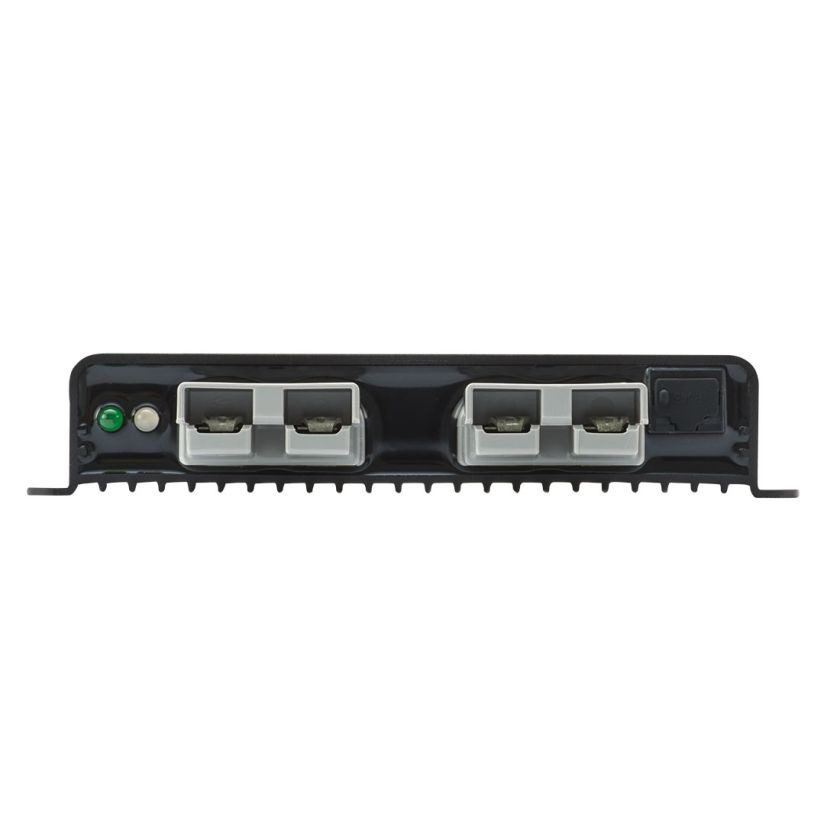

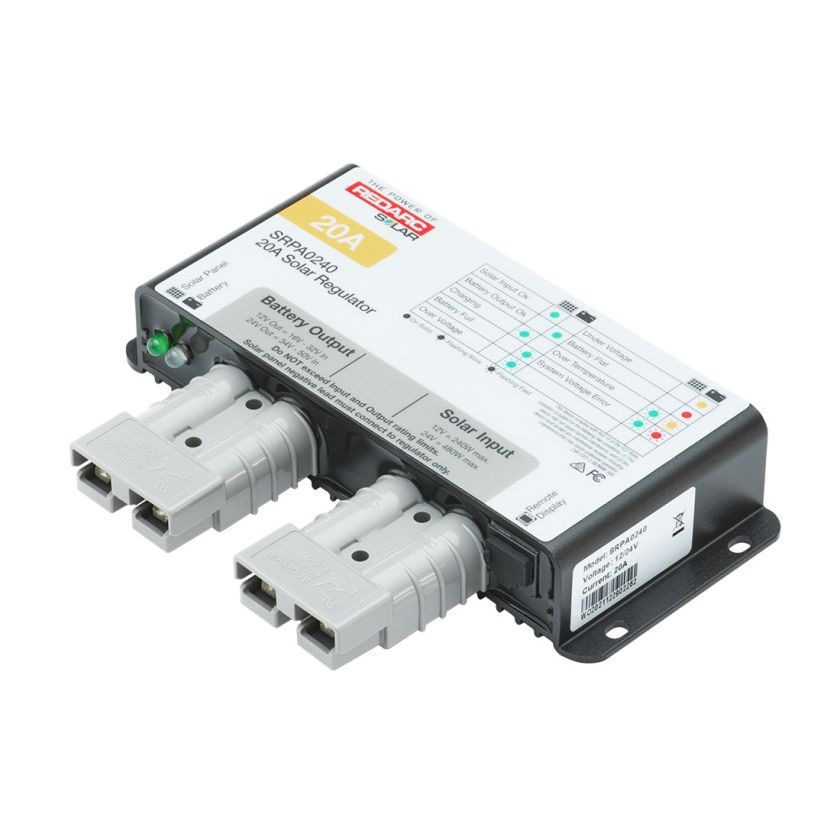

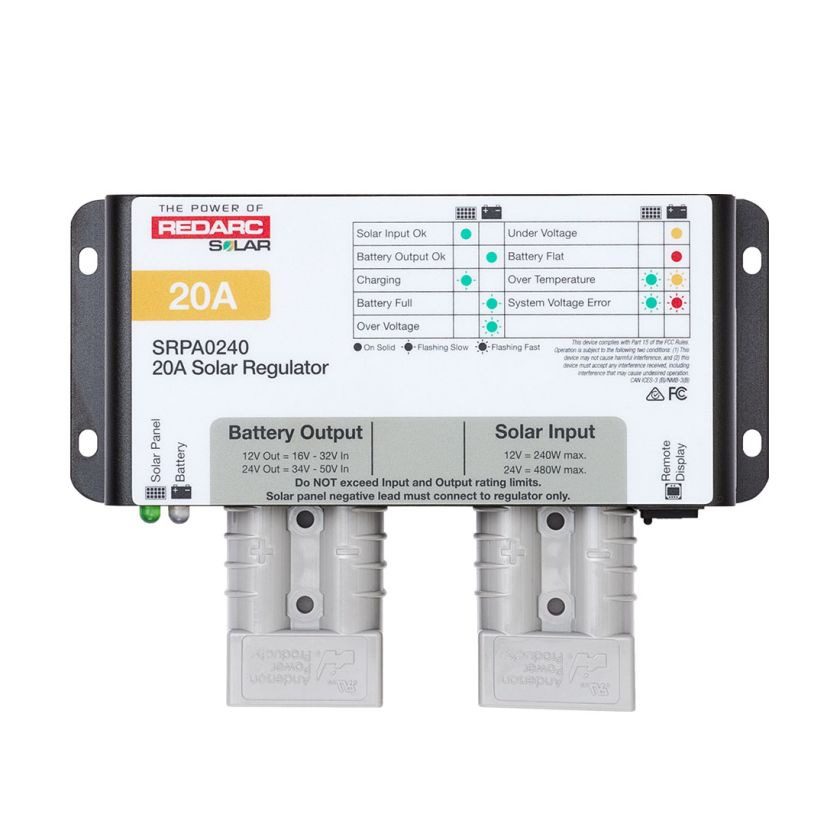

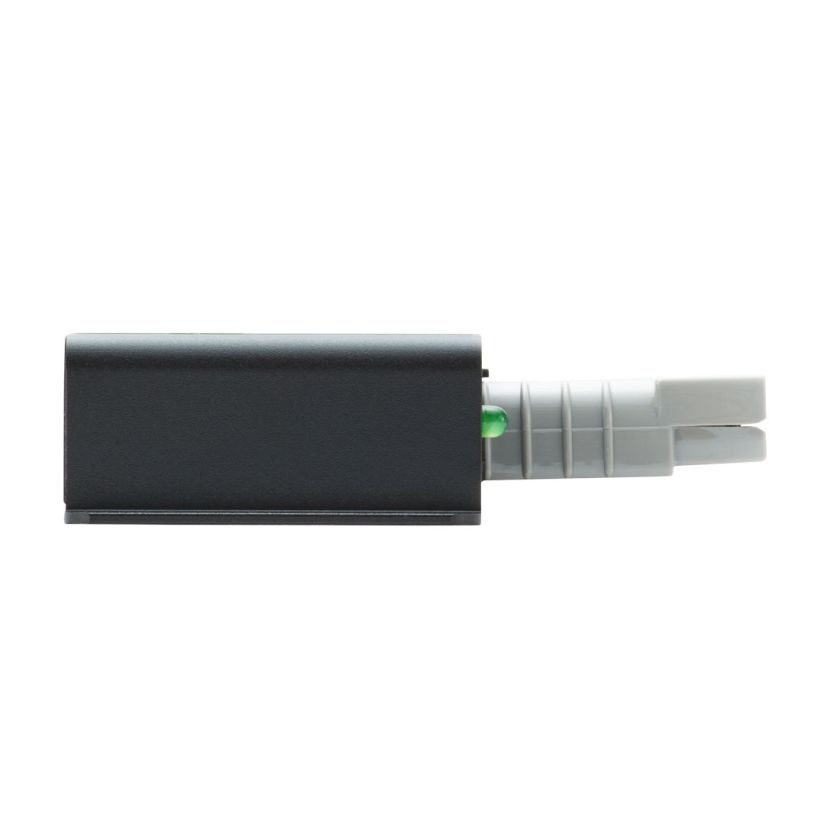

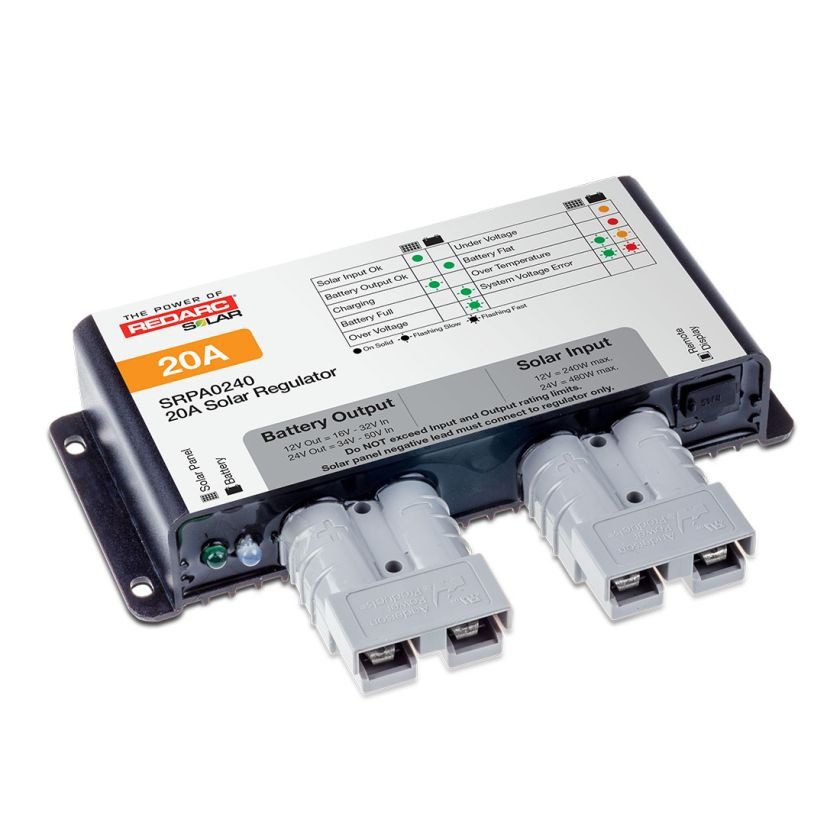

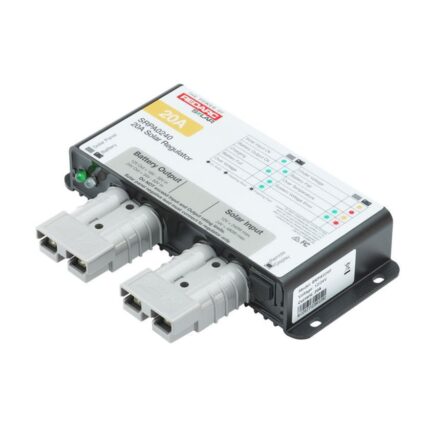

20 AMP SOLAR REGULATOR
KWD 43.000
The REDARC 20A Solar Regulator ensures the correct charge is supplied safely and efficiently to charge an auxiliary battery. Available with Anderson™ SB™50 connectors.
In stock
Description
REDARC’S newly designed 20 Amp Solar Regulator comes with the Anderson™ SB™50 connectors and works perfectly with a range of permanent and portable solar products. REDARC’s 20 Amp Solar Regulator acts as the go between to transfer power generated from solar panels to the battery.
Featuring multistage charging; boost, absorption and float, REDARC’s 20 Amp Solar Regulator ensures that the correct charge is supplied safely and efficiently to the battery and will protect it from over charging.
It will work with multiple chemistry batteries including AGM, Standard and Calcium*, and is ideal for permanent installation or portable systems, and has multiple levels of protection including over temperature, over charge and reverse polarity.
What’s more set up is now even easier thanks to genuine industry standard Anderson™ SB™50 connectors. These high quality Anderson™ plugs are simple and fast to connect with no screw terminals and no risk of poor connections from frayed wires or loose terminals – just plug and play!
FEATURES
- Multi-stage charging- boost, absorption, and float
- Works with multiple battery types (REDARC Solar Remote Monitor required)
- Ideal for permanent installation or portable systems
- Multiple levels of protection – over temperature, over charge, reverse polarity
- Genuine Industry Standard Anderson™ SB™50 plug connection
OPTIONAL MONITOR
*Battery default setting is AGM. REDARC recommends the purchase of the REDARC Solar Remote Monitor to change battery types and configuration settings.
| MAX. POWER VOLTAGE | 240/480W |
|---|---|
| OPERATING TEMPERATURE | −35°C to 55°C |
| WEIGHT | 520 g |
| HEIGHT | 28 mm |
| WIDTH | 153 mm |
| DEPTH | LENGTH | 103 mm |
| WARRANTY | 2 Years |
| CONNECTOR TYPE | Anderson™ SB™ 50 |
| INPUT VOLTAGE | 12V / 24V |
| MAX. RATED OUTPUT CURRENT | 20A |
Additional information
| Brand |
|---|
Only logged in customers who have purchased this product may leave a review.
Related Products
Dometic DC Hardwiring Kit
1.5M ANDERSON TO BATTERY CLIP CABLE
Dometic Sine Power Inverter 3500W
BCDC UNIVERSAL MOUNTING BRACKET

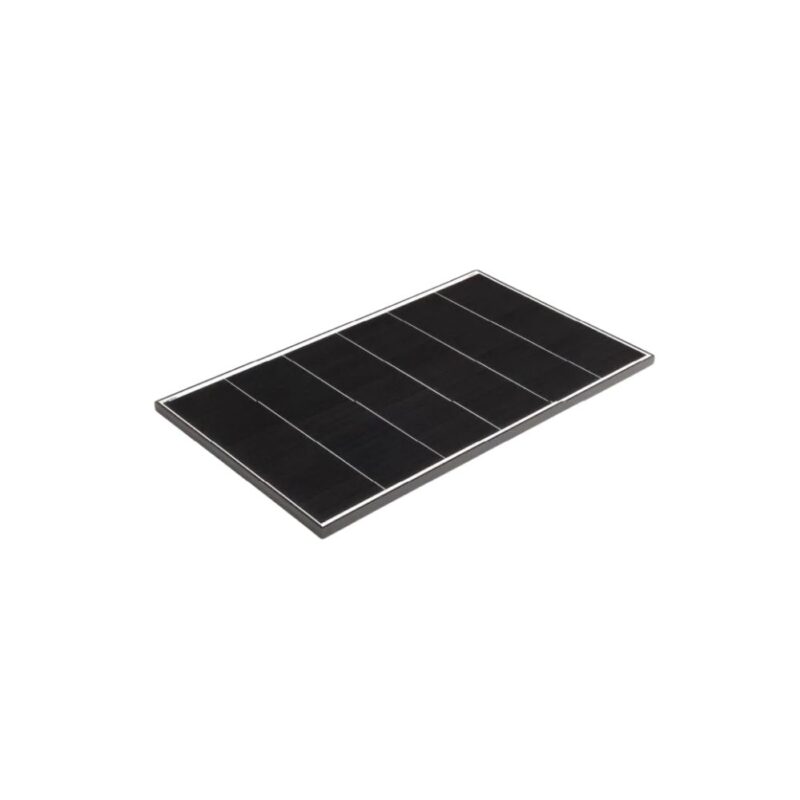

120W MONOCRYSTALLINE SOLAR PANEL
ANDERSON PLUG T-HANDLE – GREY
275 AMP BATTERY MANAGER
600W DOMETIC SINE WAVE INVERTER
1500W DOMETIC SINE WAVE INVERTER
140 AMP DUAL BATTERY MANAGER
DOMETIC PLB40
PRIME REDVISION SYSTEM
115W SOLAR BLANKET SUNPOWER CELLS
40A FUSE KIT
180W MONOCRYSTALLINE SOLAR PANEL
120W PORTABLE SOLAR PANEL KIT

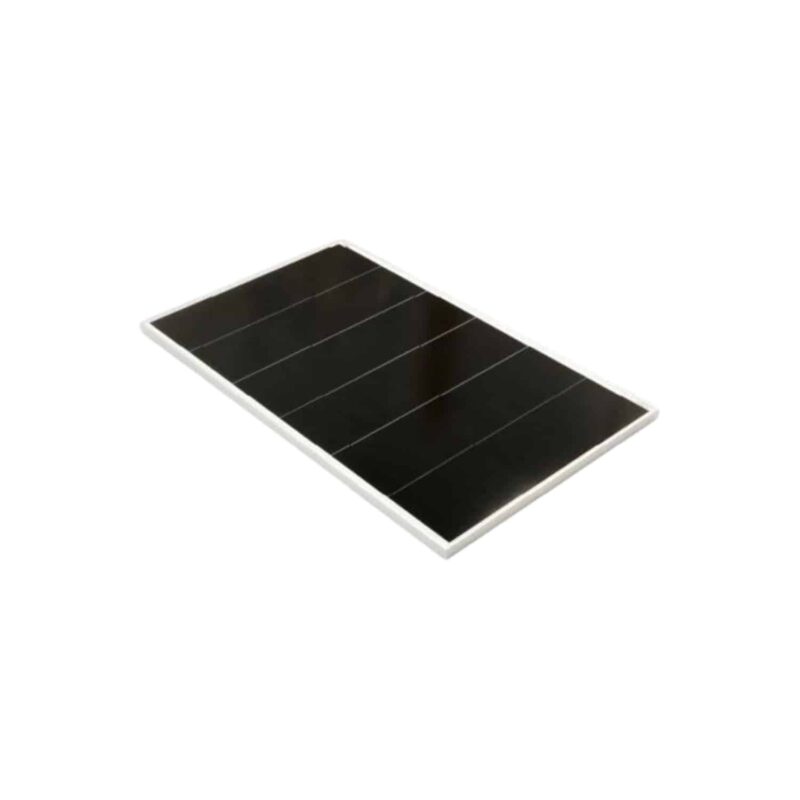

200W MONOCRYSTALLINE SOLAR PANEL
2000W DOMETIC SINE WAVE INVERTER
Dometic PerfectPower DCC 1212-40
WATER TANK SENSOR KIT
Dometic PerfectCharge MCP 1207
THE MANAGER30
Power Bank Jump Starter
100AH LITHIUM DEEP CYCLE BATTERY
Dometic PerfectBattery BR 12
ANDERSON STYLE DUST CAP
BCDC CORE IN-CABIN 25A DC BATTERY CHARGER
DUAL BATTERY MONITOR
PORTABLE BATTERY BOX
TVMS ROGUE WITH REDVISION DISPLAY
ROOF LIGHT WIRING CONCEALER
12V DUAL BATTERY MONITOR
200W PORTABLE SOLAR PANEL KIT
Dometic Büttner MT PRO7
JIMNY 2018+ cruise control
2000W PURE SINE WAVE INVERTER
5M ANDERSON TO ANDERSON CABLE
SMART START SBI 12V 100A
BCDC CORE IN-CABIN 40A DC BATTERY CHARGER

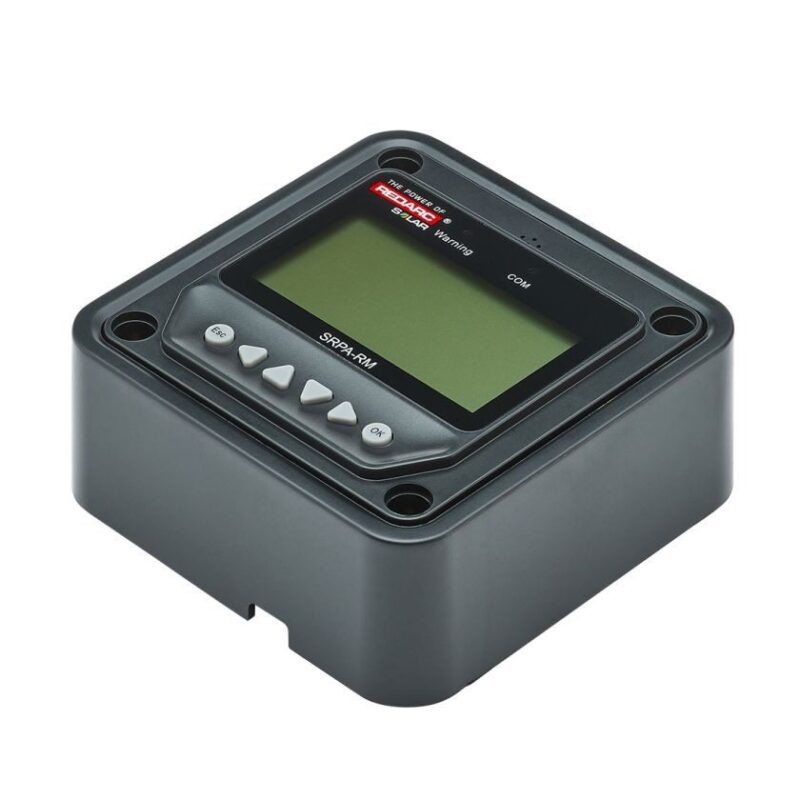

SOLAR REMOTE MONITOR
