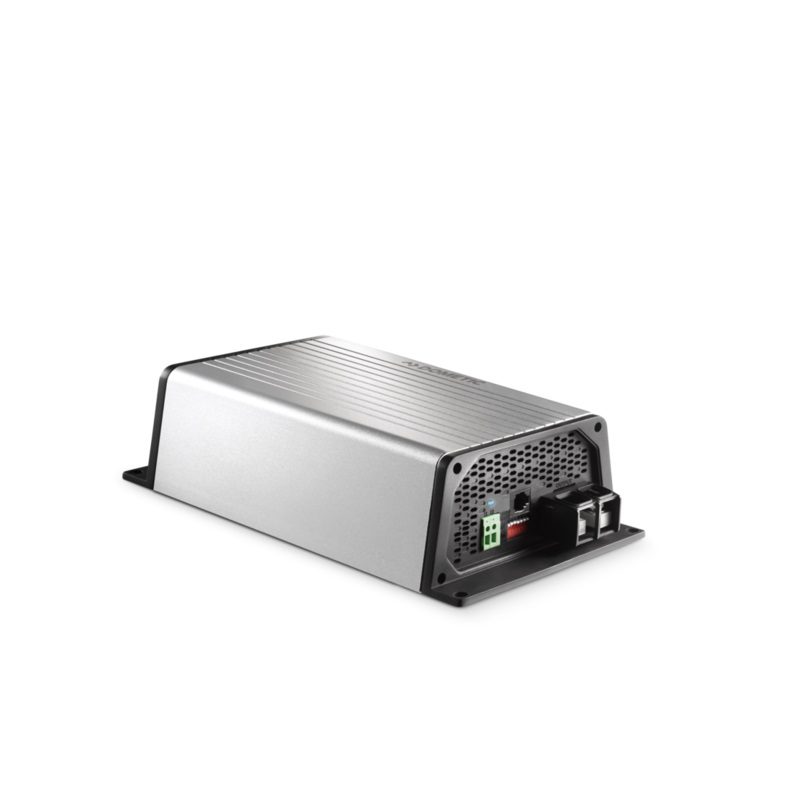

Dometic PerfectPower DCC 1212-40
KWD 109.900
Dometic PerfectPower DCC 1212-40
This DC charging converter ensures that the leisure battery is optimally charged during the drive at all times – so you will never end up with an empty battery when you arrive at your destination. Highly recommendable for modern EURO 6 vehicles with smart alternators. And also for vehicles where the cable cross section is too small to supply the connected devices.
In stock
Description
POWER TO DEPEND ON
Do you have a modern EURO 6 vehicle with a smart alternator? Then this DC charging converter is very useful to have on board. The Dometic PerfectPower DCC 1212-40 ensures that your leisure battery is optimally charged during the drive, so you will never end up with an empty battery when you arrive at your destination. Generating a stable output voltage, the charging converter can also be used as a constant power supply for sensitive devices. And it is also ideal as a voltage booster in vehicles where the cable cross section is too small.
EXTEND BATTERY LIFE
PerfectCharge DCC charging converters ensure that leisure batteries are optimally charged while driving. This prevents sulphate build-up – the main cause of premature failure of all lead batteries – and significantly extends the service life. Featuring advanced IU0U charging technology, PerfectCharge DCC charging converters have enough power to give batteries a proper charge even on short stretches. On longer journeys, they guarantee a full charge, without the risk of overcharging.
…AND MORE
Leisure battery is perfectly charged while driving
Reliable solution for vehicles with EURO 6 emission standard
Stable output voltage – suitable as a constant power supply for sensitive devices
Advanced IU0U charging technology – adjustable to all common types of batteries

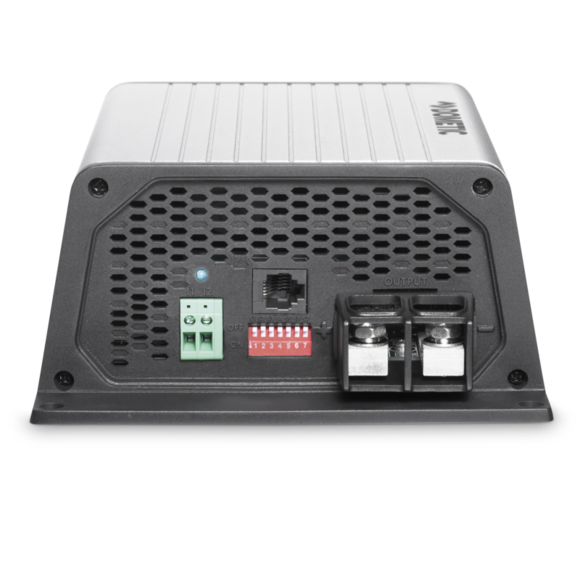

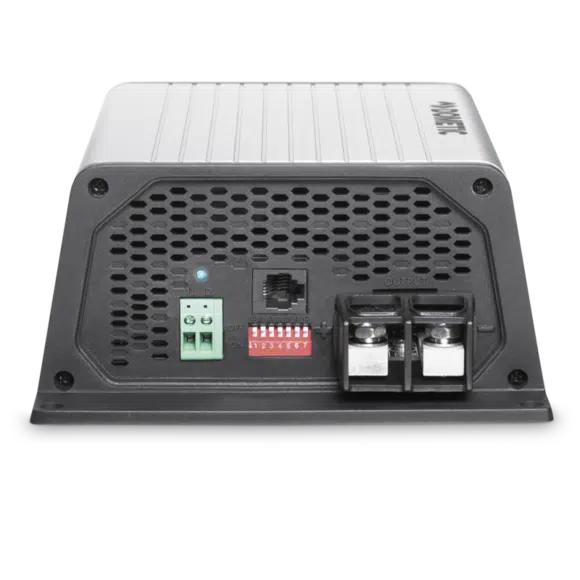

Easy configuration with outside DIP switches – no need to open the housing
Temperature compensated charging with optional temperature sensor
Elegant housing – exclusive Dometic design
General
SKU number 9600003755
Model DCC1212-40
Model on label ChargeConverter DCC1212-40
Product Description Charging converter 12 V to 12 V, 40 A
Dimensions
Dimensions product depth 260 mm
Dimensions product height 73 mm
Dimensions product width 153 mm
Net weight 1.85 kg
Electrical
Input voltage (DC) 12 V
Output voltage 12 V
Output current 40.00 A
Battery type Lead, AGM, Gel
Current consumption – Zero load 0 A
Performance
Energy efficiency ≤89 %
Continuous power 25°C 500.00 W
Operating temperature min -20.00 °C
Operating temperature max 50.00 °C
Additional information
| Weight | 2.20 kg |
|---|---|
| Dimensions | 28 × 16 × 9 cm |
| Brand |
