Drop slide DS40
- Suits for Dometic CFX3 25 , CFX3 35 , CFF45 , CFF35 , CDF2 36
- Load Limit: 200kg
- Weight: 34 kg
LIGHTER. STRONGER. SAFER. SMARTER.
MSA 4X4’s DS40 Fridge Drop Slide™ is an innovative, patented design that allows you to safely lower your fridge, providing easy, convenient access to its contents.

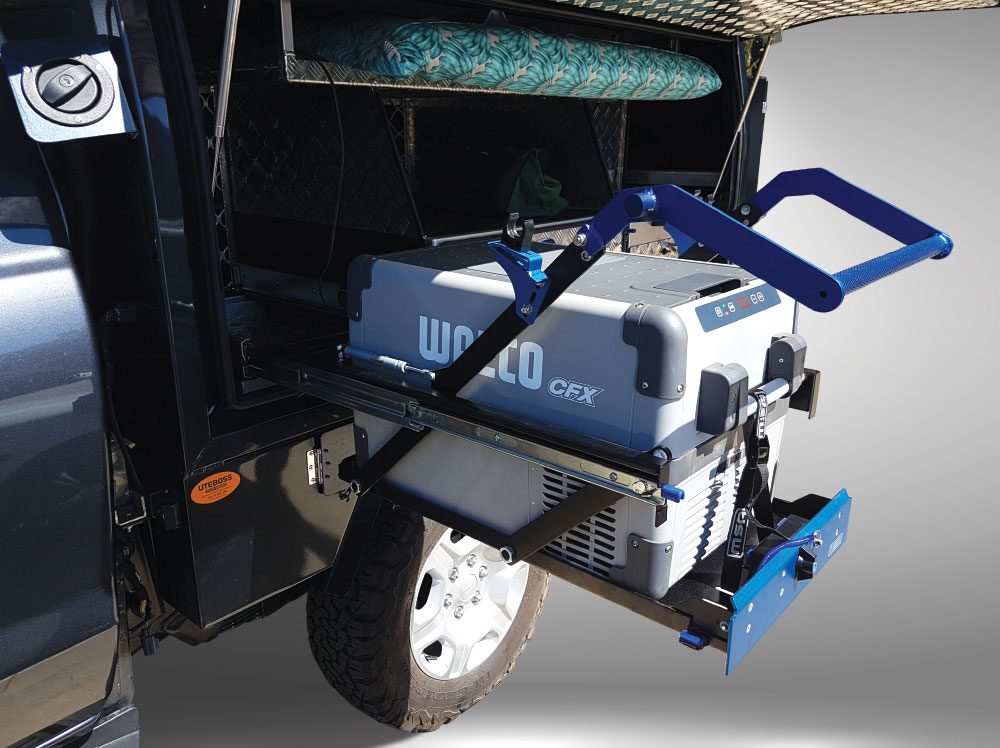

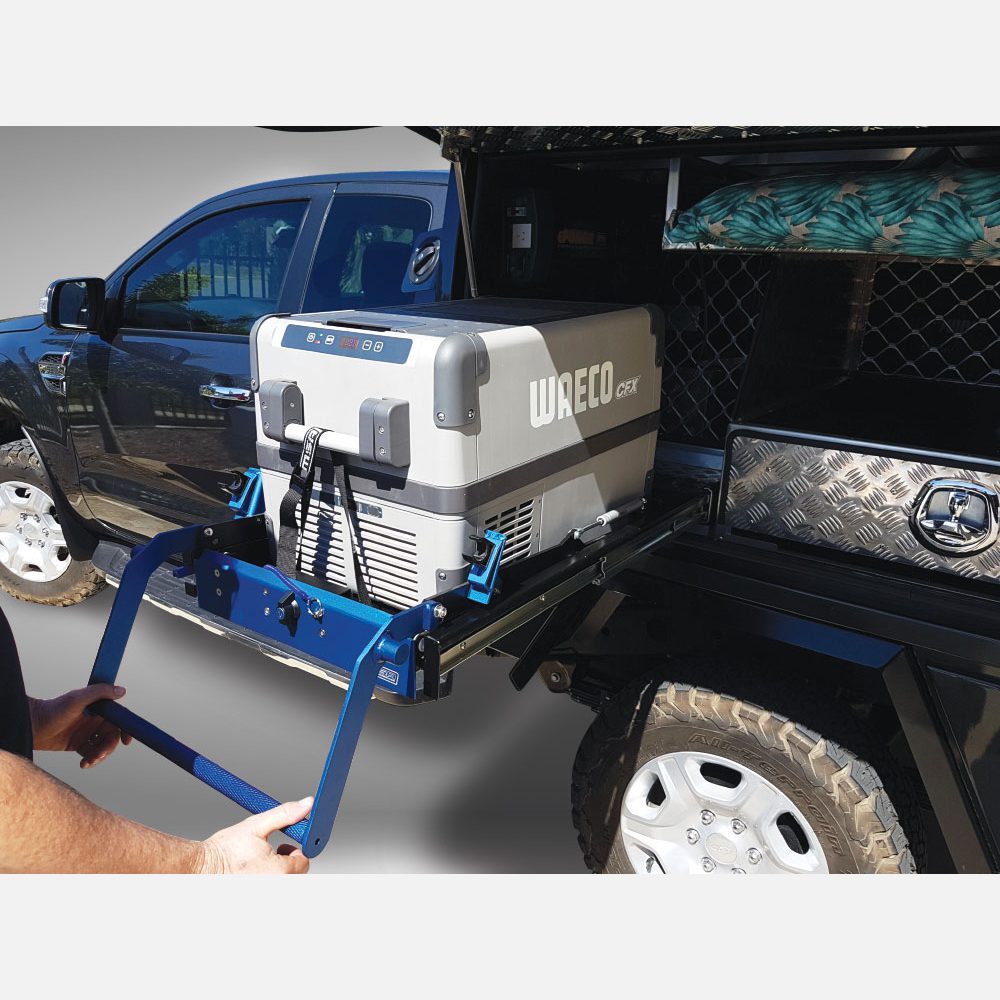

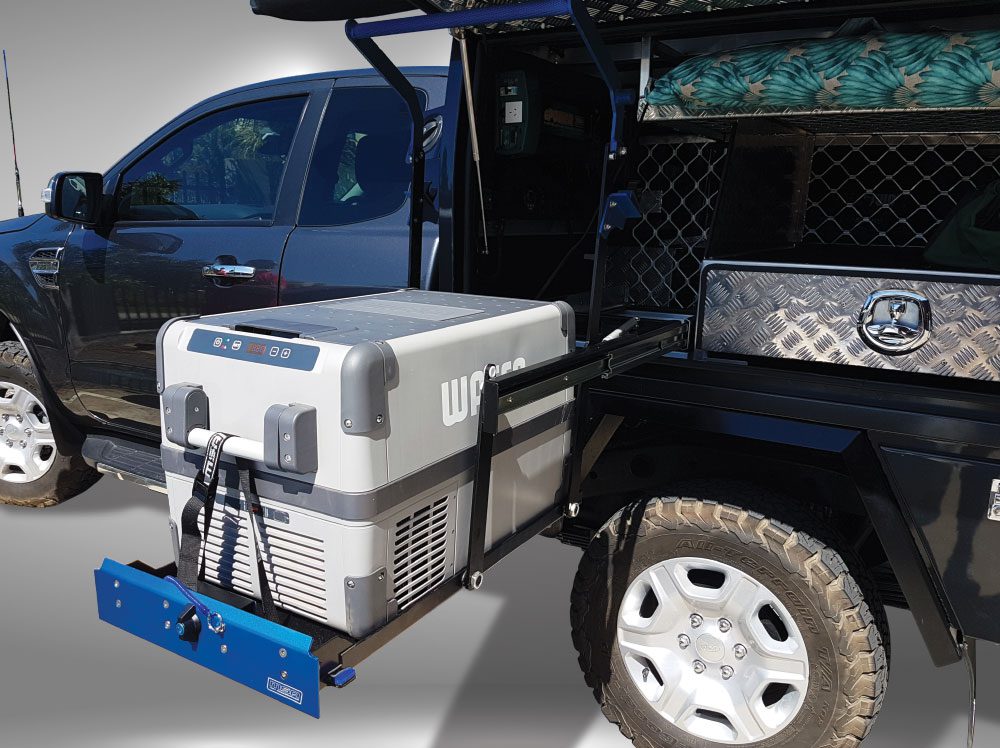

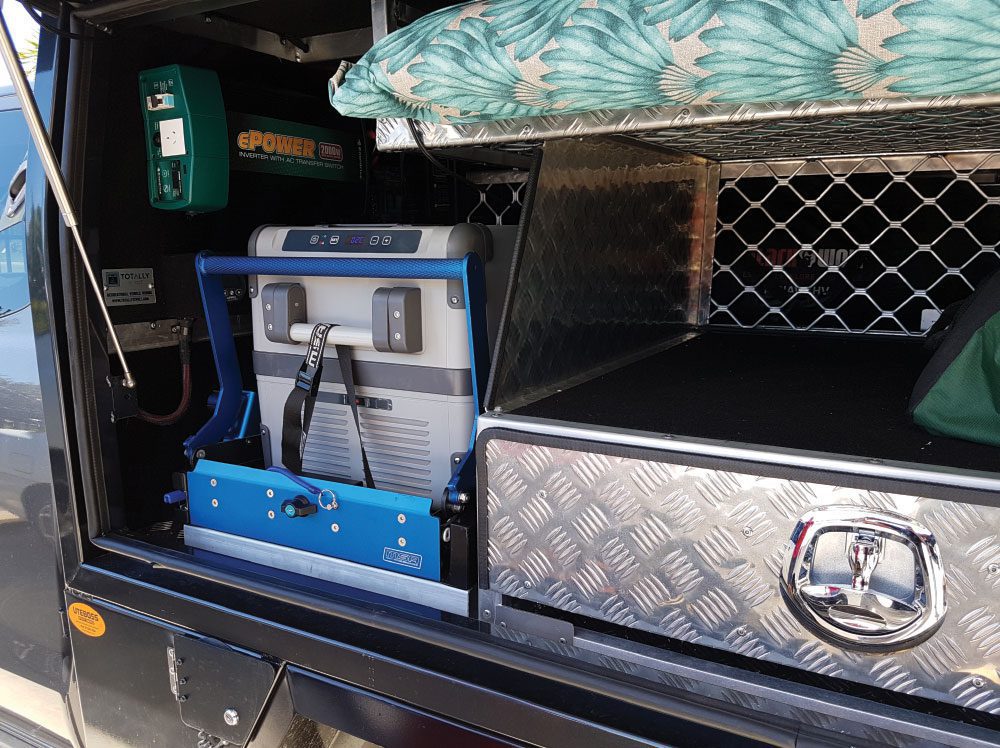

The Drop Slide™ is designed to slide smoothly out from its stowed position, before lowering 30cm in a safe and easy motion. This allows for the tray to remain in a horizontal position through the entire motion. The DS40 allows for complete access to the front and side of your fridge. It also offers a compact design that will not decrease storage space in your vehicle.
The refined, patented design of our DS40 Drop Slide™ features 650NM quality gas struts, providing safe, easy lifting and lowering for loads up to an incredible 200kg. Now you can fill your fridge and access it with ease!
- Compact size won’t decrease storage space in your vehicle.
- No drawer disassembly is required to install the slide.

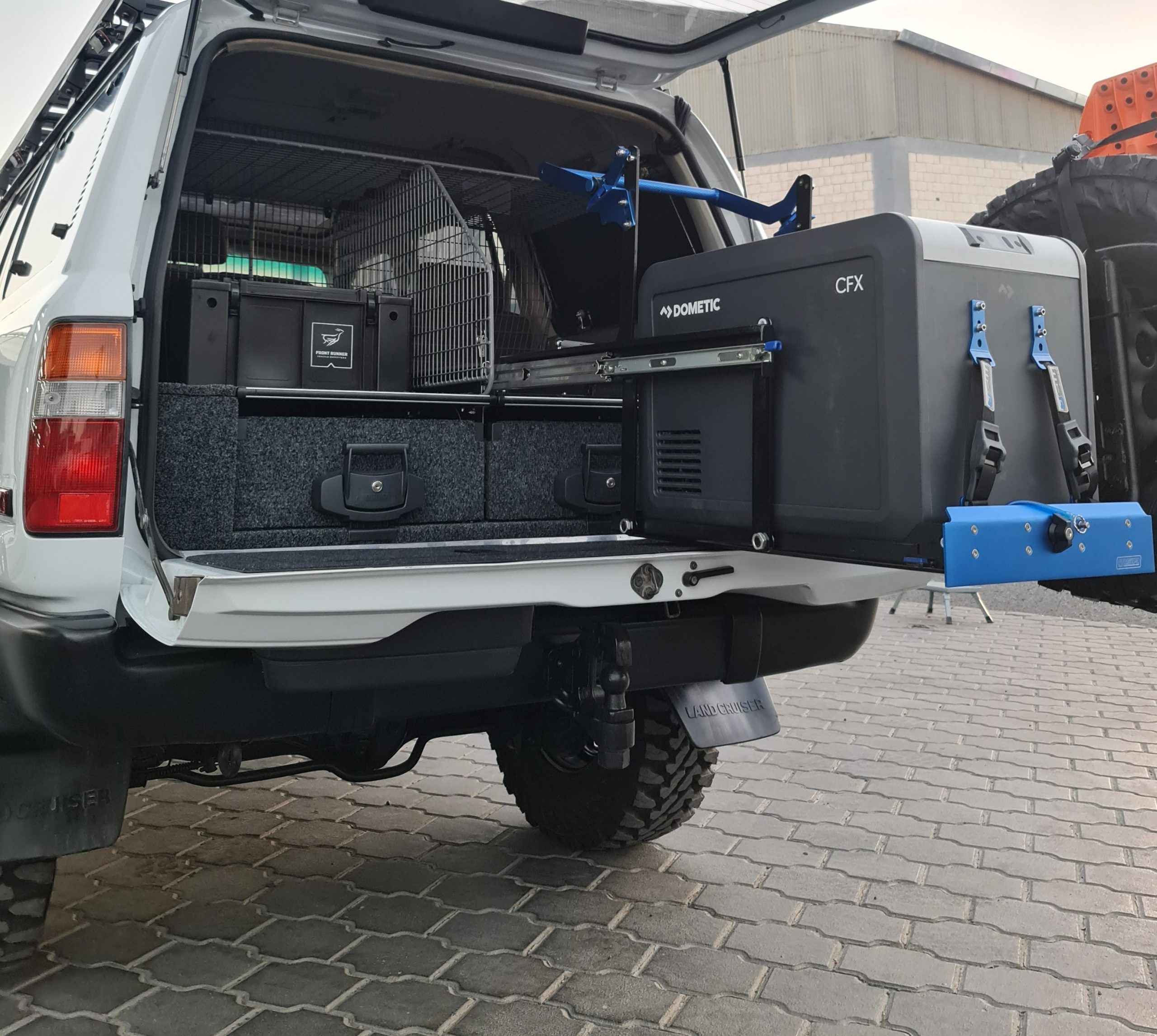

- Designed to swing smoothly out further past the vehicle tailgate, providing easy and convenient access to the contents of your fridge from its complete front and side.

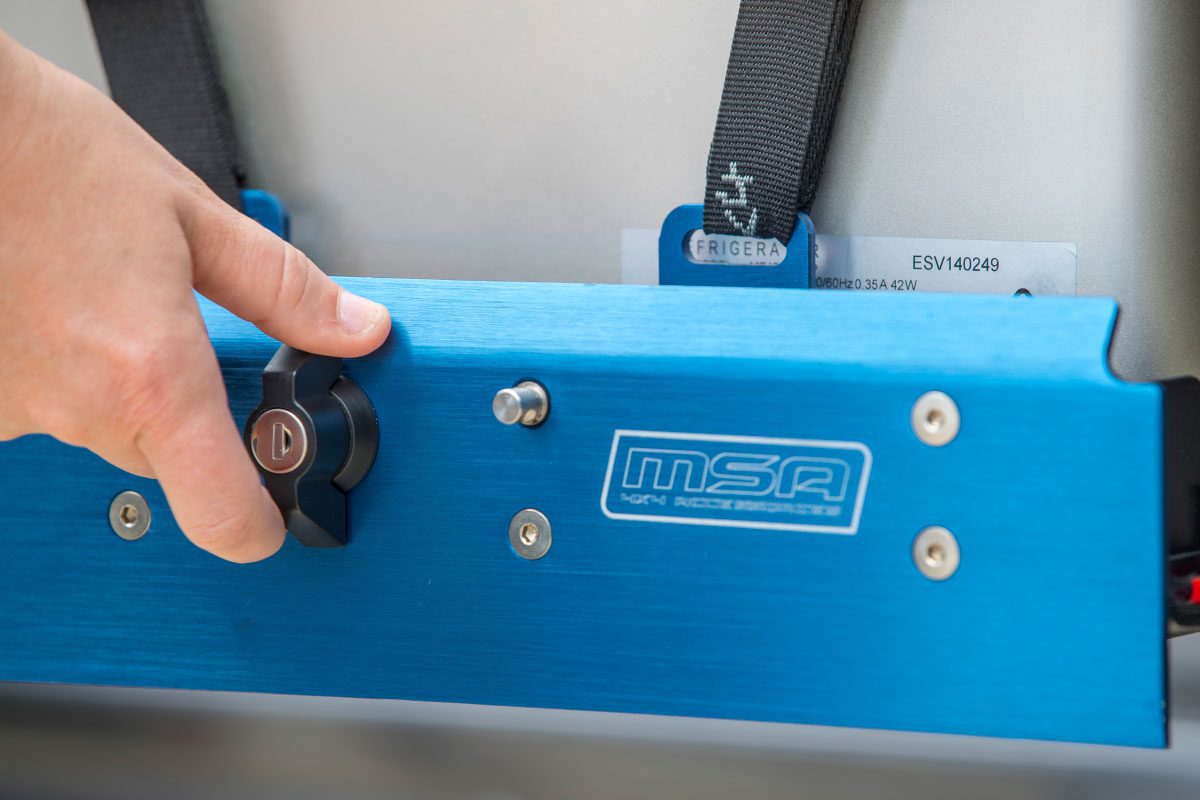

- Unique lock-in lock-out safety feature.
- Heavy-duty 200kg slide runner rating.
- Tie-down straps & all fixings included as standard.
- Stainless steel & blue anodized handle and faceplate.
- Fridge Barriers are available to suit for extra fridge protection & increased storage possibilities.
- Pre-drilled holes in the tray provide convenience in accommodating the most popular fridges.
|Freight Dimensions||91 × 60 × 16 cm|
|Slide Dimensions||(all measurements displayed are in mm)|
|Fridge Tray||710 x 390|
|Slide Length Closed||800 + 20|
|Slide Length Open||1670 + 20|
|Overall Width||500 + 20|
|Mount to Base||35|
|Max Set Back||115|
|Dimensions||89 × 56 × 16 cm|
