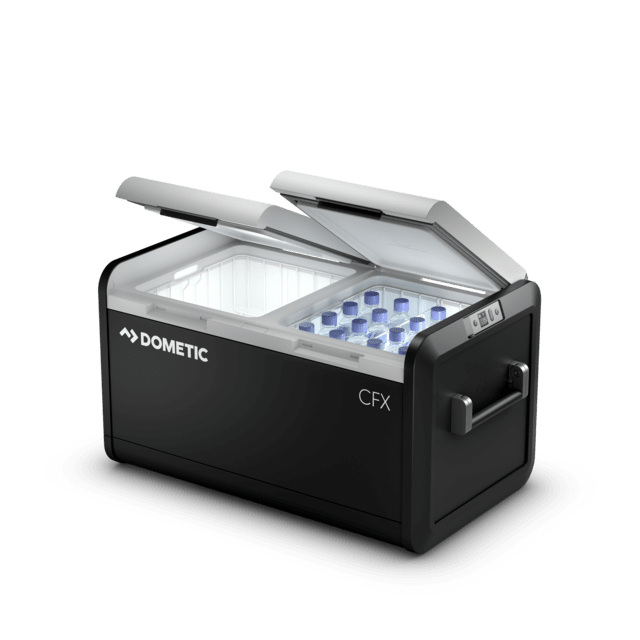

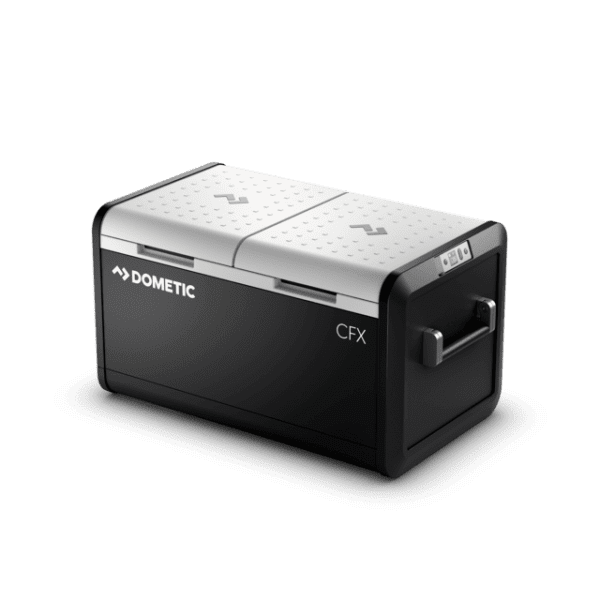

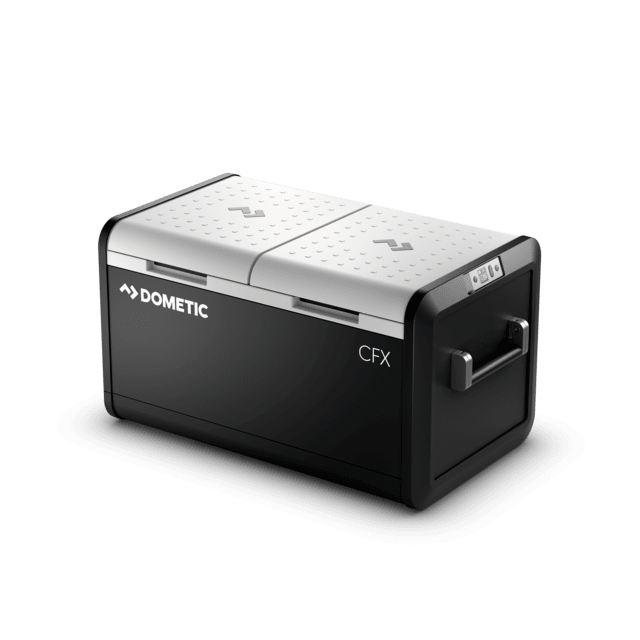

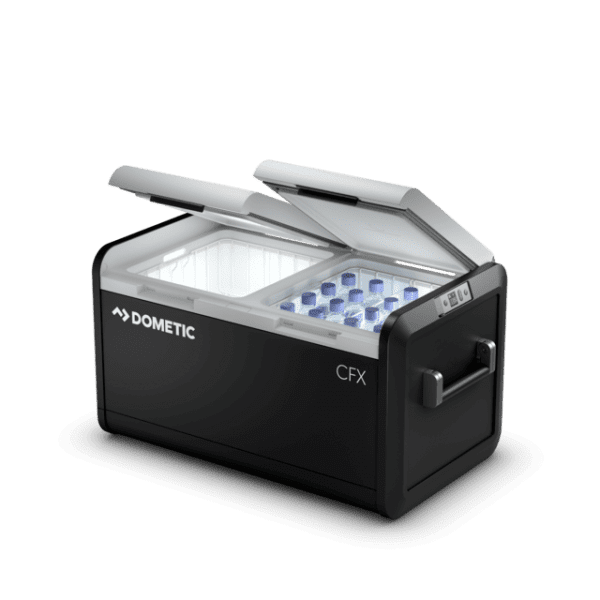

DOMETIC CFX3 75DZ

Description

THE POWER TO BE PRESENT
With the Dometic CXF3 75dz, you have control of your outdoor experiences like never before. The CFX3 75dz gives you the power to change your state of mind and put your well-being first. On-road, off-road, outback or in the backyard, your ordinary and extraordinary adventures will be fueled by safer food, less waste and more confidence, giving you the power to be present in any moment.

…AND MORE
Generous total capacity of 74 l
Heavy-duty yet lightweight ExoFrame construction with fender frame protected edges and aluminum alloy handles
Powerful VMSO3 compressor cooling technology efficiently cools between +20 °C and –22 °C
Easy-to-read High-Resolution Color Display and soft touch buttons enable seamless control and monitoring of cooler performance
CFX3 App allows temperature control via WiFi or Bluetooth and provides performance history
3-stage dynamic battery protection system prevents dead car battery or allows deep draw on dual batteries

GENERAL
SKU number 9600025332
Model CFX375DZ
Model on label CFX375DZ
SKU replaced by 9600029531
Scope of delivery 1 cooler, 1 manual, 1 Connection cable for 12/24V connection, 1 Connection cable for 100-240V connection, removable wire baskets
Single or Dual Zone Dual
Product Description Mobile dual-zone compressor cooler, 74 l
Refrigeration technology Compressor

DIMENSIONS
Dimensions product depth 495 mm
Dimensions product height 472 mm
Dimensions product width 892 mm
Net weight 27.8 kg
Total volume (IEC 62552-3) 74.00 l

ELECTRICAL
Input voltage (AC) 100-240 V
Input voltage (DC) 12/24 V
Rated input current (AC) 1.12A at 100V, 0.47A at 240V A
Rated input current (DC) 9.6 A
Rated input power (AC) 59 W
Input frequency 50/60 Hz

PERFORMANCE
Refrigerant, type R134a
GWP 1430
Refrigerant amount 59 g
CO2 equivalent 0.084 t
Energy consumption (DC@5/25°C) 1.68 kWh/24h
Energy Consumption 12VDC (Internal@Large4C/Small-15C, Ambient@32C) 3.04 Ah/h
Annual energy consumption at AC (EN62552-3:2020) 52 kWh/a
Energy efficiency class (Regulation (EU) 2019/2016) D
Climate class (EN 62552) N/T
Insulation Thickness 55.00 mm
Insulation Type PU (Polyurethane)

ADDITIONAL
Color Slate / Mist
USB Port 5V, 2A
Connectivity Type Bluetooth, WiFi
Basket Yes
Threaded inserts in base for mounting M6
Drain plug Yes
Anti-condensation coil Yes
Interior light Yes, LED
Certificates ECE R10, CB, CE, GS
Cable length supply cable 2.00 m

Note Do not connect this product to an AC and a DC power supply at the same time as it may damage the product.
