Description

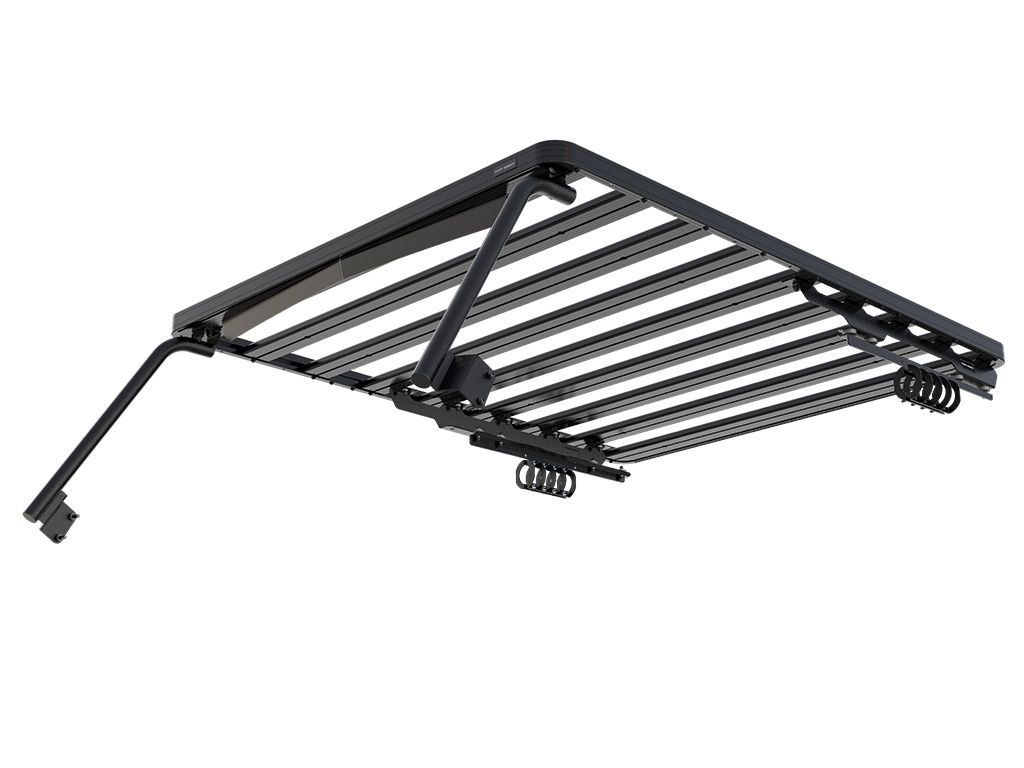

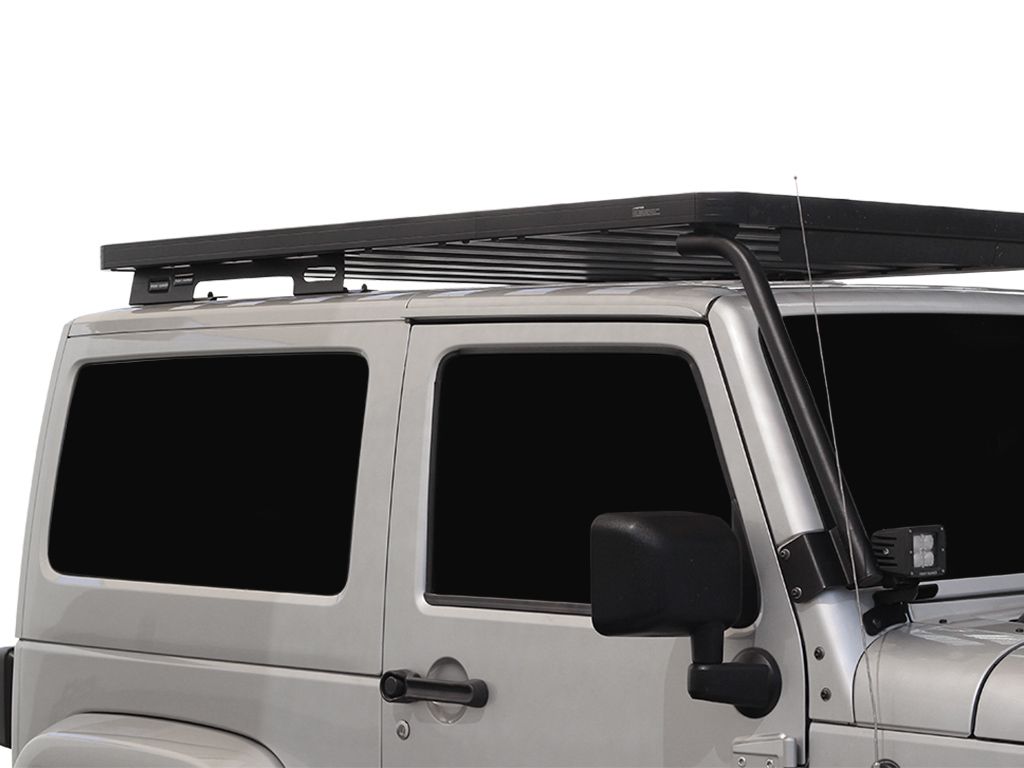

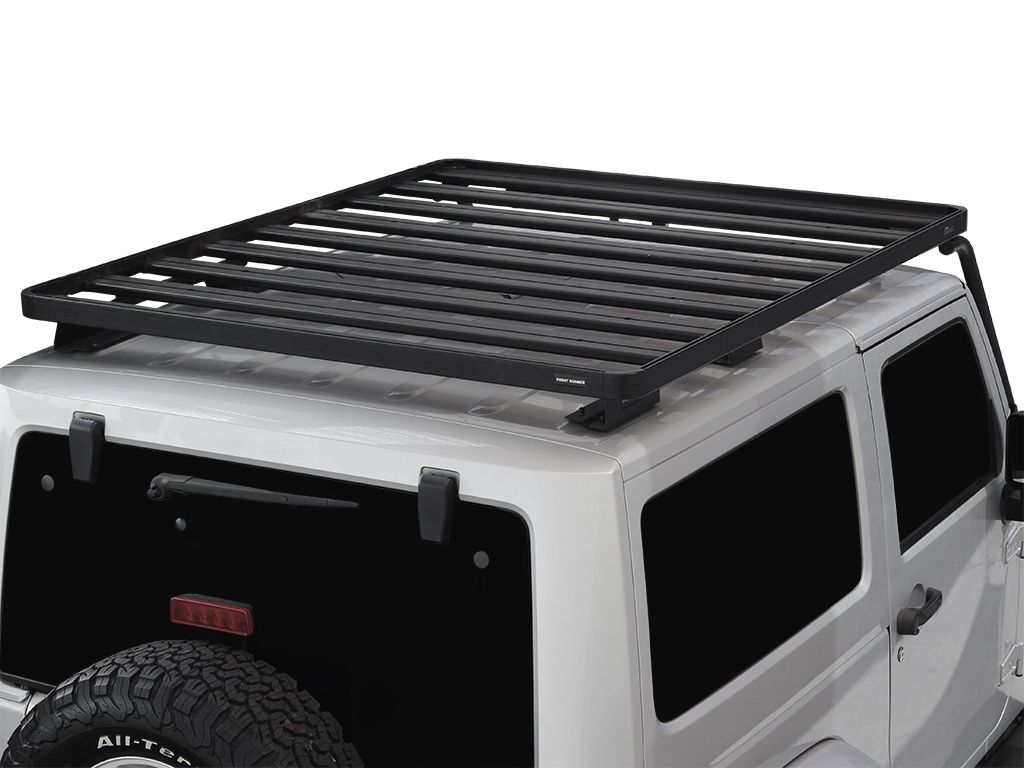

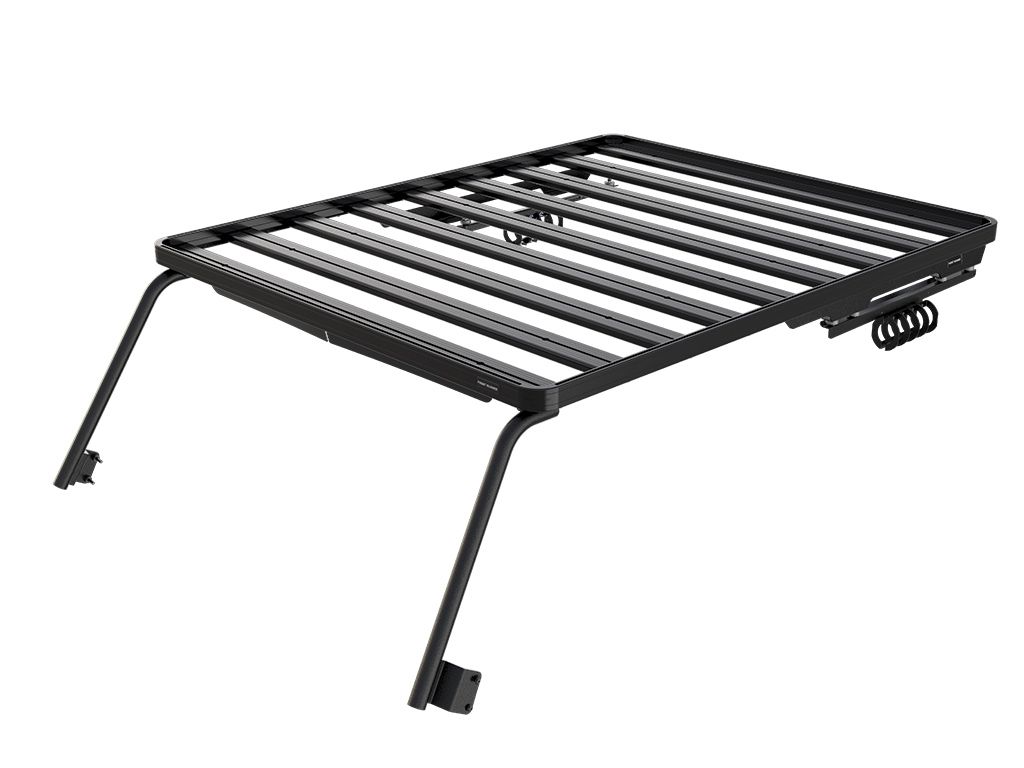

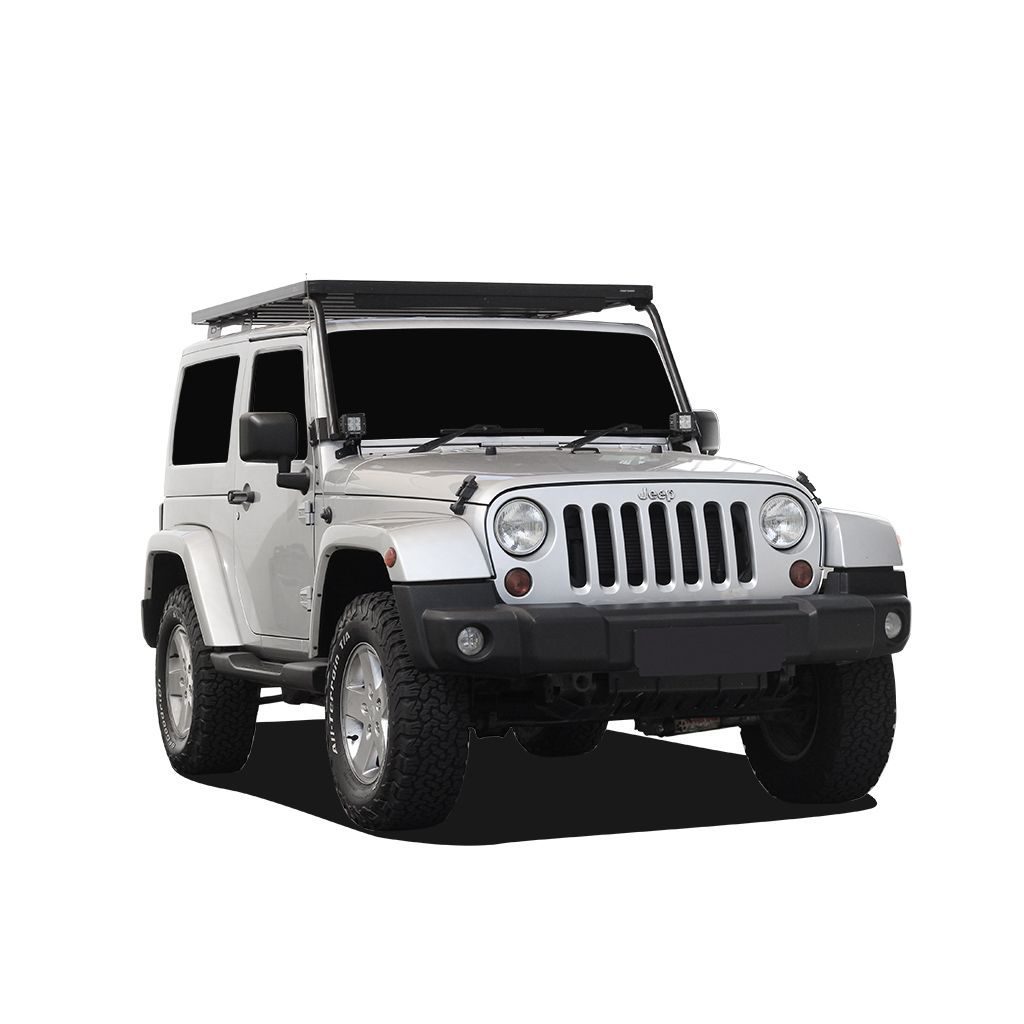

This Slimline II rack kit contains all the components needed to mount the Slimline II cargo carrying rack to a Jeep JK 2 door 2007-2018 including the Slimline II Tray (1425mm x 1762mm), the Jeep Extreme Mounting System, and a Wind Deflector. Drilling is required for installation.

This rugged, sophisticated, high-performance, nearly indestructible rack system allows you to quickly remove the Freedom Panels and works with the hardtop roof on or with no roof at all.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

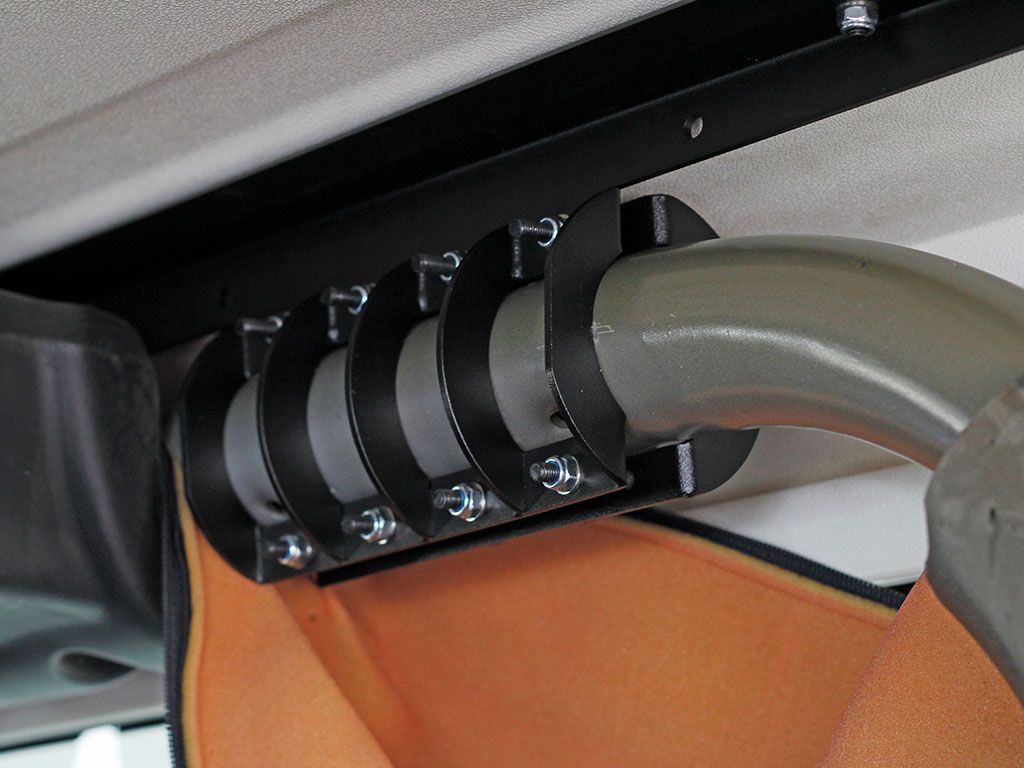

These Foot Rails contain 1 opening to access a Front Runner under the rack mount table (1 smaller prep table or 1 larger camp size table).

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Consisting of:

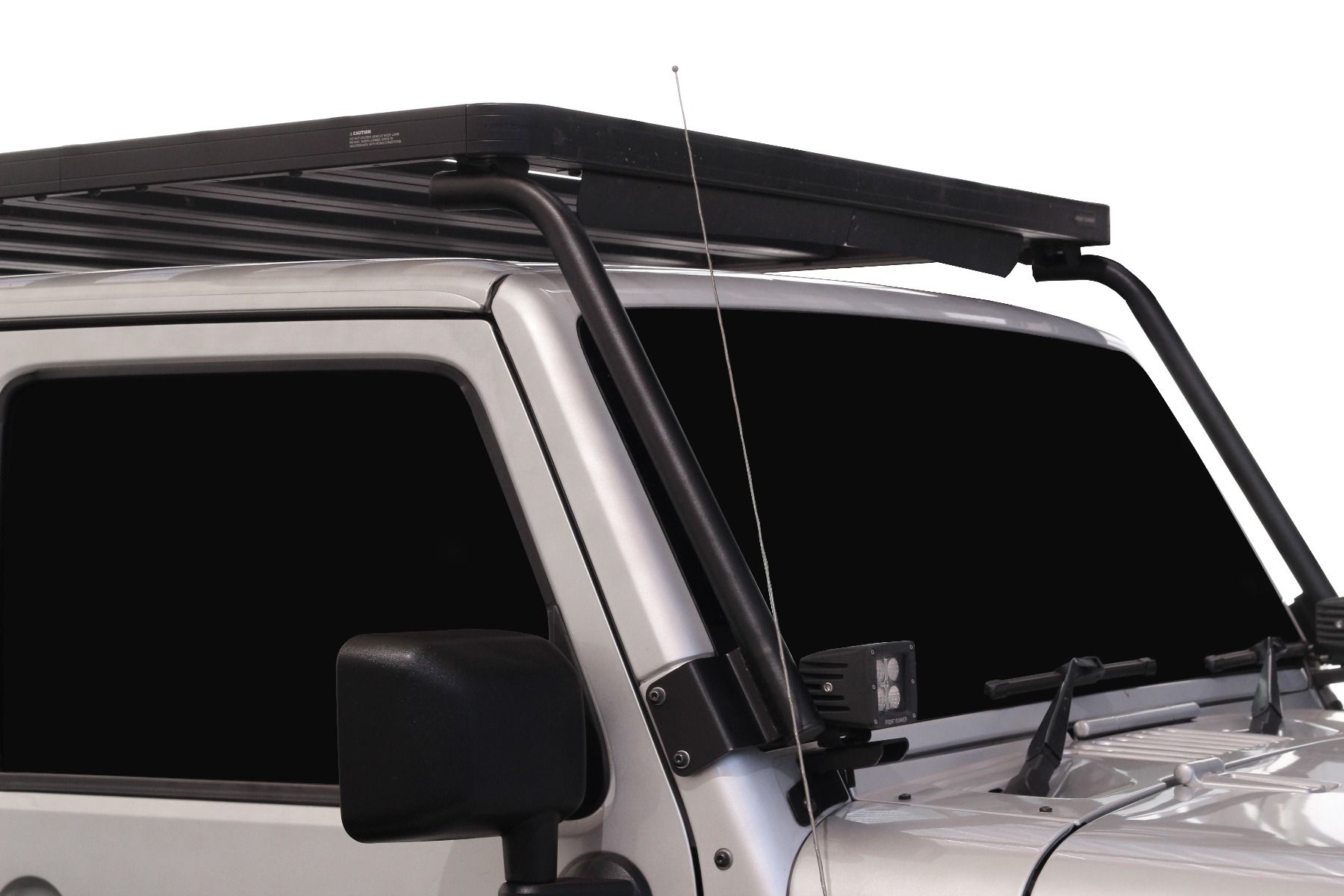

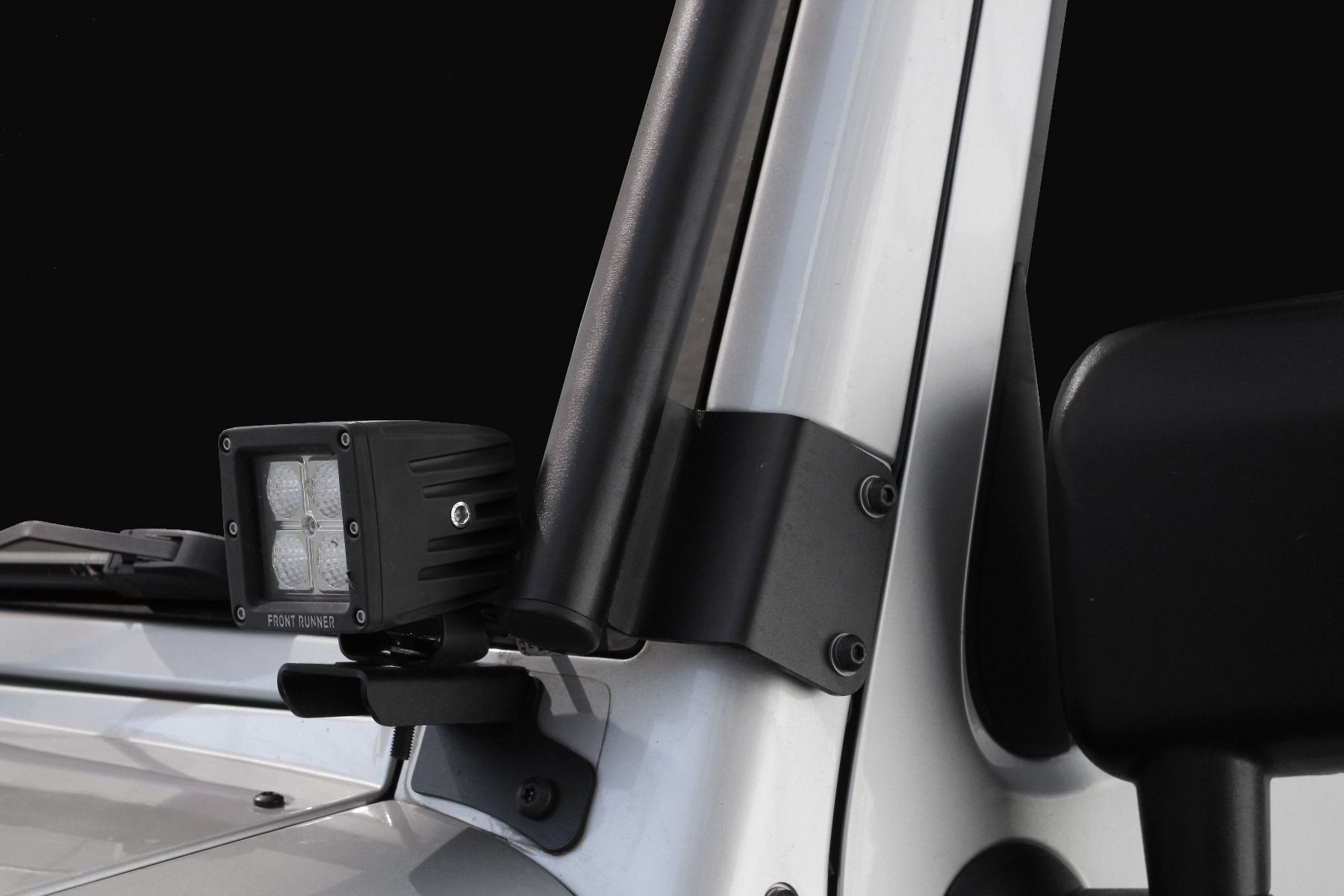

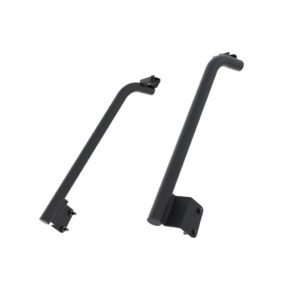

1 x FAJK009 – Jeep Wrangler JK 2 Door & 4 Door Front Pillar Brackets – by Front Runner

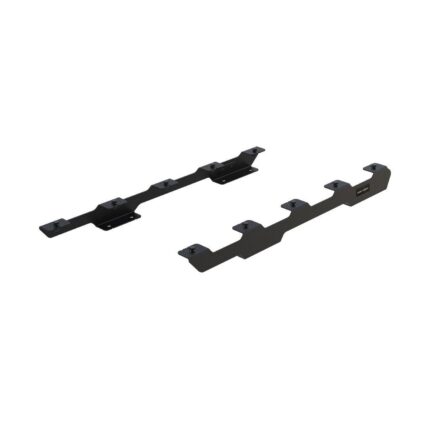

1 x FAJK010 – Jeep Wrangler JK 2 Door New Foot Rails – by Front Runner

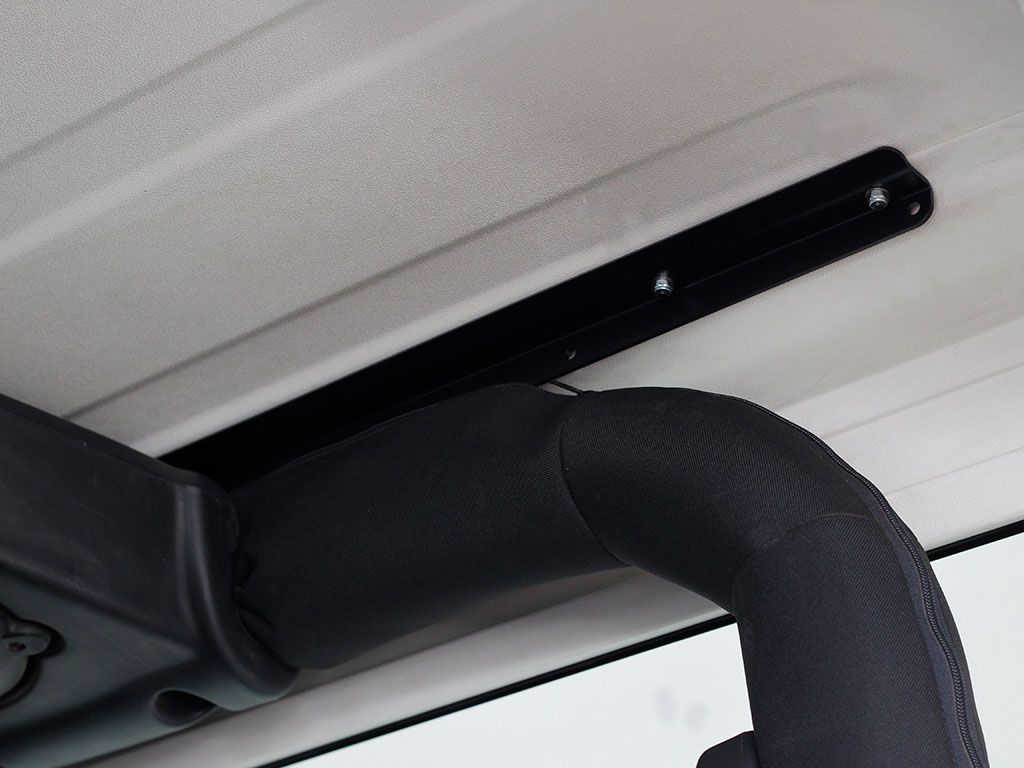

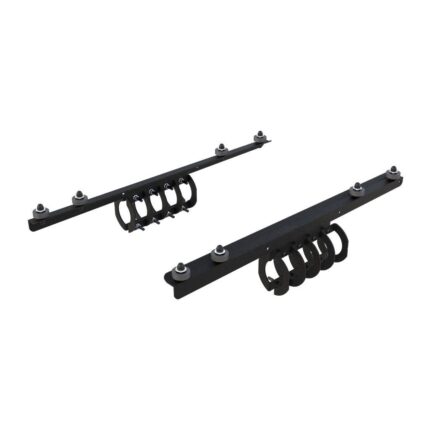

1 x FAJK011 – Jeep Wrangler JK 2 Door New Inner Brackets – by Front Runner
1 x RRSTJ09 – Slimline II Tray – 1425mm(W) X 1762mm(L) – by Front Runner
1 x WDST006 – Wind Deflector 45mm Lip Wide Pair / 1345mm(W) – by Front Runner

Material used:
Black epoxy powder-coated T6 aluminum
3CR12 Stainless Steel

Approximate Installed Weight 37kg (82lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot, or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicle’s roof.

Shipping Dimensions:
Width 455mm (18″)
Length 1725mm (68″)
Height 400mm (16″)

Shipping Weight:
Weight 43.1kg (94.8lbs)

Additional information

Brand	FRONTRUNNER

Jeep, Wrangler JK 2 Door, 2018
Jeep, Wrangler JK 2 Door, 2017
Jeep, Wrangler JK 2 Door, 2016
Jeep, Wrangler JK 2 Door, 2015
Jeep, Wrangler JK 2 Door, 2014
Jeep, Wrangler JK 2 Door, 2013
Jeep, Wrangler JK 2 Door, 2012
Jeep, Wrangler JK 2 Door, 2011
Jeep, Wrangler JK 2 Door, 2010
Jeep, Wrangler JK 2 Door, 2009
Jeep, Wrangler JK 2 Door, 2008
Jeep, Wrangler JK 2 Door, 2007

Cart

Cart

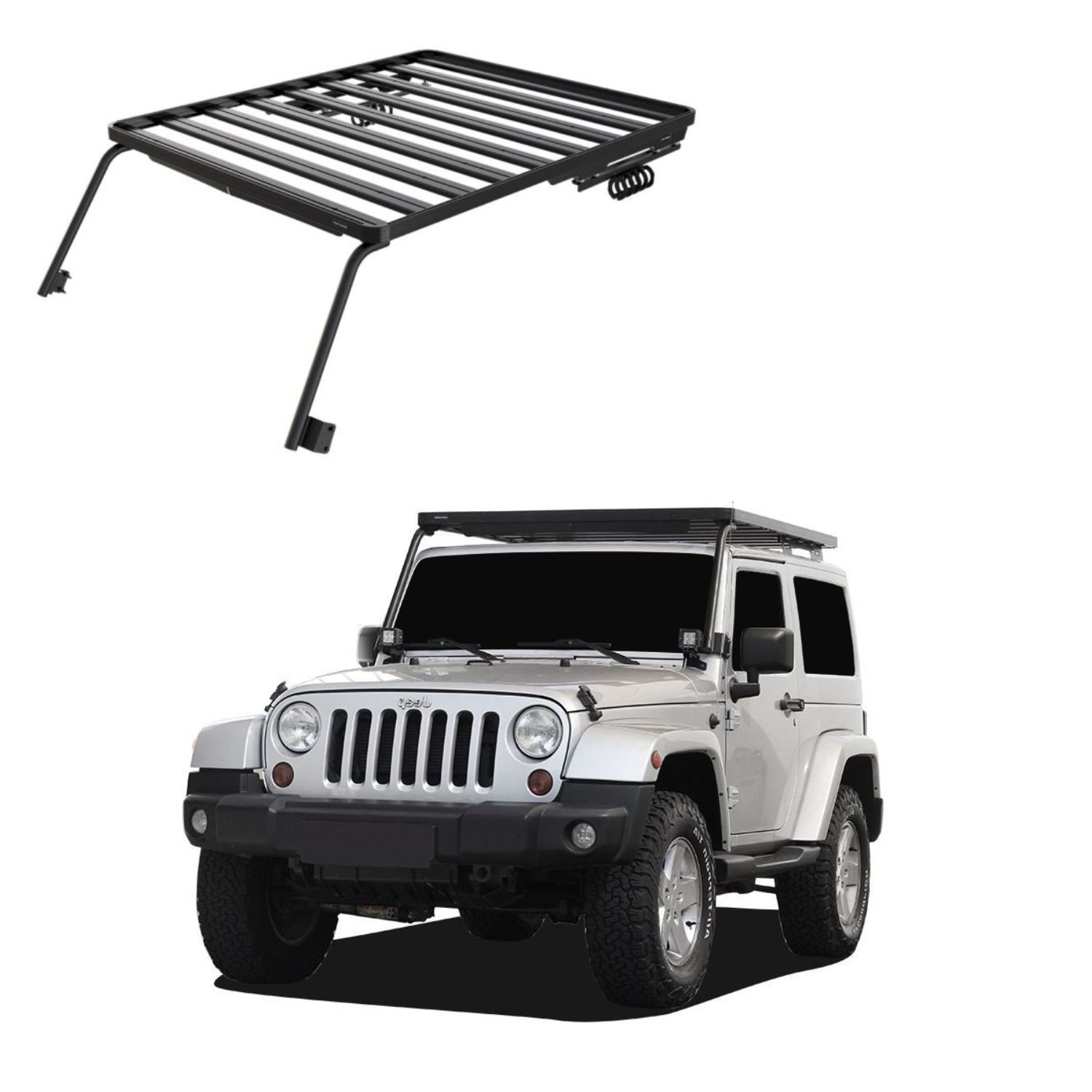

WRANGLER JK 2 DOOR (2007-2018) EXTREME ROOF RACK KIT – KRJW001T
