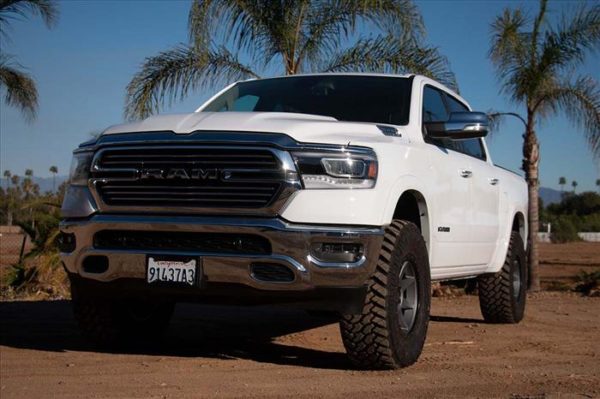

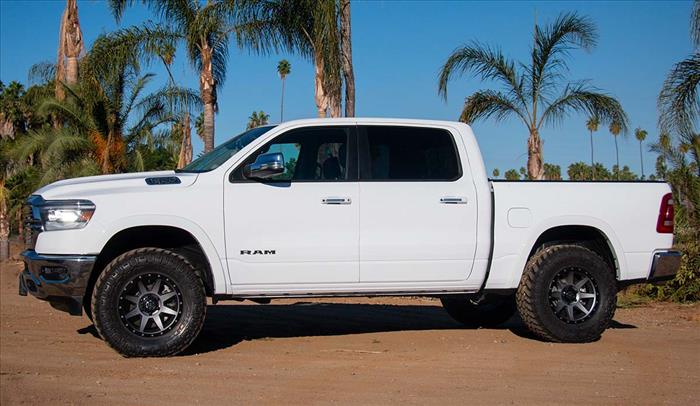

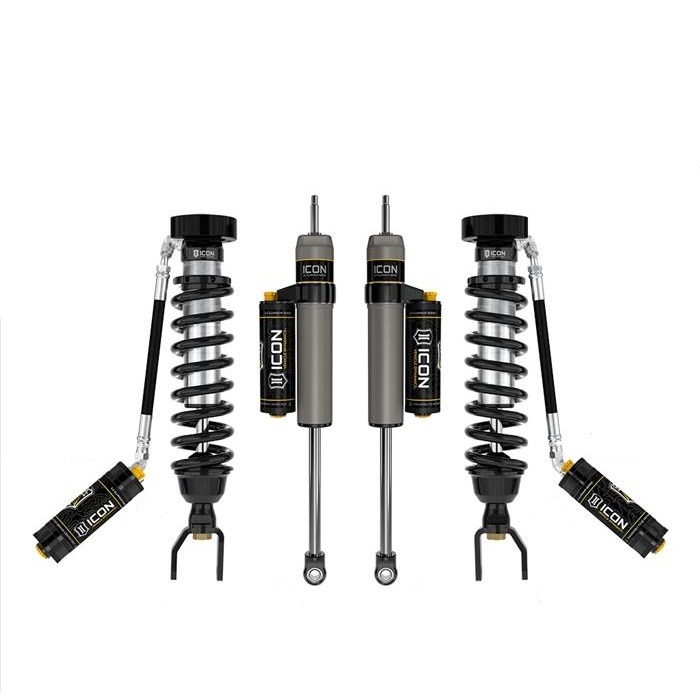

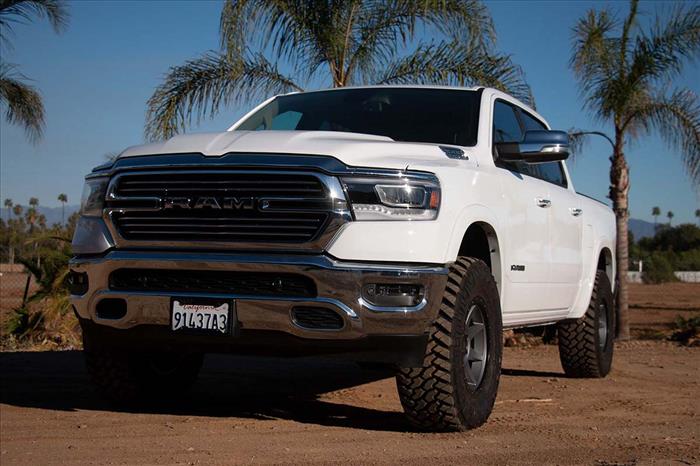

ICON 2019-UP RAM 1500, 2-3″ LIFT, STAGE 4 SUSPENSION SYSTEM

Description

OVERVIEW

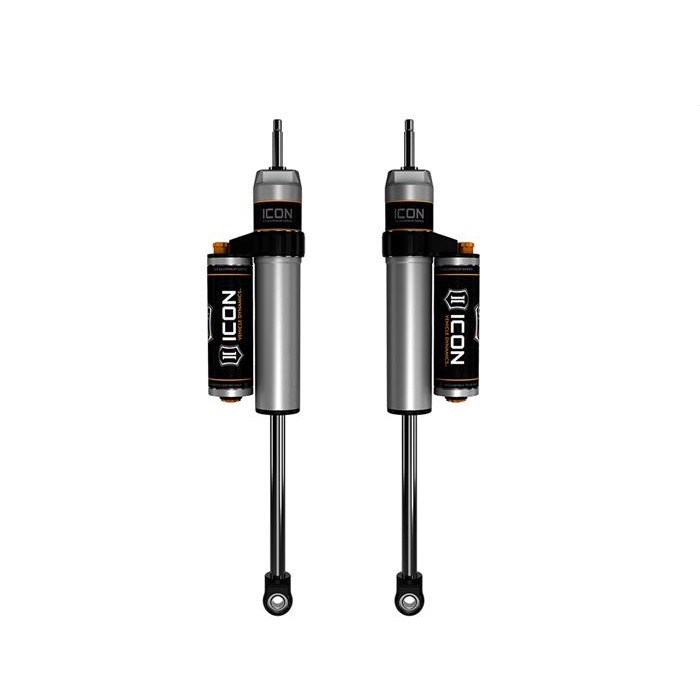

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON’S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below thetop cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

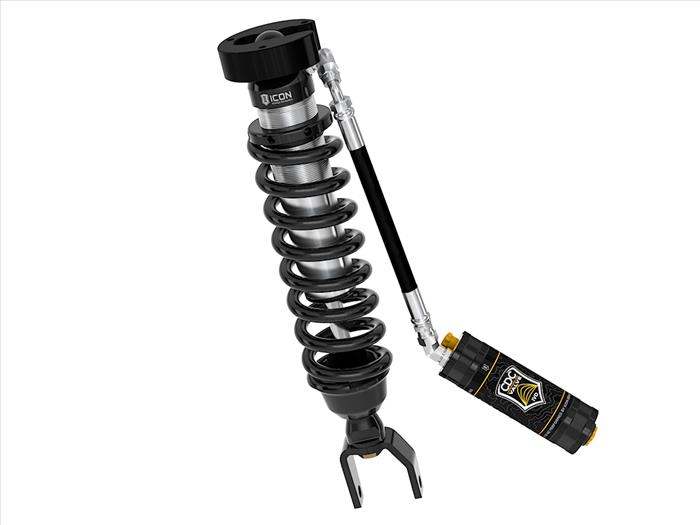

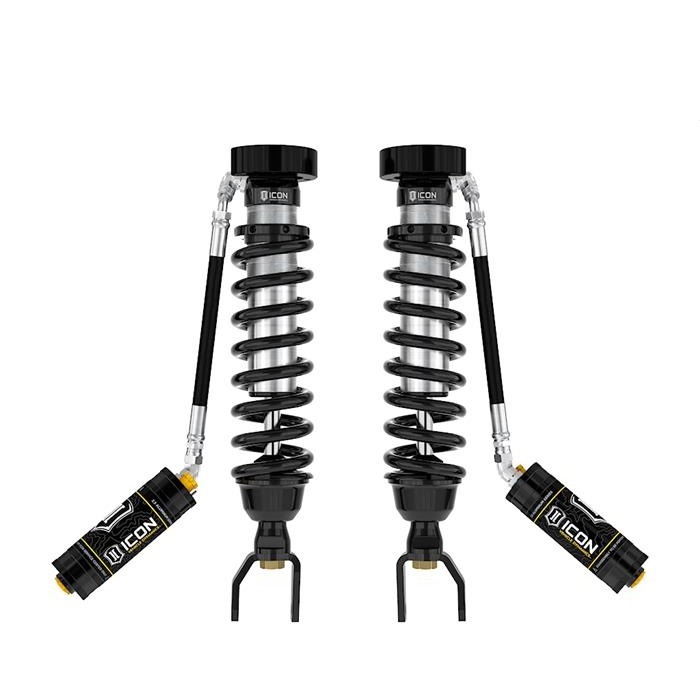

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-UP Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.

FEATURES & BENEFITS
ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable, 100% Revalveable
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
Double-sealed Schrader caps reduce risk of damage
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
Increased wheel travel and ride quality over stock
ICON engineered coil springs
Corrosion resistant CAD plated shock body with 7/8″ diameter shaft
High strength alloy CNC machined lower mounting clevis
FK rod end bearings for extended longevity and minimal deflection
100% Bolt-on – no drilling, cutting or welding necessary for installation
Unique valving developed for the lighter weight and chassis dynamics of the 2019-Up Ram 1500
Vehicle specific tuned for superior shock damping and control

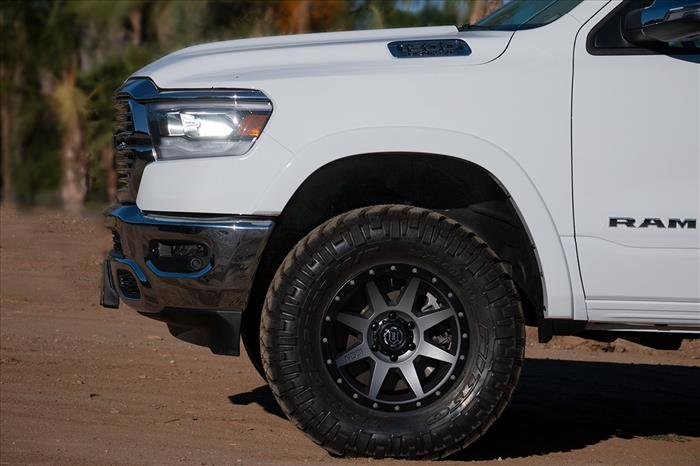

Adjustable from 2-3″ of front lift height over stock
Remote reservoirs maintain cooler operating temperatures and consistent operation during extended off-road use

TECH INFO:
OEM Wheels & Tires Fitment: Yes

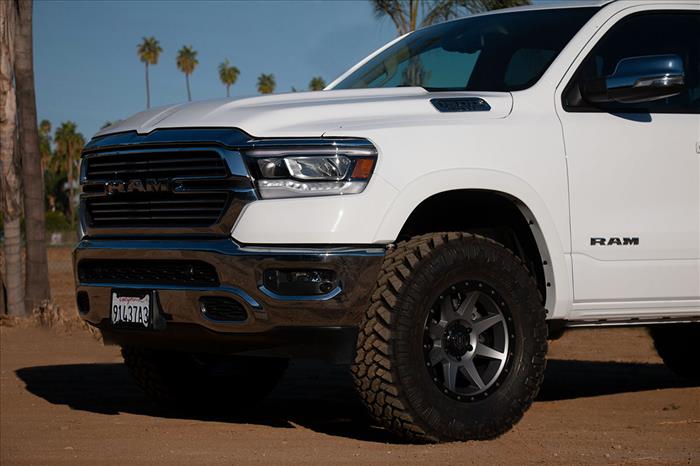

Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.00″ Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.00″ Backspace / 0mm Offset
Recommended Aftermarket Tires: 35″ x 12.50″ (fender trimming and modifications will be required.)

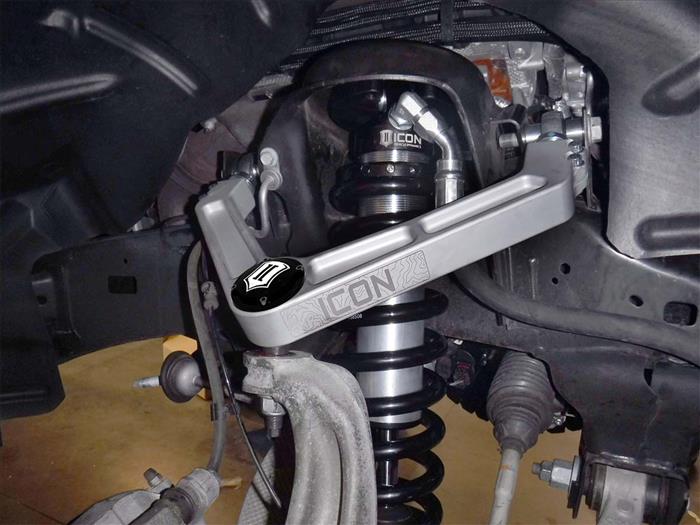

TECH NOTE: Requires installation of aftermarket front upper control arms.
TECH NOTE: Not compatible with models equipped with factory air ride system.
TECH NOTE: Spring rates optimized for use with gas engines. Not recommended for Eco-Diesel equipped models.
TECH NOTE: Not compatible with 2019-Up Ram 1500 Classic trim
TECH NOTE: 2019-Up Ram 1500 Rebel trim lift height range 1.25-2.25″ over stock
TECH NOTE: Not compatible with 2020-Up Ram 1500 TRX trims
