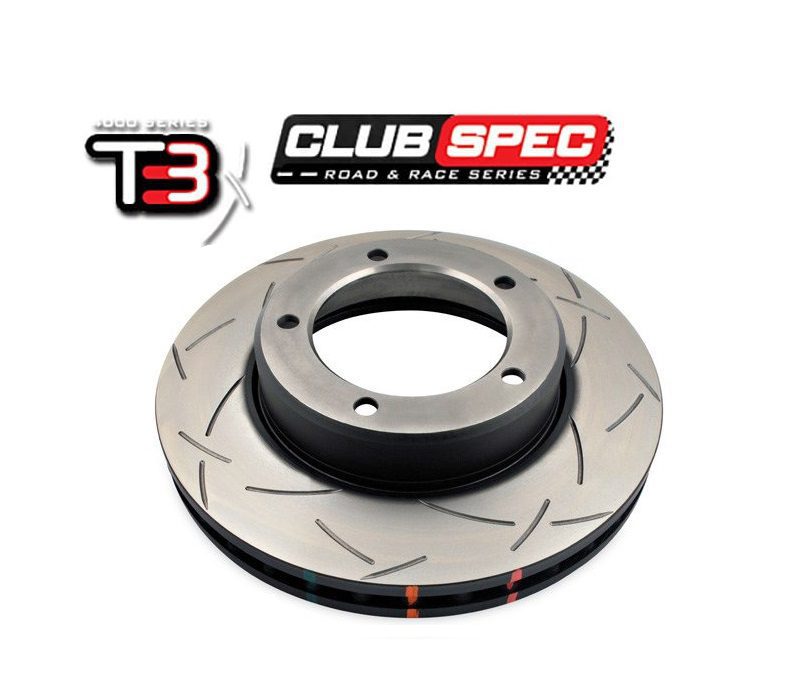

T3 FRONT DISC ROTOR LX470/LC100
4000 Series T 3 is the ultimate in direct replacement single piece performance brake rotors Featuring all the benefits of the 4000 Series plus DBA’s patented world renowned T 3 bi directional slot design.
Built on the foundations of DBA’s T 2 slot, the T 3 slot design features additional, precise, CNC machined tri symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel The T 3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.
We recommend a T3 front disc slot for high performance applications.
T3 rotors are denoted by the suffix (S) in 4000 Series part numbers.
Quantity Required: 2
4000 Series disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded performance braking above and beyond standard OE levels.
Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA’s metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.
Featuring DBA’s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30 increase in surface area and 20 improvement in cooling efficiency (as compared to a traditional straight vane design).
SURFACE DESIGN – 1
Symmetrical slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.
ANTI RUST – 2
Painted non friction areas to prevent rust and enhance appearance.
BI DIRECTIONAL USE – 3
Symmetrical slotting and/or drilling for universal left/right use.
THERMAL STABILITY PROFILING – 4
Heat treatment cycles realign the microstructure of the iron, resulting in increased rotor stability and durability.
THERMAL EFFICIENCY – 5
Centre split core castings for increased heat transfer and thermal efficiency.
CBN – 6
CBN (Cubic Boron Nitride) machine turned finish, minimising disc thickness variation and the potential for pad “knock” and resulting premature wear.
THERMOGRAPHIC HEAT PAINT – 7
Paint markings change colour at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue.
HIGH CARBON ALLOYED IRON – 8
Formulation allows for optimal interaction with DBA’s thermal stability profiling (TSP). Increases the capacity of the rotor to handle constant and extreme heat over prolonged periods.
KANGAROO PAW – 9
Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.
Diameter (mm) 312
Height (mm) 71
Thickness (mm) 32
Minimum Thickness (mm) 30
Centre Hole (mm) 115
Stud Holes 5
Weight (kg) 8.79
*Some variants may not contain all features
* Quantity Required: 2
|Dimensions||35 × 36 × 10 cm|
DBA 4WD & AWD CATALOGUE 2021Download
- Toyota, Land Cruiser 100, 1998
- Toyota, Land Cruiser 100, 1999
- Toyota, Land Cruiser 100, 2000
- Toyota, Land Cruiser 100, 2001
- Toyota, Land Cruiser 100, 2002
- Toyota, Land Cruiser 100, 2003
- Toyota, Land Cruiser 100, 2004
- Toyota, Land Cruiser 100, 2005
- Toyota, Land Cruiser 100, 2006
- Toyota, Land Cruiser 100, 2007
- Lexus, LX470, 2007
- Lexus, LX470, 2006
- Lexus, LX470, 2005
- Lexus, LX470, 2004
- Lexus, LX470, 2003
- Lexus, LX470, 2002
- Lexus, LX470, 2001
- Lexus, LX470, 2000
- Lexus, LX470, 1999
- Lexus, LX470, 1998
