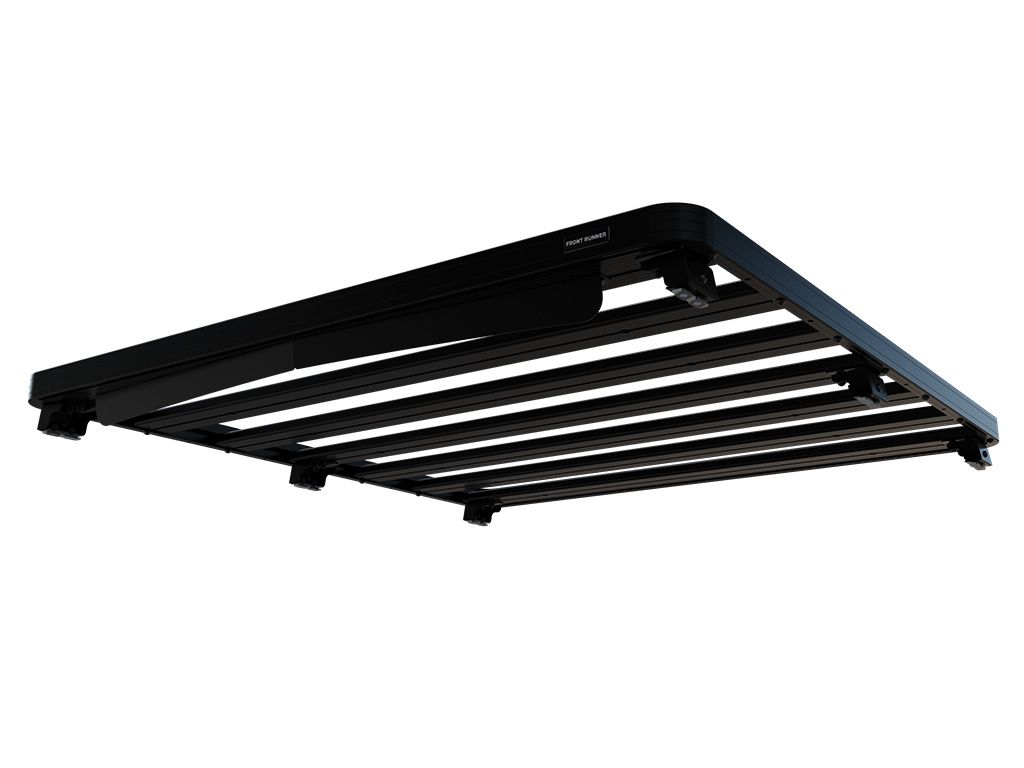

LC79 DC (1560mm) RSI SMART CANOPY SLIMLINE II RACK KIT

Description

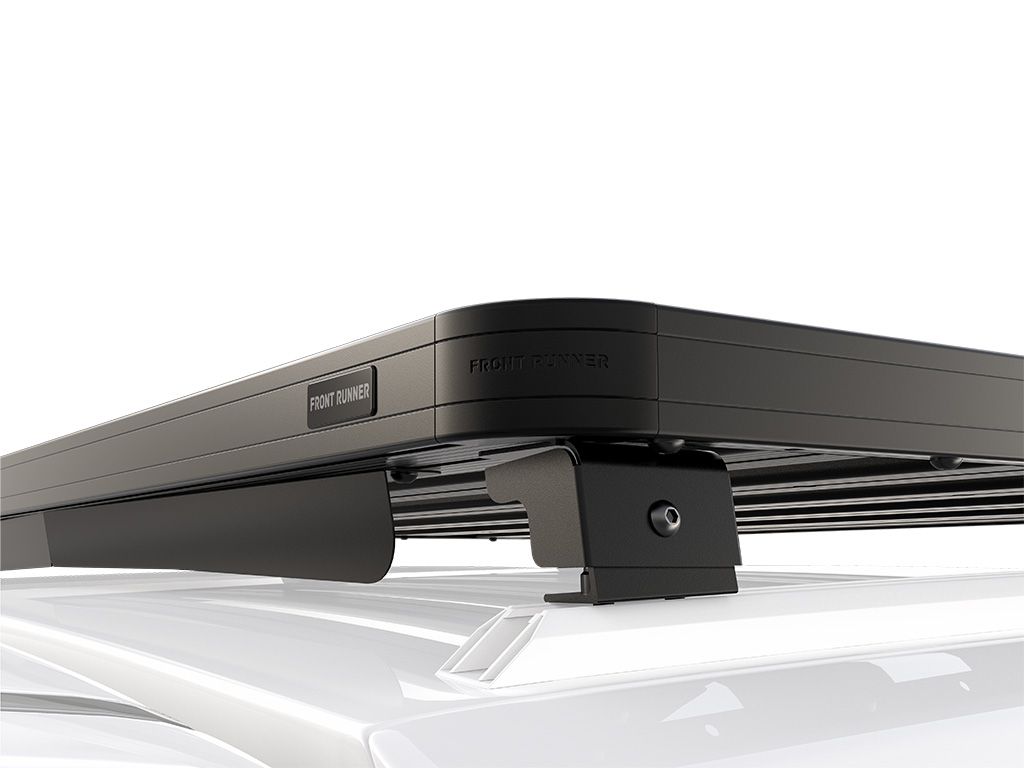

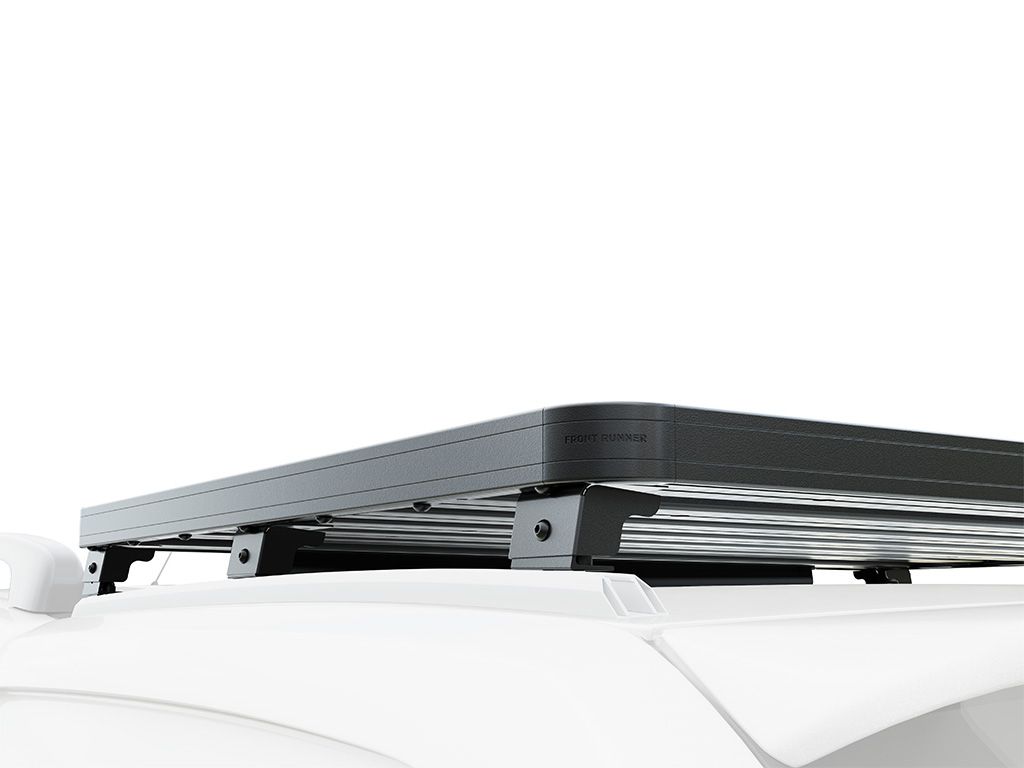

This 1560mm/61.4″ long, full-size, Slimline II cargo carrying roof rack kit for the LC 79 DC RSI Smart Canopy contains a Slimline II Tray, Wind Deflector, and 6 Feet. Installs easily into the existing factory/OEM roof tracks with no drilling required for installation.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Consisting of:

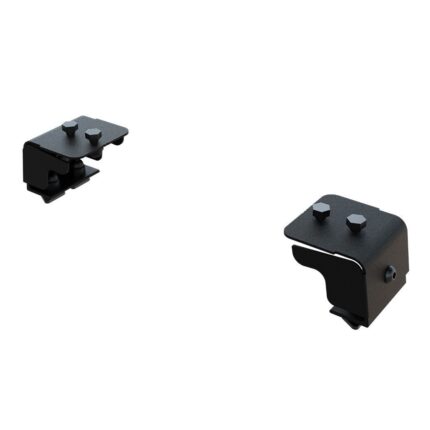

3x FASS012 – Foot Set / 40mm – 50mm
3x RRAC921 – Canopy Rack Kit Installation Set

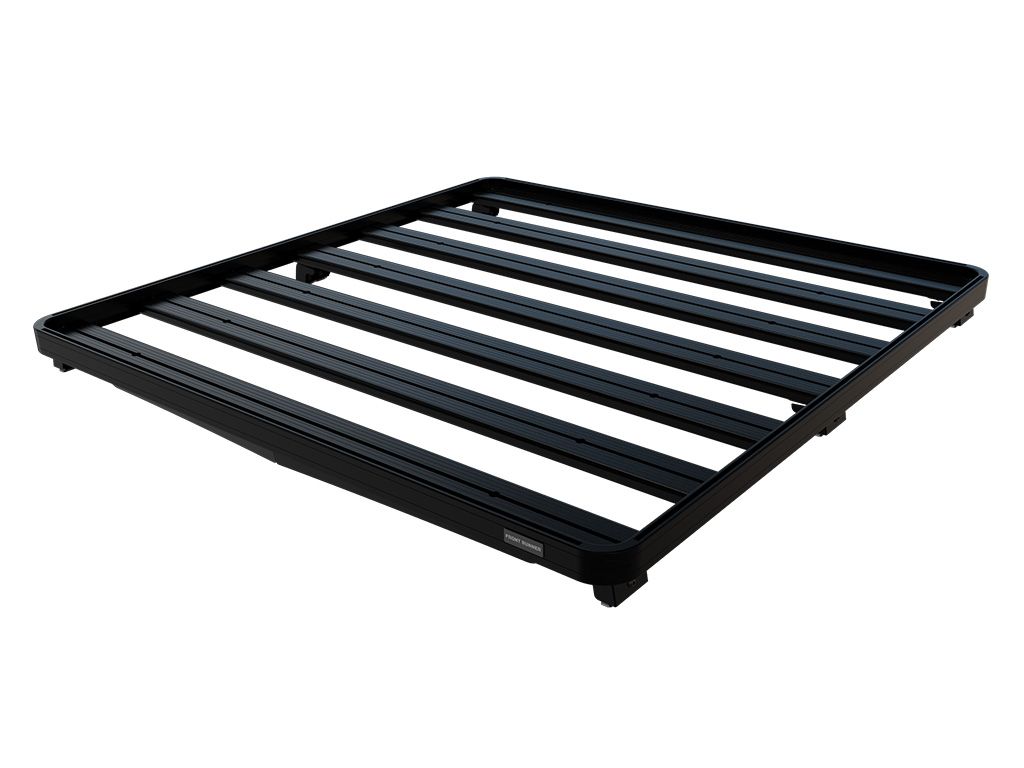

1 x RRSTG08 – Slimline II Tray – 1345mm(W) X 1560mm(L)

Material Used:
Black epoxy powder-coated T6 aluminum
High strength steel

Approximate Installed Weight: 24.65kg (54.34lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the roof of the vehicle.

Shipping Dimensions:
Width: 445mm (18″)
Length: 1720mm (68″)
Height: 155mm (6″)

Shipping Weight:
Weight: 25kg (55lbs)
