Description

FACTORY FINISH.

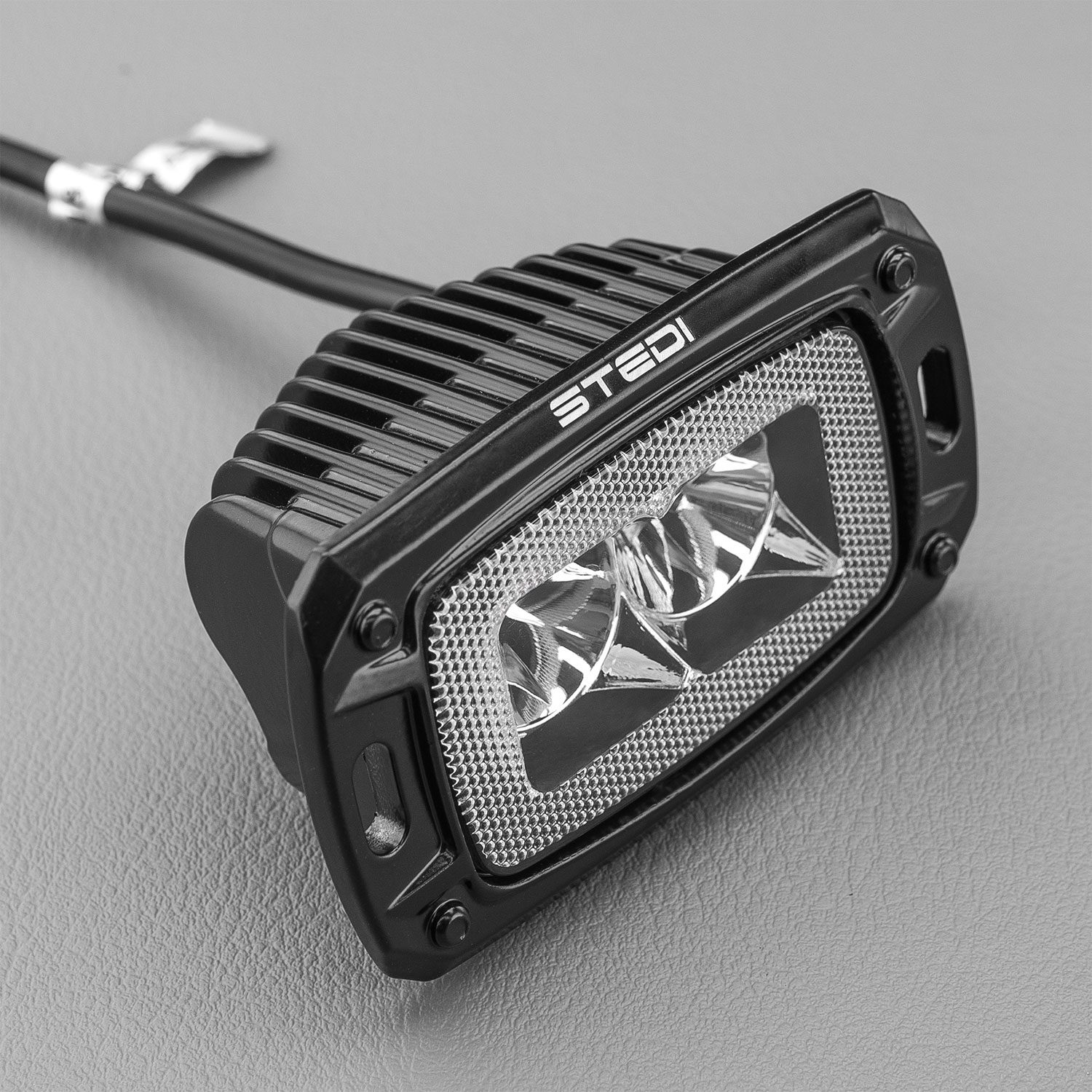

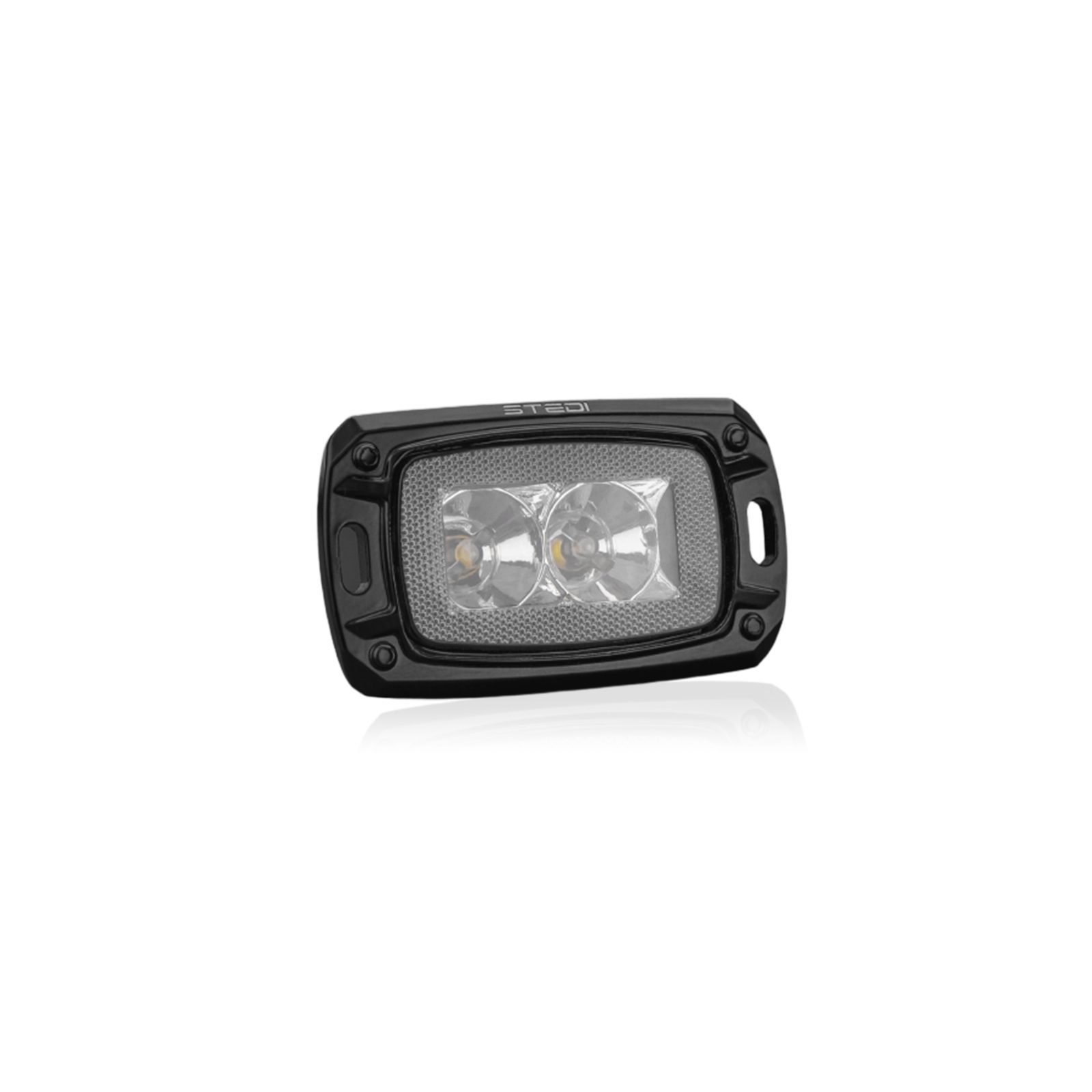

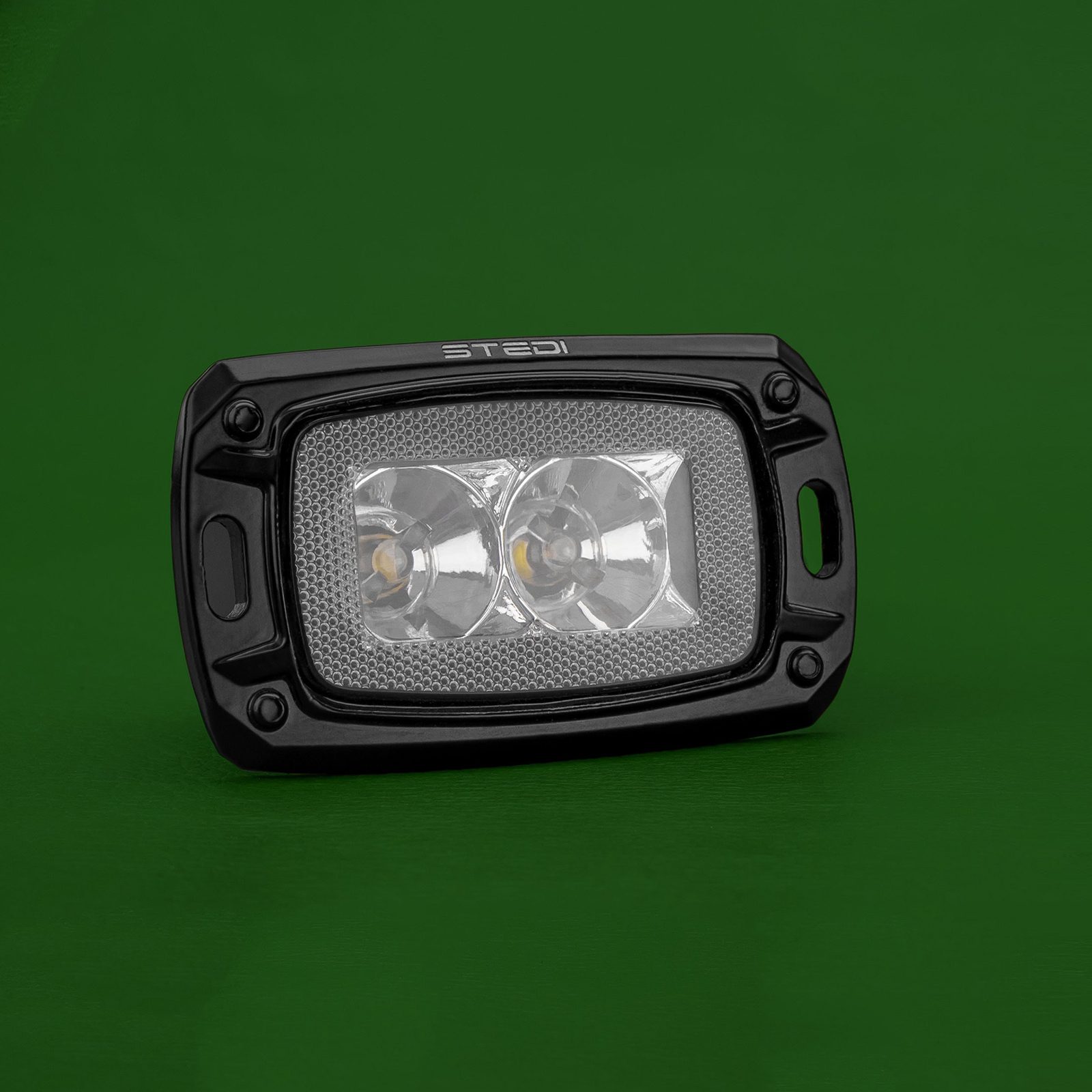

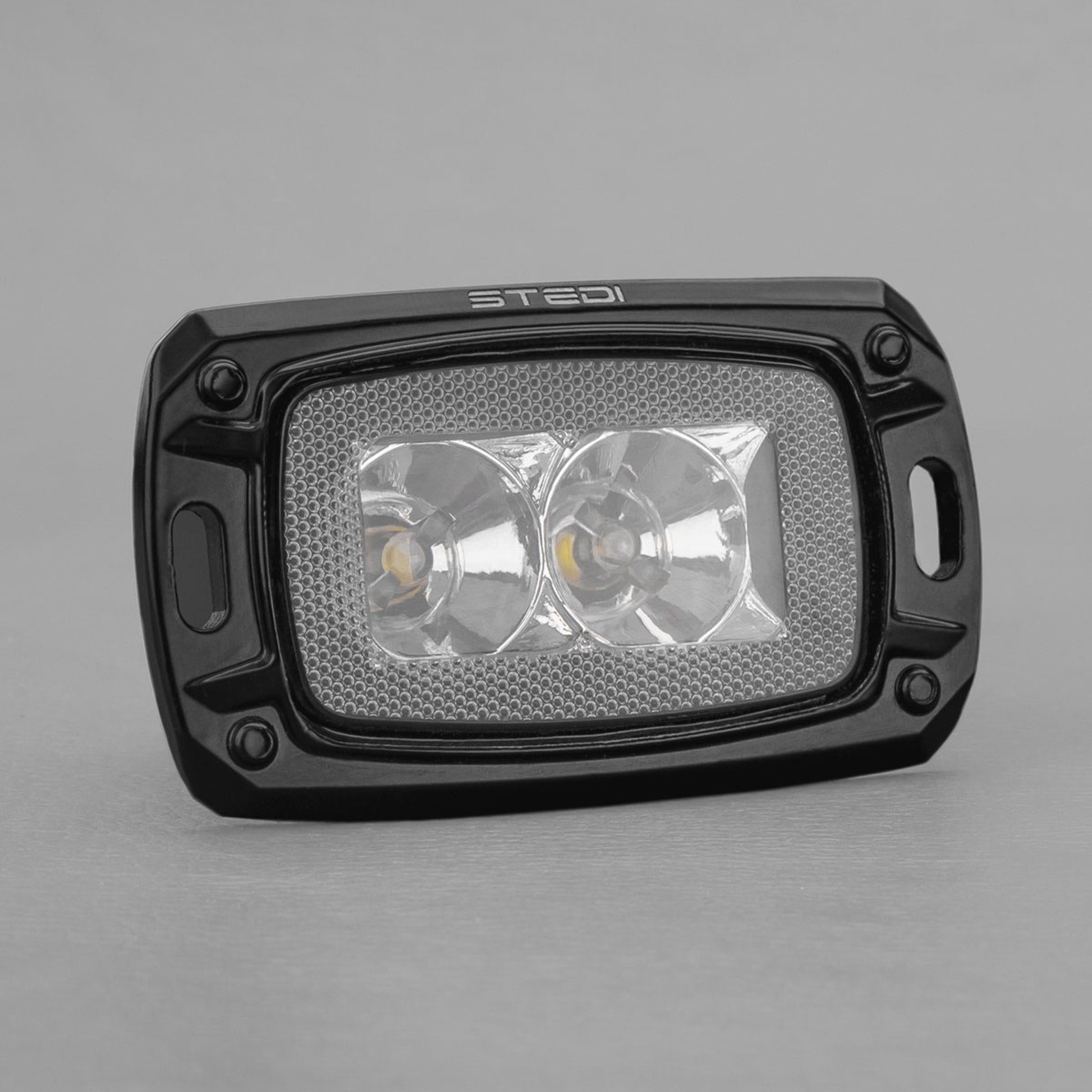

Our popular 10W Mini LED Work Lights have received a new addition to the family now available in a flush mount for a clean install when using as a reverse light to provide a powerful light with an OEM finish.

LOW POWER, HIGH BRIGHTNESS.

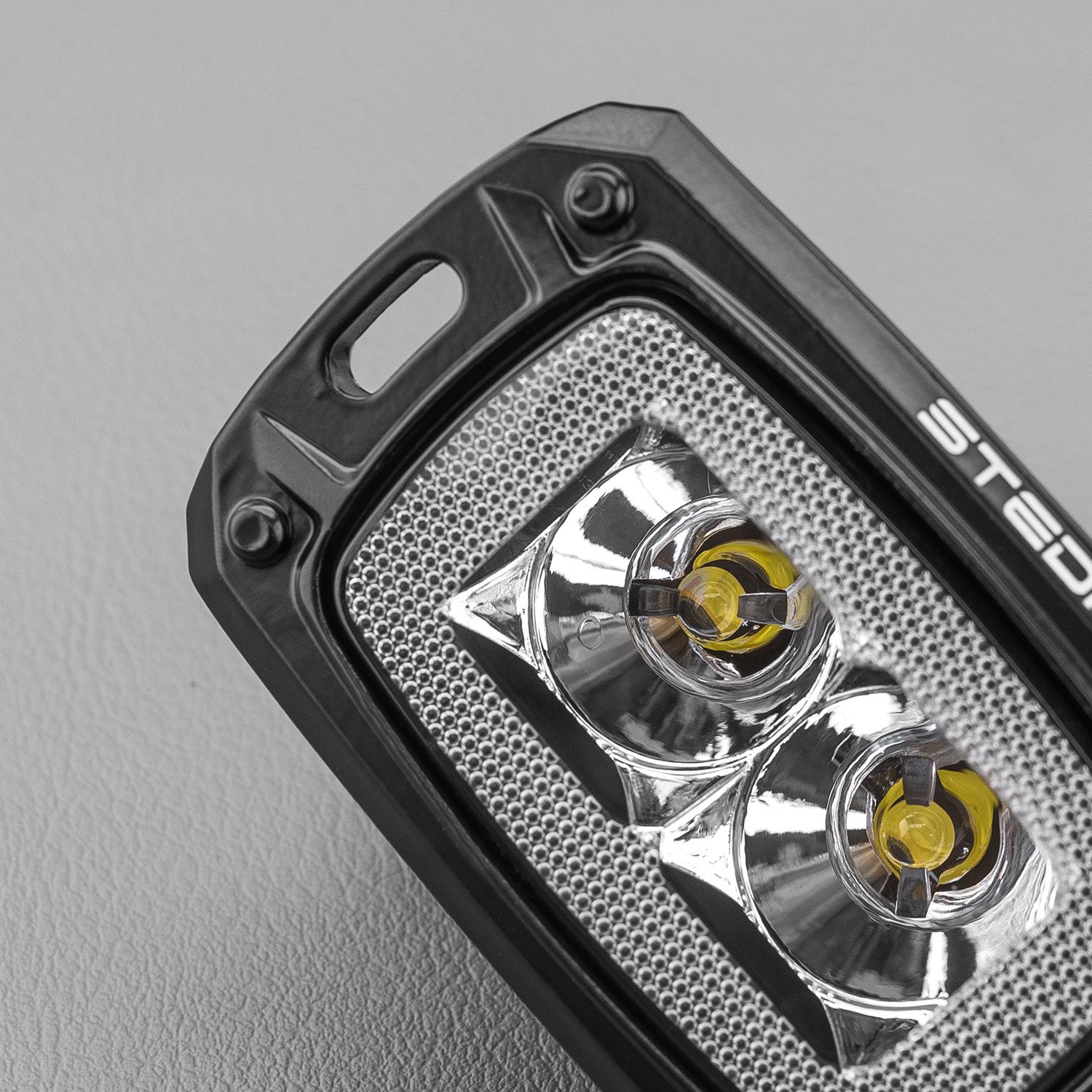

Running 2x 5w Osram LEDs supplies more light than you would expect from a 300g light. With a 40 degree flood and low current draw of 0.5a @ 13.8v, it really is no surprise they are our best-selling LED Work Light.

APPLICATION.
The 10w Minis have an almost endless list of applications and can be used from work/camping lights to bumper-mounted reverse lights.

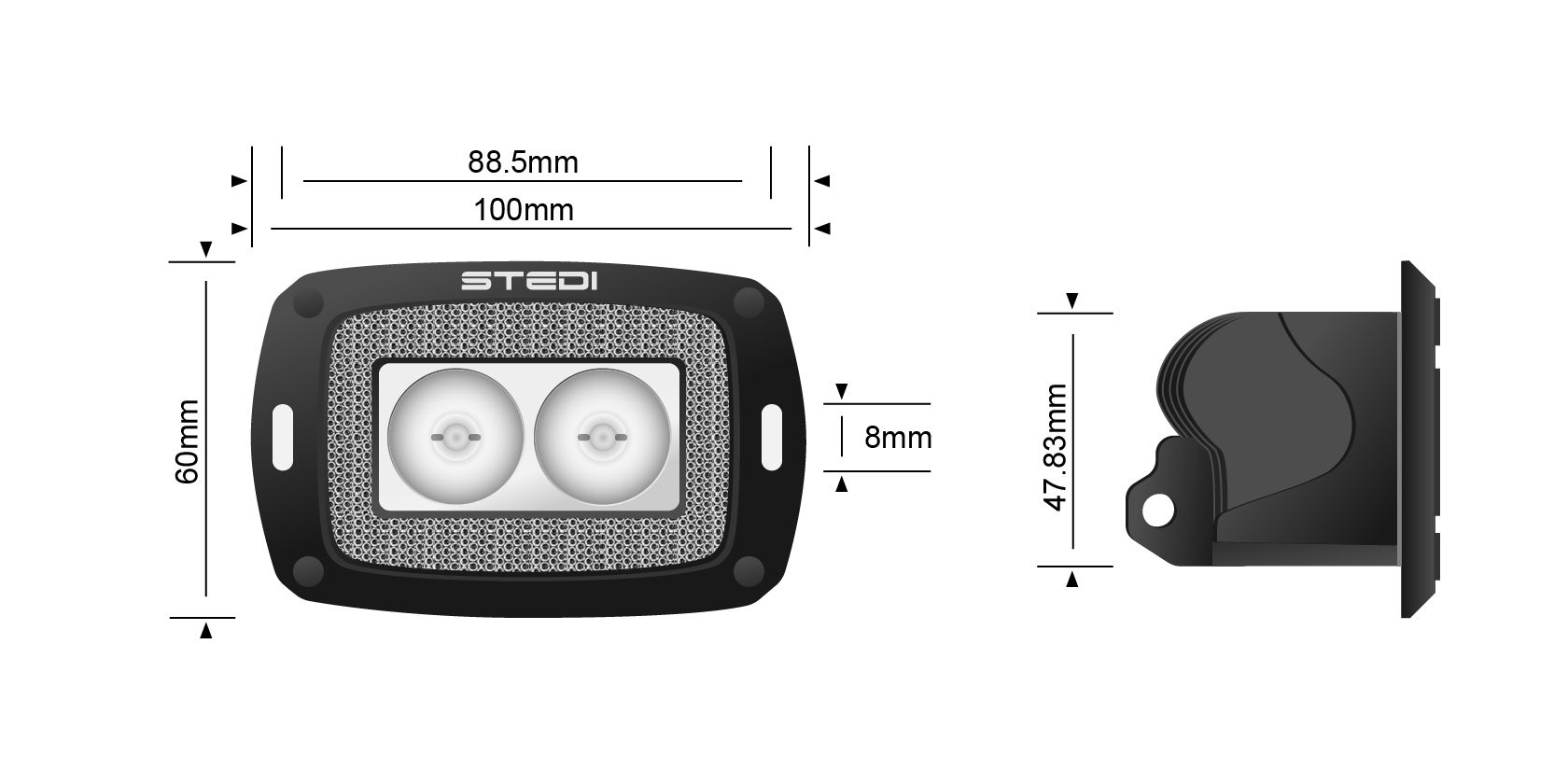

DIMENSIONS

KEY FEATURES

Flood Optics for a wide 40 degree spread pattern
12 Volt and 24v Compatible

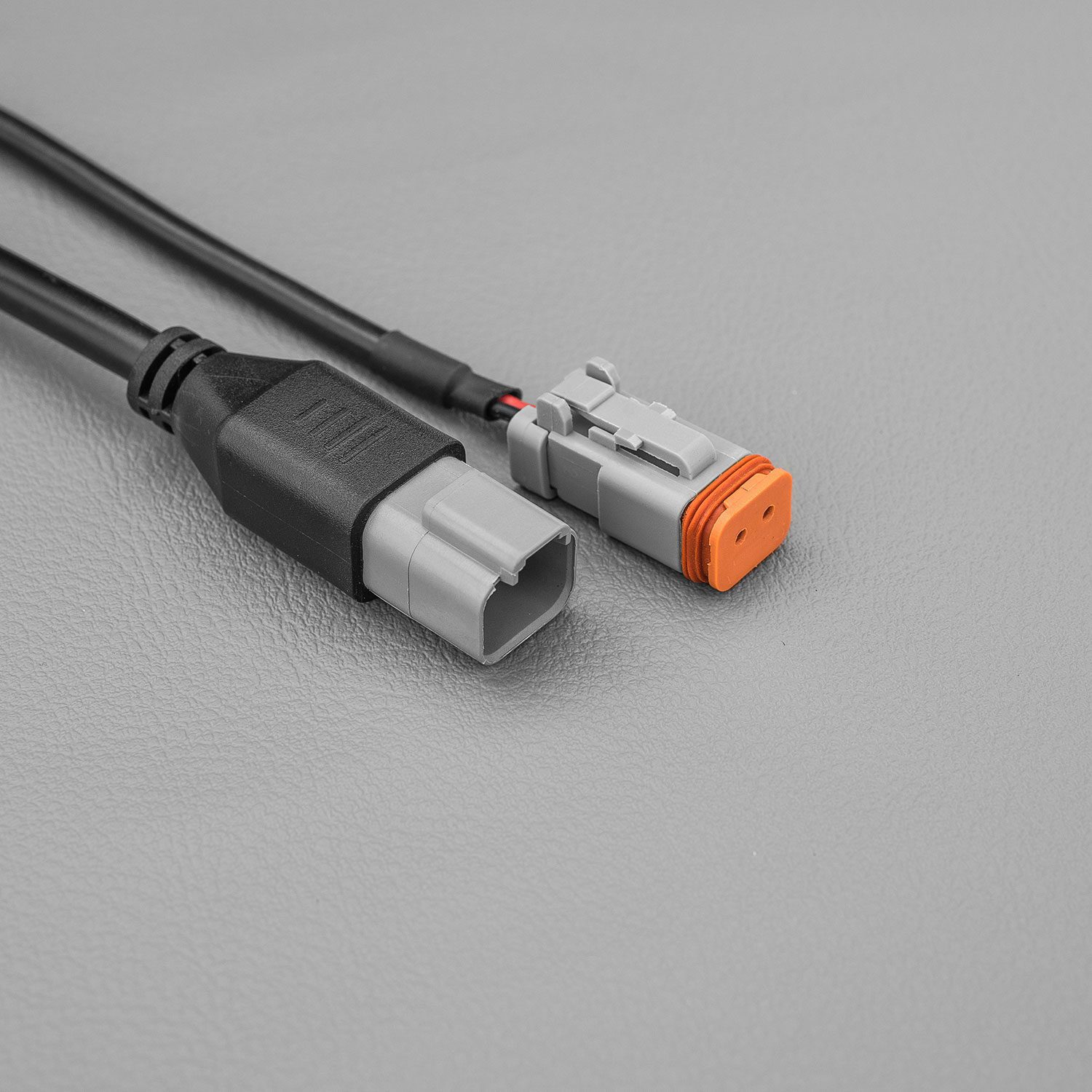

Waterproof Male & Female Deutsch connectors included
Stainless Steel Fittings
IP67 – Protected against immersion up to 1m in depth for no longer than 30 minutes at a time
OSRAM GmbH Emitters

TECH SPECS

LED POWER	10 WATTS
OPERATING VOLTAGE	12v & 24v Compatible
LED CHIPS	5W x 2 Osram LED’s
COLOUR TEMPERATURE	5700K
RAW LUMENS	1,000Lm
CURRENT DRAW	0.5A @ 13.8V
BEAM	Flood Beam
WATERPROOF	IP67
DUSTPROOF & ANTI-VIBRATION	YES
LENS	Optical PC
MOUNTING BRACKET	STAINLESS STEEL

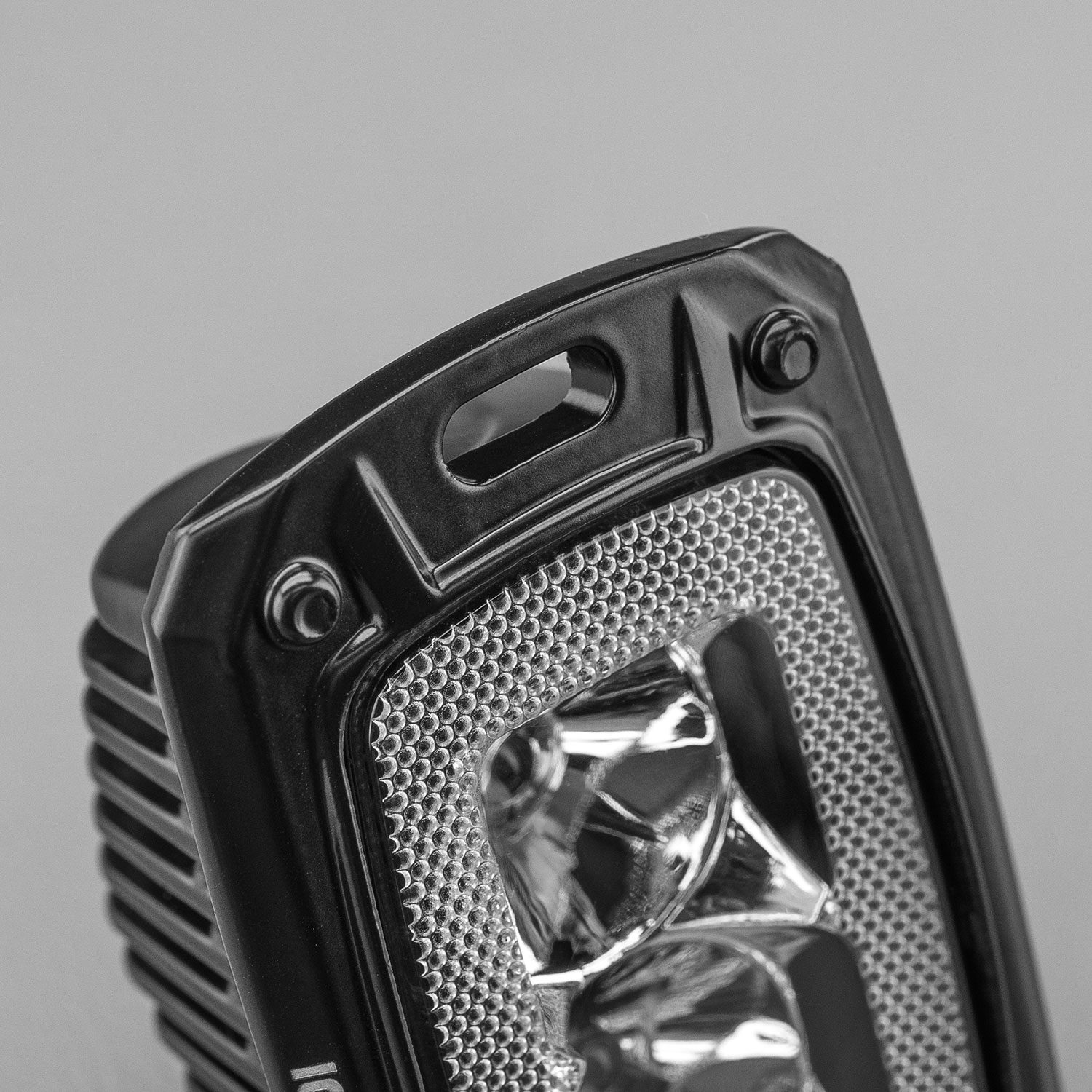

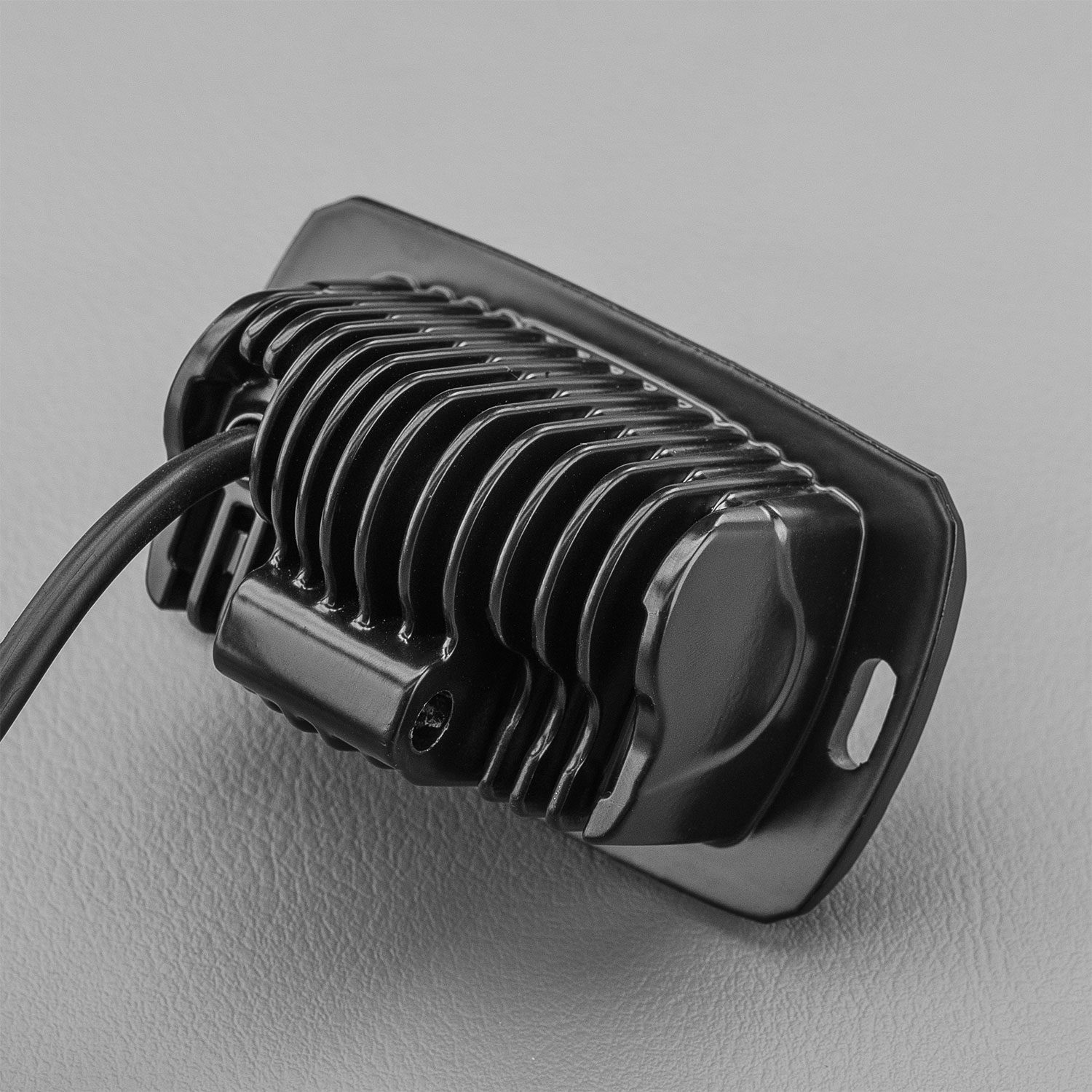

HOUSING MATERIAL	Cast Aluminum Housing
LIFE SPAN	50000+ HOURS
DIMENSIONS	(W) 77mm x (H) 48mm (D)55mm
CERTIFICATES	CE, RoHs & ECE
WEIGHT	0.3kg

WHAT’S INCLUDED

1 x 10W Mini LED Flush Mount
2 x M6 Bolts
2 x Nylock Nut
2 x Flat Washer
Allen Wrench
Male & Female Deutsch Connectors

Additional information

Weight	0.3 kg
Dimensions	13 × 9 × 9.5 cm
Brand	STEDI
