y61 Radius Arm Spacer
KWD 90.000
- Quantity Required: 1
- Package Details: Set
Description
ntroducing the strongest Drop Boxes available!

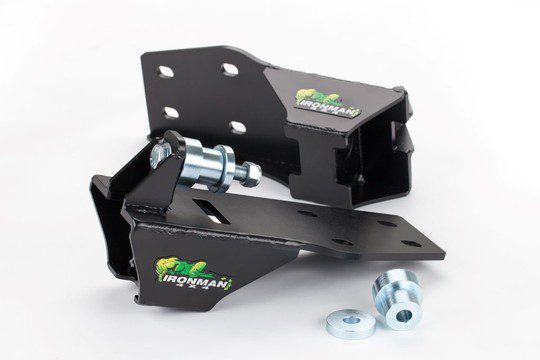

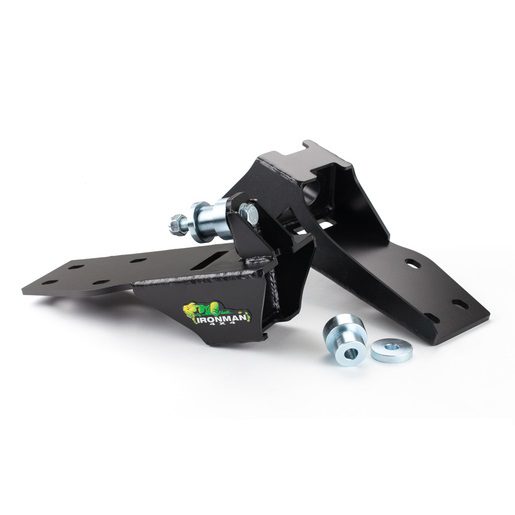

Compatible with Nissan Patrol Y61 GU, these ultra robust fabricated drop boxes increase caster by 5 degrees for use in vehicles with 4-6” raised suspension.

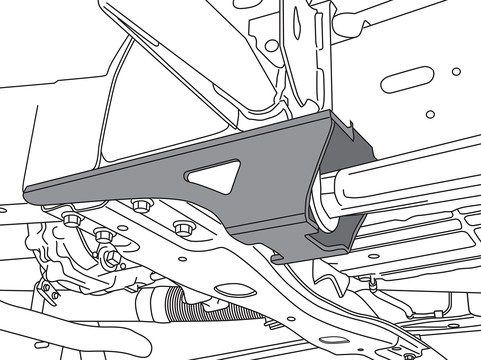

Additionally, the drop boxes lower the rear mounting point of the front radius arm to reduce bump-steer and and provide a 15mm wheelbase correction to increase clearance for larger tyres.

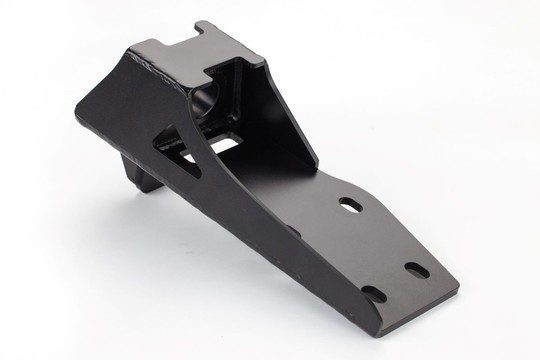

Features a unique full length rib to increase rigidity and strength.
The strongest and most robust drop box on the market.
• 5 Degree caster correction
• 15mm wheelbase correction
• Reduces bump steer and restores handling
• No modification required
• 8mm / 5mm steel fabricated construction with additional gussets
• EDP corrosion protection and powder coated
Additional information
| Brand |
|---|
- Nissan, Safari 2 doors Y61 GU Series 4, 2005
- Nissan, Safari 2 doors Y61 GU Series 4, 2006
- Nissan, Safari 2 doors Y61 GU Series 4, 2007
- Nissan, Safari 2 doors Y61 GU Series 4, 2008
- Nissan, Safari 2 doors Y61 GU Series 4, 2009
- Nissan, Safari 2 doors Y61 GU Series 4, 2010
- Nissan, Safari 2 doors Y61 GU Series 4, 2011
- Nissan, Safari 2 doors Y61 GU Series 4, 2012
- Nissan, Safari 2 doors Y61 GU Series 4, 2013
- Nissan, Safari 2 doors Y61 GU Series 4, 2014
- Nissan, Safari 2 doors Y61 GU Series 4, 2015
- Nissan, Safari 2 doors Y61 GU Series 4, 2016
- Nissan, Safari 2 doors Y61 GU Series 4, 2017
- Nissan, Safari 2 doors Y61 GU Series 4, 2018
- Nissan, Safari 2 doors Y61 GU Series 4, 2019
- Nissan, Safari 2 doors Y61 GU Series 4, 2020
- Nissan, Safari 4 doors Y61 GU Series 4, 2005
- Nissan, Safari 4 doors Y61 GU Series 4, 2006
- Nissan, Safari 4 doors Y61 GU Series 4, 2007
- Nissan, Safari 4 doors Y61 GU Series 4, 2008
- Nissan, Safari 4 doors Y61 GU Series 4, 2009
- Nissan, Safari 4 doors Y61 GU Series 4, 2010
- Nissan, Safari 4 doors Y61 GU Series 4, 2011
- Nissan, Safari 4 doors Y61 GU Series 4, 2012
- Nissan, Safari 4 doors Y61 GU Series 4, 2013
- Nissan, Safari 4 doors Y61 GU Series 4, 2014
- Nissan, Safari 4 doors Y61 GU Series 4, 2015
- Nissan, Safari 4 doors Y61 GU Series 4, 2016
- Nissan, Safari 4 doors Y61 GU Series 4, 2017
- Nissan, Safari 4 doors Y61 GU Series 4, 2018
- Nissan, Safari 4 doors Y61 GU Series 4, 2019
- Nissan, Safari 4 doors Y61 GU Series 4, 2020
- Nissan, Safari 4 doors Y61 GU Series 1-3, 1998
- Nissan, Safari 4 doors Y61 GU Series 1-3, 1999
- Nissan, Safari 4 doors Y61 GU Series 1-3, 2000
- Nissan, Safari 4 doors Y61 GU Series 1-3, 2001
- Nissan, Safari 4 doors Y61 GU Series 1-3, 2002
- Nissan, Safari 4 doors Y61 GU Series 1-3, 2003
- Nissan, Safari 4 doors Y61 GU Series 1-3, 2004
- Nissan, Safari 2 doors Y61 GU Series 1-3, 1998
- Nissan, Safari 2 doors Y61 GU Series 1-3, 1999
- Nissan, Safari 2 doors Y61 GU Series 1-3, 2000
- Nissan, Safari 2 doors Y61 GU Series 1-3, 2001
- Nissan, Safari 2 doors Y61 GU Series 1-3, 2002
- Nissan, Safari 2 doors Y61 GU Series 1-3, 2003
- Nissan, Safari 2 doors Y61 GU Series 1-3, 2004
- Nissan, Safari 2 doors Y61 GU Series 4, 2021
- Nissan, Safari 2 doors Y61 GU Series 4, 2022
- Nissan, Safari 2 doors Y61 GU Series 4, 2023
- Nissan, Safari 4 doors Y61 GU Series 4, 2021
- Nissan, Safari 4 doors Y61 GU Series 4, 2022
- Nissan, Safari 4 doors Y61 GU Series 4, 2023
