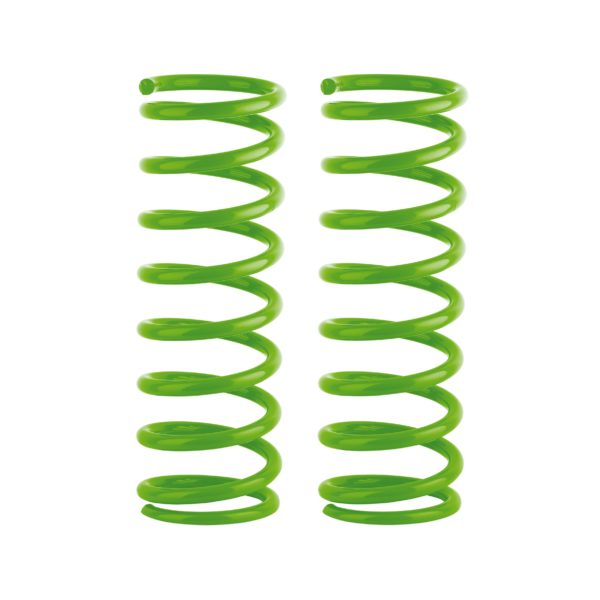

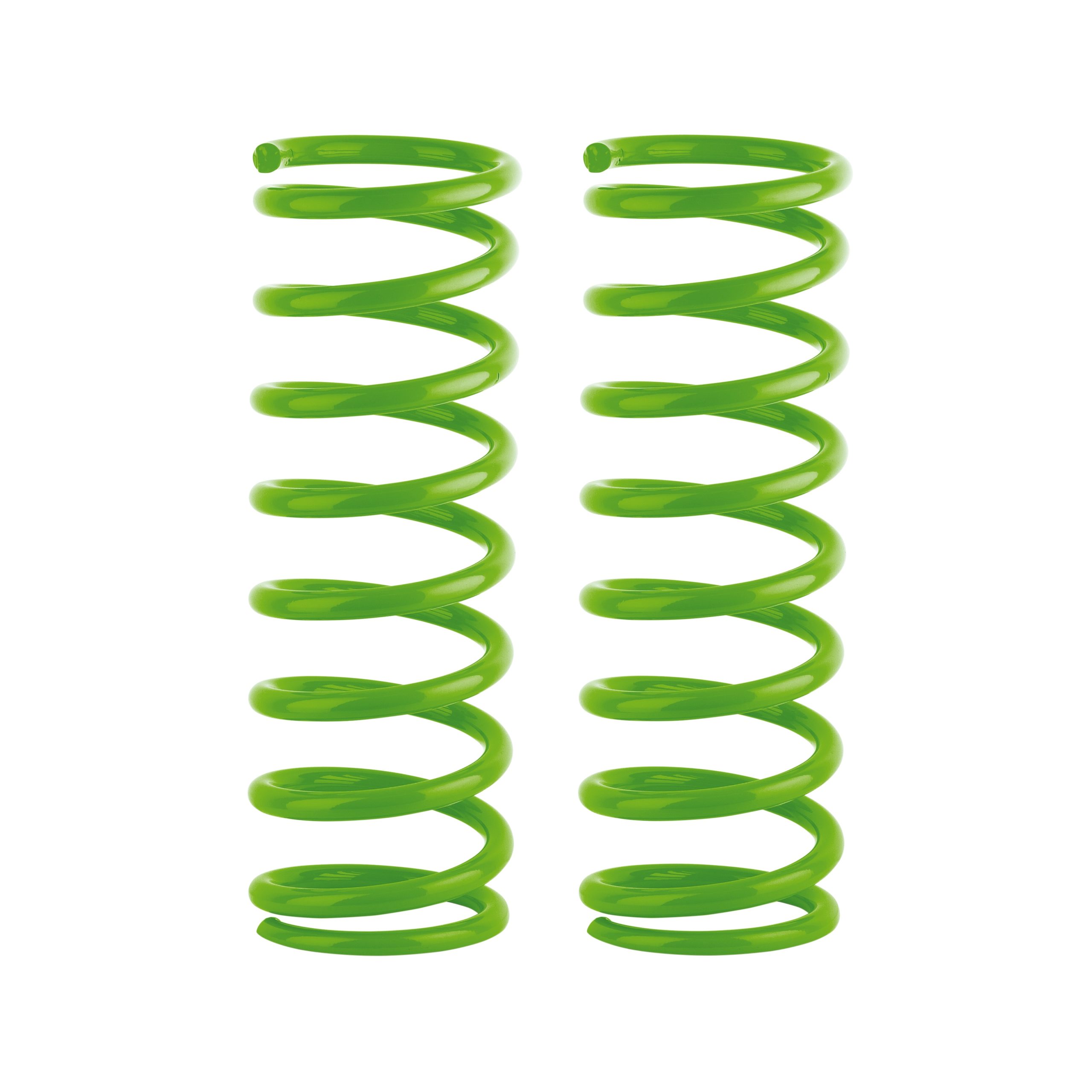

SUZUKI GRAND VITARA (2005-2015) REAR HEAVY (LWB) COIL SPRINGS
KWD 70.000
- Estimated Lift: 40mm
- Additional Load : 200-400kg
- Quantity Required: 1
- Package Details: Pair
In stock
Description
DESCRIPTION
All Ironman coil springs are designed to provide a safe, comfortable ride while also providing additional ground clearance. Ironman 4×4 coil springs are CNC cold wound and bar peeled for maximum reliability and consistency, every coil spring is ‘shot-blasted’ to ensure long life, preset to its solid height and load tested to avoid spring sag. All springs are electro-static powder-coated for a gleaming appearance. Available in raised height and perfectly matched to Ironman 4×4 Shock Absorbers.
| Material Diameter | 17mm |
| Free Height | 378mm |
| End I/D | 72mm |
| Spring Rate | 88(N/mm) |
| Spring Rate | 503(lbf/in) |
Additional information
| Weight | 11.6 kg |
|---|---|
| Dimensions | 31 × 15 × 51 cm |
| Brand |
- Suzuki, Grand Vitara, 2005
- Suzuki, Grand Vitara, 2006
- Suzuki, Grand Vitara, 2007
- Suzuki, Grand Vitara, 2008
- Suzuki, Grand Vitara, 2009
- Suzuki, Grand Vitara, 2010
- Suzuki, Grand Vitara, 2011
- Suzuki, Grand Vitara, 2012
- Suzuki, Grand Vitara, 2013
- Suzuki, Grand Vitara, 2014
- Suzuki, Grand Vitara, 2015
