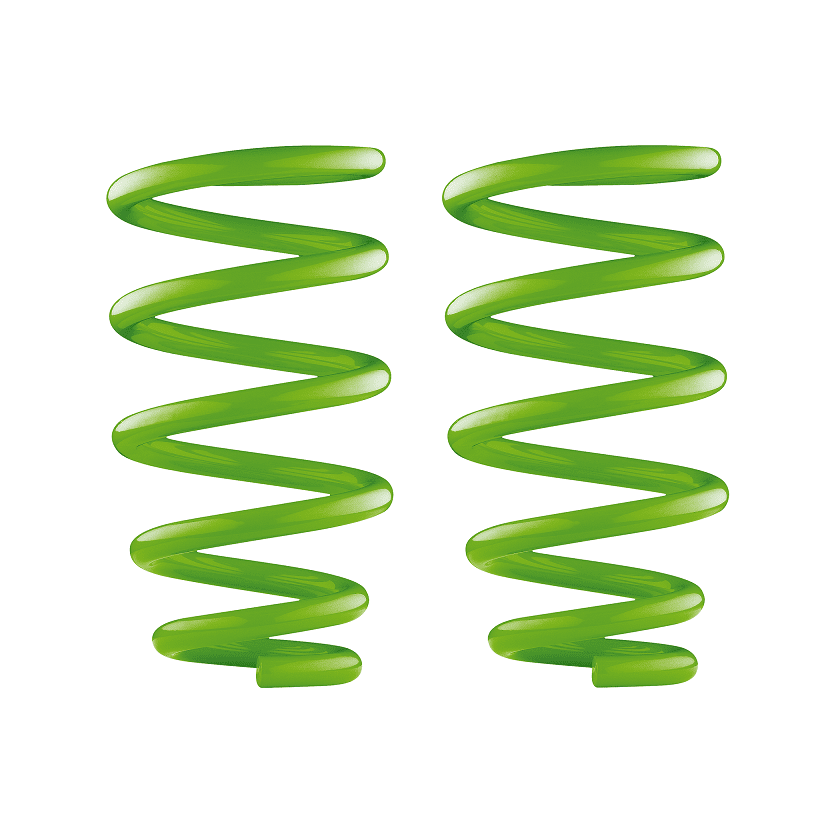

Suzuki Grand Vitara (2005-2015) FRONT MEDIUM COIL SPRINGS
KWD 70.000
- Estimated Lift: 40mm
- Additional Load 0-50kg
- Quantity Required: 1
- Package Details: Pair
Out of stock
Description
PRODUCT OVERVIEW
All Ironman coil springs are designed to provide a safe, comfortable ride while also providing additional ground clearance. Ironman 4×4 coil springs are CNC cold wound and bar peeled for maximum reliability and consistency, every coil spring is ‘shot-blasted’ to ensure long life, preset to its solid height and load tested to avoid spring sag. All springs are electro-static powder-coated for a gleaming appearance. Available in raised height and perfectly matched to Ironman 4×4 Shock Absorbers.
Additional Notes : Vehicles with independent suspension must maintain a minimum of 60mm downward suspension travel.
When OrderingSelect springs in accordance with your vehicles additional load.
Material Diameter | 16mm |
Free Height | 381mm |
End I/D | 125mm |
Spring Rate | 42(N/mm) |
Spring Rate | 240(lbf/in) |
Additional information
Weight | 10.2 kg |
---|---|
Dimensions | 33.5 × 16.5 × 43.5 cm |
Brand |
- Suzuki, Grand Vitara, 2005
- Suzuki, Grand Vitara, 2006
- Suzuki, Grand Vitara, 2007
- Suzuki, Grand Vitara, 2008
- Suzuki, Grand Vitara, 2009
- Suzuki, Grand Vitara, 2010
- Suzuki, Grand Vitara, 2011
- Suzuki, Grand Vitara, 2012
- Suzuki, Grand Vitara, 2013
- Suzuki, Grand Vitara, 2014
- Suzuki, Grand Vitara, 2015
