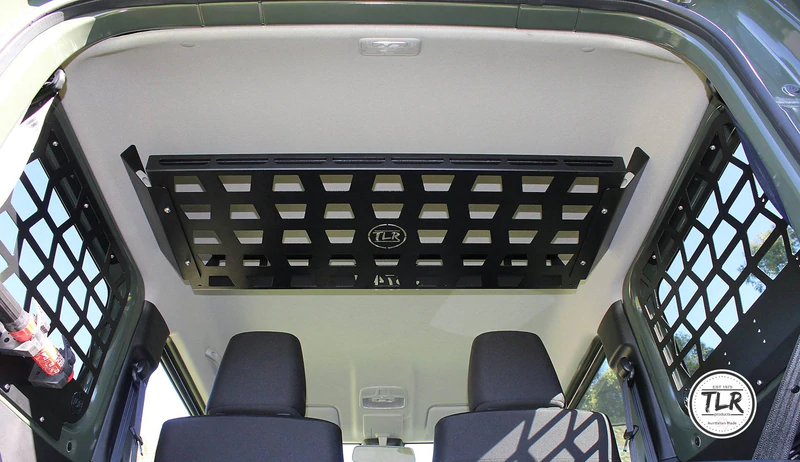

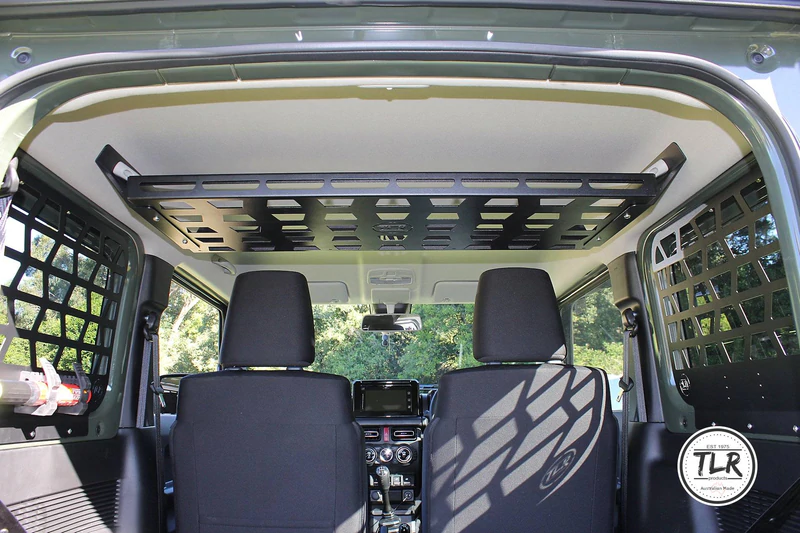

The shelf has one high side and one low side, it can be mounted in either direction but we recommend the high side toward the front to safely keep your luggage in place.
Laser cut from zinc coated 1.2mm steel and powder coated in a black textured finish for the ultimate in rust protection and looks.
Styled with an attractive grid pattern of holes to reduce overall weight and allow the fitment of Molle pouches

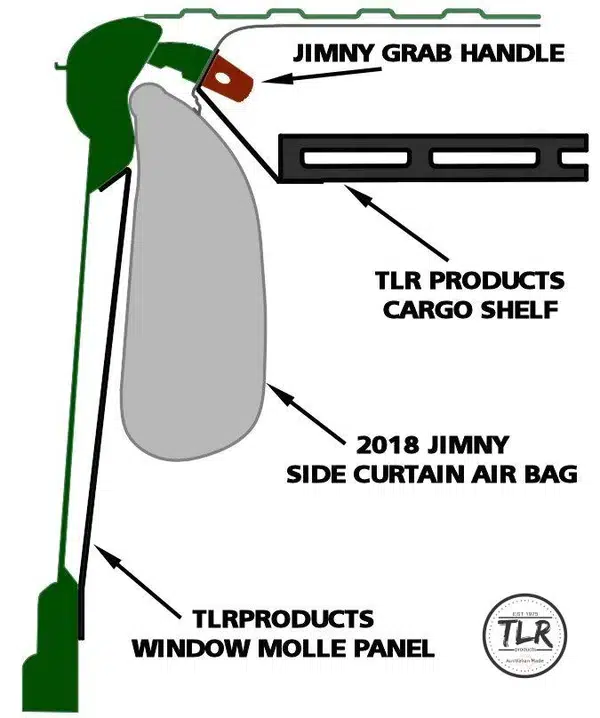

Compatible with the OEM cargo barrier and you can still see out your rear view mirror!
Product dimensions: 520 × 170 × 1000mm
All mounting hardware and fasteners are included in the kit.

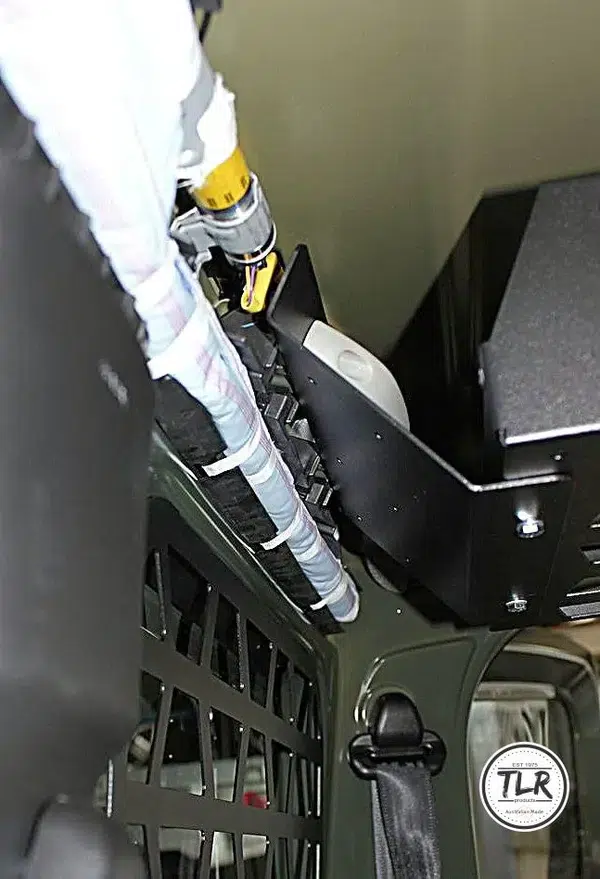

Easy no drill installation utilising the grab rail mounting holes.
The base is 150mm from the roof and the opening is 110mm.
Internal dimensions for the shelf are 360×925.
Fitting time approx. 15 min.
Recommended weight limit 8kg.
- Suzuki, Jimny, 2018
- Suzuki, Jimny, 2019
- Suzuki, Jimny, 2020
- Suzuki, Jimny, 2021
- Suzuki, Jimny, 2022
- Suzuki, Jimny, 2023
