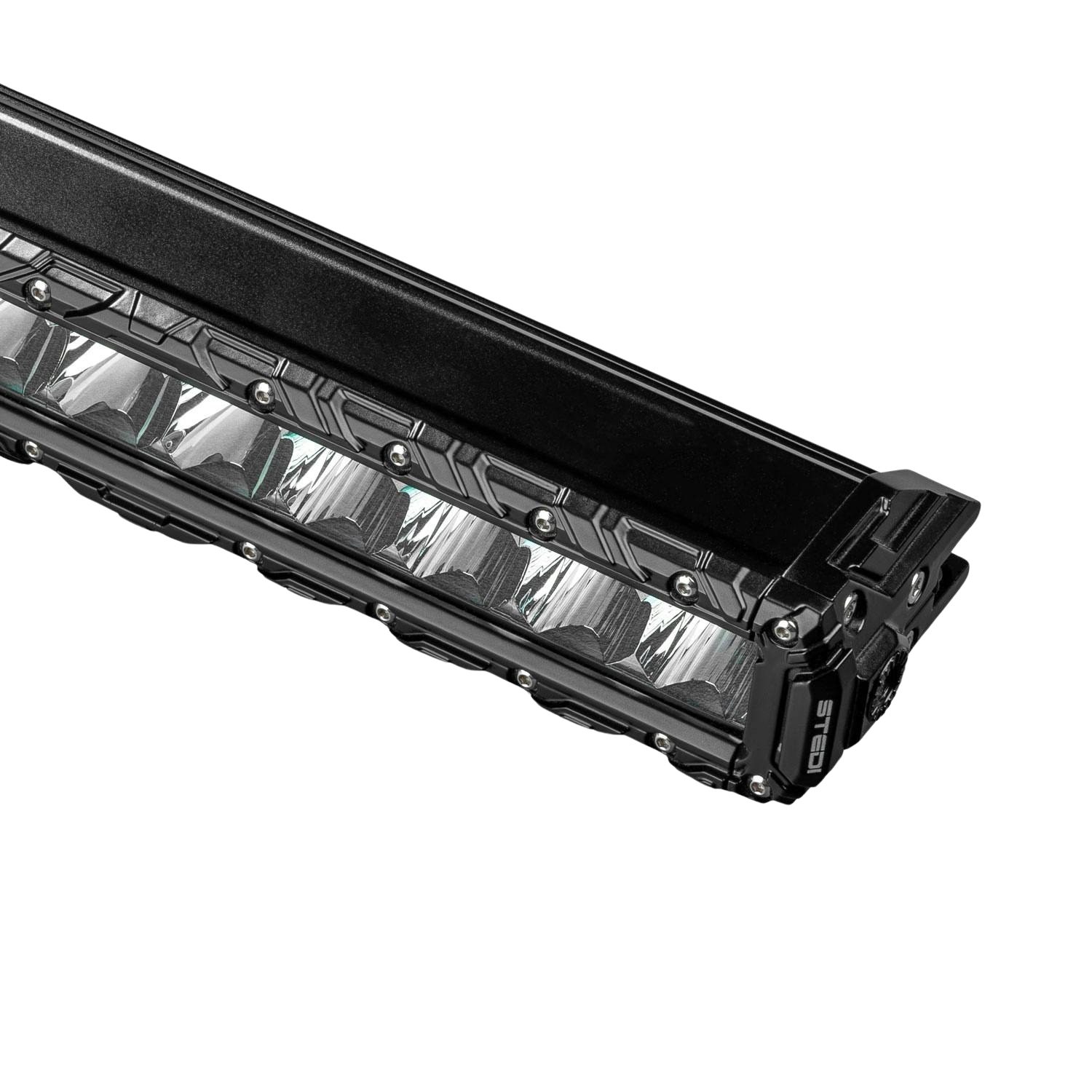

ST3K 21.5 INCH 20 LED SLIM LED LIGHT BAR
KWD 59.000
- Distance: 493m
- Lumens: 4,100Lm
- Brackets included
- 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
- 5 years warranty protection
Out of stock
Description
THE DEFINITION OF CALIBRE.

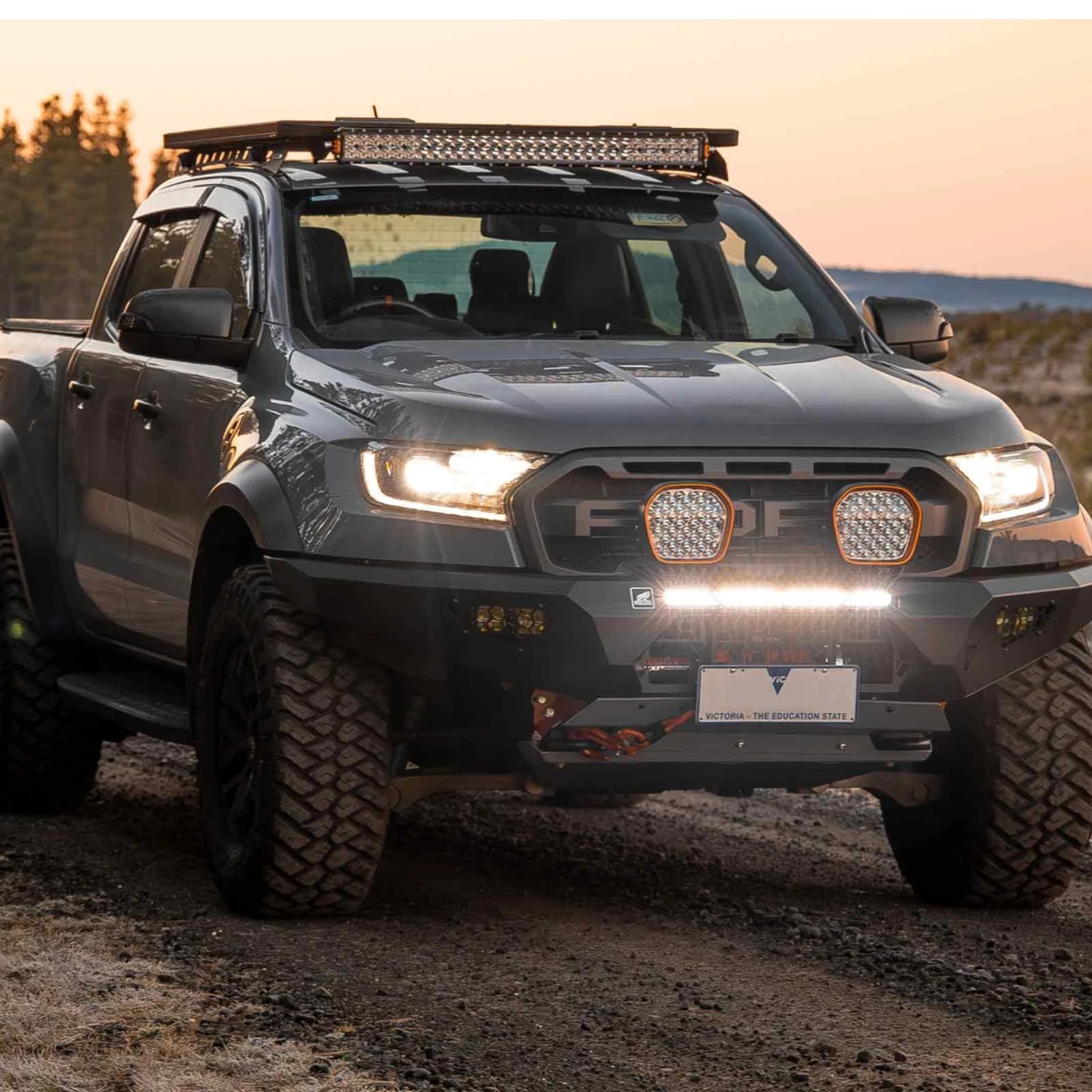

Our STEDI ST3K LED Light was designed to bring a large amount of light to a small amount of space. With a total height of just 63mm (with the side brackets attached), you will find the ST3K is able to be mounted on your front bar or grill, whilst maintaining the factory look of your vehicle.
TIMELESS DESIGN.
The ST3K 21.5 Inch LED Light Bar utilizes the Pure Drive technology (of Type-X and ST4K fame), to deliver a powerful punch. The ST3K 21.5 Inch LED Light Bar can also be mounted in tight spaces, allowing it to suit a wide and unexpected range of vehicles.
BRILLIANCE IS THE NAME OF THE GAME.
The ST3K range is easily comparable to the STEDI Type-X and ST4K range. With a strong penetrating beam of 493m at 1 LUX and 55m out to the shoulders of the road (with flood beam), the ST3K 21.5 is the perfect
LUX GRAPH
DIMENSIONS
MARKET LEADING PERFORMANCE.
ST3K-20L features 20 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.
4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 493m
True White 5700K Colour temperature offers stunning clarity and definition.
Our Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.
BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.
Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
Pressure Equalization vent | Protects against water ingress, dust & contaminants.
IP68 | Dust & Particle tight + Water-proof up to 3 meters!
Environmentally sealed Deutsch DT-2 connector.
Protected against EMC and RFI.
Protected against EMC and RFI.
Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!
TECH SPECS
| LED | 20 x Osram Oslon White |
| EFFECTIVE LUMEN | 4,100Lm |
| PEAK INTENSITY | 243,200cd |
| OPERATING VOLTAGE | 10-30V DC |
| IP RATING | IP68 |
| CURRENT DRAW | 4.3A @ 13.5v |
| COLOUR TEMPERATURE (CCT) | 5700 Kelvin |
| HOUSING MATERIAL | Aluminium Extrusion & Cast |
| LENS | GE™ Lexan |
| MOUNTING BRACKET | Powder Coated 3mm Stainless Steel |
| BOLTS AND FITTINGS | 3 Series Stainless Steel |
| BEAM TYPE | Flood Spot Combo |
| LIFESPAN | 50,000 Hours |
| WEIGHT | 1.855 |
| OPERATING ENVIRONMENT | -40° to +50° Celsius |
| PHOTOMETRIC DATA | |
| 10 M | 2, 430 Lx |
| 50 M | 97 Lx |
| 100 M | 24 Lx |
| 200 M | 6 Lx |
| 493 M | 1 Lx |
WHAT’S INCLUDED
- ST3K 21.5inch LED LIGHT BAR
- Stainless Fasteners
- Stainless Steel Side Mounting Brackets
- 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
- H4 and HB3 adapters included
- Wiring Instructions
Additional information
| Weight | 0.9 kg |
|---|---|
| Dimensions | 26 × 12 × 10 cm |
| Brand |
