CERTIFIED E-MARK COMPLIANT

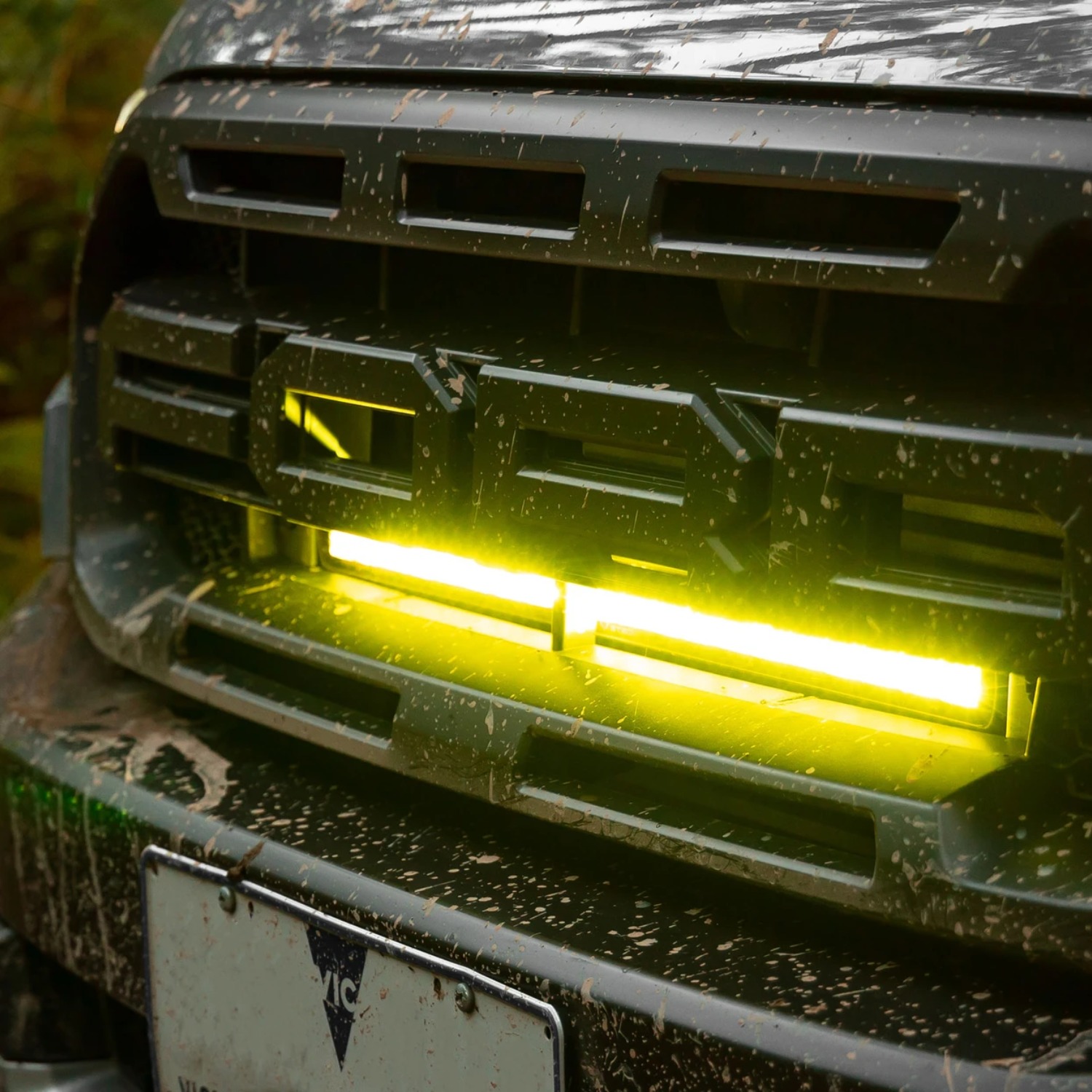

Our new ST1K series is ECE approved, making it road-legal in Europe and New Zealand. Featuring our innovative hooded reflector design with rear-facing LEDs enables unprecedented beam control – not possible with more conventional optics. The 20 LED is ideal for stealth installations – think lower grill, behind the upper grille, or the STEDI number plate light mounting bracket.
HIGH-END DESIGN MEETS HIGH PERFORMANCE
The multi-faceted hooded reflectors distribute a wide beam in the mid-field, with no wasted light on treetops. The wide-horizontal beam patterns significantly reduce glare caused by road signs. The beam pattern makes it an ideal companion to the vehicle’s main beam, filling in the road shoulders and adding beam distance over and above your cars main-beam, ensuring you arrive at your destination in total comfort.
THE NERDY STUFF
- 20 x 5W OSRAM LEDs
- RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
- IP68 – Submersible to 3m
- Environmentally sealed Deutsch DT-2 connectors
- Innovative hooded optics
- Driving Beam E mark compliant beam.
- Heavy Duty Adjustable Bottom Mounts & Side bracket included.
- Reverse Polarity Protected Circuit (RPPC)
- Electronic Thermal Management
- Built-in Voltage Surge Protection
INCLUDES: Our high current Easy-Fit Plug & Play Wiring Harness. (Switch, Fuse, Relay HB3 and H4 high-beam piggy back adaptors)
|VOLTAGE||9V – 32V|
|CURRENT DRAW (AMPERES)||8.0a @13.6v|
|LENS MATERIAL||OPTICAL GRADE, MAKROLON|
|PEAK INTENSITY (CANDELA)||219,792cd|
|HOUSING MATERIAL||A360.0 Cast face plate, extruded Aluminum heat sink|
|LUMEN MAINTENANCE||50,000 (LM80)|
|OPERATING TEMP||-40ËšC ~ +150ËšC|
- ST1K 21.5 Inch LED Light Bar
- Easy Fit High Beam Wiring Harness
- H4 & HB3 adapters to High Beam
- Installation Manual
|Dimensions||89 × 14 × 9 cm|
