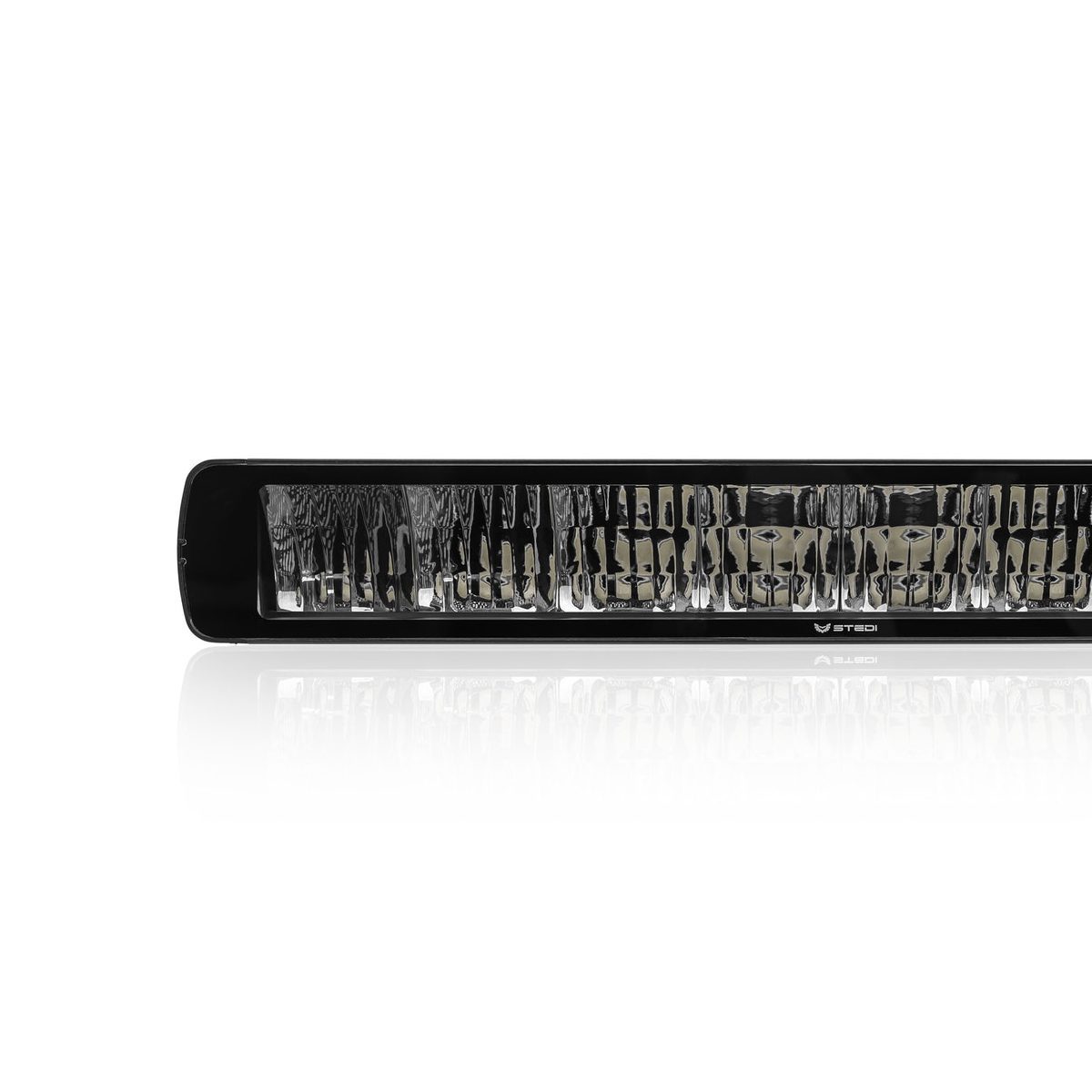

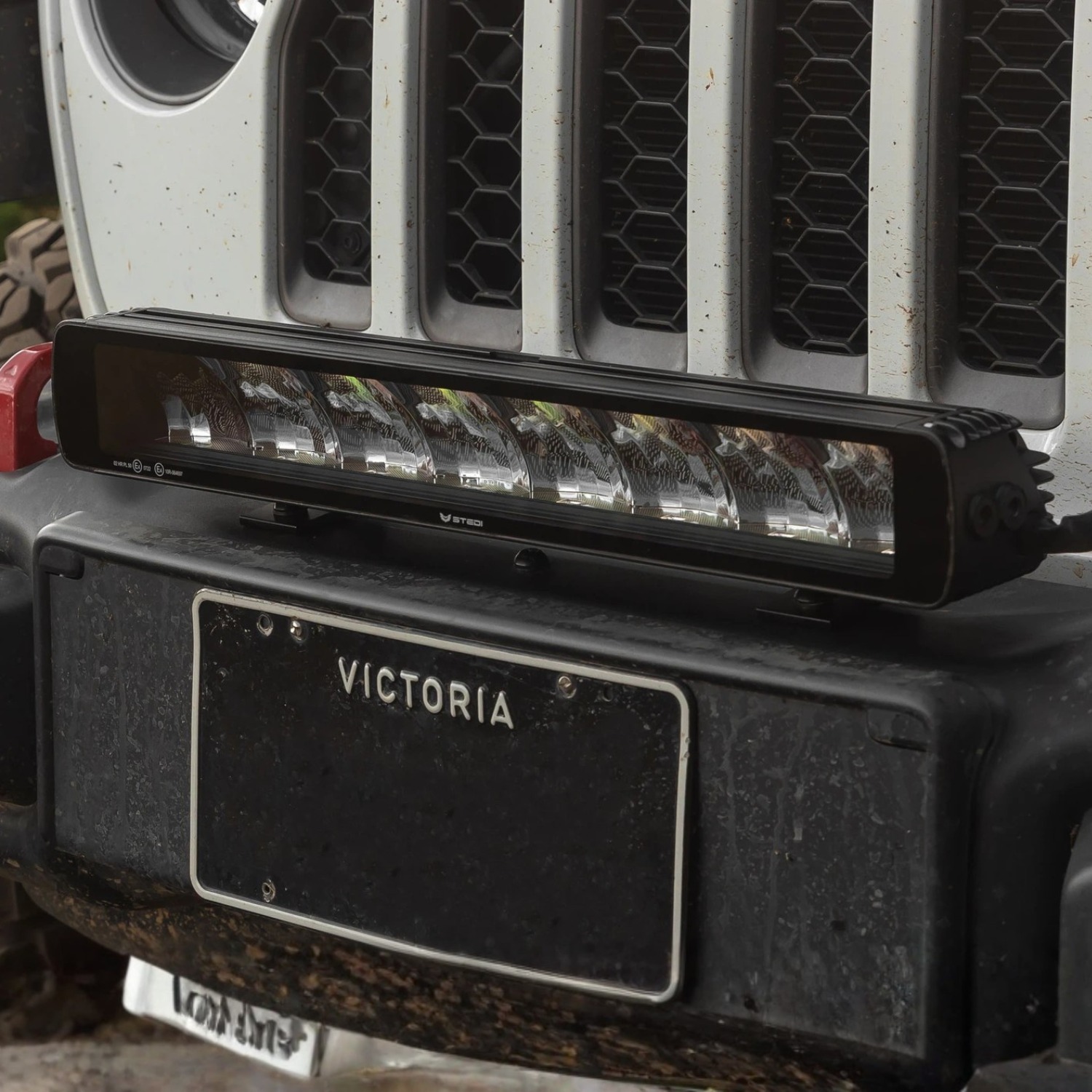

ST-X 21.5 INCH LED LIGHT BAR
KWD 79.000
- Distance: 375m
- Lumens: 6,720Lm
- Brackets included
- Easy Fit High Beam Wiring Harness with H4 & HB3 adapters to High Beam
- 5 years warranty protection
In stock
Description
THE BEAM PATTERN

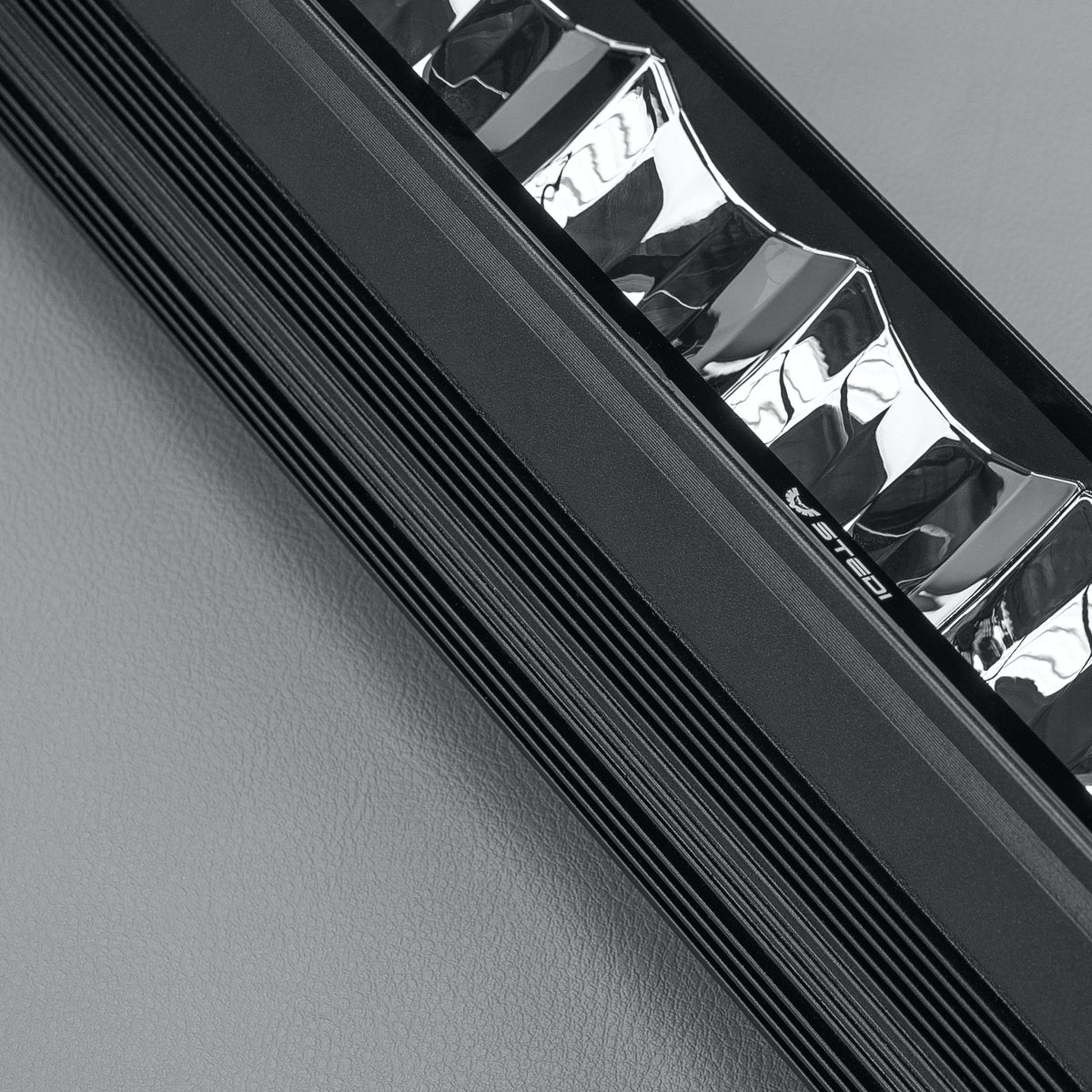

If you’re looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.
- Significantly minimises adverse reflection from road signs
- Controlled vertical spread minimises reflections off of high-mounted road signs.
KEY FEATURES
- 8x 15W LEDs
- LED Parking / Position Light Function (Amber or White built-in)
- Breather allows pressure equalisation when rapid heat up and cool down cycles occur
- Anodized Polyester Powder Coat
- Weatherproof Deutsch® DTP Connector

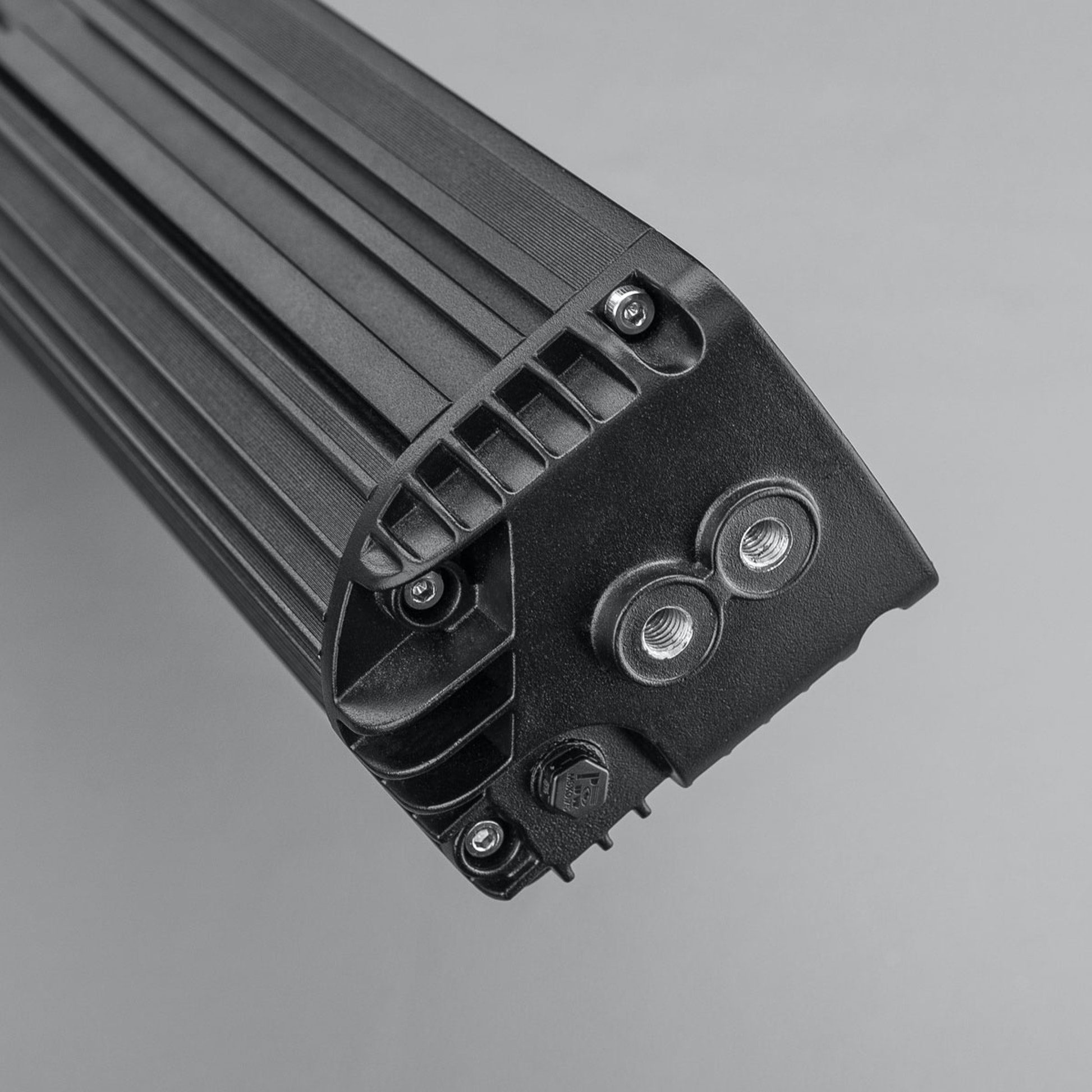

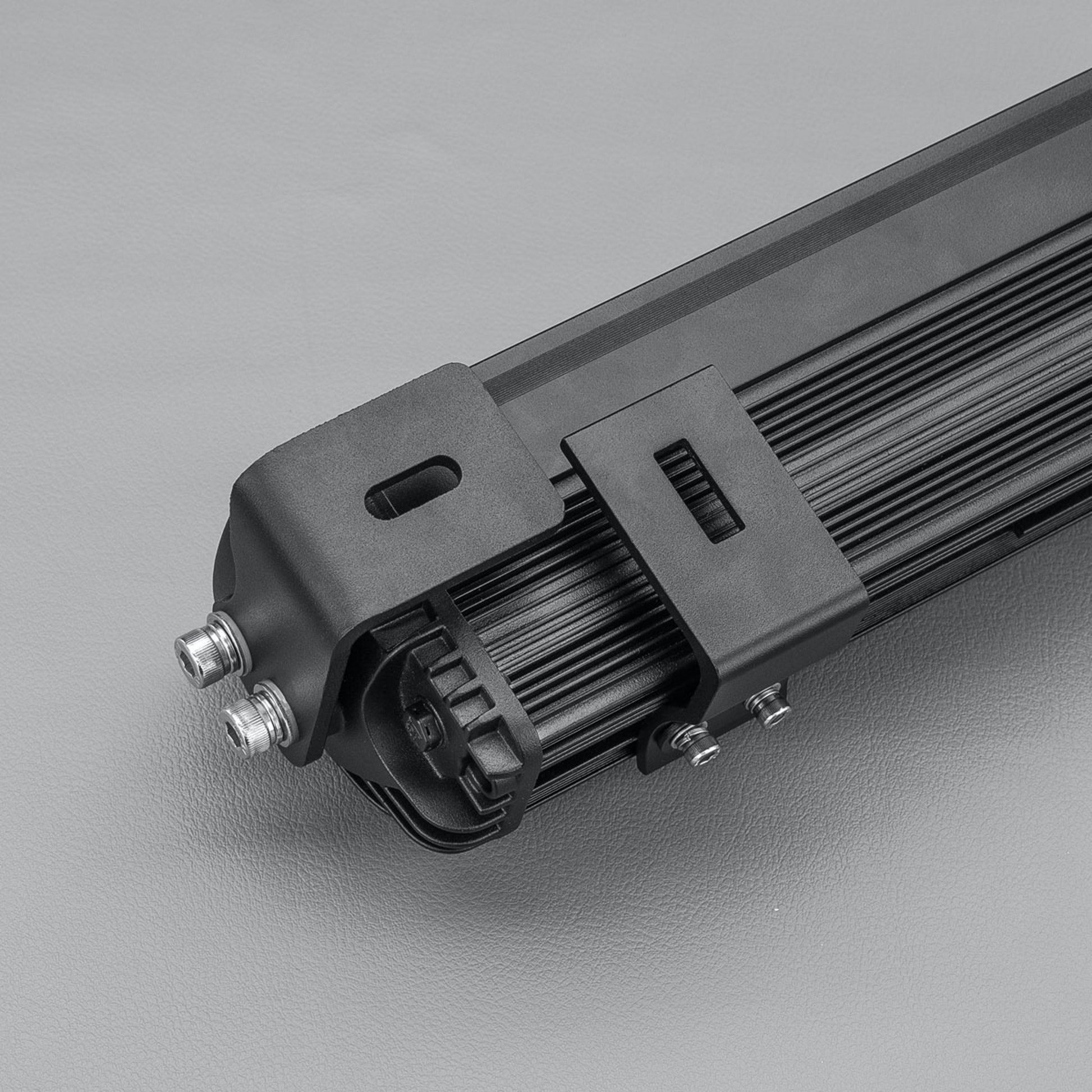

- Includes adjustable Side brackets & Sliding bottom brackets

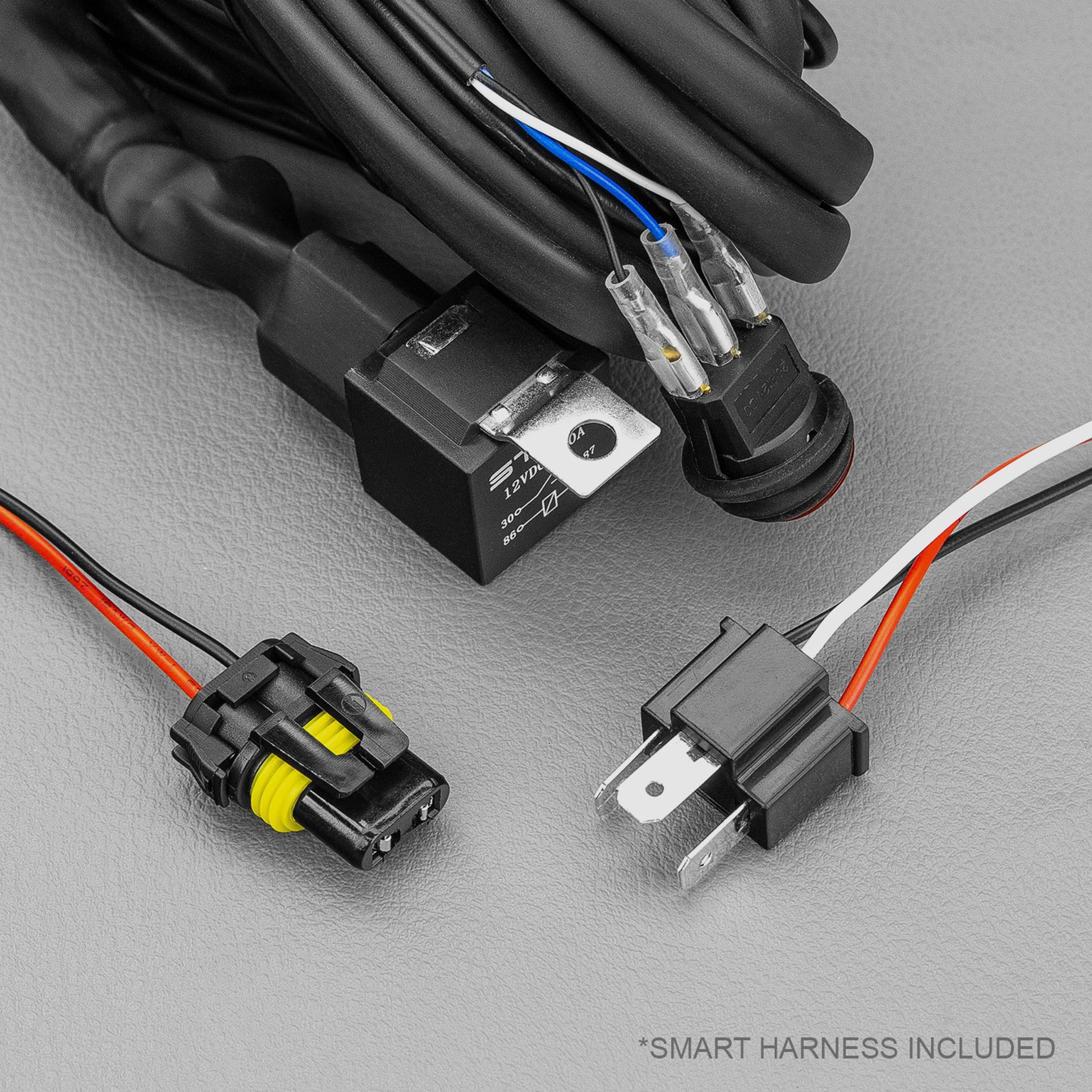

- Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)
- Protected against reverse polarity
- Shockproof, IP68 waterproof, UV Shielded
- Protected Against RFI / EMC Interference
- Voltage & current surge protection
- Pulse Width Modulation Thermal Management
TECH SPECS
| VOLTAGE | 9-36V |
| AMPERES | 8.5A @ 12V (full power), 3.46A @ 12V (limit power). |
| POWER | 102W (full power). 41.52W (limit power) |
| LUMENS | 4010LM (full power). 2310LM (limit power) |
| COLOUR TEMPERATURE | 5000K |
| AMP RATING | 0.3a |
| PHOTOMETRIC DATA | 1 lux @ 586m (full power), 1 lux @ 445m (limit power) |
| LENS MATERIAL | Optical grade, Hard-Coated LEXAN |

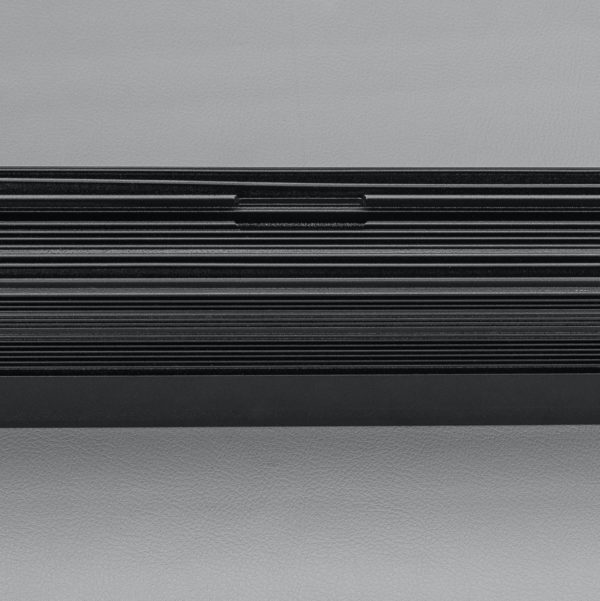

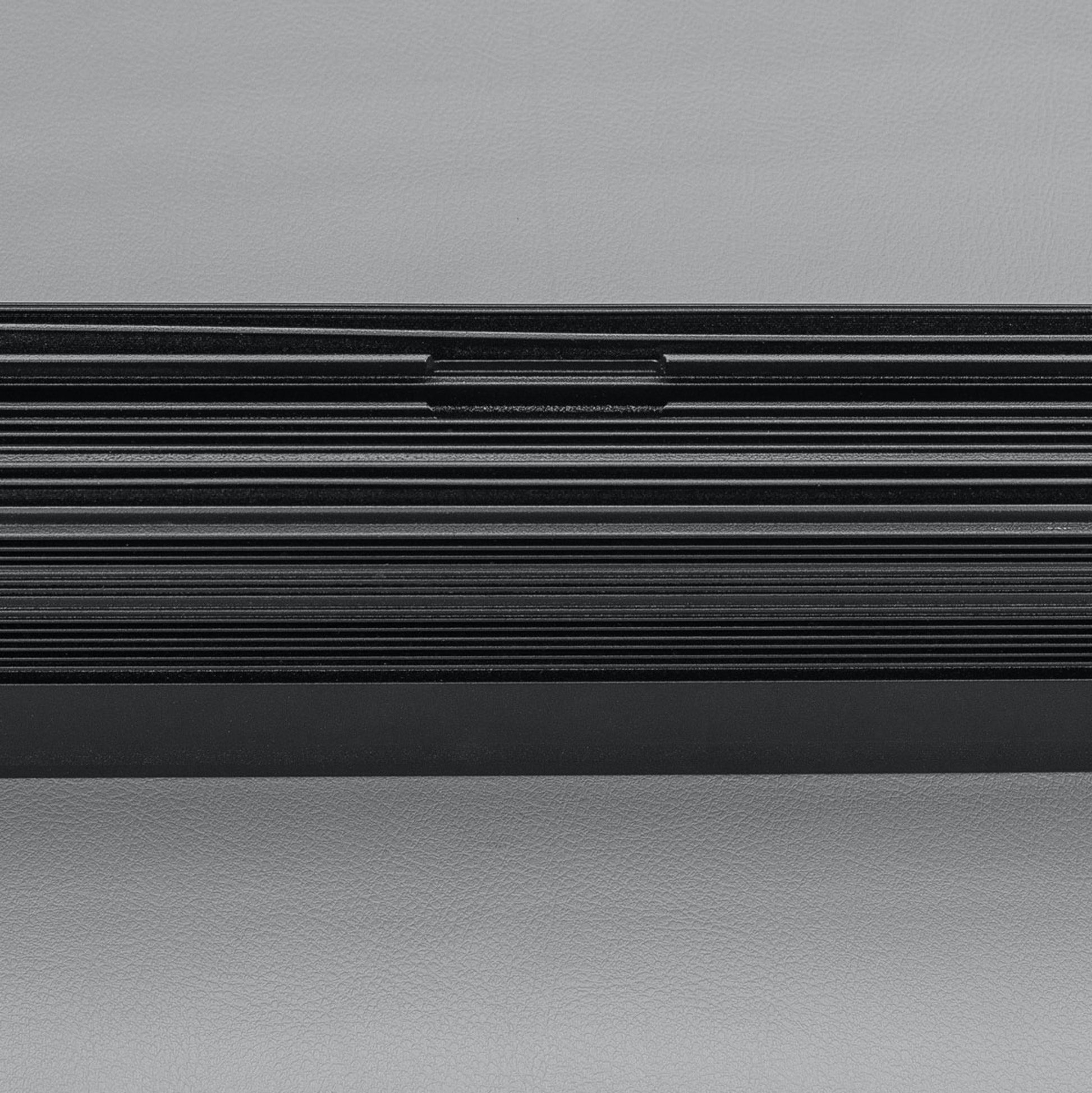

| HOUSING MATERIAL | 6063 EXTRUSION |
| INGRESS PROTECTION | IP68 |
| CANDELAS | 344017 (full power), 189429 (limit power) |
| CONNECTOR | 60cm Cable with DTP 4in |
| OPERATING TEMP | -40°C ~ +60°C |
| CERTIFICATES | R112, ref. 50 and R10 |
| LIFESPAN | 50, 000hrs (LM80) |
| PRODUCT WEIGHT | 2.6kg |
| SHIPPING WEIGHT | 3.1kg |
WHAT’S INCLUDED
- 1 x 21.5 Inch ST-X-20L LED Light Bar
- 2 x Steel Side Brackets
- 2 x Steel Sliding Brackets
- 2 x Brace Support Brackets
- Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
- Comprehensive 304 Stainless Steel fasteners
- Wiring Instructions
Additional information
| Weight | 4.7 kg |
|---|---|
| Dimensions | 67 × 19 × 15 cm |
| Brand |
