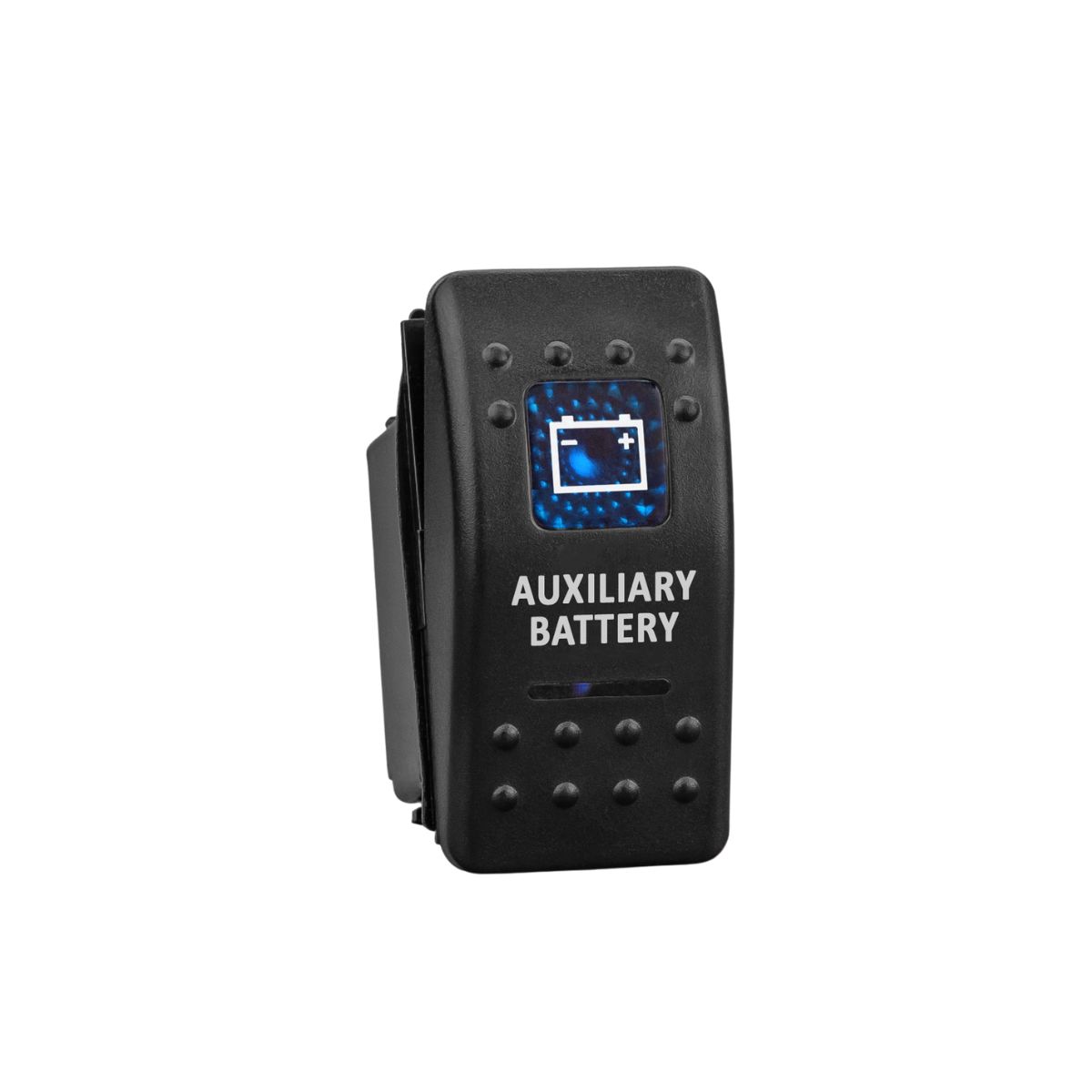

- STEDI Rocker Switch for Auxiliary Battery.Single throw ON / OFF switch designed to operate 12 volt driving lights. Switch surface size is 49mm x 25mm and uses a standard din size mounting hole of 36mm x 22mm, which is the standard size in most vehicles. Please ensure you check these measurements to ensure correct fitment.
- Single Pole Single Throw ON – OFF switch
- Robust design
- Upper backlight light is ON when the switch is pressed UP.
- Lower backlight can be wired to your dash light circuit for constant backlight to switch
- Waterproof rating of IP66.
- Same size as the switches sold at well-known 4×4 store

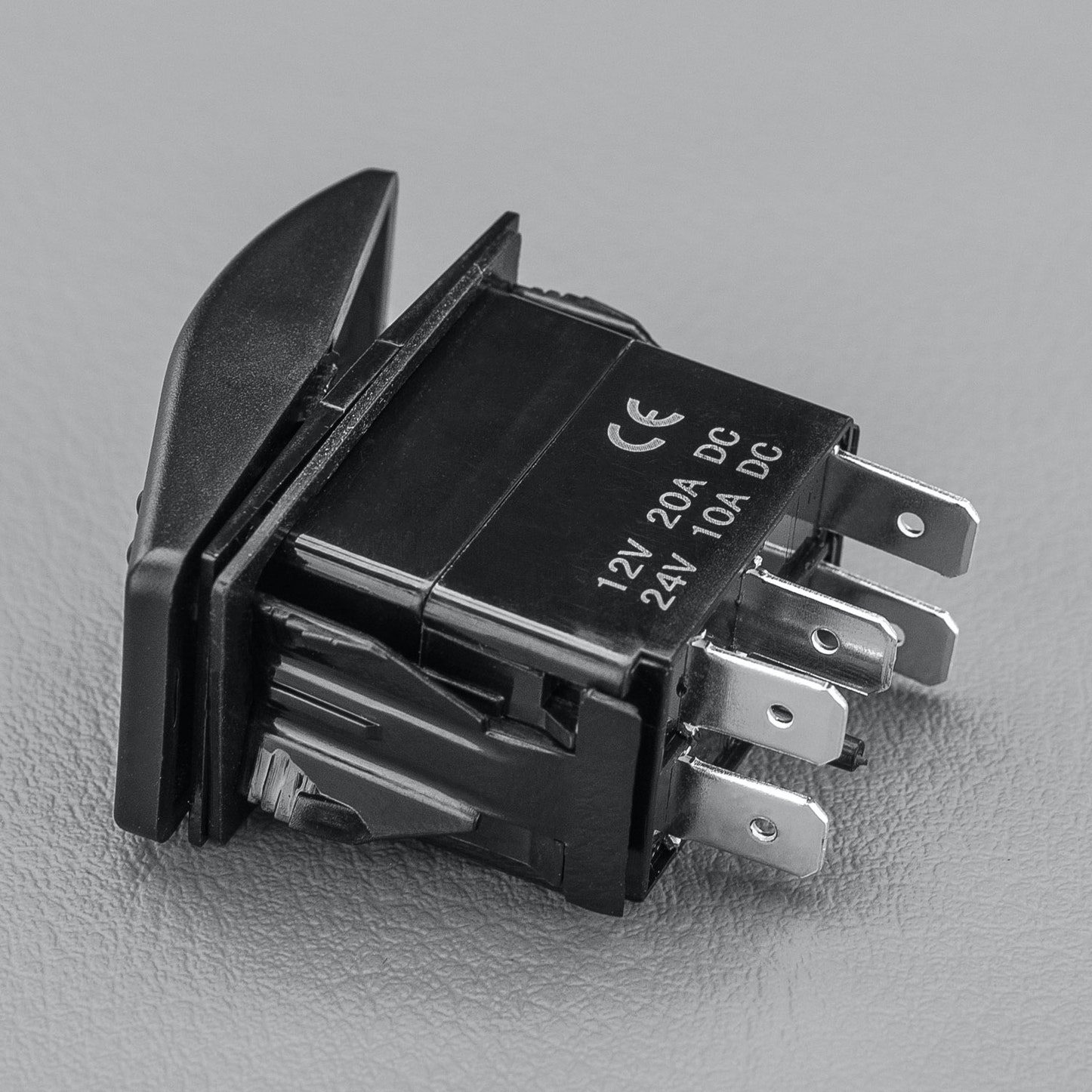

- Rated 20A 12V / 24v 10A

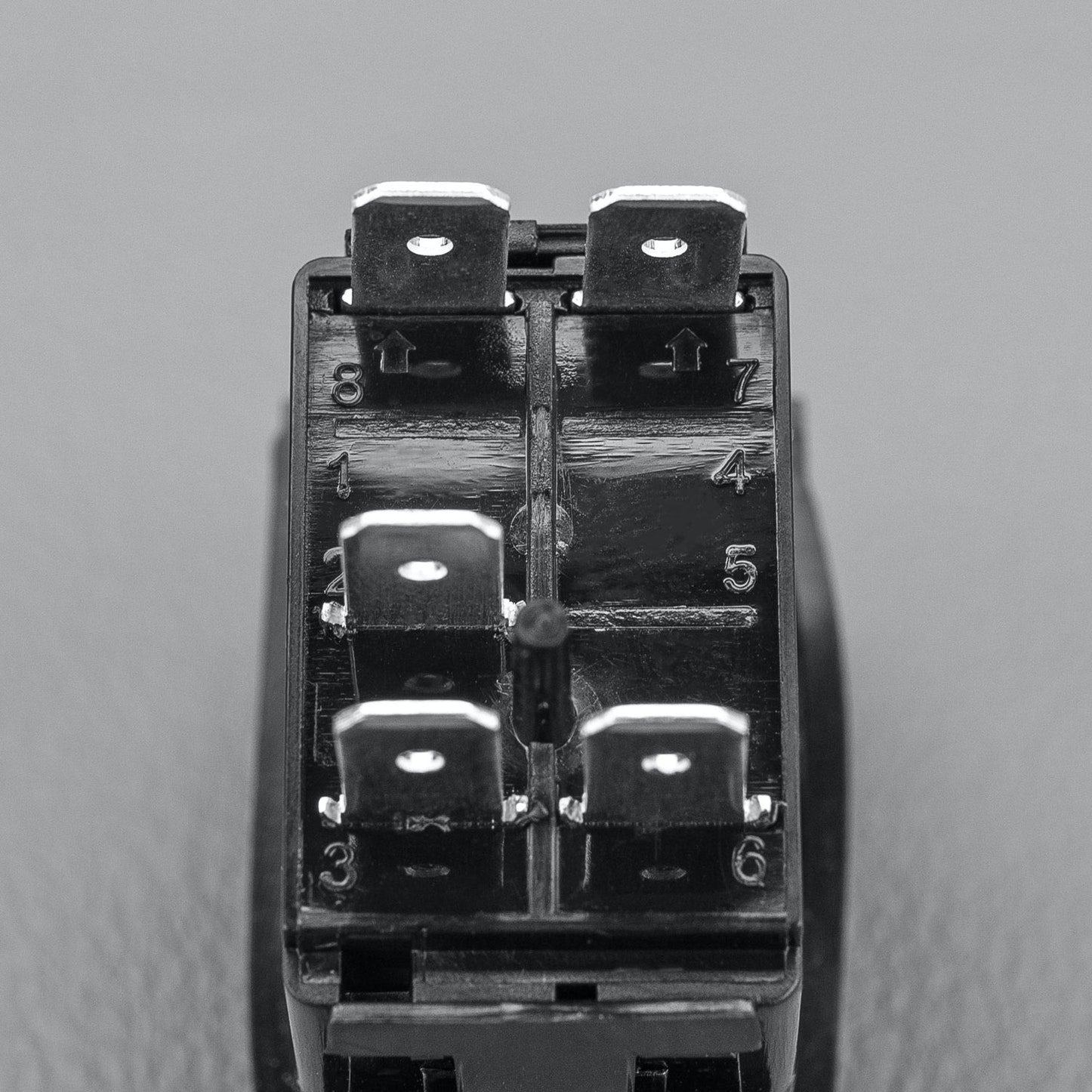

- 5 pin
- Wiring diagram supplied with switch.
- Cutout dimensions 21mm x 36.83mmWhilst our rocket switches are 20amp rated, we strongly recommend that power is run via inline fuse.All graphic and text are printed on switch face using state of the inks to ensure long life. Unlike imitation switches that use stickers prone to wear.
|Back Light Colour||Blue|
|Cutout Dimensions||21mm x 36.83mm|
|Rated||20A 12v / 10A 24v|
|Switch Dimension||49mm x 25mm|
- STEDI Carling Type Rocker Switch

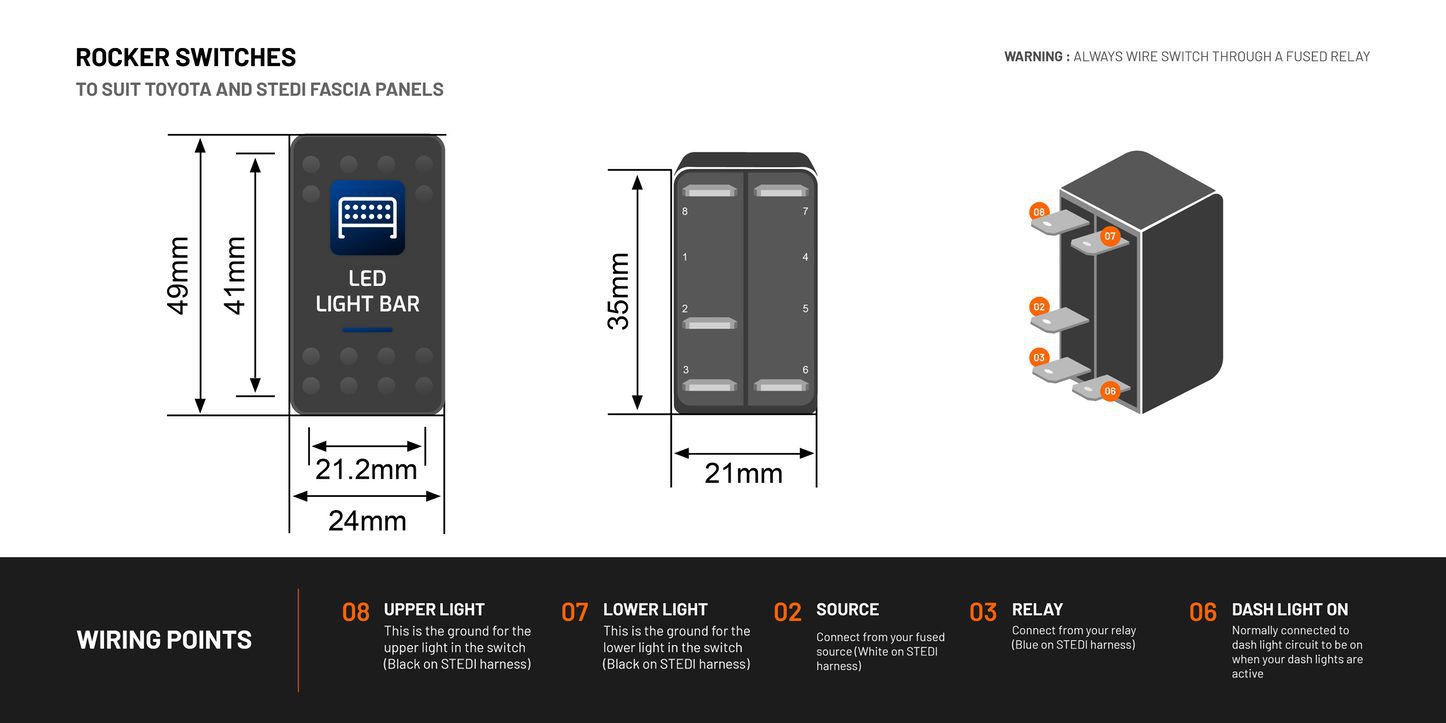

- Wiring Diagram
