Description

This low-profile flat deck Slimsport rack has a load carrying area of 1660mm (65.4″) x 1380mm (54.3″).
The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
Easily add on the Rack Accessory Mounting Bracket Slimsport/Slimpro Van Side Mount Accessory Bracket / Small – by Front Runner for most Front Runner side mount accessories (sold separately).
The included standard full fairing with rubber edge trim makes the rack ultra-quiet.
Need a lightbar? The optional RAM 1500 Crew Cab (2019-Current) Slimsport Rack 40″ Light Bar Wind Fairing (sold separately) has a 40″ cutout to allow the use of 40″ LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount (sold separately).
Fitment guide and all mounting hardware included.
Note: Drilling required for installation.
All Front Runner Racks are backed by a Limited Lifetime Warranty*
Note: Under Rack Tables are not compatible with the Slimsport rack kit range.
Note: This Kit is not suitable for the RAM 1500 Classic Crew Cab model.

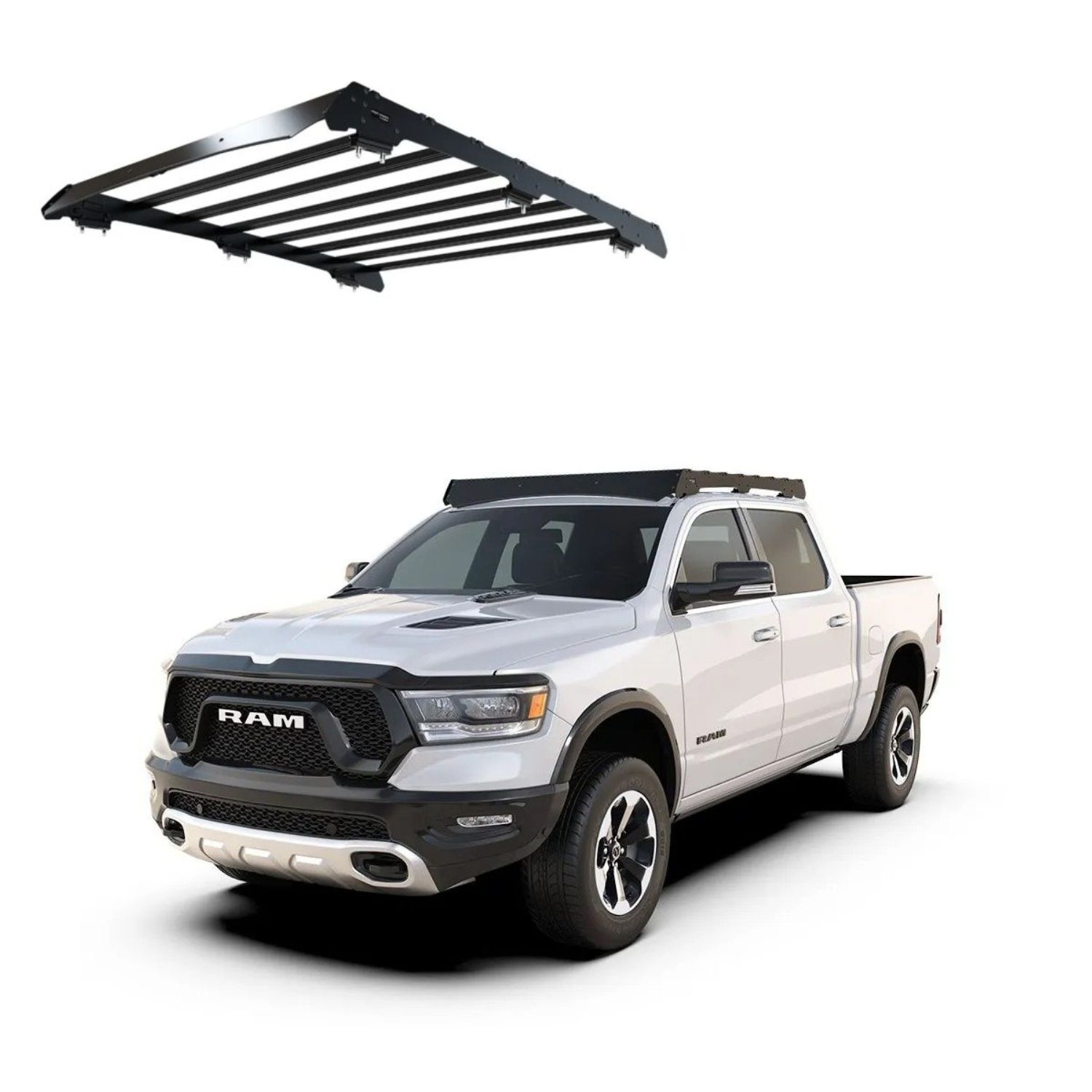

KSDR002T – RAM 1500 Crew Cab (2019-Current) Slimsport Roof Rack Kit

Consisting of:
1x KSDR001 – Dodge Ram 1500 Slimsport Tray
1x RRAC279 – RAM 1500 Slimsport Rack Wind Fairing

Material Used:
Black epoxy powder – coated T6 aluminium
High strength steel

Assembled Rack Kit Dimensions:
1660mm (65.4″) L x 1380mm (54.3″) W x 152mm (6″) H

Approximate Installed Weight: 30.55kg (67.35lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4″-2.8″) to the highest point of your roof.

Shipping Dimensions:
Width: 325mm (13″)
Length: 1700mm (67″)
Height: 225mm (9″)

Shipping Weight:
Weight: 34kg (75lbs)
