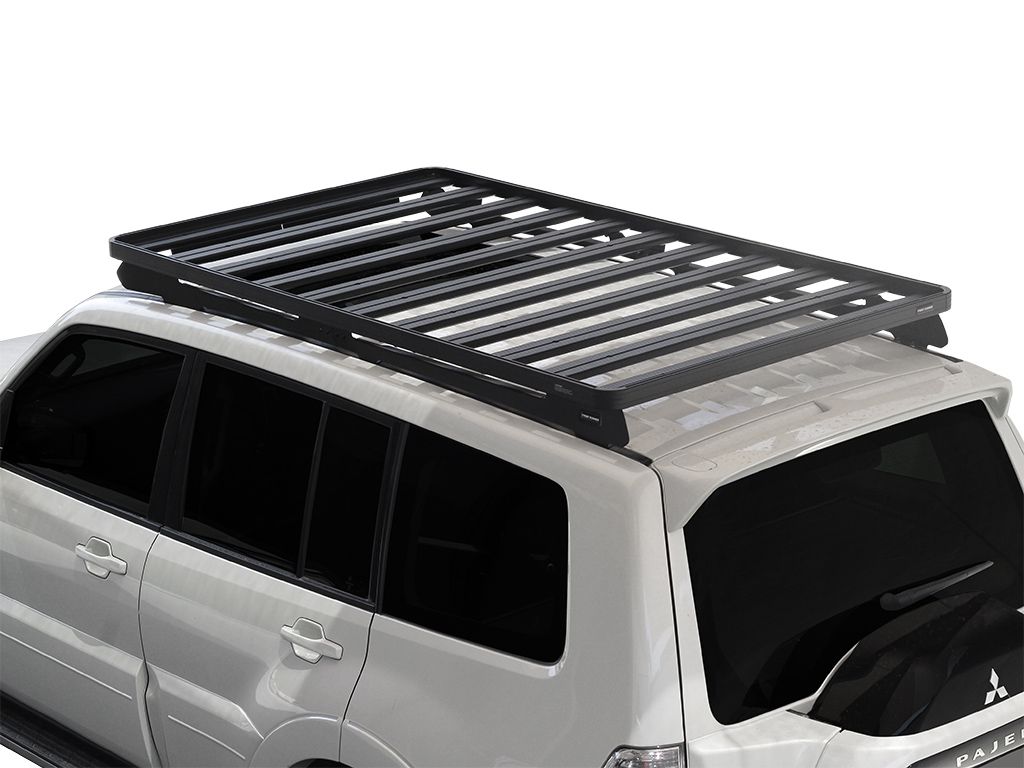

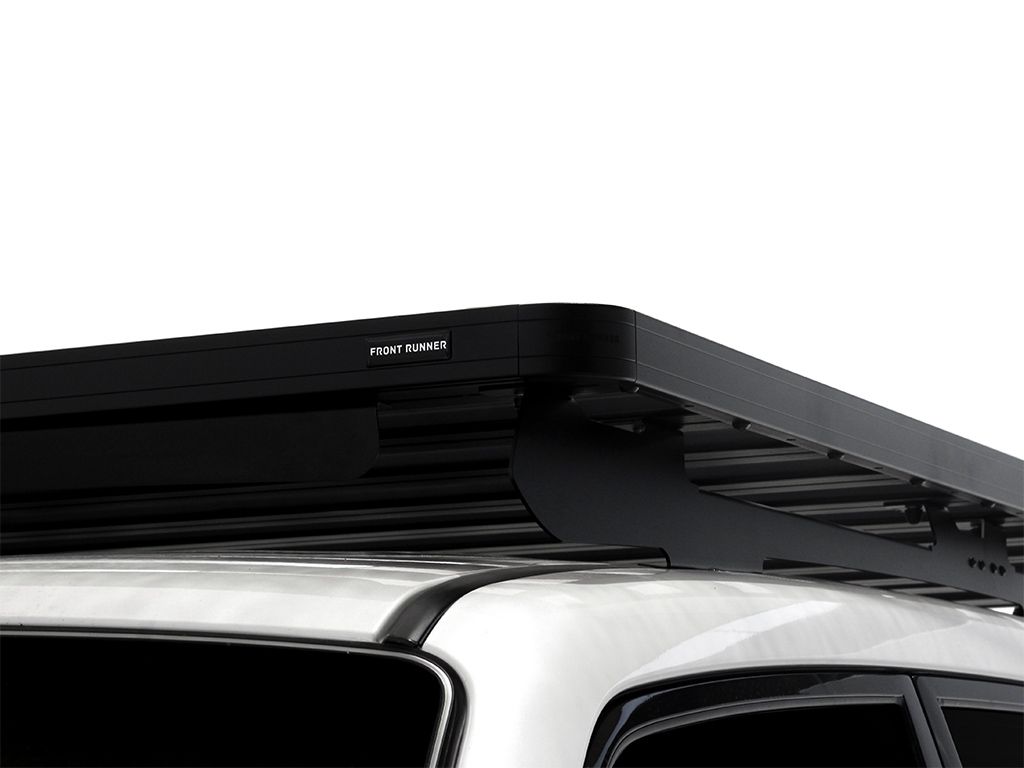

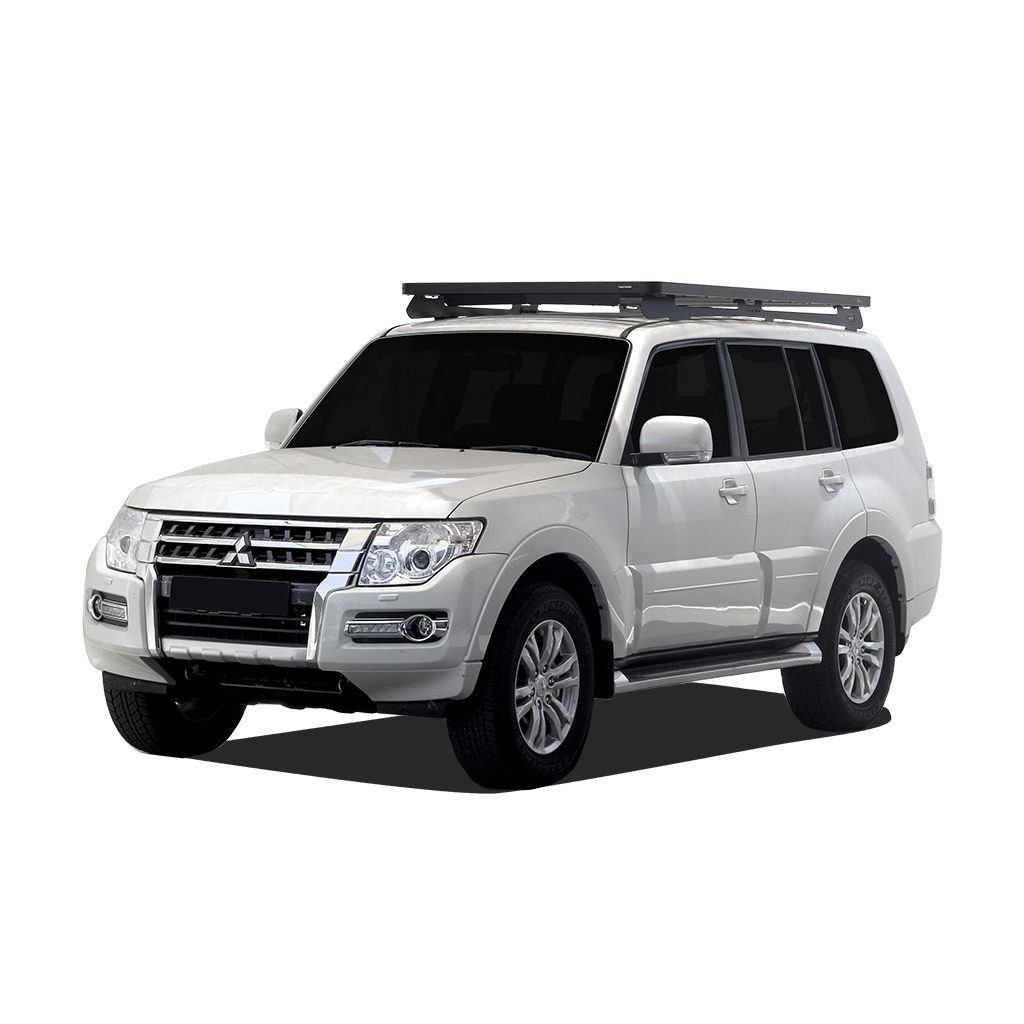

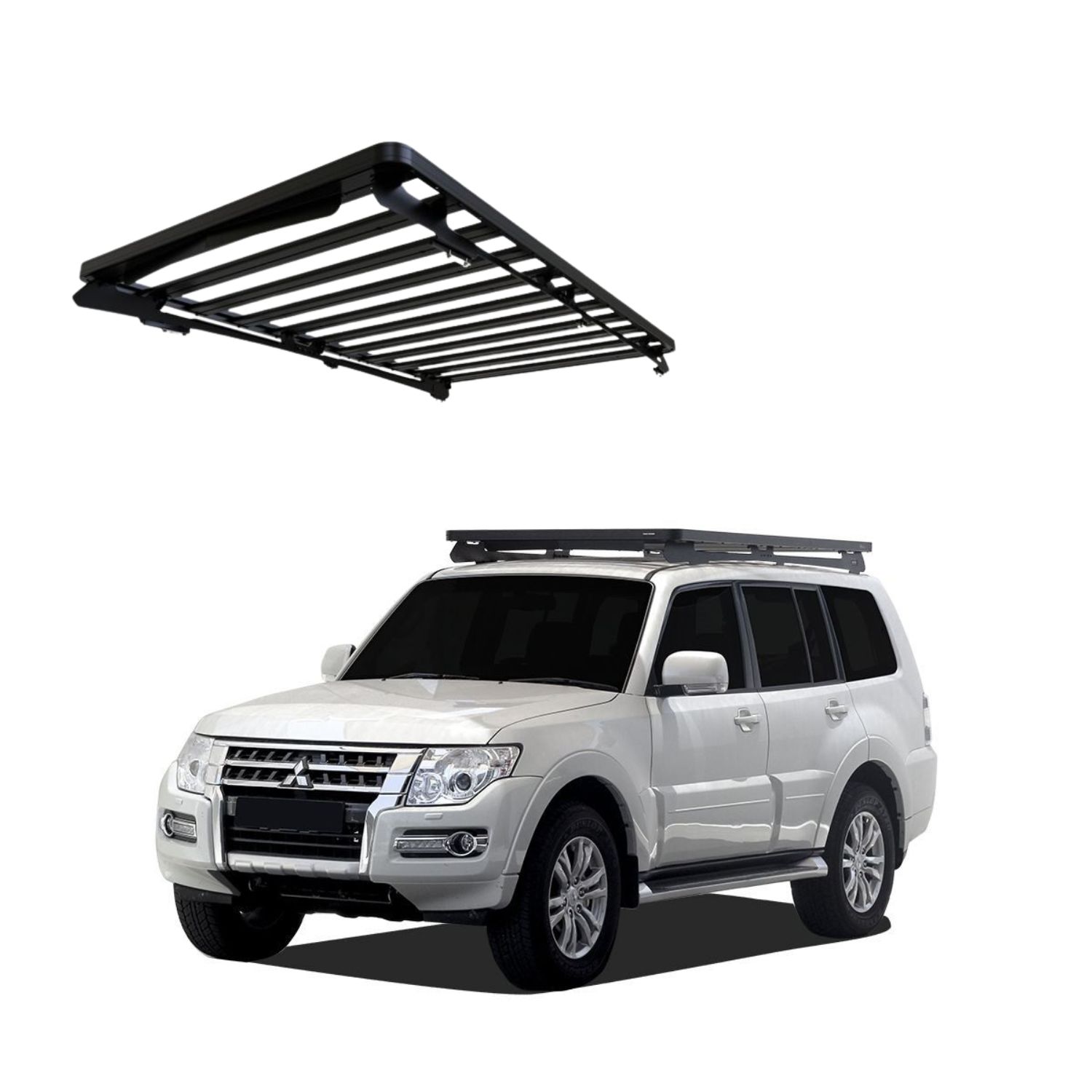

PAJERO LWB CK/BK (2000+) SLIMLINE II ROOF RACK KIT – KRMP018T

This 2166mm/85.3″ long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector, and 2 Foot Rails to mount the Slimline II Tray to your Mitsubishi Pajero CK/BK LWB. It easily installs using the existing factory mounting points. No drilling is required.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

These Foot Rails contain 1 opening to access Front Runner under rack mount tables (1 smaller prep or 1 larger camp size table).

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Consisting of:

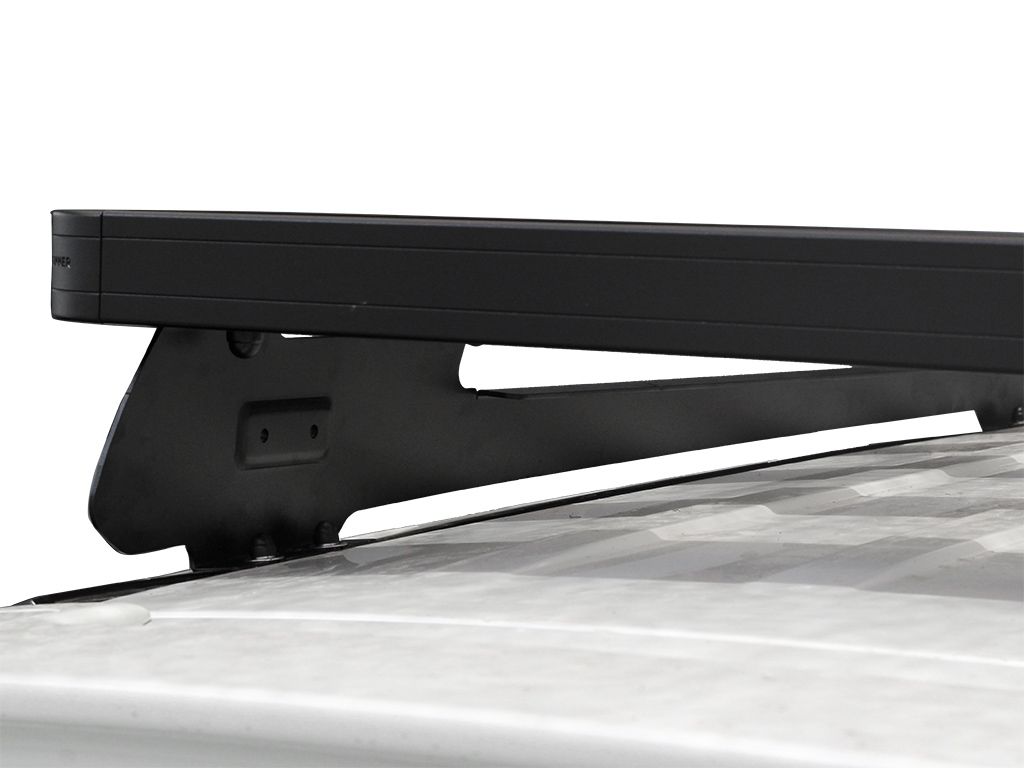

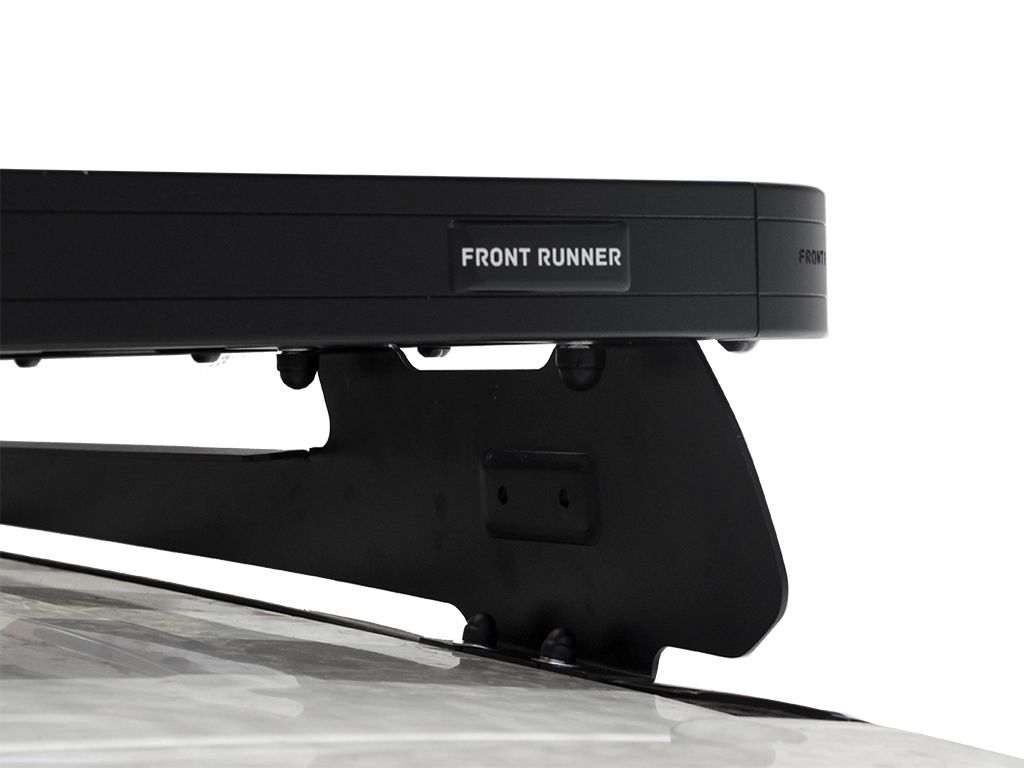

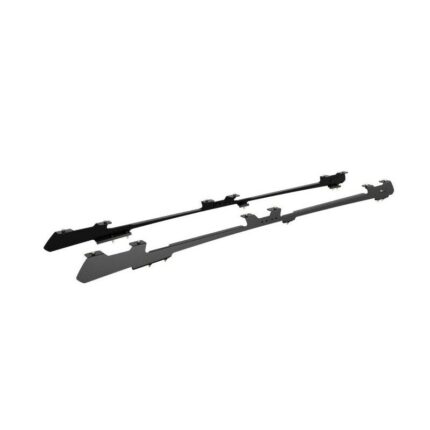

1 x FAMP001 – Mitsubishi Pajero CK (3 Gen) LWB Foot Rails – by Front Runner

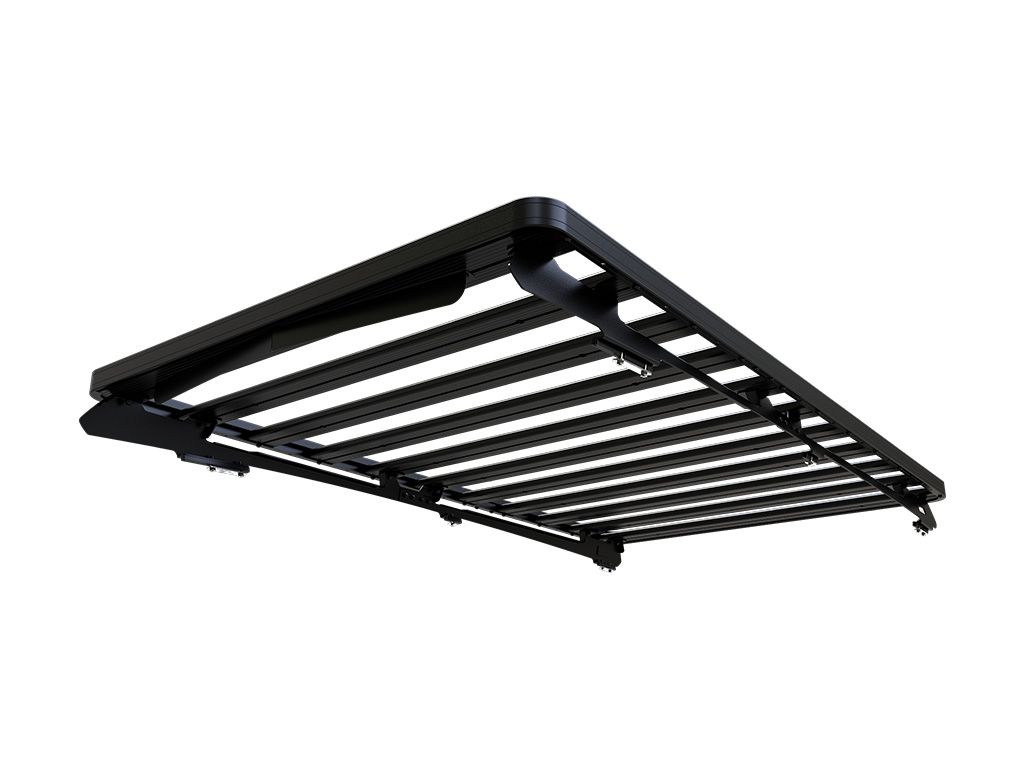

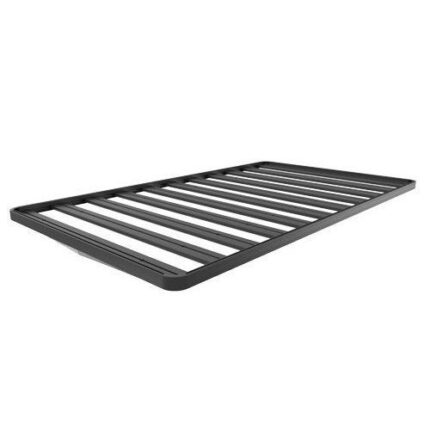

1 x RRSTD11 – Slimline II Tray – 1255mm(W) X 2166mm(L) – by Front Runner

Material used:
Black epoxy powder-coated T6 aluminum
3CR12 Stainless Steel

Approximate Installed Weight 34kg (74lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot, or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicle’s roof.

Shipping Dimensions:
Width 630mm (25″)
Length 1640mm (65″)
Height 160mm (6″)

Shipping Weight:
Weight 39.4kg (86.6lbs)
