Description

MICRO SIZE, MACRO PERFORMANCE
We’ve taken our popular Micro LED Lights to the next level. Integrating a beautiful 2700k amber temperature, the Micro V2 48 LED is designed to punch above its own weight.

LIGHTWEIGHT CONVENIENCE
The power and brilliance of the Micro V2 48 LED are packed into a convenient size of 665mm (length) x 25mm (height) x 40.6mm (depth). Did we mention that it weighs 0.8kg?

LOW PROFILE FITMENT
The Micro V2 48 LED provides a huge amount of application options. With the ability to fit into the tightest of spaces, you will be kept occupied with opportunities for enhancement.

Dimentions:

KEY FEATURES

IP67 Ingress Protection
6 x 3 Watt CREE LED
Micro Profile at only 26mm
Flood Beam – Perfect Rear Light, Awning Light, or bumper or bull bar voids.

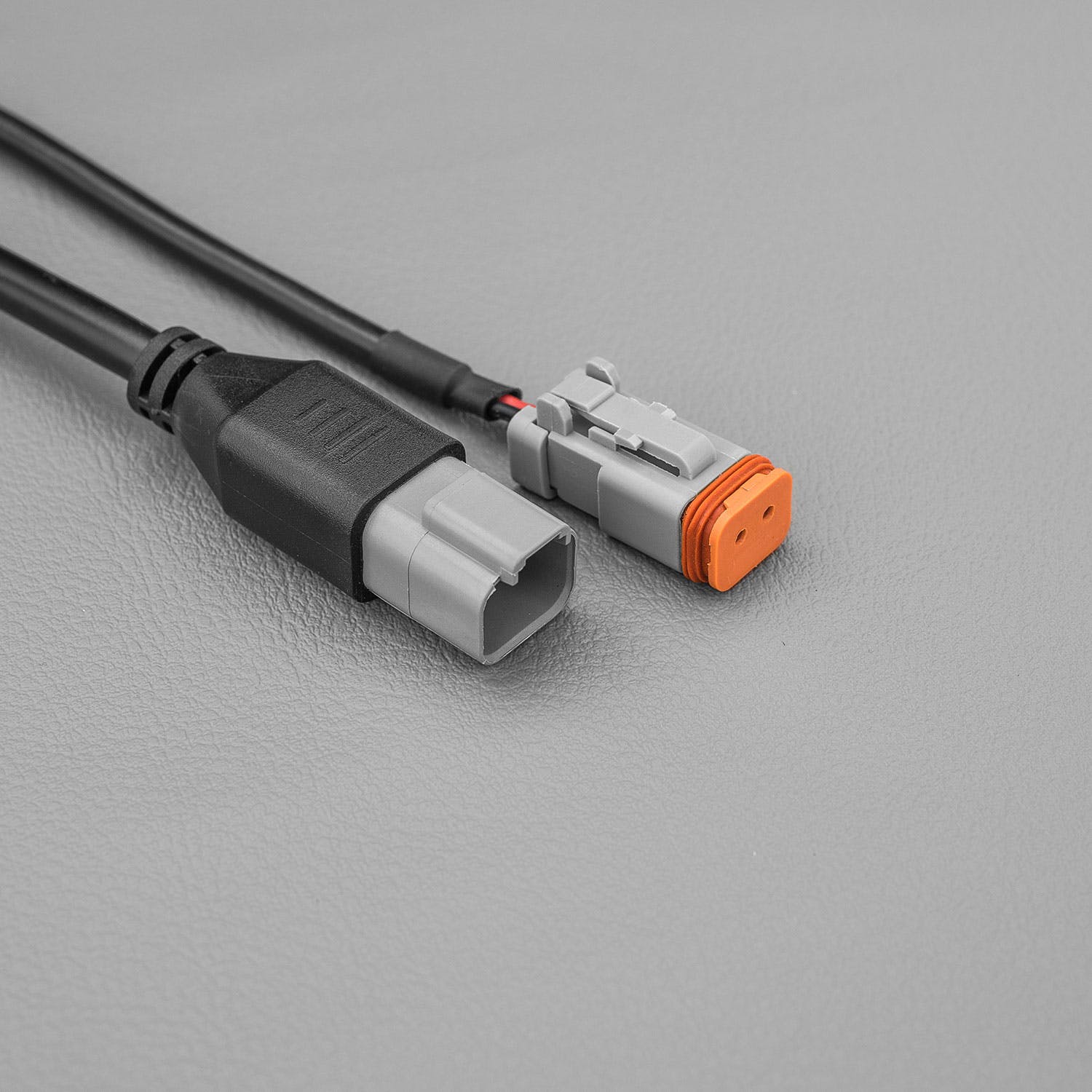

Waterproof Deutsch Connectors Male and Female with wire tails

Tech Specs

OPERATING VOLTAGE	DC 10-28V
POWER CONSUMPTION	48W
AMP DRAW	4A@12V or 2.0A@24V
COLOUR TEMPERATURE	2700K
LED	48 x OSRAM GW PSLR 32. PM DRUISS
EFFECTIVE LUMEN	2600lm
BEAM ANGLE	Height: 30° Width: 120°
ENVIRONMENT TEMP	-40° to 60°C
IP RATING	IP68
LENS	Polycarbonate with Surface Hardening
FRAME/HOUSING	Extruded Aluminium
DT CONNECTOR	Included

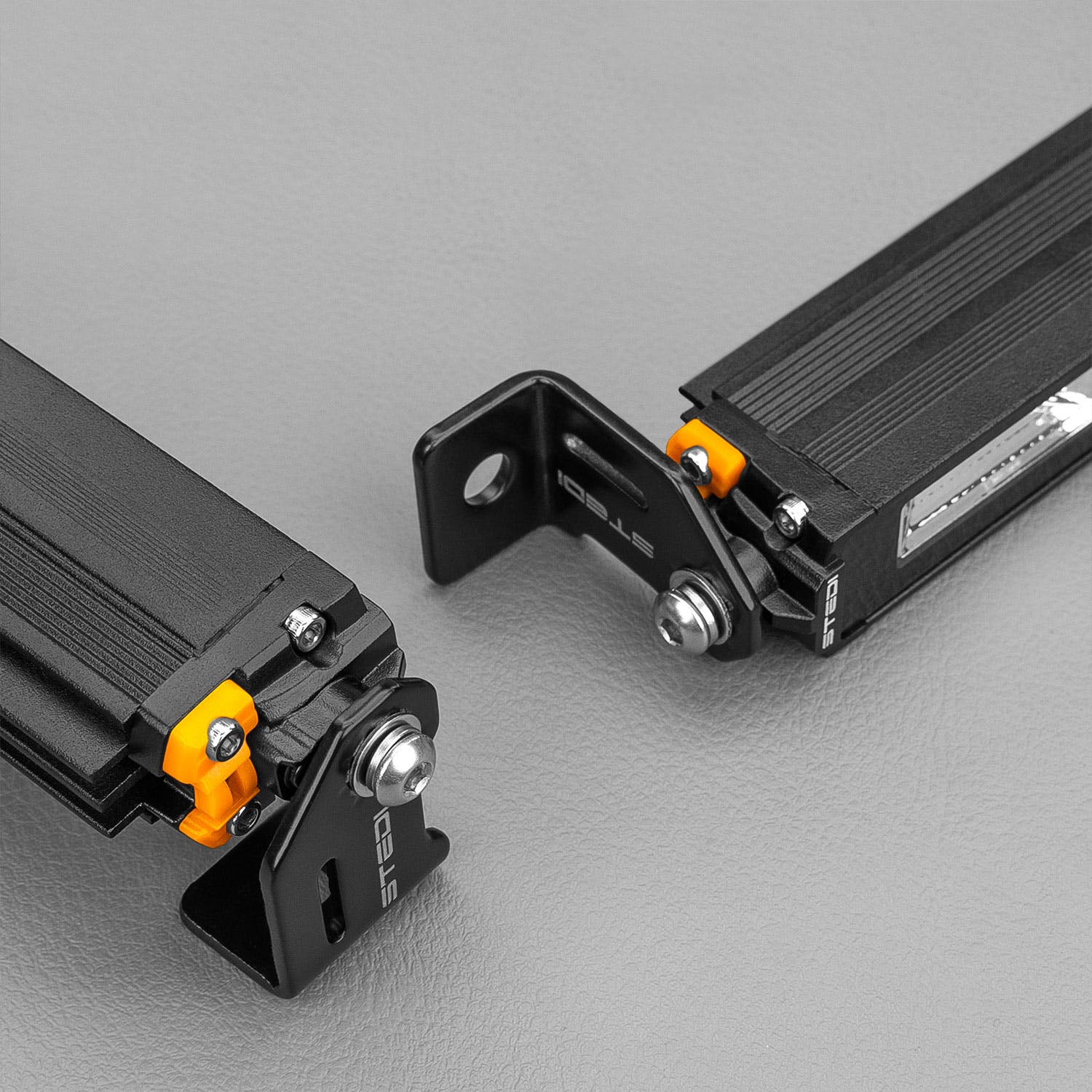

MOUNTING BRACKET	304# Stainless Steel
LIFETIME	30,000hrs
SIZE (mm)	665 x 25 x 15
WEIGHT	0.8kg
CABLE LENGTH	400mm
CERTIFICATION	CISPR25
