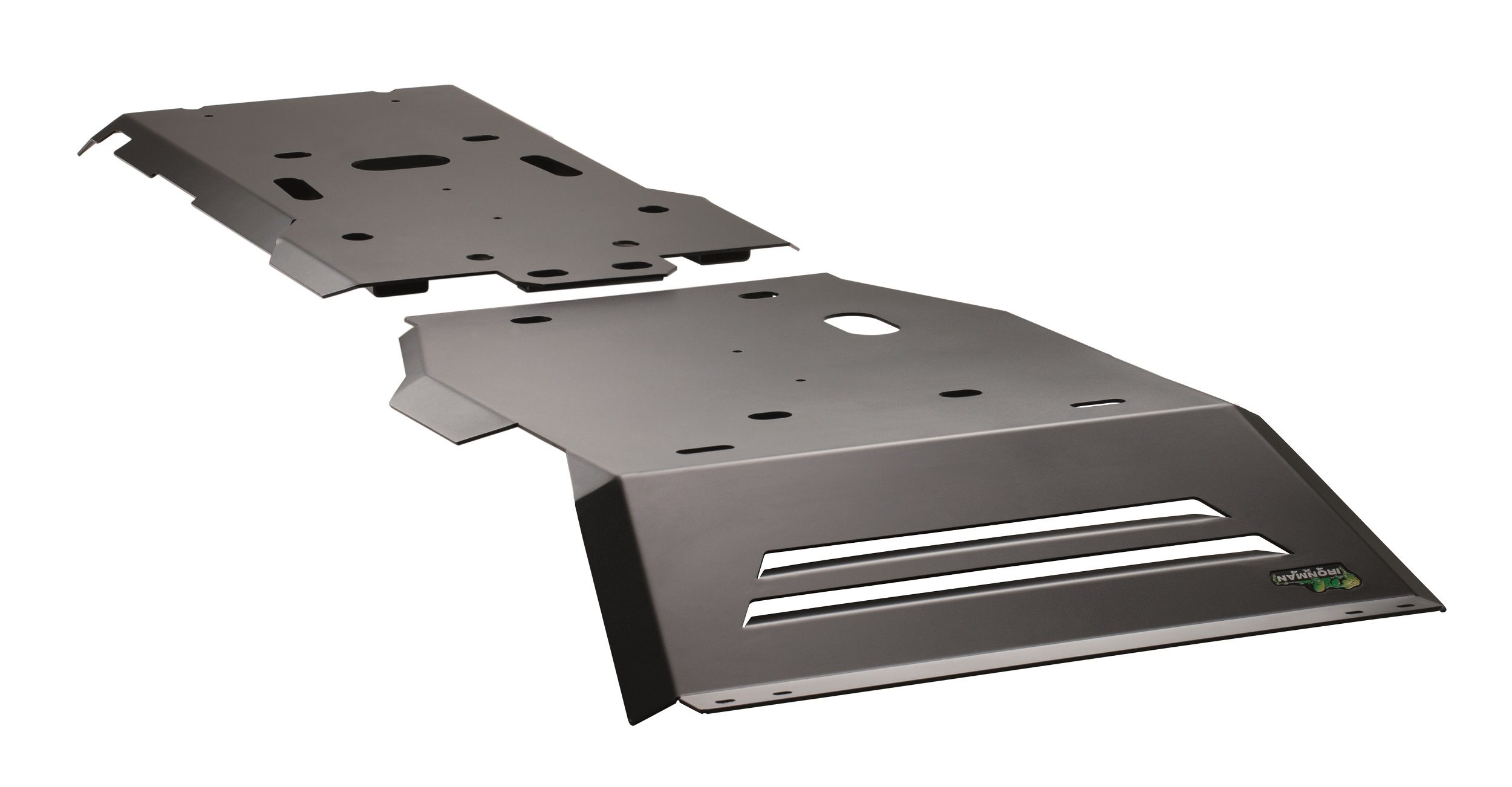

The premium underbody protection solution to safeguard against offroad damage from rocks, stumps and ground strike.

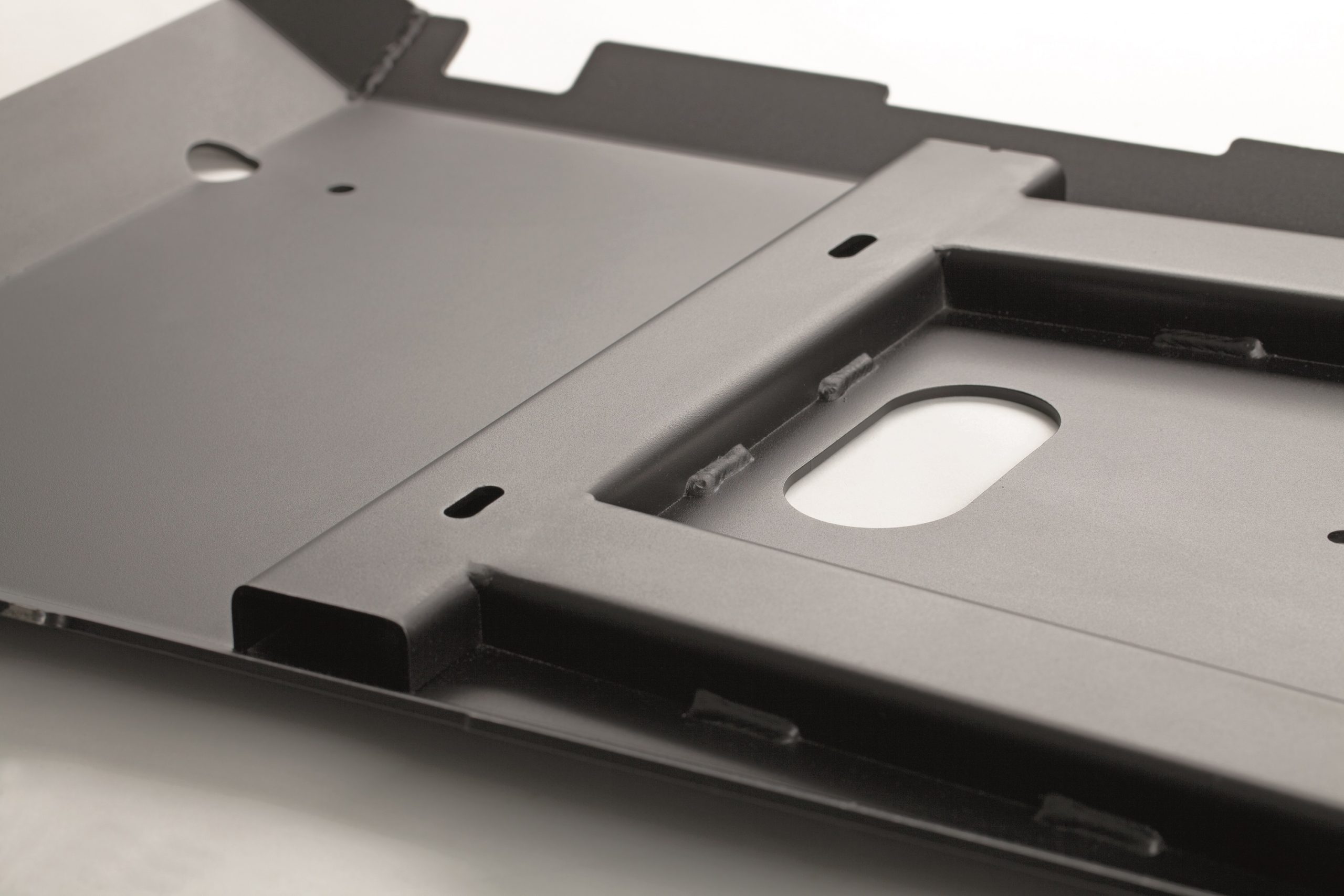

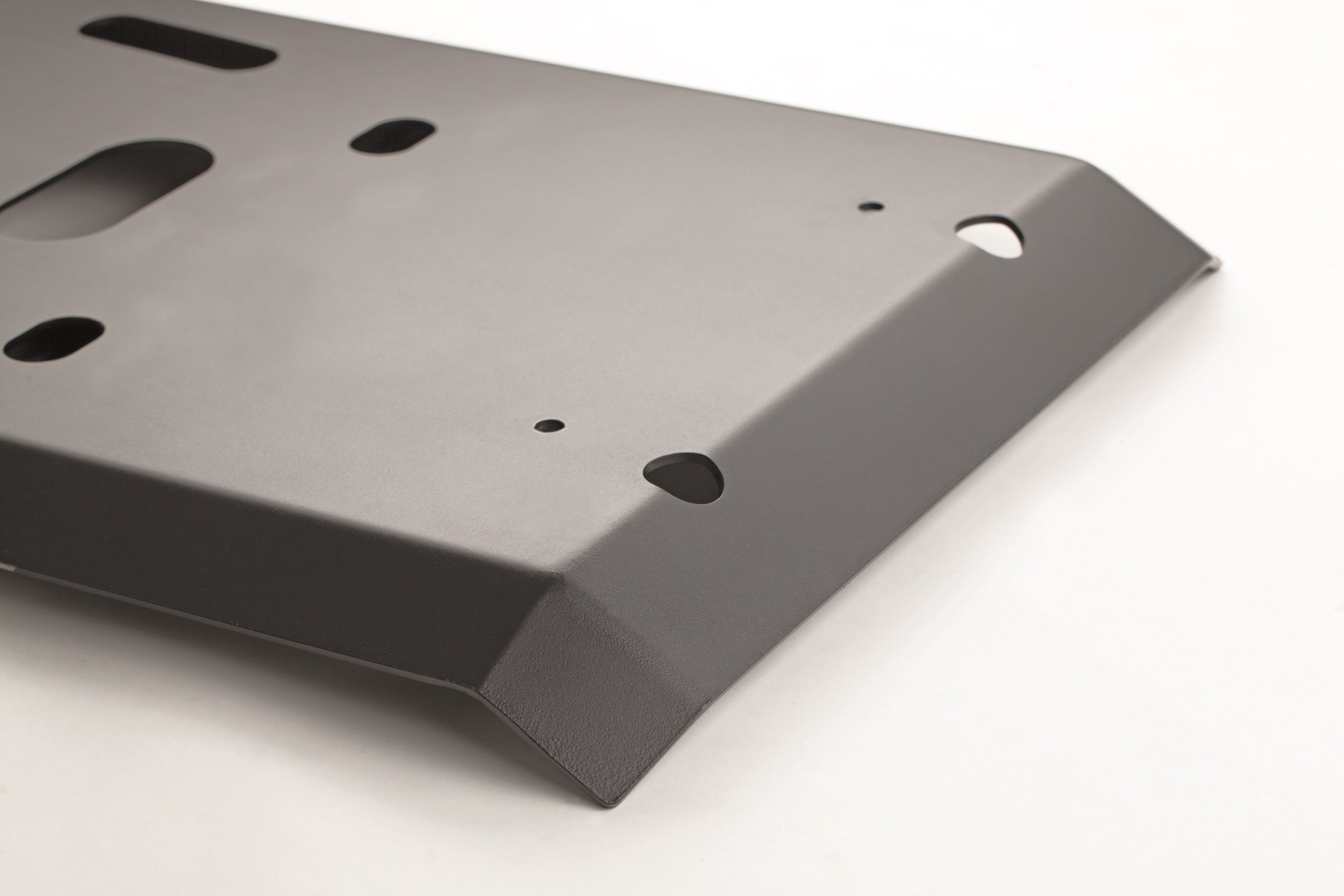

FABRICATED 4mm STEEL
Construction is up to 5x more impact and penetration resistant*
*(Than original 1.5mm pressed construction).
Design gives strength in most common strike zones, reducing plate deformation and deflecting force into load bearing elements.

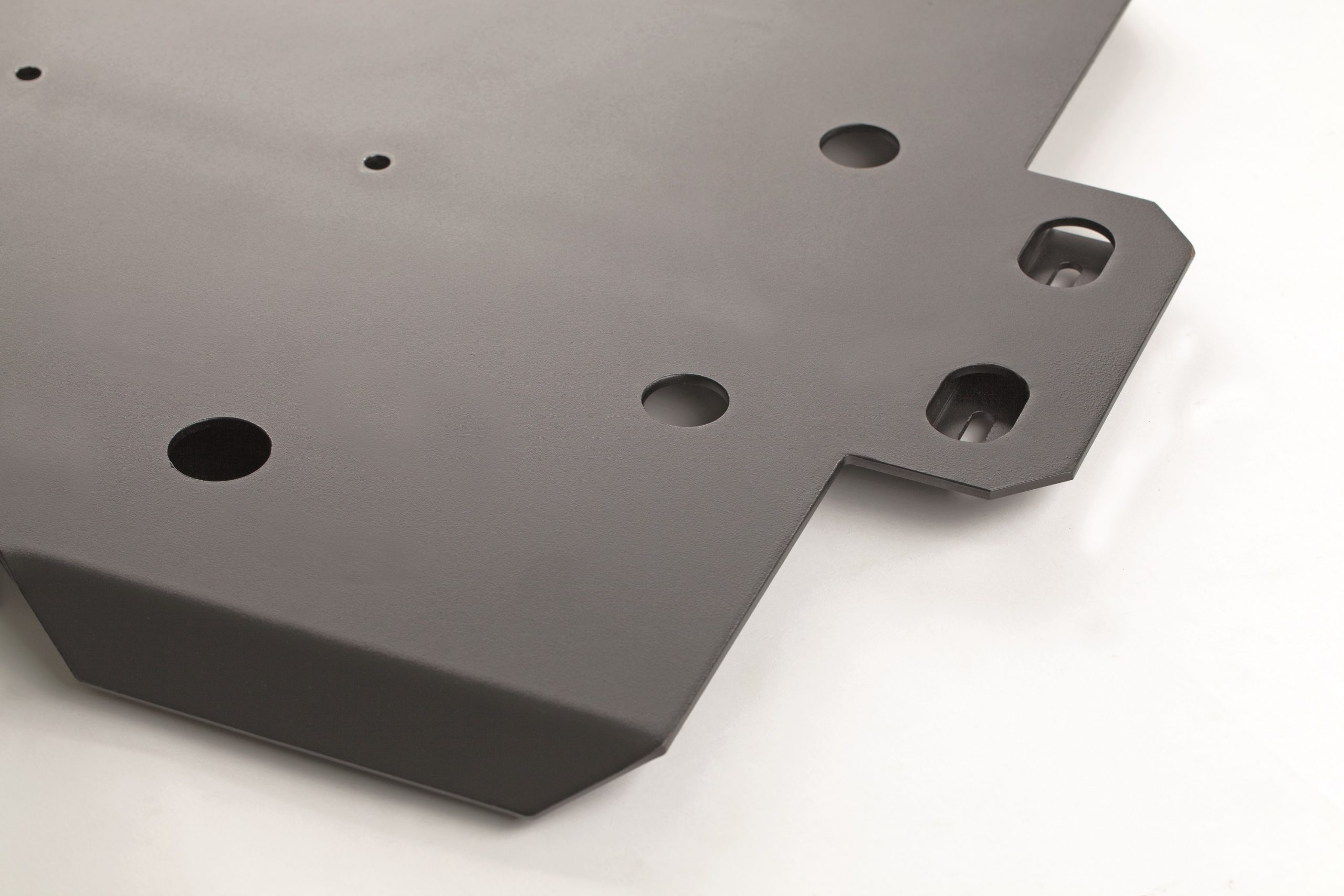

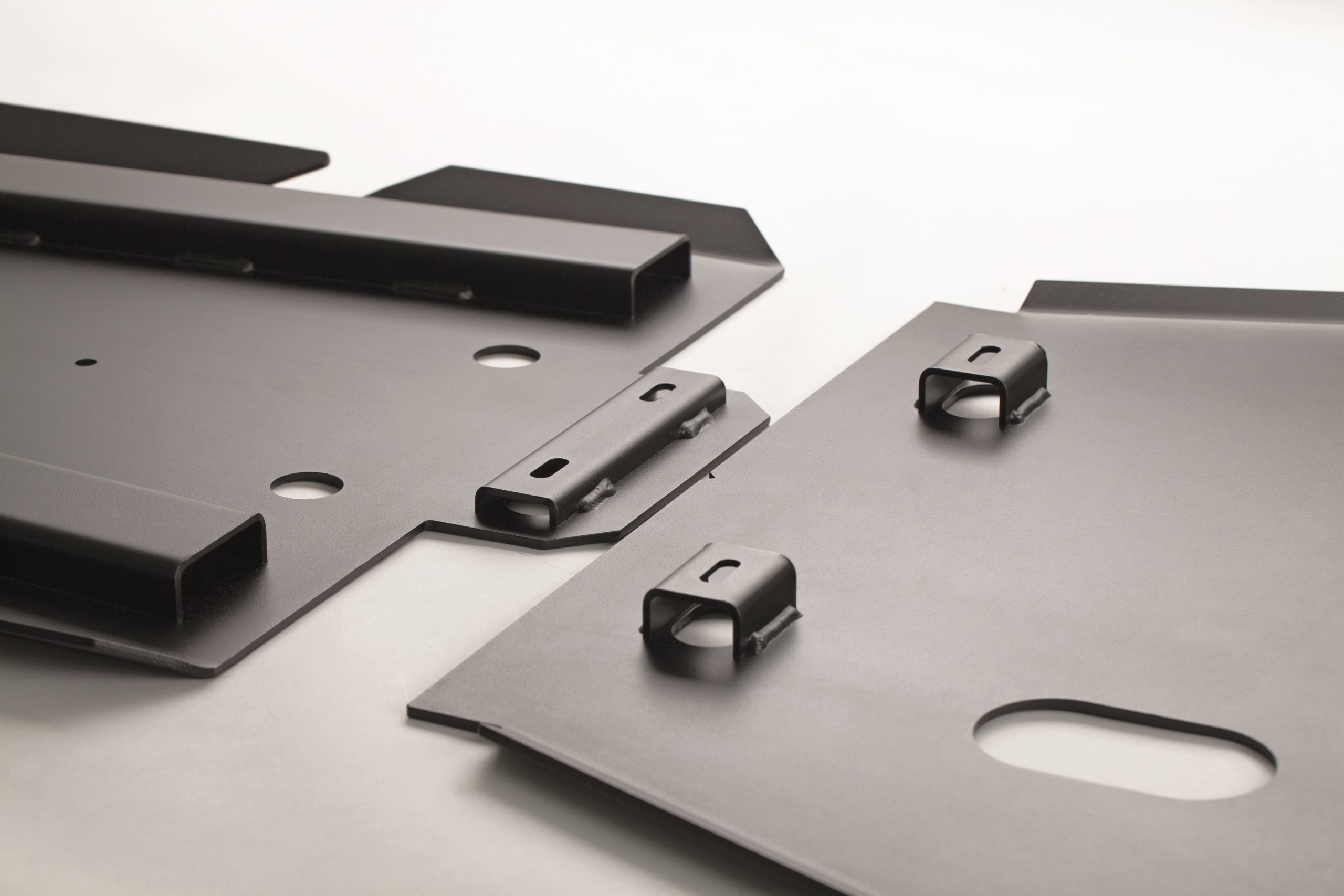

Fully recessed high tensile mounting hardware protects all fasteners from damage and removes catch points resulting in a smooth skid-over surface.
3X MORE COVERAGE AREA

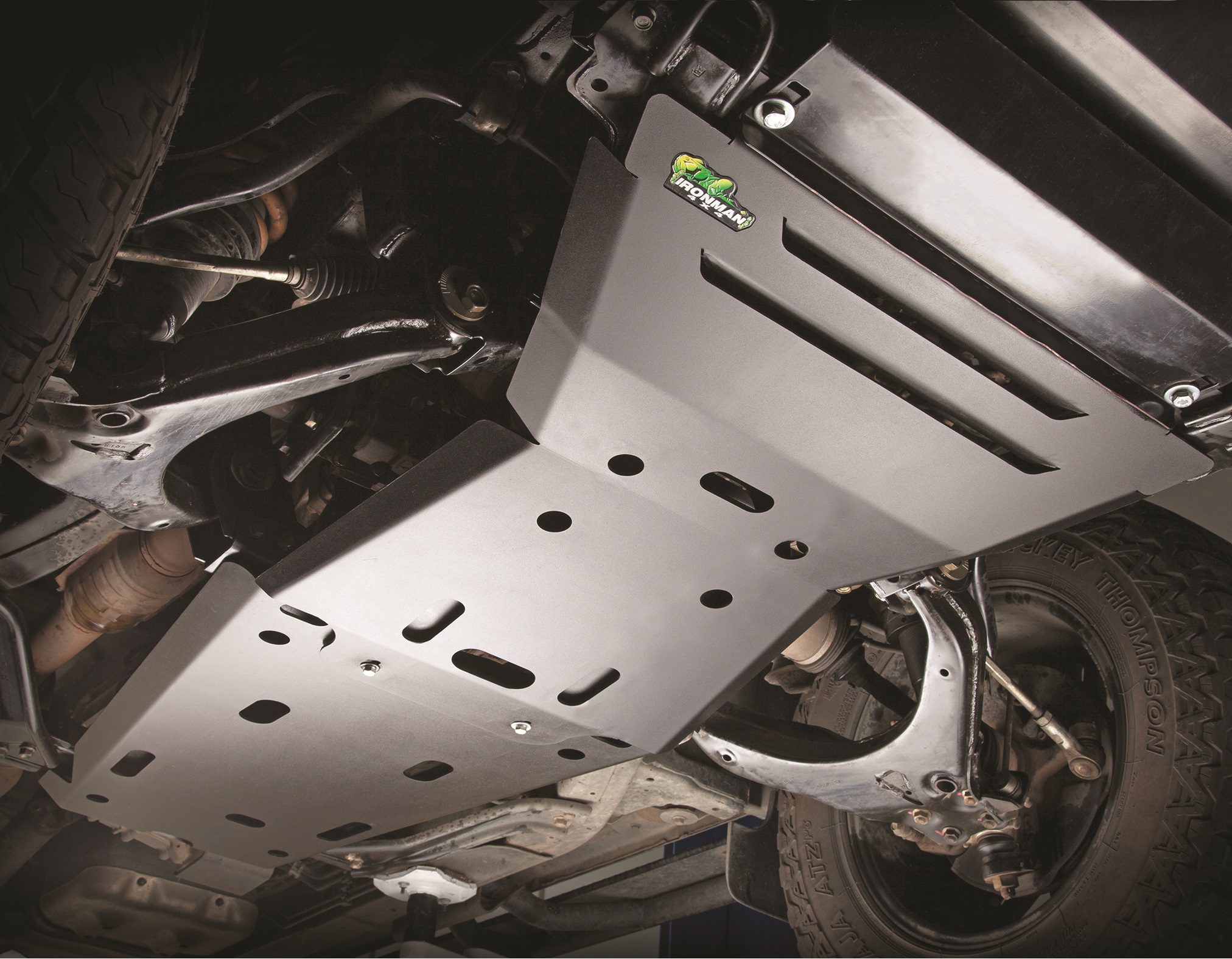

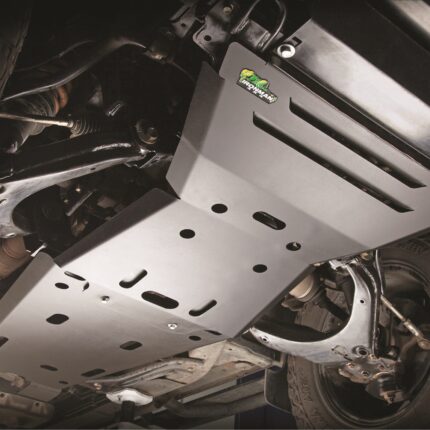

Over 3x more coverage than original protection plates. Radiator, Steering, Engine and Transmission.
TEXTURED POWDER COAT FINISH AND ANTI-CORROSION COATING
EDP E-Coat layer helps resist corrosion following impact strike, finished in a textured black powder coating.
SERVICE INSPECTION HOLES
Service inspection holes (where appropriate) allows for easy inspection and access during routine maintenance. (Ironman 4×4 recommends to remove protection plates when draining fluids)
- Isuzu, D-Max, 2019
- Isuzu, D-Max, 2018
- Isuzu, D-Max, 2017
- Isuzu, D-Max, 2016
- Isuzu, D-Max, 2015
- Isuzu, D-Max, 2014
- Isuzu, D-Max, 2013
- Isuzu, D-Max, 2012
