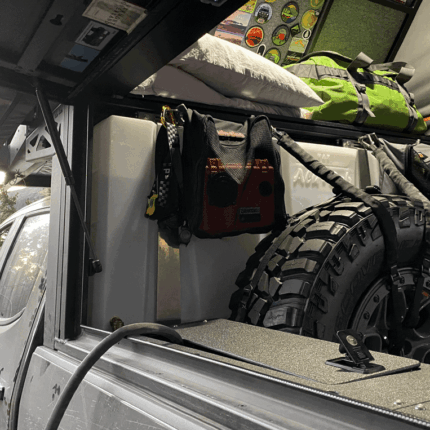

WATER TANK 50L
- Made from LLDPE (Linear Low Density Polyethylene) which complies with FDA regulation 21 CFR 177.1520 for food contact applications.
- The water tank has a clearly marked maximum water level indicator, which coincides with the filling point, using a screw type cap. This ensures that the tank cannot be overfilled.
- The tank has four (4) Brass 1/2″ BSP Female ports, one in each corner to suit the requirements of the end user. Three (3) male plugs are also included in the kit, for the unused ports.
- Our water tank is supplied with stainless steel mounting brackets, a breather assembly with all pipes and fittings, as well as, all outlet fittings and a lockable tap.

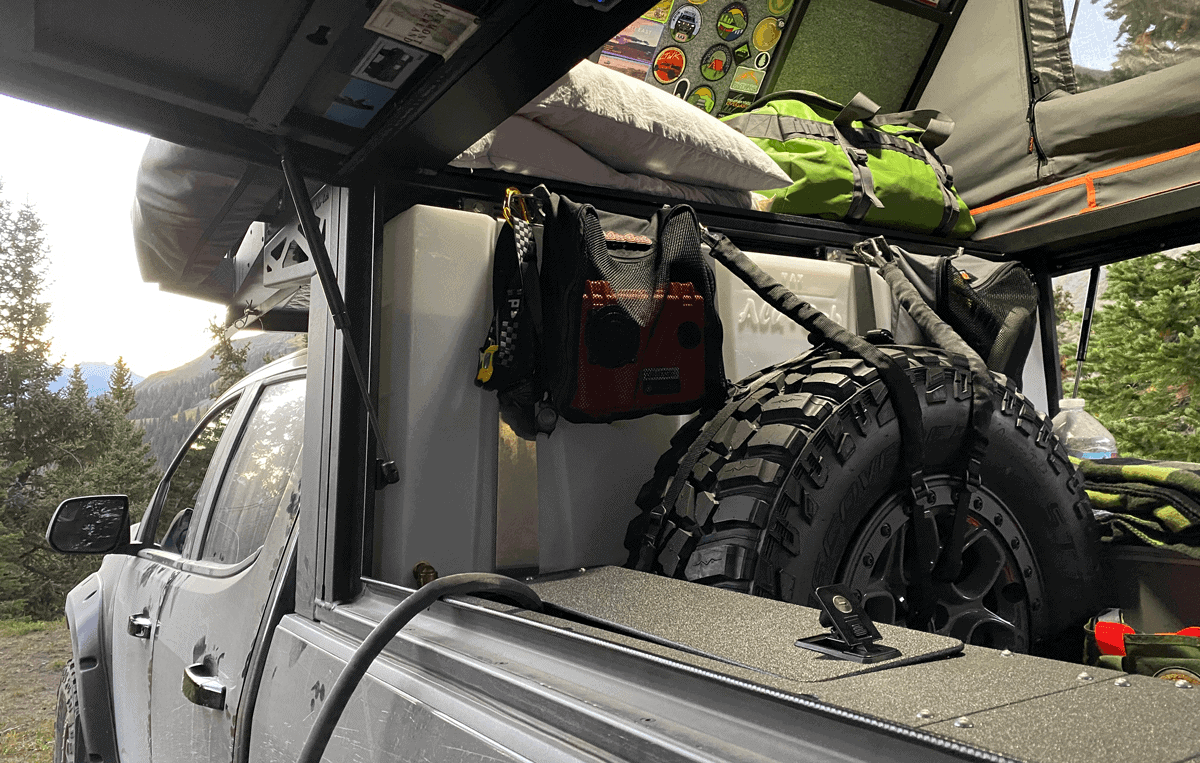

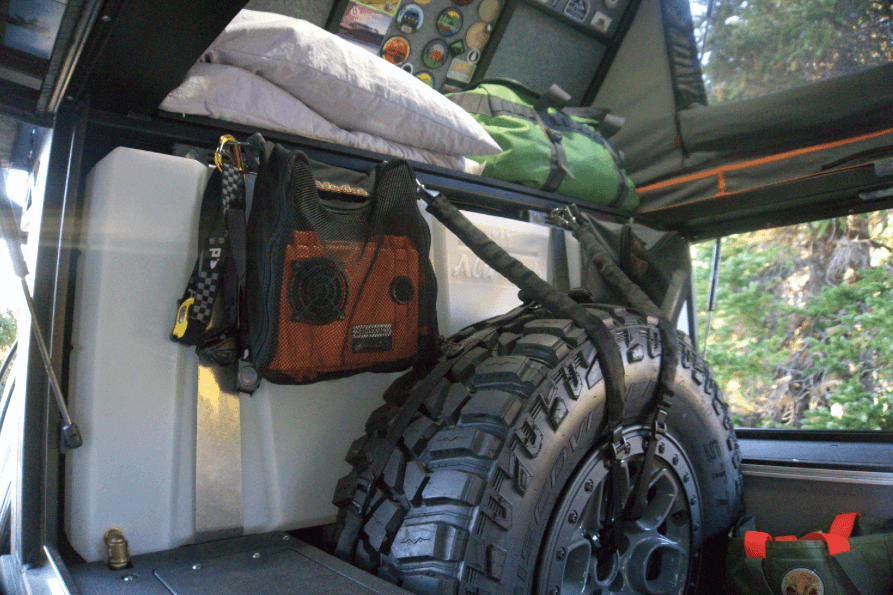

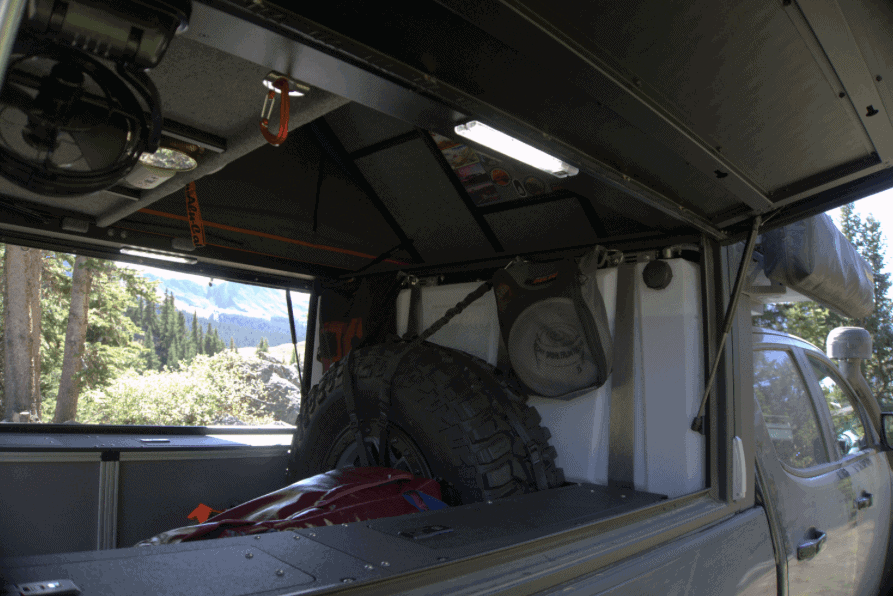

The Alu-Cab water tank is a 50 litre water tank, designed to mount internally, upfront, in both the DC, XC, and LC Canopy Camper Units. With the full-size Alu-Cabin water tank adapter kit, the water tank is now able to be mounted to the Alu-Cabin Camper.
MASSES & DIMENSIONS:
|Water Tank (Empty)||9,50|
|Water Tank (Full)||59,50|
|Complete Assembly without bags (Empty)||20,50|
|Complete Assembly with bags (Empty)||24,00|
|Complete Assembly without bags (Full)||70,50|
|Complete Assembly with bags (Full)||74,00|
|Water Tank – Length||1468|
|Water Tank – Width||105|
|Water Tank – Height||520|
|Complete Assembly – Length||1468|
|Complete Assembly – Width (with empty bags)||± 145|
|Complete Assembly – Width (without bags)||± 135|
|Complete Assembly – Height||665|
